Description
- Ultra-Compact 12G-SDI Reclocking DA
- Auto-Selectable Input, Dual Outputs
- DCI 4K Extension up to 246' (1694A)
- 722' 3G-SDI / 1740' SD-SDI Extension
- AC Adapter Included

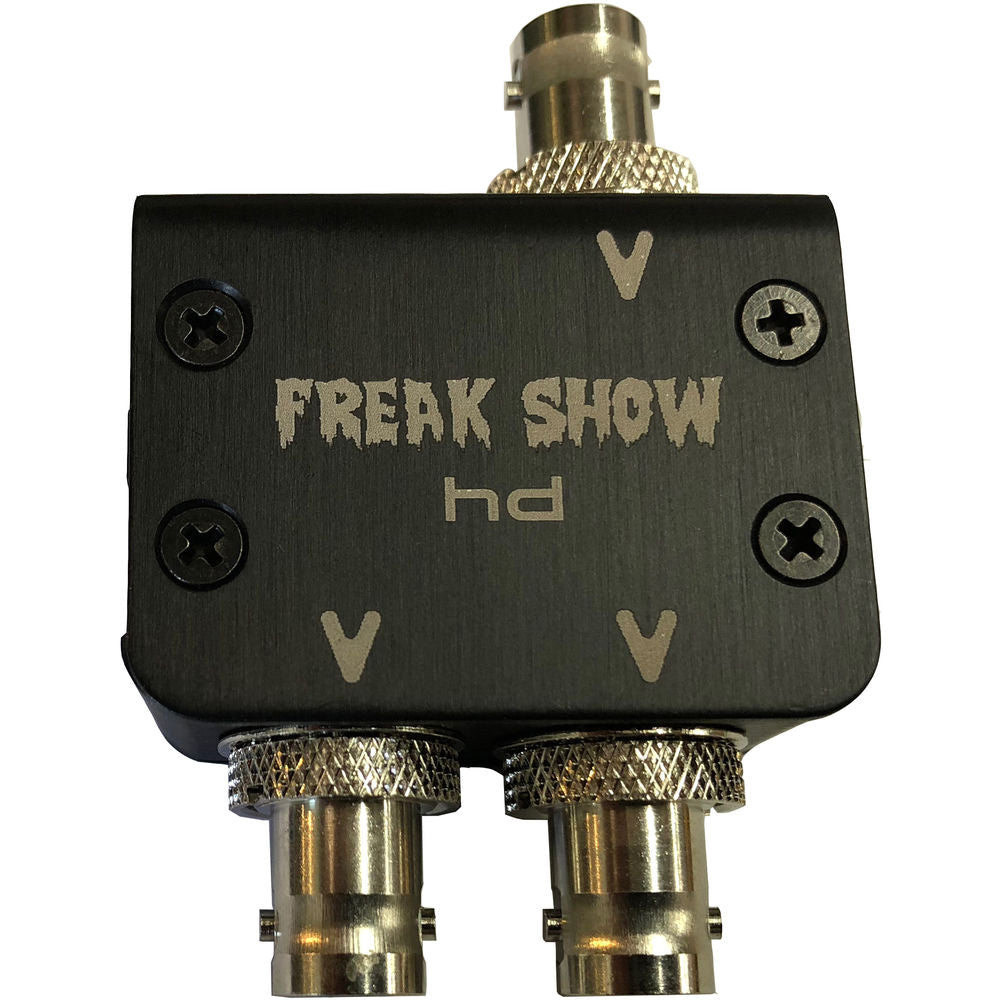

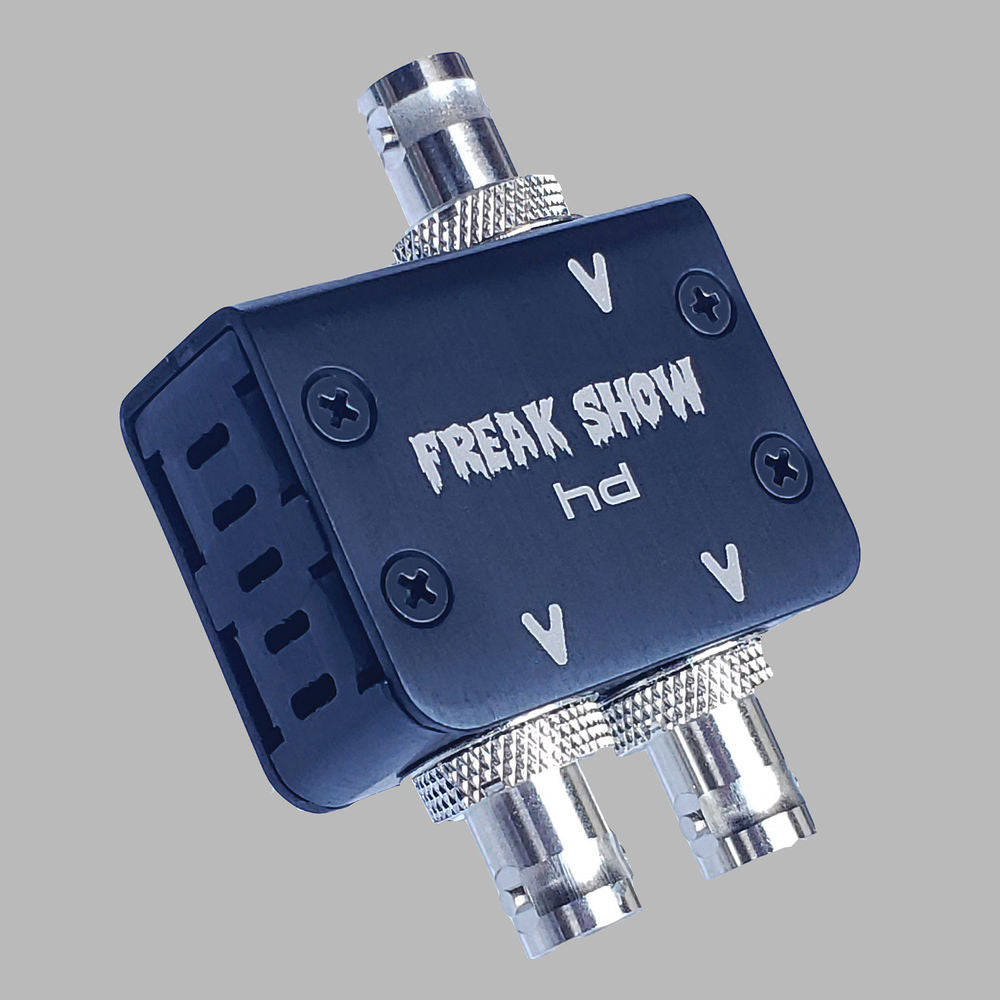

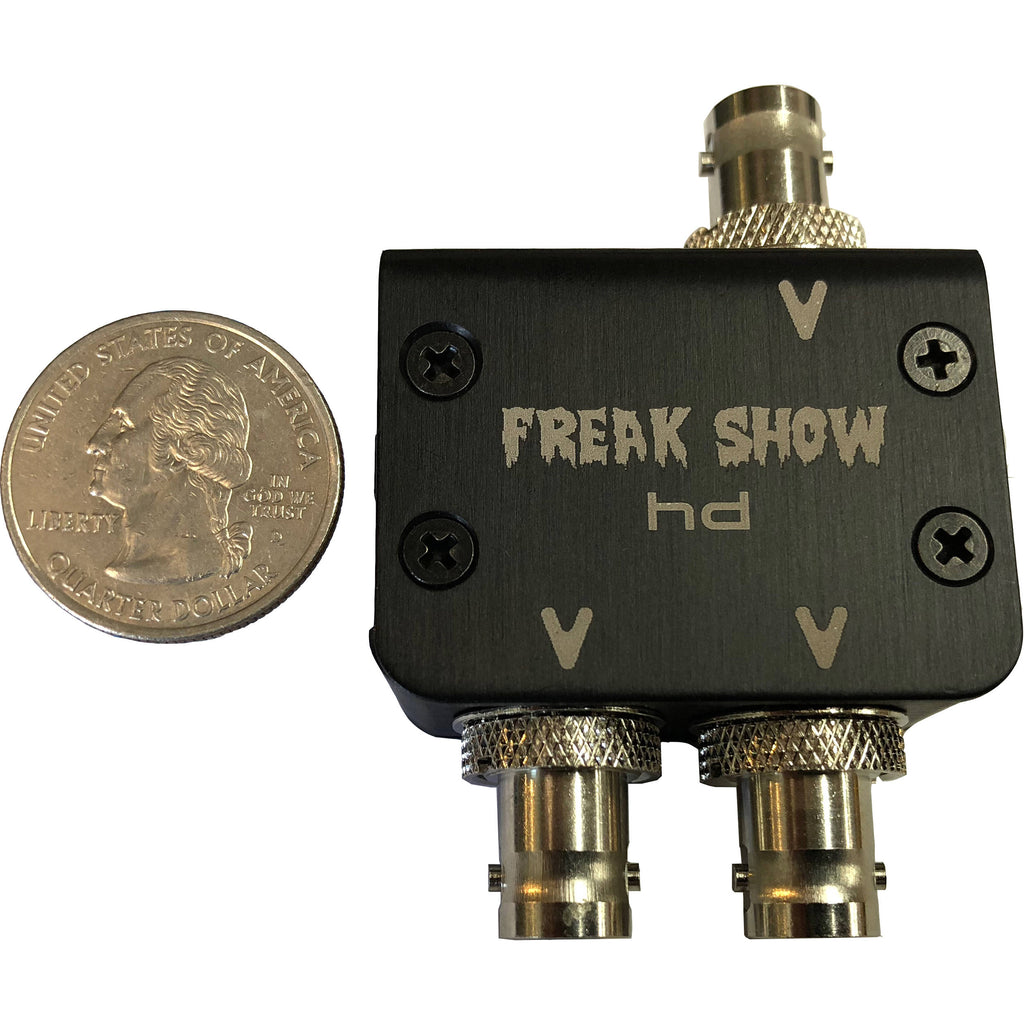

The 4K 12G-SDI Microsplit DA with Standard Freakshow Power Connector from Freakshow HD is an ultra-compact reclocking distribution amplifier with a single 12G-SDI input and matching dual SDI outputs. Using Belden 1694A cables, the Microsplit is capable of extending a DCI 4K signal up to 246' via the dual outputs over 12G-SDI. Extensions over 6G-SDI run up to 328', 3G-SDI up to 722', HD-SDI up to 870', and SD-SDI up to 1740'. An included AC adapter features a U.S. wall plug on one end and standard Freakshow power connector on the other.
- Key Features
-
- Robust, ultra-compact 12G-SDI reclocking DA
- Auto-selectable input, dual outputs
- DCI 4K extension up to 246' using Belden 1694A cables
- 722' 3G-SDI / 1740' SD-SDI extension
In the Box
Freakshow HD 4K 12G-SDI Microsplit DA with Standard Freakshow Power Connector
Freakshow HD Microsplit specs
| Input | 12G/6G/3G/HD/SD-SDI (auto-selectable): 1 x BNC (SMPTE-424, SMPTE-292, SMPTE-259) |
| Outputs | 12G/6G/3G/HD/SD-SDI (with equalization and reclocking): 2 x BNC (SMPTE-424, SMPTE-292, SMPTE-259) |
| Power Connector | 1 x Standard Freakshow power connector |
| Cable Distances | Using Belden 1694A Cable (Belden 1505 allows half the distance): 246' / 75 m via 12G-SDI 328' / 100 m via 6G-SDI 722' / 220 m via 3G-SDI 870' / 265 m via HD-SDI 1740' / 530 m via SD-SDI |
| Input Return Loss | -8 dB at 12G, -9 dB at 6G, -13 dB at 3G, -18 dB at HD/SD |
| Output Return Loss | -6 dB at 12G, -8.5 dB at 6G, -15 dB at 3G, -23 dB at HD/SD |
| Packaging Info | |
|---|---|
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 8.3 x 6.8 x 2.4" |
