Description
Freakshow HD FBTX-O Overview

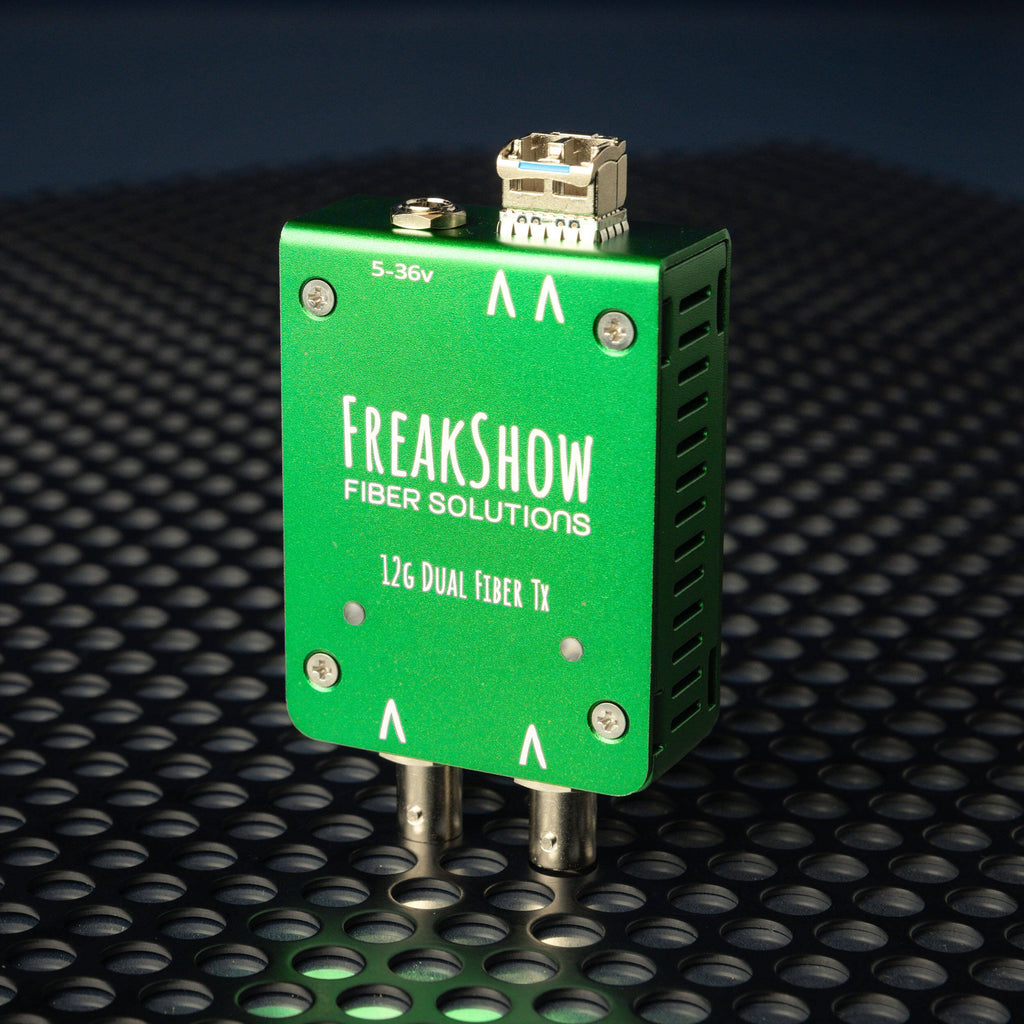

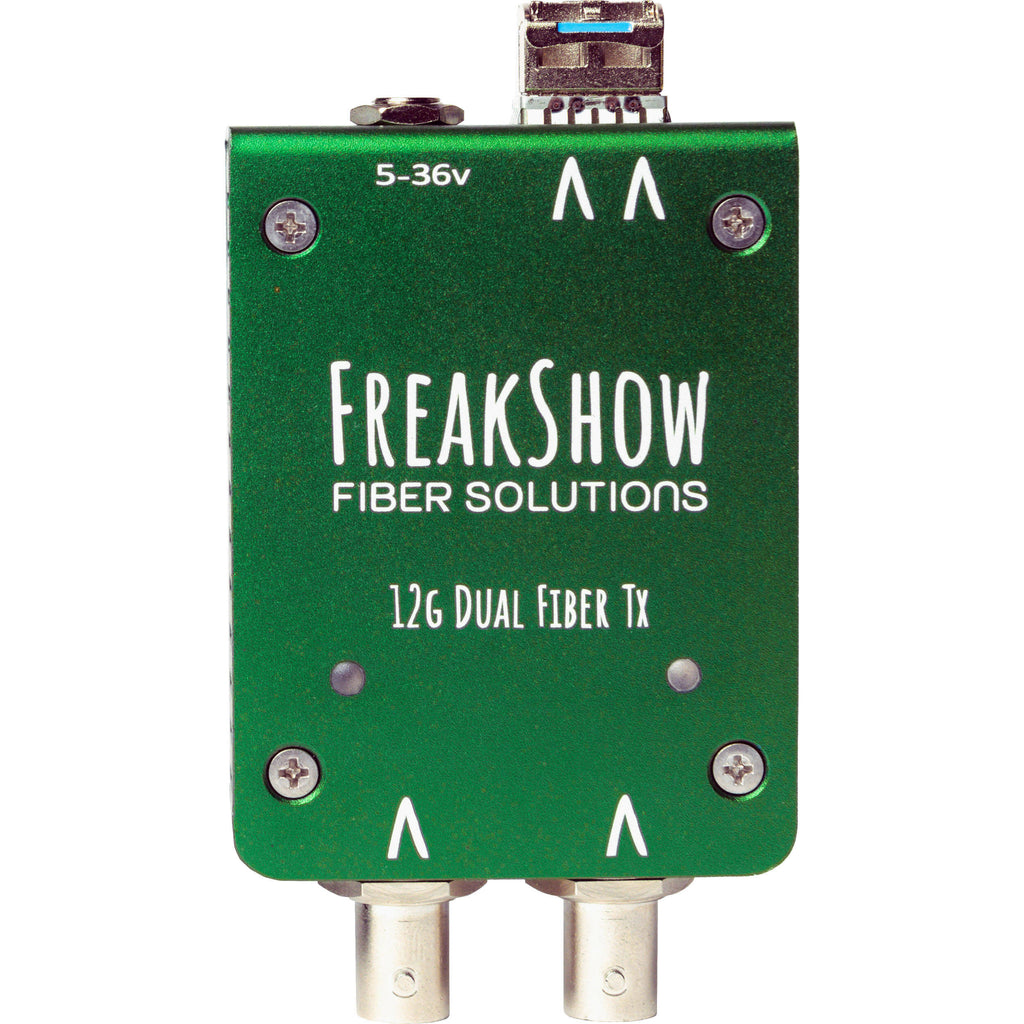

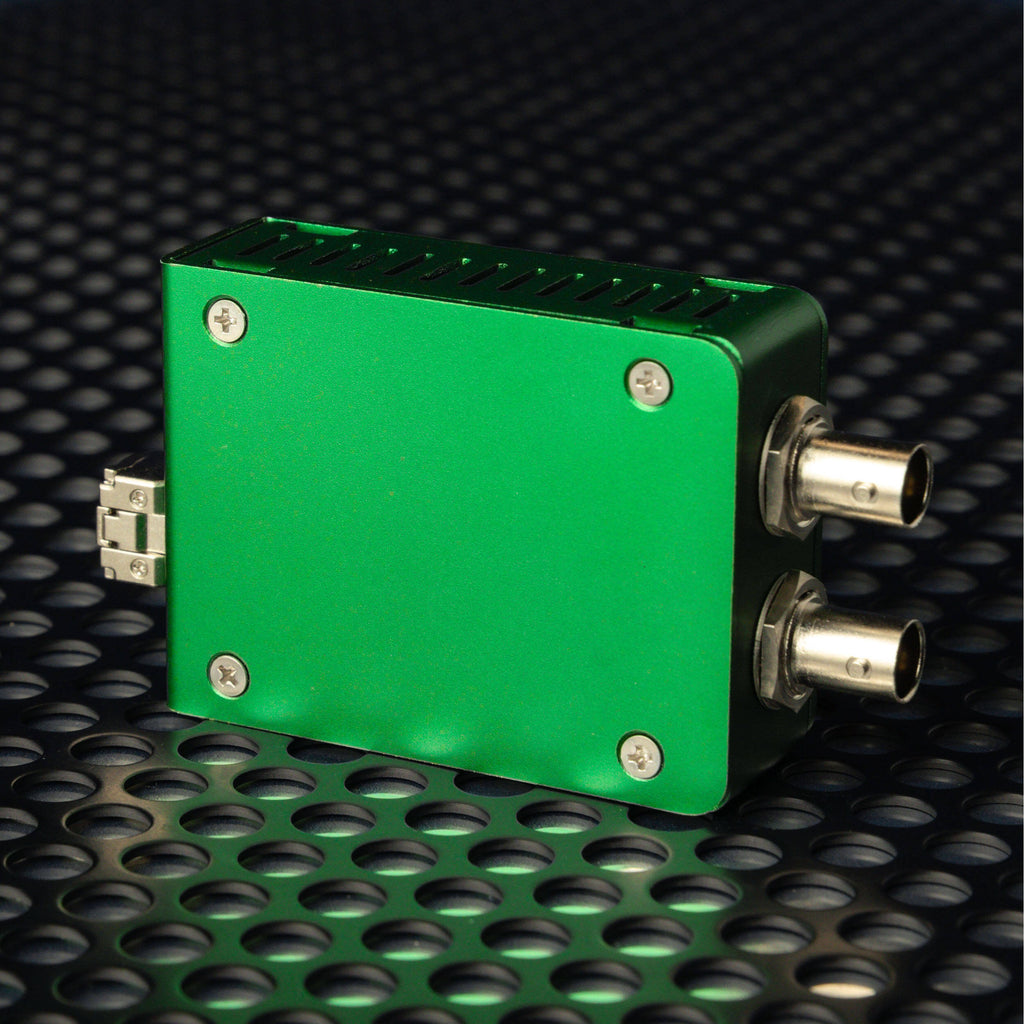

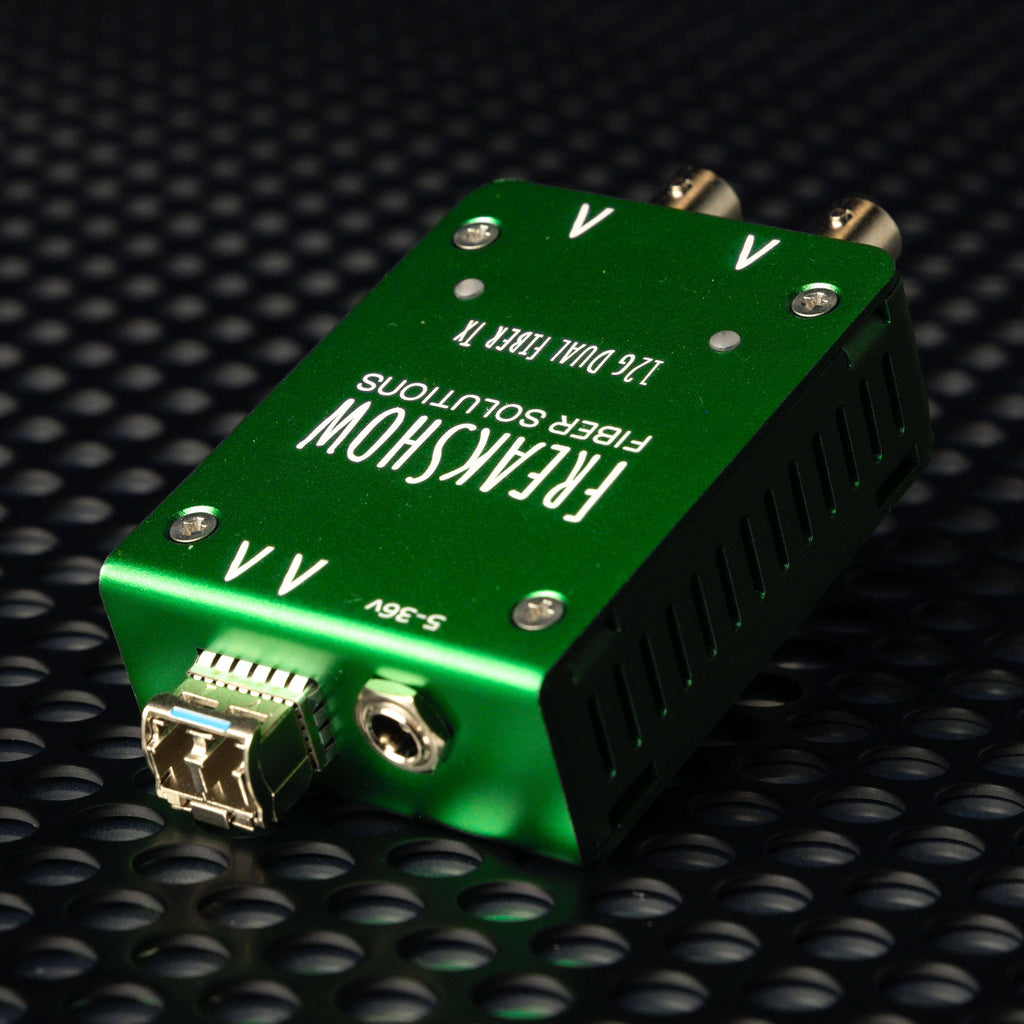

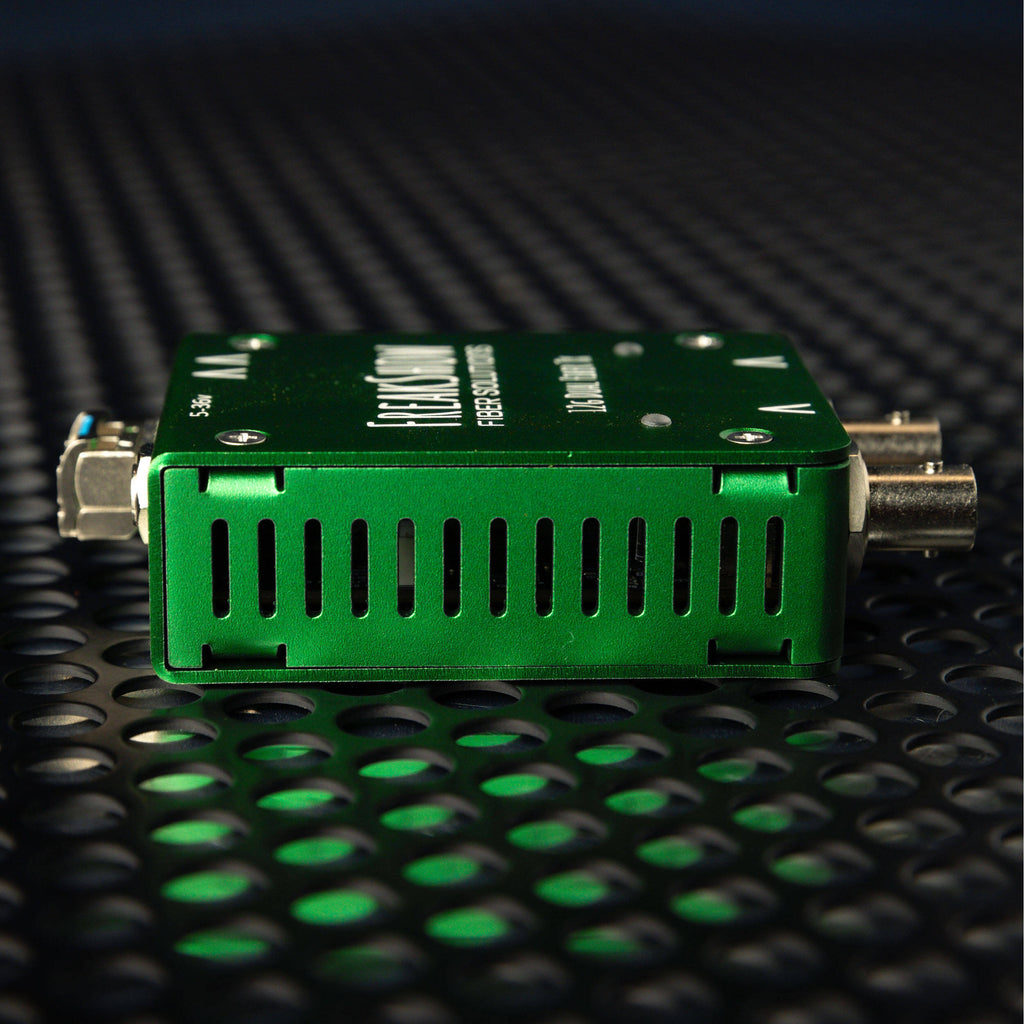

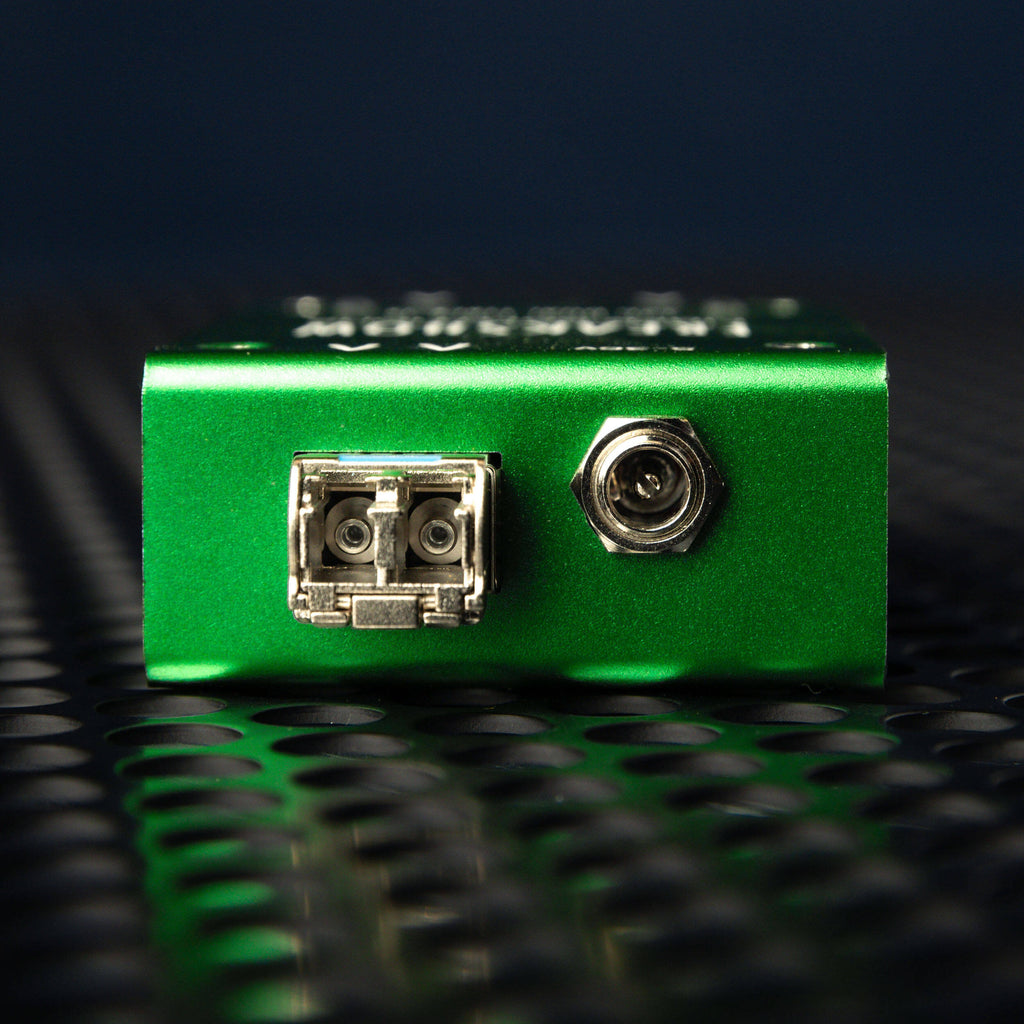

Simultaneously transmit up to two discrete 12G-SDI signals over single mode fiber cable with the Freakshow HD 12G-SDI Dual SDI to Fiber Transmitter with DC Barrel Power Connector. This low-power consumption transmitter features a DC barrel power connector for quick disconnects at wrap. The transmitter re-clocks the BNC SDI inputs, and converts the signal to fiber, transmitting it up to 6.2 miles. You will need a receiver at the other end to decode the fiber signal and output SDI video.
In the Box
- Freakshow HD 12G-SDI Dual SDI to Fiber Transmitter with DC Barrel Power Connector
Freakshow HD FBTX-O Specs
Interfaces
| Inputs |
2x BNC (12G-SDI)
|
| Outputs |
2x LC (Fiber)
|
Standards
| Video Standard Compliance |
SMPTE 259M/292M/297M/424M/ST-2081/ST-2082
|
| Reclocking |
Yes
|
| Max Transmission Distance |
6.2 Miles / 10 km (via Single-Mode Fiber)
|
| Supported Cable Types |
Single-Mode Fiber
|
| Fiber Center Wavelength |
1310 nm
|
Power
| Power I/O |
1x Barrel (5 to 36 VDC) Input
|
Environmental
| Operating Temperature |
32 to 158°F / 0 to 70°C
|
General
| Certifications |
RoHS
|
| Dimensions |
3.7 x 2.2 x 1" / 9.3 x 5.6 x 2.54 cm
|
Packaging Info
| Package Weight |
0.92 lb
|
| Box Dimensions (LxWxH) |
9 x 7.1 x 2.5"
|
