FotodioX WonderPana FreeArc XL Essential ND16 + 0.6 Hard-Edge ND Kit

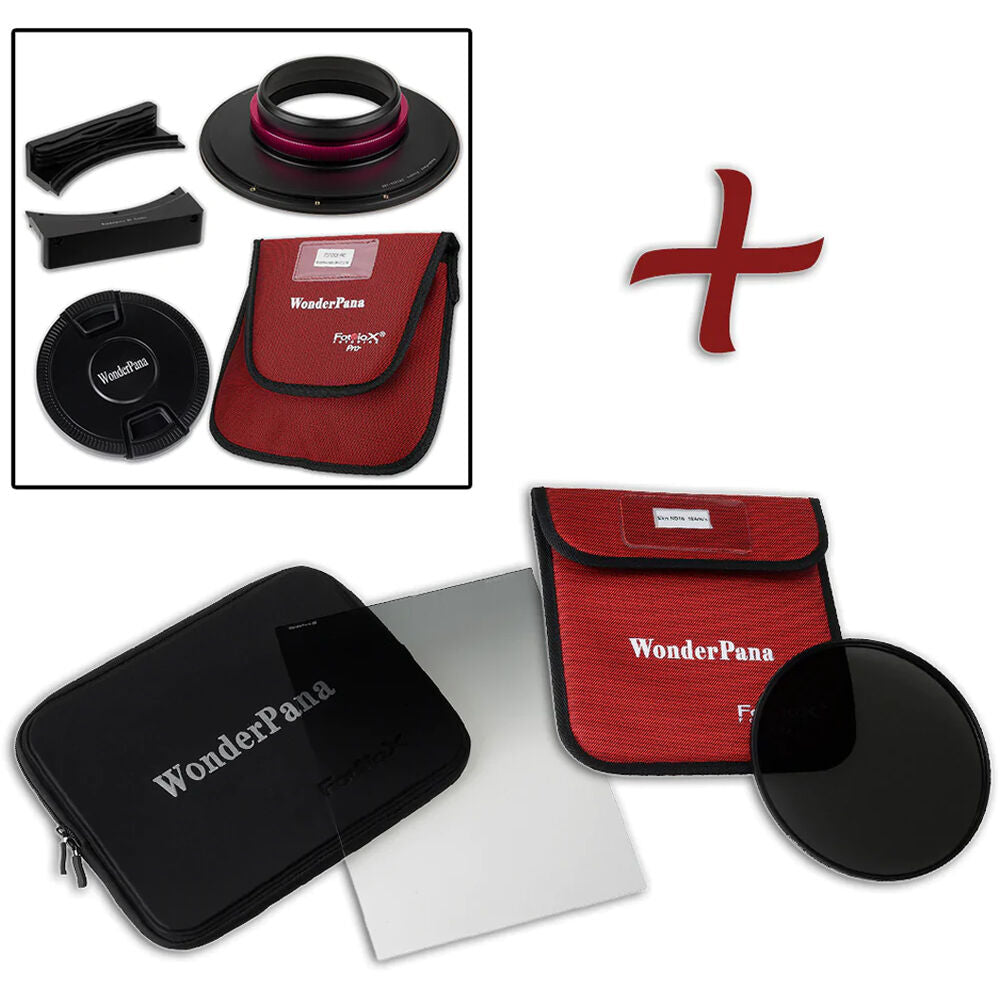

This Wonderpana XL FreeArc Core Filter Holder Kit from FotodioX includes a WonderPana FreeArc XL Core Unit designed to specifically fit the Sony FE 12-24mm f/2.8 GM lens, as well as a WonderPana 8" Holder Bracket. Those items can be combined to allow for the convenient use of two 2mm thick filters measuring 7.9" wide, or one 2mm thick filter measuring 7.9" wide along with one FotodioX 186mm round filter behind it.

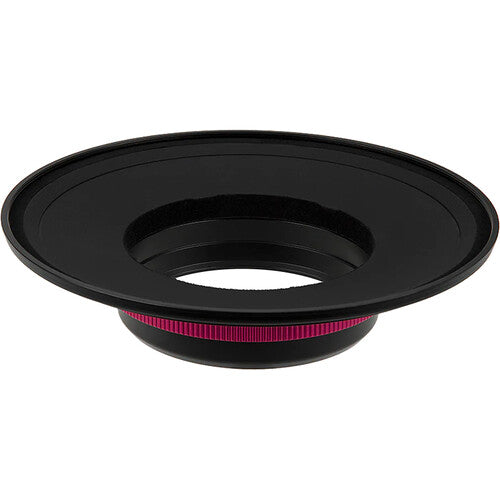

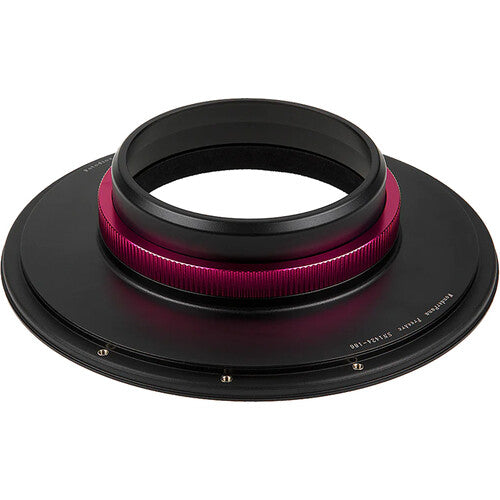

The WonderPana FreeArc XL Core Unit consists of two components, a front filter holder and a rear lens collar. Placement of this FreeArc XL Core Unit onto a Sony FE 12-24mm f/2.8 GM lens is easily accomplished by sliding the rear lens collar over the rear of the lens until it has achieved a secure fit. Afterward, the front filter holder can be screwed onto the front of the installed rear lens collar.

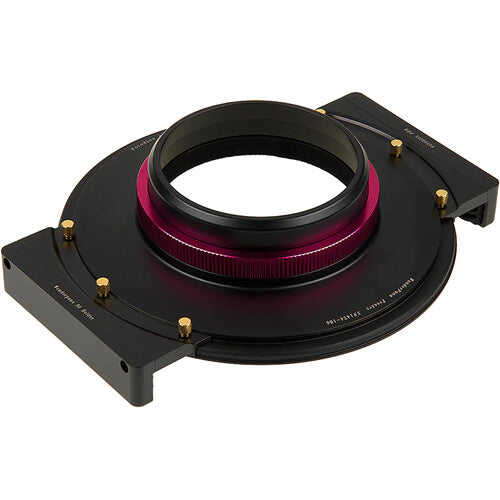

To use the WonderPana 8" Holder Bracket with the Sony FE 12-24mm f/2.8 GM lens, pre-tapped threaded inserts along the edge of the front filter holder accommodate six of that holder bracket's eight included brass short-screws. Those screws ensure that a WonderPana 8" Holder Bracket's two assembly pieces are positioned parallel to each other and can hold a 7.9" wide filter between them. Once the holder bracket and the front filter holder are combined and the separate collar has been slid over the rear of a Sony FE 12-24mm f/2.8 GM lens, the front filter holder with attached holder bracket can be screwed onto the installed rear lens collar.

After being fitted onto a Sony FE 12-24mm f/2.8 GM lens, the bearing design of this WonderPana FreeArc XL Core Unit allows a WonderPana 8" Holder Bracket to rotate 360°. This permits the use of graduated neutral density and other filters enhanced by varied positioning.

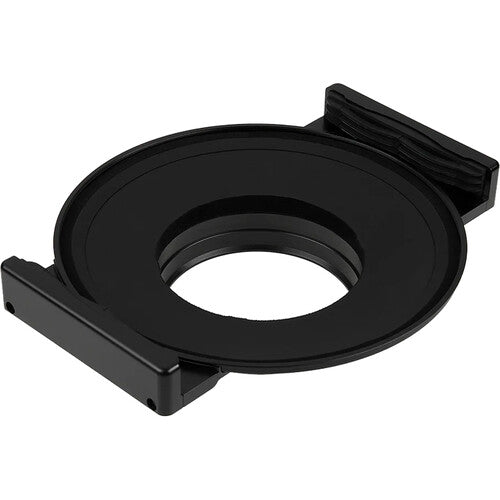

The FotodioX WonderPana 8" Holder Bracket provides two pairs of filter slots, a configuration that accommodates two compatible rectangular filters. For each rectangular filter placed within one of the holder bracket's slots, its position is secured by integrated guides within each slot. These guides apply pressure along both sides of a filter that is sufficient to hold it in place but permits movement of that filter. This can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

This FotodioX WonderPana FreeArc XL Core Unit includes front filter threads, which allow a FotodioX 186mm round filter to be used along with the holder bracket. If a 186mm round filter is used on the attached WonderPana FreeArc XL Core Unit, the rectangular filter slot closest to the rear of the holder bracket becomes unavailable. The WonderPana 8" Holder Bracket features a durable and lightweight aluminum alloy construction with a corrosion-resistant, black-anodized finish.

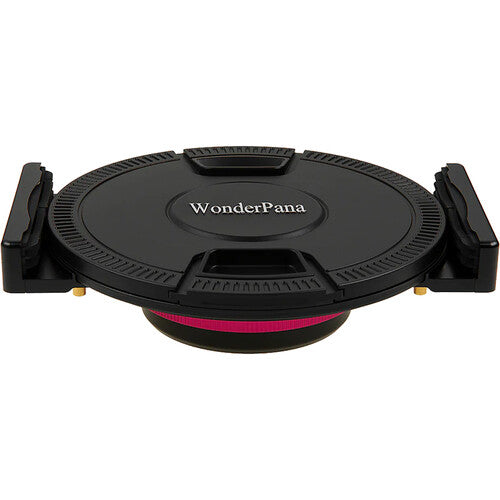

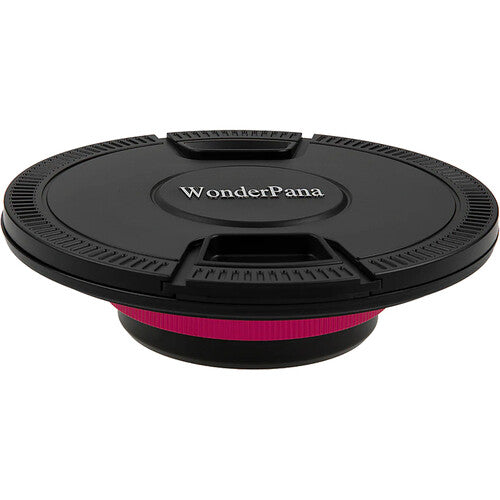

The FotodioX 186mm Center-Pinch Snap-On Lens Cap for select WonderPana systems and filters is a 186mm front lens cap with a squeeze, spring, and snap-on mechanism. It is easy to install as well as remove and can attach to a WonderPana FreeArc XL filter holder system to protect the front element of a lens that any one of those systems is mounted on. Additionally, this lens cap can be used to protect a non-ultraslim FotodioX WonderPana 186mm filter mounted on a FotodioX WonderPana FreeArc XL filter holder system, with no other filter placed in front of it. Lens caps protect your lens or filter from scratches, fingerprints, and the elements when the lens or filter is not in use.

The FotodioX 7.9 x 10.2" Hard-Edge Graduated Neutral Density 0.6 Filter is a filter designed for use with the WonderPana 80 and FreeArc XL filter holder systems. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is particularly useful for images that feature horizons, or any hard transition between the sky and land. Neutral density filters do not affect the coloration of the image and this filter provides up to a 2-stop reduction in light from entering a lens.

This filter is made of durable, optical resin (CR39) and measures 4mm thick. A carrying pouch is also included with the filter.

The FotodioX 186mm Slim ND 1.2 Filter is an ND filter with a 16x filter factor that provides a 4-stop exposure reduction and is compatible with FotodioX WonderPana FreeArc XL filter holder systems. Its 1.2 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.

This filter is constructed from optical glass for clarity as well as color fidelity and features a lightweight, slim, aluminum-alloy filter ring to minimize the potential for vignetting. A separately-available FotodioX 186mm Center-Pinch Snap-On Lens Cap can be used to protect the front of a FotodioX 186mm Slim ND 1.2 Filter that is placed in front of a lens.

FotodioX Wonderpana XL FreeArc Core Filter Holder Kit for Sony FE 12-24mm f/2.8 GM Specs

FotodioX 7.9 x 10.2" Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) Specs

FotodioX 186mm Slim ND 1.2 Filter (4-Stop) Specs
