FotodioX LM-NKZ-PRN Overview
-
1Description
-
2Fn Button, Supports AF-S and AF-C Mode and Stabilization
-
3Add Autofocus to Your Leica M Lenses
-
4Improve Close Focus Ability
-
5Add a Second Adapter for More Lens Options
Auto Focus Manual Lenses on your Nikon Z Camera with the PRONTO Lens Adapter!

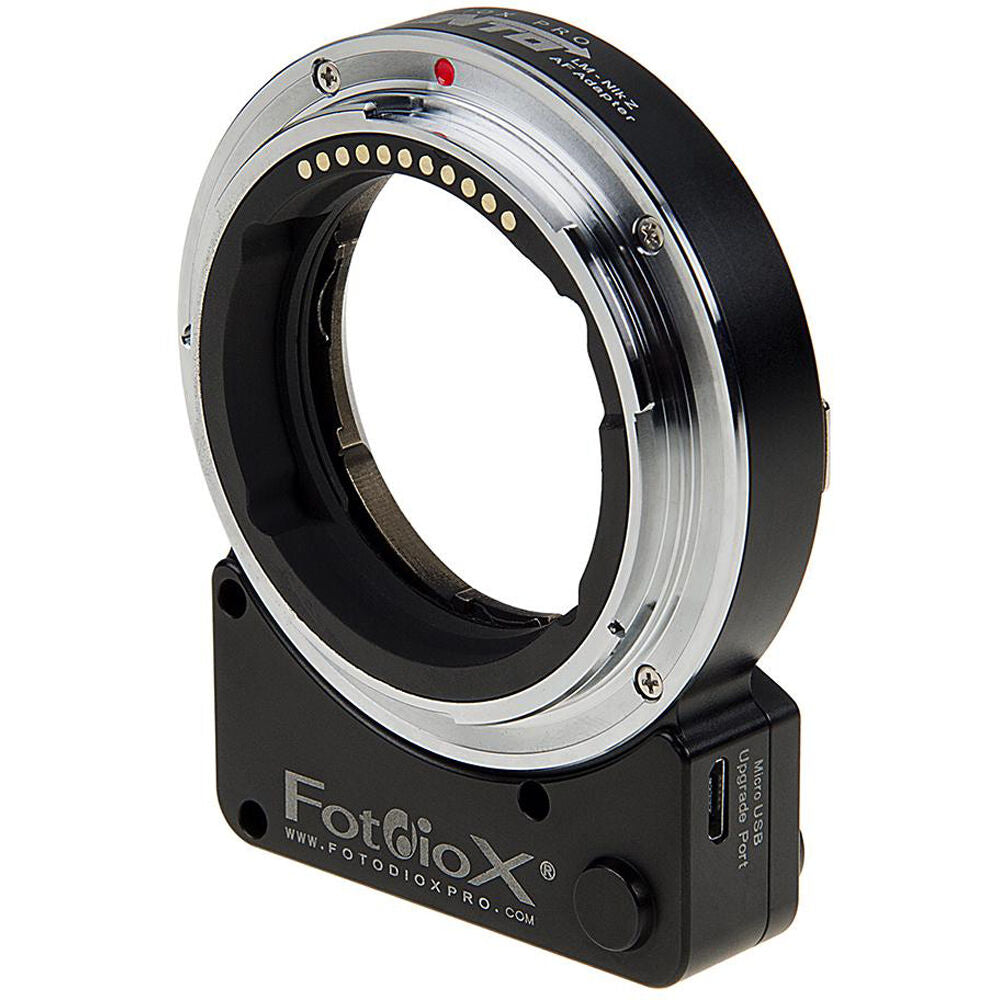

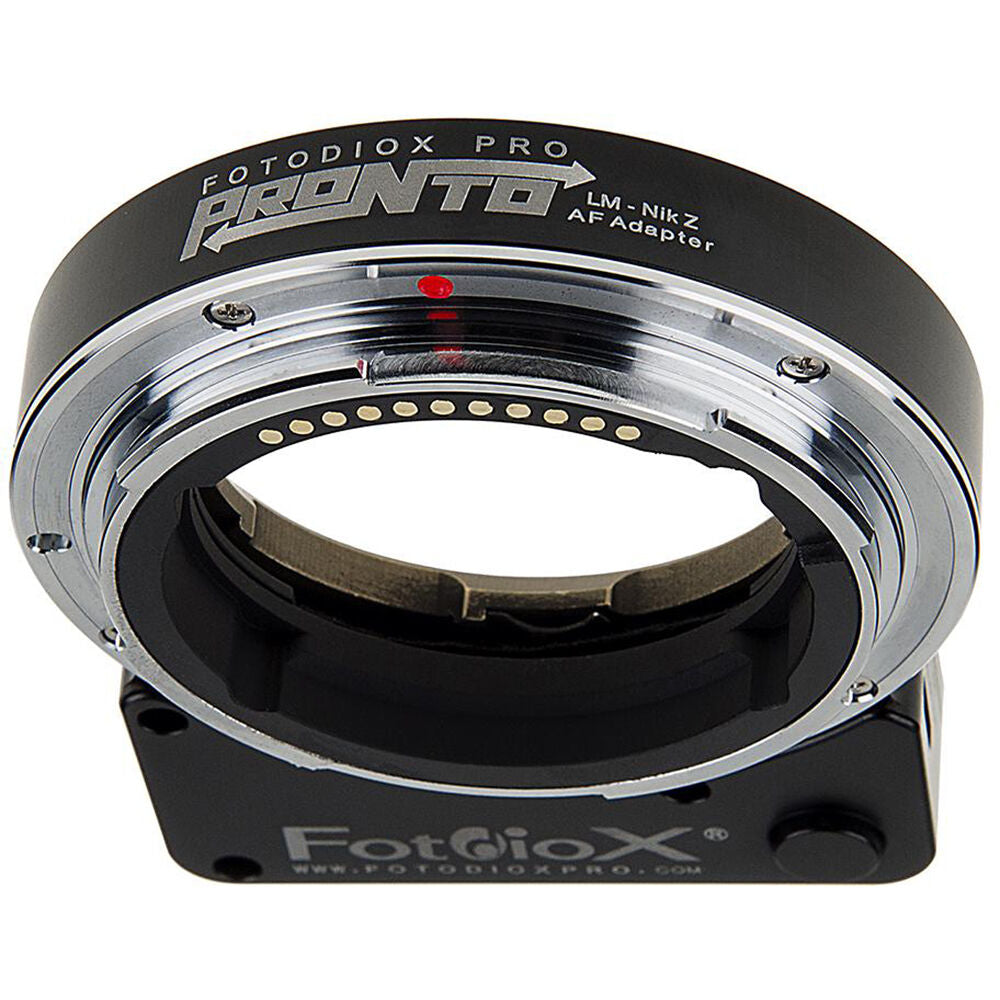

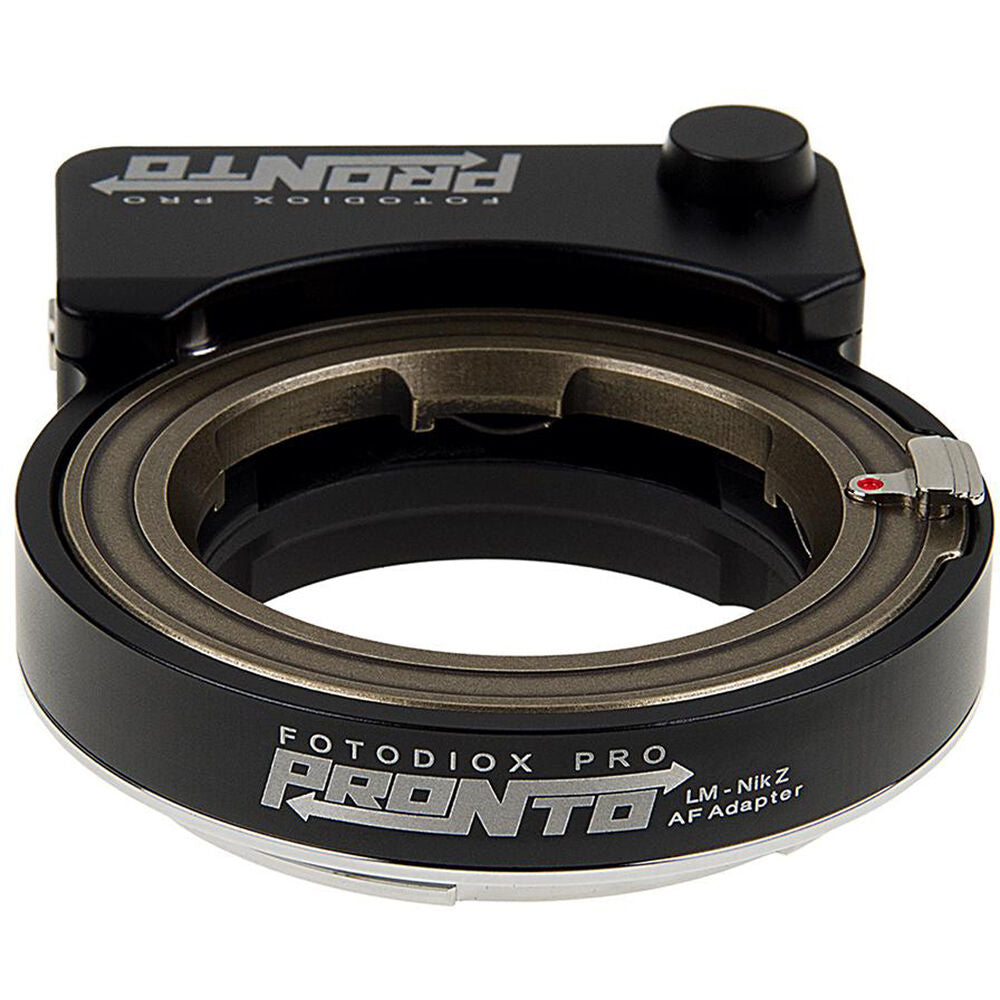

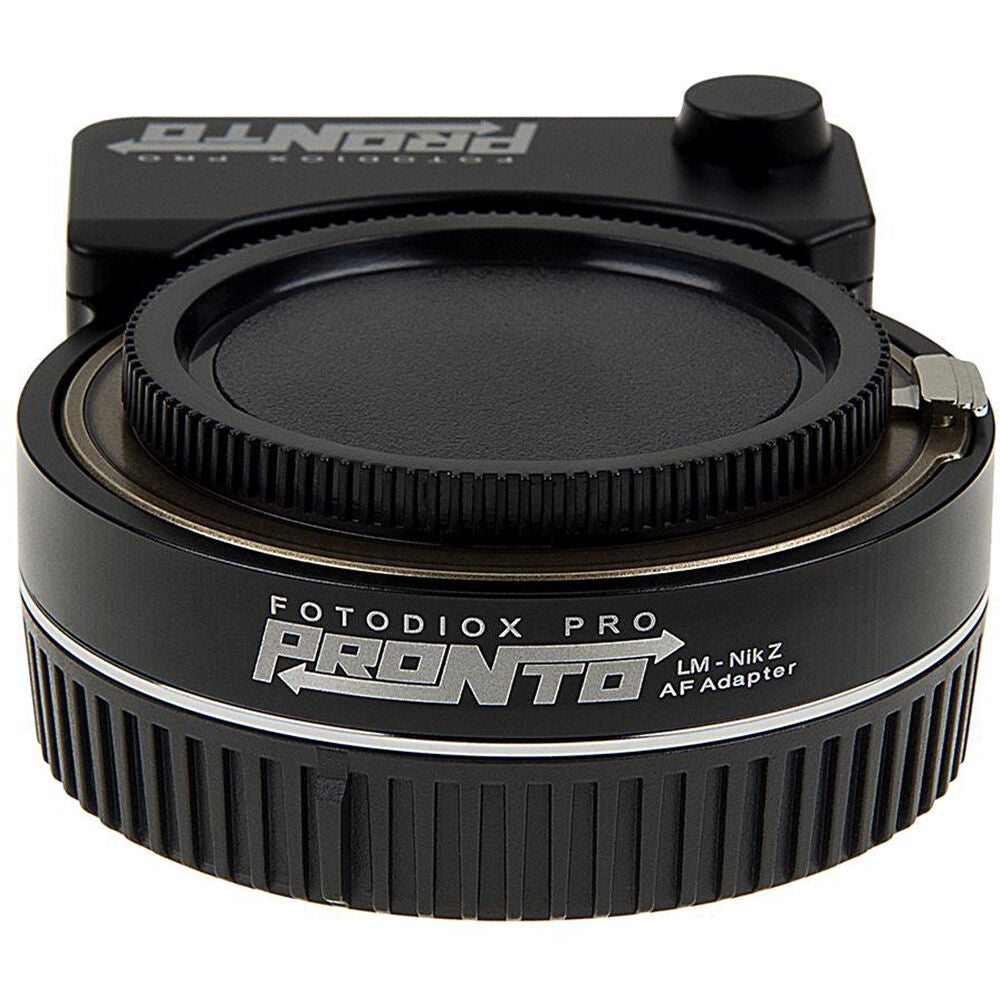

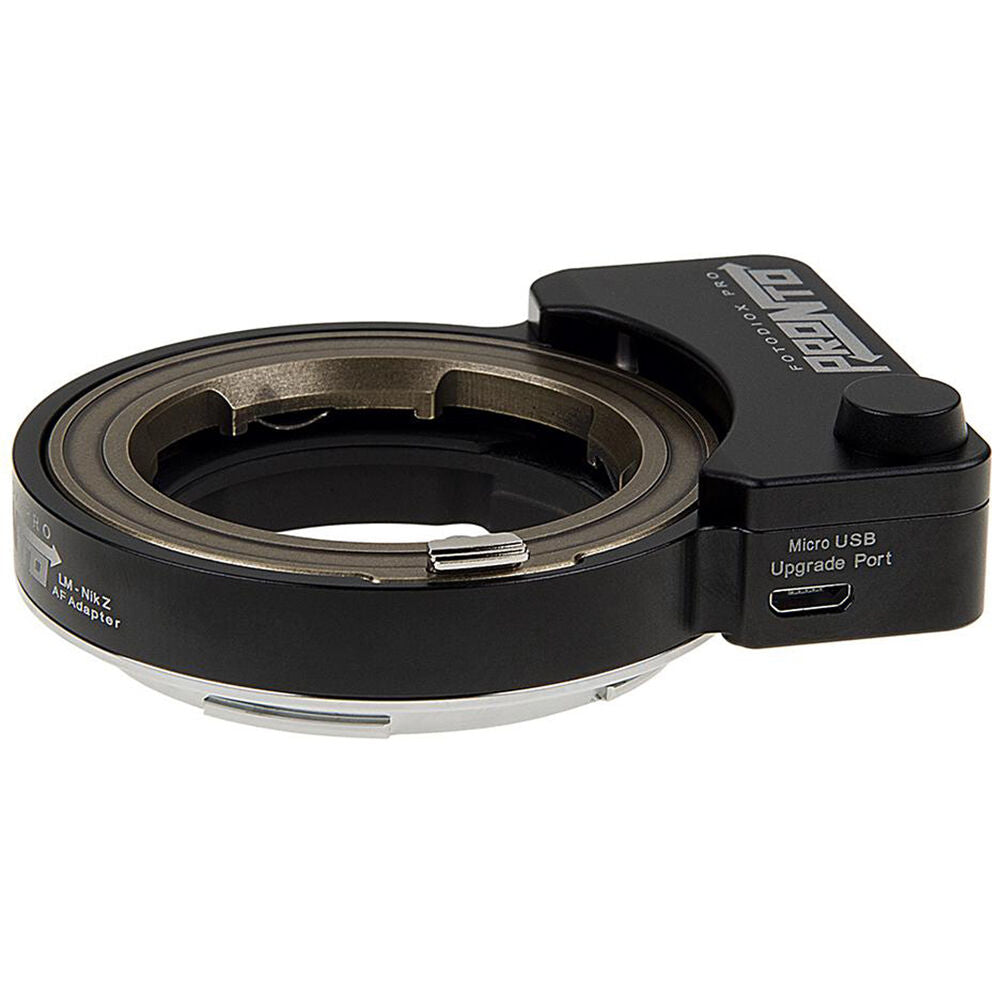

The PRONTO Autofocus Adapter from FotodioX is designed to allow Leica M-mount lenses that be used on select Nikon Z-mount mirrorless cameras. This adapter can also improve near-range portraiture by allowing the lens to focus closer than its normal minimum focus distance. By placing space between the camera body and lens, focusing distance is shortened and the effect of magnifying your subject is created. Additionally, the adapter can be combined with separately available lens to Leica M-mount camera adapters to enable use of other lens types.
For focus control, this adapter features a built-in helicoid that extends and retracts a compatible lens based on the connected camera's contrast detection AF-S or AF-C autofocus. Designed to support focusing to infinity, the adapter is constructed from brass and aluminum alloy and utilizes a brass lens mounting ring to provide a durable, yet lightweight camera-to-lens connection.

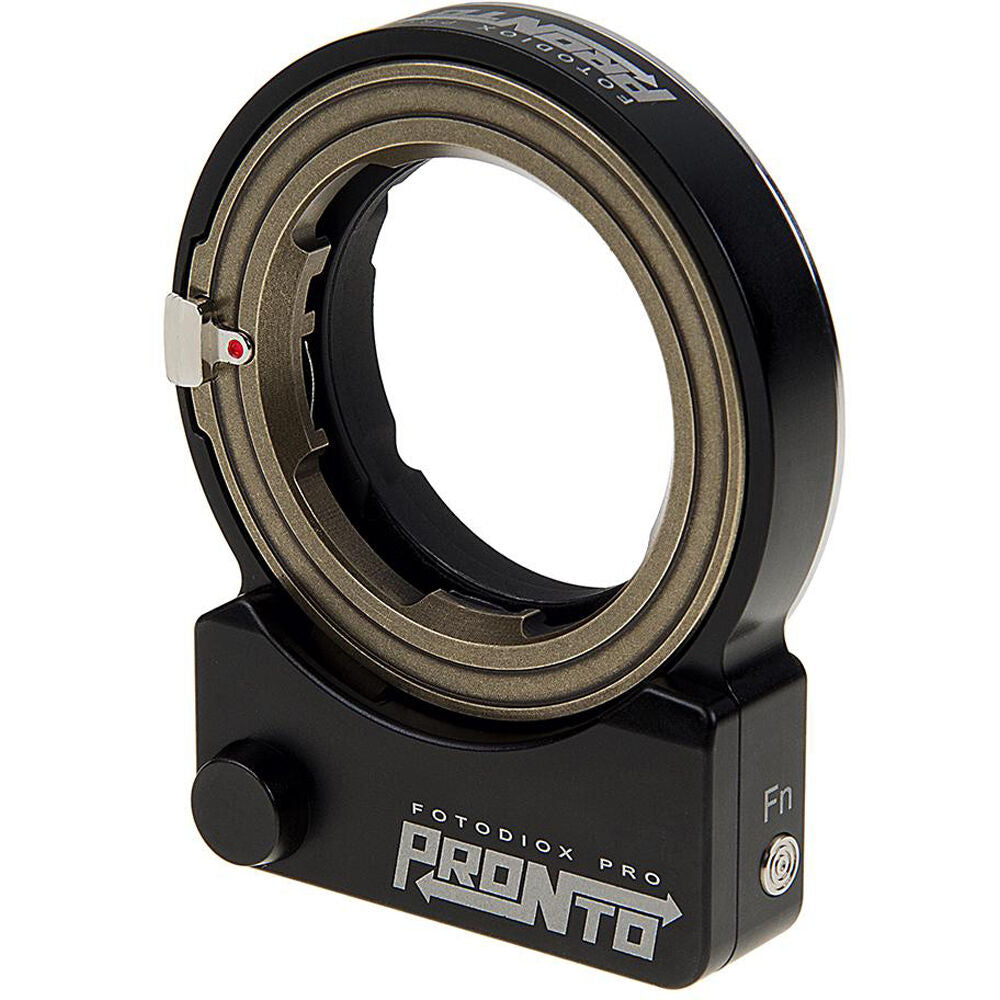

Fn Button, Supports AF-S and AF-C Mode and Stabilization
The button on the side of the PRONTO is a mappable Fn button, just like the L-Fn button on native Z-mount lenses! This function button also allows the user to enter various focus modes as well as setting the focal length and maximum aperture of the lens used on the adapter for optimum compatibility. This adapter will support both AF-S and AF-C focusing modes, face detection, and stabilization on supported cameras.
Add Autofocus to Your Leica M Lenses
A manual lens needs to be focused manually - right! Not so with the FotodioX Pro PRONTO adapter. If you want to automatically focus your M-mount lenses on your Nikon Z-mount camera just attach it to the PRONTO adapter. Half-press the shutter button to activate AF and the PRONTO adapter will focus just like any other AF lens. Performance is optimal with 50mm and wider lenses.
Improve Close Focus Ability
Improve close focusing with the FotodioX Pro PRONTO adapter by attaching your lens and setting to the closest focus distance possible. This setup will allow you to use the PRONTO adapter as a 5mm extension tube with autofocus capabilities that will significantly shorten the minimum focus distance of your lens. The wider the lens, the stronger the effect will be.
Add a Second Adapter for More Lens Options
The PRONTO adapter has a Leica M-mount, but the options don't stop there. With the use of additional adapters, you are able to adapt nearly any lens to Leica M, attach to the PRONTO adapter and enable them to be used with autofocus. Not all adapters will work due to size limitations imposed by the motor housing of the PRONTO adapter.
![]()
UPC: 847372054619
In the Box
- FotodioX PRONTO Autofocus Adapter for Leica M to Nikon Z-Mount Mirrorless Cameras

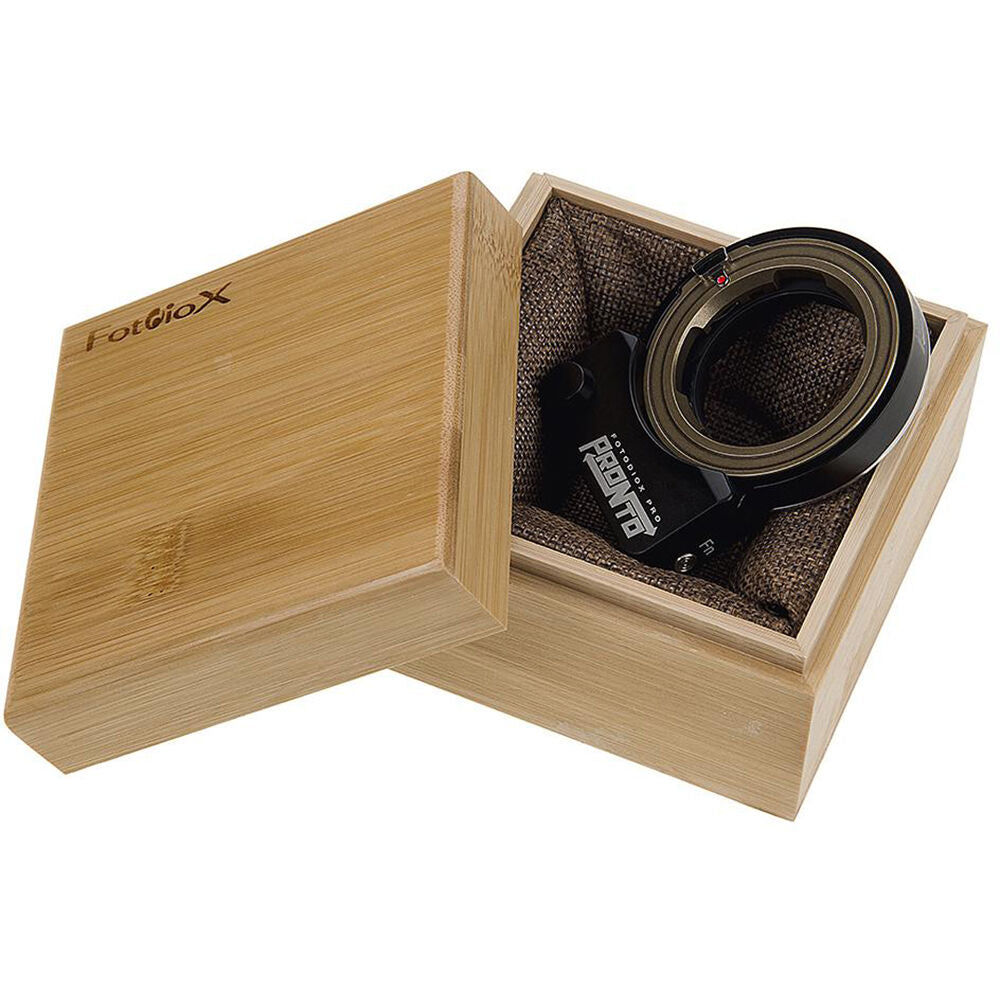

- Storage Box
- Limited 2-Year Warranty
Table of Contents
- Description
- Fn Button, Supports AF-S and AF-C Mode and Stabilization
- Add Autofocus to Your Leica M Lenses
- Improve Close Focus Ability
- Add a Second Adapter for More Lens Options
FotodioX LM-NKZ-PRN Specs
Adapter
| Camera Mount |
Nikon Z |
| Electronic Communication |
Yes |
Physical
| Material |
Aluminum, Brass |
| Dimensions |
H: 3.1 x W: 2.6 x D: 1.0" / H: 8.0 x W: 6.5 x D: 2.5 cm |
| Weight |
5.2 oz / 147 g |
Packaging Info
| Package Weight |
1.01 lb |
| Box Dimensions (LxWxH) |
4.7 x 4.6 x 3.2" |
