Description

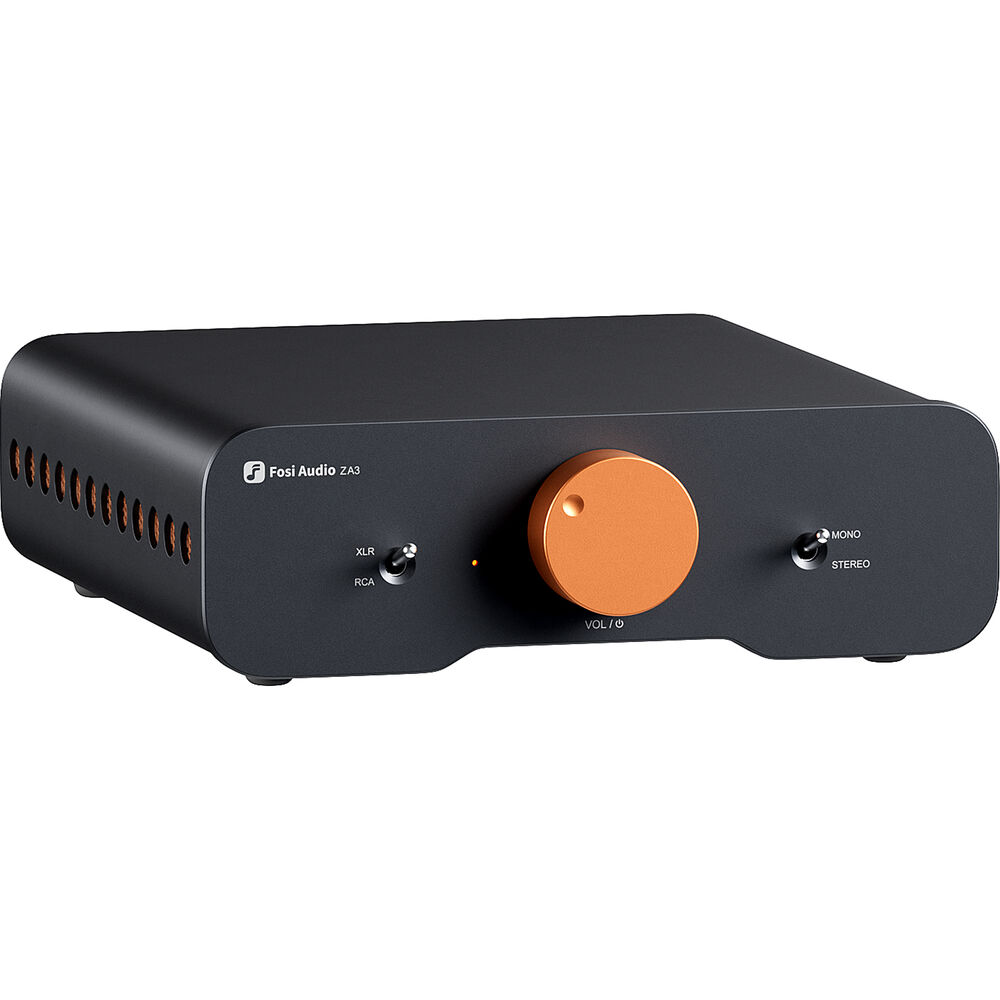

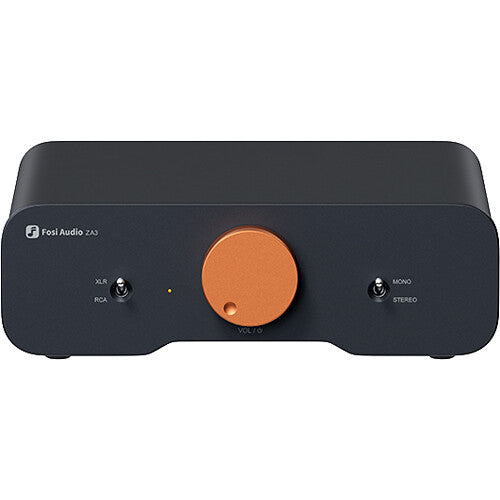

Fosi Audio ZA3 Overview
Enjoy pure and simple sound with the Fosi Audio ZA3 Balanced 2.1-Channel Power Amplifier with 48V 5A Power Supply. The compact ZA3 features switchable stereo/mono output modes with a 4-ohm output at 155W per channel RMS in stereo and 235W RMS in mono. Connect to a wide variety of devices with balanced XLR-TRS 1/4" combo jacks or the stereo RCA input. Connect passive speakers with binding-post outputs, and an active subwoofer via RCA output.
Premium Components
The ZA3 features a TPA3255 high-end class-D amp chip and utilizes premium Japanese NCC, Elna, and German WIMA capacitors, as well as Japanese Sumida inductors for exceptional audio quality. With a SINAD (Signal-to-Noise and Distortion) rating of up to 89 dB, an SNR (Signal-to-Noise Ratio) of up to 106 dB, and a low noise floor of only 150 ?V, it delivers exceptional clarity and low distortion.

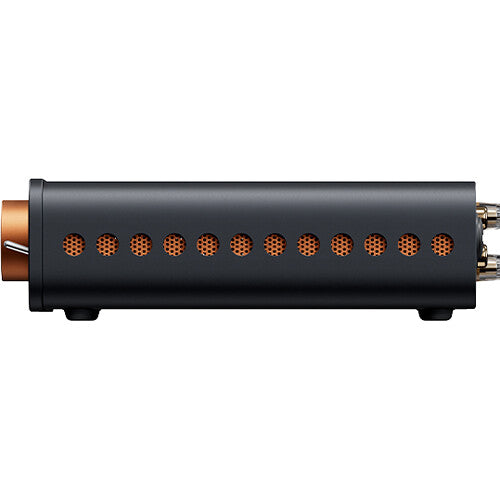

Advanced Heat Dissipation
Based on Fosi Audio V3's groundbreaking heat dissipation design, it upgrades ZA3's cooling system by featuring a larger chassis, moving vents to the sides, and adding dust covers to achieve better ventilation for a sustained and stable high-power output.
Enhanced Scalable Fun
Personalize your audio experience with the op-amp rolling feature. The ZA3 stocks five swappable op-amps for left and right channel outputs, balanced input, and subwoofer output. Experiment with compatible DIP8 dual op-amps (sold separately) such as Sparkos SS3602, MUSES02, OPA2134PA, OP249, AD827, RM4558, LM4562, LME49720HA, etc. to fine-tune your sound to perfection.
Additional Details

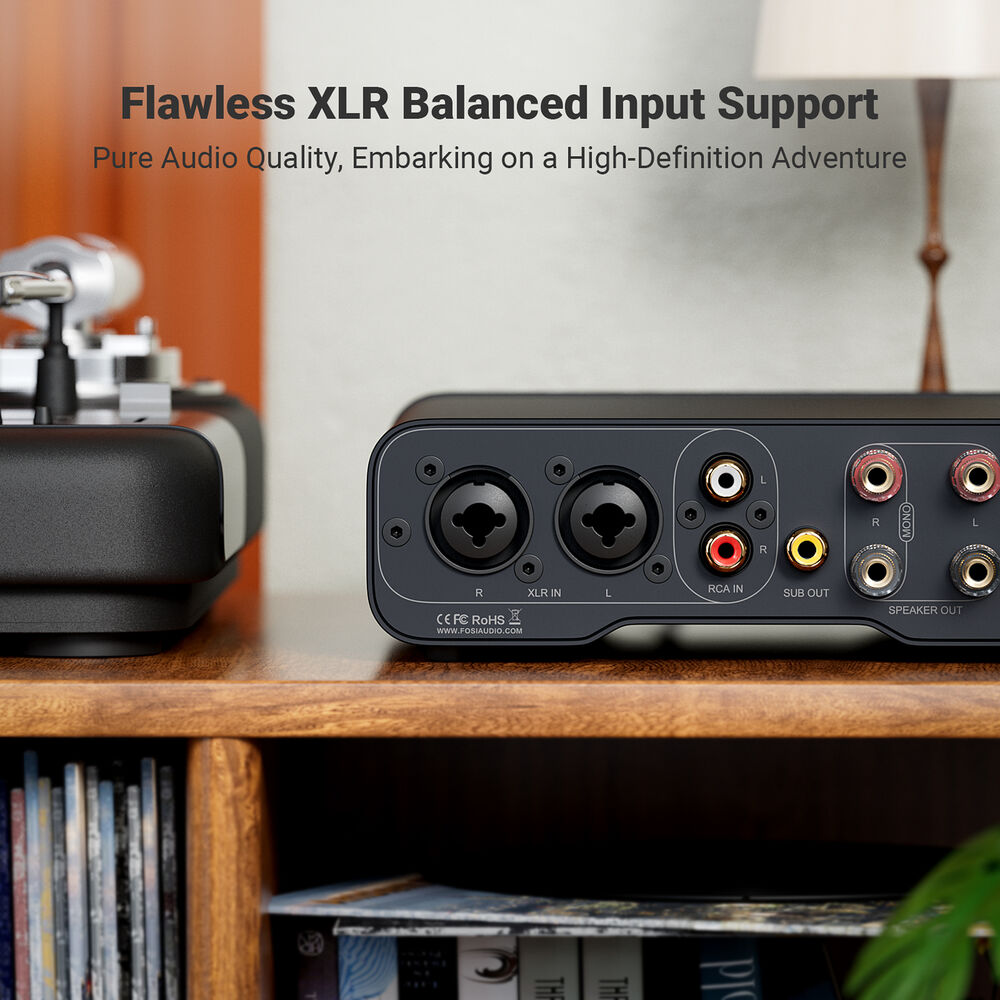

- Balanced combo inputs support XLR and 1/4" TRS plugs
- 12V trigger input
- Aluminum alloy and one-piece molded chassis
- Fosi Audio ZA3 Balanced 2.1-Channel Power Amplifier with 48V 5A Power Supply
- 48V 5A Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
Fosi Audio ZA3 Specs
Key Specs
| Channels |
2.1
|
| Power Output per Channel |
2-Channel Driven:
155 W at 4 Ohms (RMS) 1-Channel Driven: 235 W at 4 Ohms (RMS) |
| Rear A/V Outputs |
1x RCA Subwoofer Line-Out
|
| Speaker I/O |
2x Binding Post Pairs
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Amplifier
| Amplifier Type |
Power Amplifier
|
| Channels |
2.1
|
| Amplifier Class |
Class-D
|
| Power Output per Channel |
2-Channel Driven:
155 W at 4 Ohms (RMS) 1-Channel Driven: 235 W at 4 Ohms (RMS) |
| Frequency Response |
20 Hz to 20 kHz
|
| THD |
< 0.006%
|
| Speaker Impedance |
2 to 8 Ohms
|
| Tone Control |
No
|
Audio Processing
| Auro 3D Support |
No
|
| Supported Sample Rates |
No
|
Connectivity

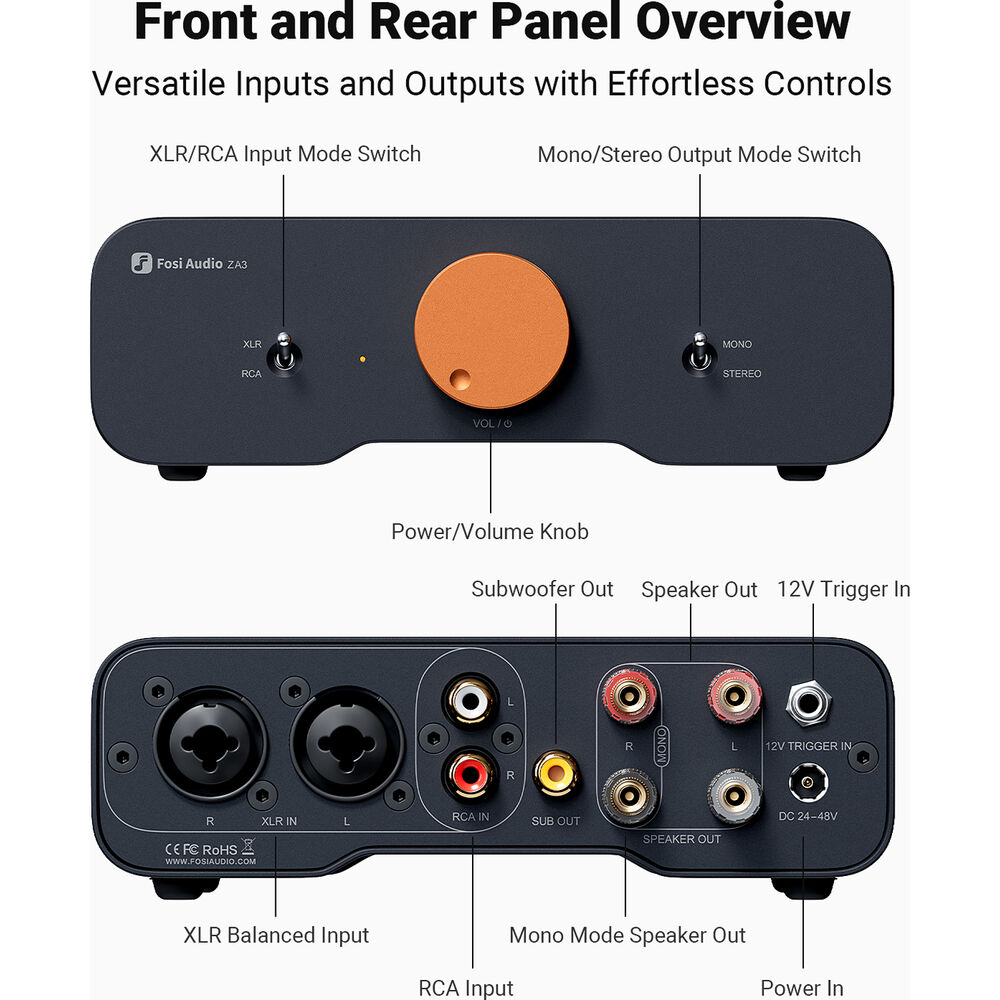

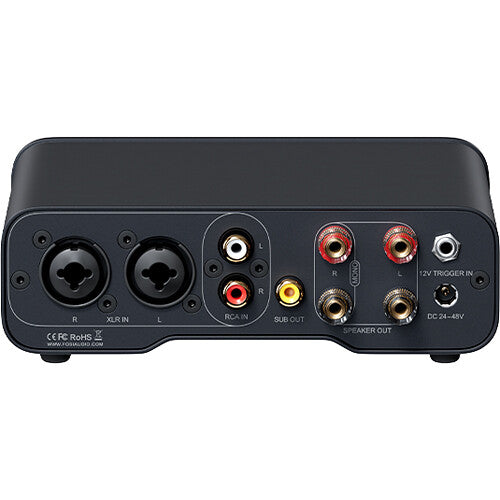

| Rear A/V Inputs |
1x Stereo XLR Balanced Line
1x Stereo RCA Line |
| Rear A/V Outputs |
1x RCA Subwoofer Line-Out
|
| Front I/O |
No
|
| Other Rear I/O |
1x 1/8" / 3.5 mm (12 V Trigger) Input
|
| Speaker I/O |
2x Binding Post Pairs
|
| Media Card Slot |
No
|
| A/B Speaker Selection |
No
|
| Bi-Amp Capability |
No
|
| Input Sensitivity |
0.77 V
|
| Dynamic Range |
Line: 106 dB
|
| Signal to Noise Ratio |
? 106 dB
|
| Total Harmonic Distortion (THD) |
< 0.006%
|
Wireless Connectivity
| Wi-Fi |
No
|
| Bluetooth |
No
|
Control
| External Control Support |
No
|
| Mobile App Compatible |
No
|
Power
| Input Power |
24 to 48 VDC at 5 A
|
Physical
| Dimensions (W x H x D) |
6.1 x 7.2 x 2.0" / 15.5 x 18.4 x 5.1 cm
|
| Weight |
3.92 lb / 1.78 kg
|
Packaging Info
| Package Weight |
3.785 lb
|
| Box Dimensions (LxWxH) |
14.6 x 9 x 3.1"
|
