Description
For.A 10RU Overview

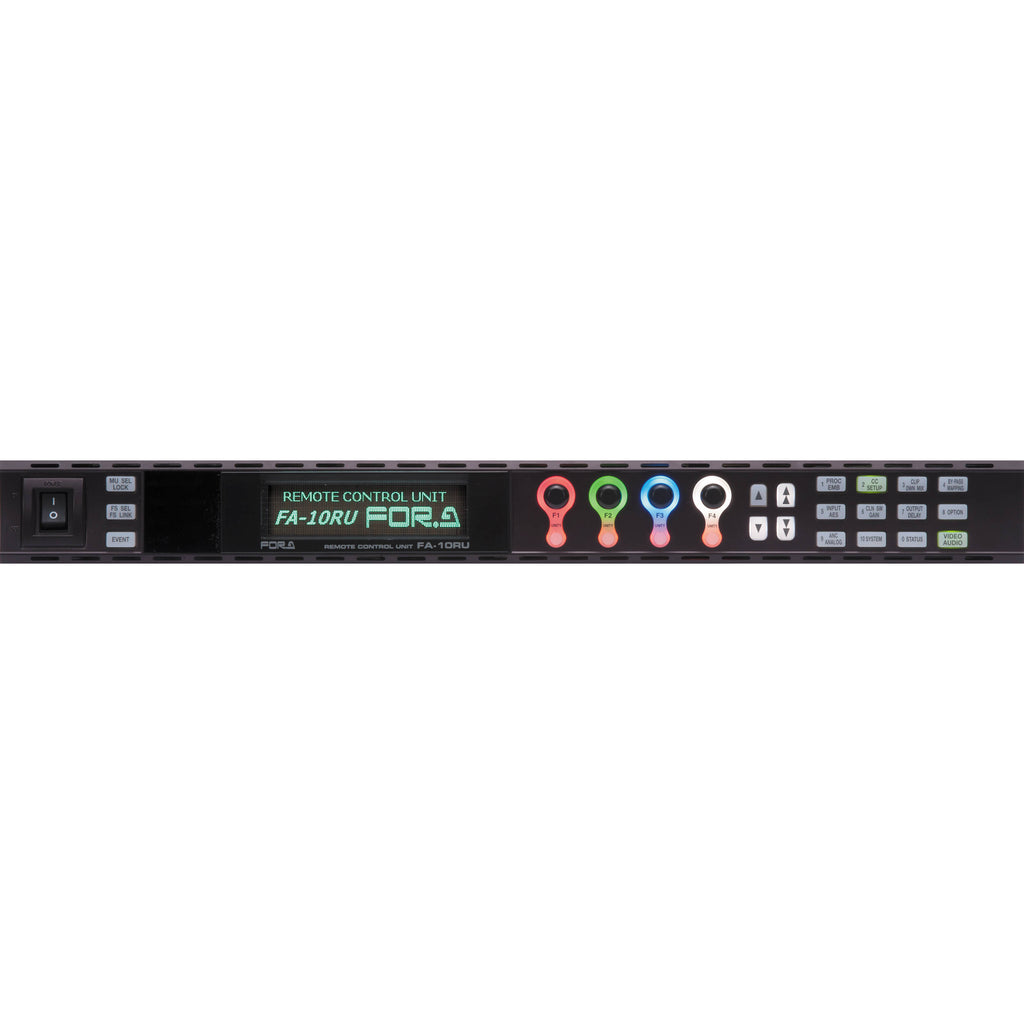

The FA-10RU Remote Control Unit from For.A is a rackmountable remote control unit that controls up to 100 FA-1010 Frame Synchronizer units via a single network connection. This remote control unit features IP address FA-1010 selection and control, and simultaneous control over one FA-1010 Multi-channel Signal Processor from five FA-10RU units. You can store and recall up to 100 events and clean switch settings. This unit also features GPI control with 30 input and output functions.
Control over FA-1010 via Ethernet
Up to 100 FA-1010 units can be connected to be selected for control
IP address FA-1010 selection and control
Simultaneous control over one FA-1010 from five FA-10RU units
Storage and recall of up to 100 events
Storage and recall of up to 100 clean switch settings
GPI control with 30 input and output functions
Rackmountable
In the Box
- For.A FA-10RU Remote Control Unit
- AC Cord
- AC Cord Retaining Clip
- EIA Standard Rackmount Bracket Set
- Colored Light Indication Label
- Limited 1-Year Warranty
For.A 10RU Specs
| Switches | 1 x Power on/off |
| Buttons | 1 x Menu select LOCK 1 x FS SEL FS link 1 x Event save/load 4 x UNITY controls 2 x Parameter control 2 x Menu control 12 x Menu selection |
| Connectors | 1 x RJ45 LAN 10/100/1000BASE-TX 3 x 25-pin Sub-D GPI, female 1 x Ground terminal 1 x Power input |
| Indicators | 1 x Menu select lock, orange 1 x FS SEL FS link, red 1 x Genlock, green 1 x Freeze, green 1 x Test signal, green 1 x Fan alarm, red 1 x Power, red |
| Display | 1 x Menu display |
| System Requirements |
OS: Windows XP SP2 operating system or later, Professional (32 bit) CPU: Pentium 4 processor, 1.3 gHz or more Web Browser: Firefox 24 Memory: 512 MB or more Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T Network Cable: 100BASE-TX: Category 5 or better 1000BASE-T: Category 6, or enhanced category 5 OS: Windows Vista SP1 operating system, Business (32 bit) CPU: Intel Core 2 Duo processor, 2 GHZ or more Web Browser: Firefox 24 Memory: 2 GB or more Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T Network Cable: 100BASE-TX: Category 5 or better 1000BASE-T: Category 6, or enhanced category 5 OS: Windows 7/8 operating system, professional (32/64 bit) CPU: Intel Core 2 Duo processor, 2 GHZ or more Web Browser: Internet Explorer 10, Firefox 24 Memory: 2 GB or more Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T Network Cable: 100BASE-TX: Category 5 or better 1000BASE-T: Category 6, or enhanced category 5 |
| Input/Output | 30 Ports each |
| Power Supply | 100 to 240 VAC ± 10%, 50/60 Hz |
| Power Consumption | 28 VA (16 W) (at 100 - 120 VAC) 33 VA (16 W) (at 200 - 240 VAC) |
| Dimensions (W x H x D) | 18.9 x 1.7 x 5.1" (48.0 x 4.4 x 13 cm) |
| Weight | 4.4 lb (2 kg) |
Packaging Info
| Box Dimensions (LxWxH) | 22 x 14 x 7" |
