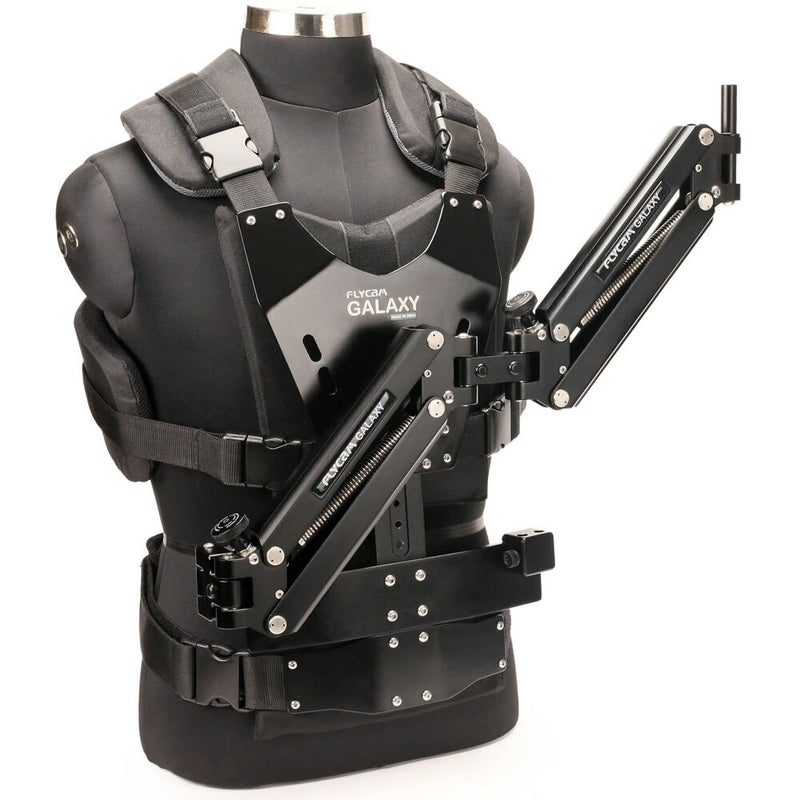

FLYCAM Galaxy Arm and Vest Kit with Redking Camera Stabilizer

Universal-Fit Foam-Padded Vest

Stabilizer Arm Supports up to 22 lb

Camera Stabilizer, 7.5 lb Maximum Load

18" Maximum Arm Length

Galaxy Arm Vest w Redking Camera Stabilizer Feature Shots Bring smoothness to your shots with Flycam Redking Handheld DSLR Video Camera Stabilizer (FLCM-RK)

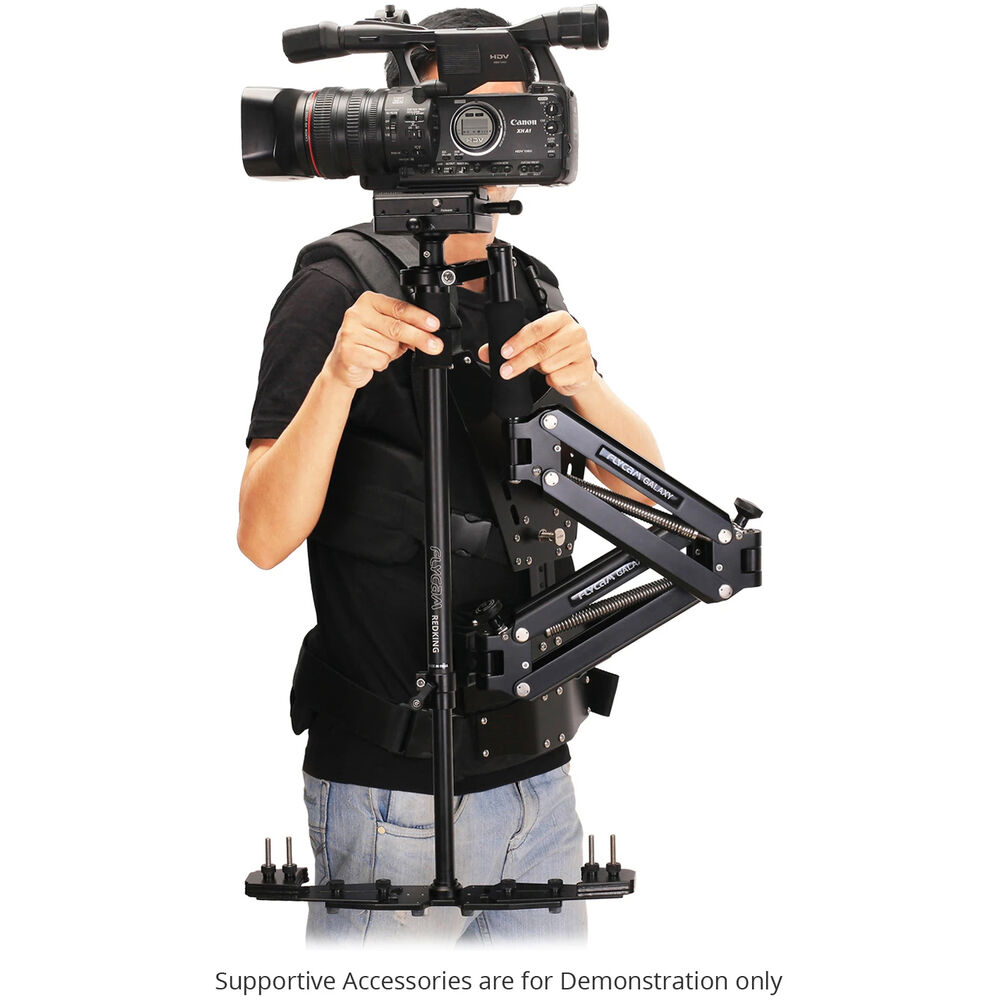

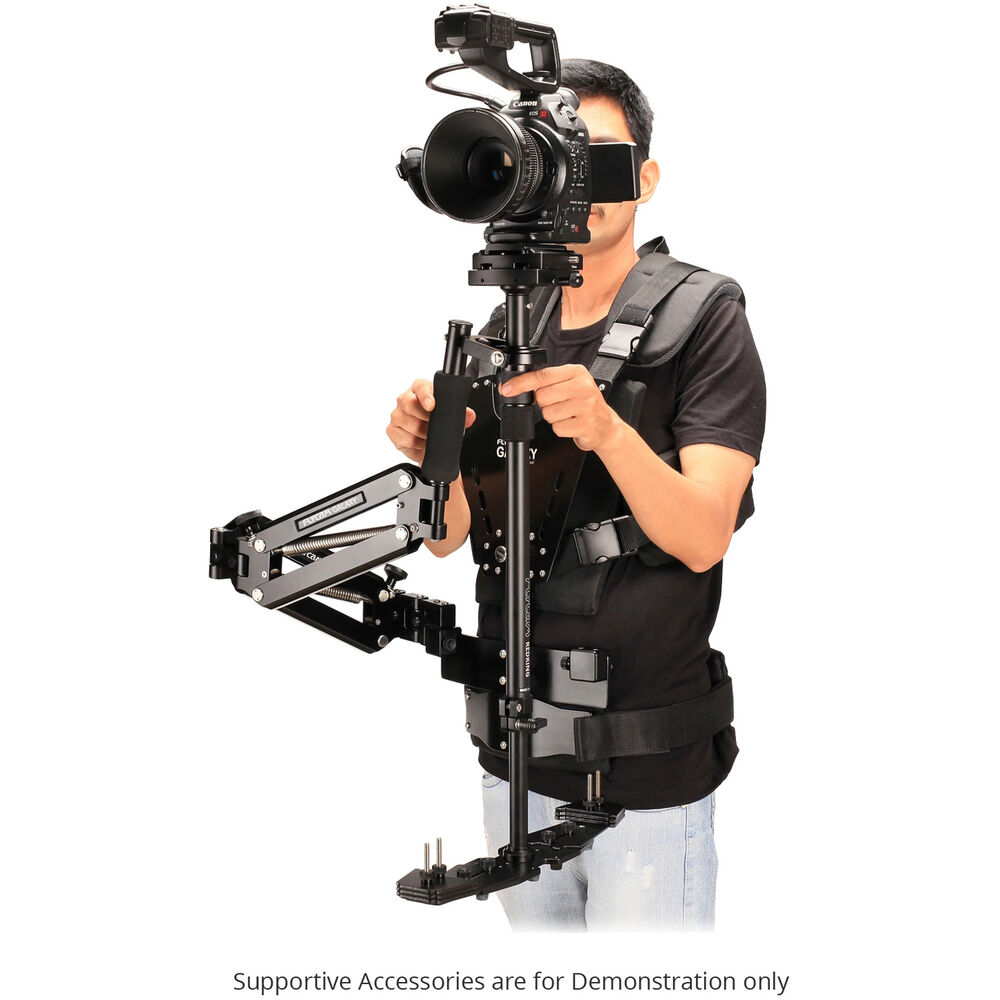

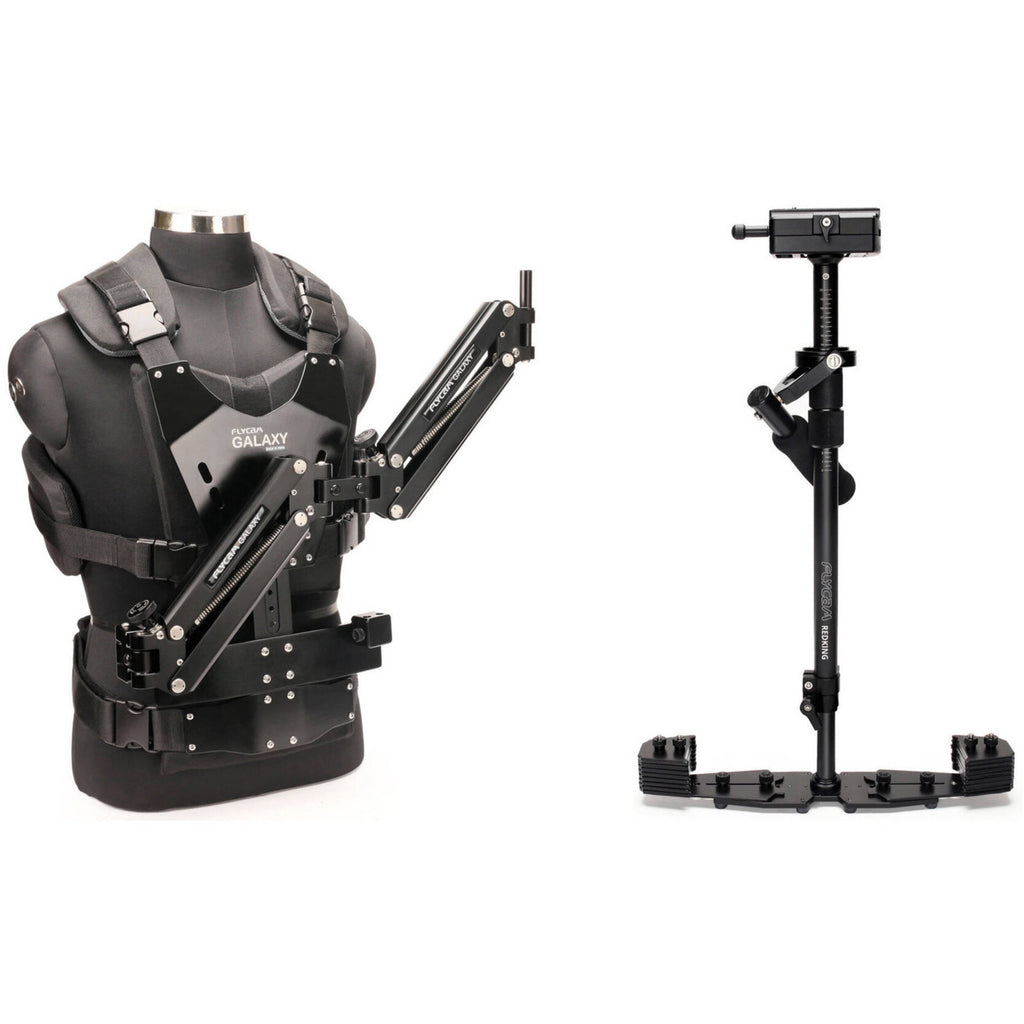

Create smooth motion shots and take strain off your arms with this FLYCAM Galaxy Arm and Vest Kit with Redking Camera Stabilizer put together by B&H . The kit includes a Galaxy universal-fit foam-padded vest, a Galaxy stabilizer arm, and a Redking video camera stabilizer.

The comfortable vest supports waist sizes between 28 and 60", chest sizes from 38 to 52", and it secures with buckles and hook-and-loop straps. The shock-absorbing arm attaches to the vest and supports up to 22 lb, and can extend to a maximum length of 18". It features a standard 16mm mounting post for the Redking, and 19 and 22mm bushings are also included. The Redking camera stabilizer mounts onto the arm's post and supports a camera rig up to 7.5 lb. It features an adjustable balance system to keep your shots smooth and steady as you run, walk, ride, or climb.

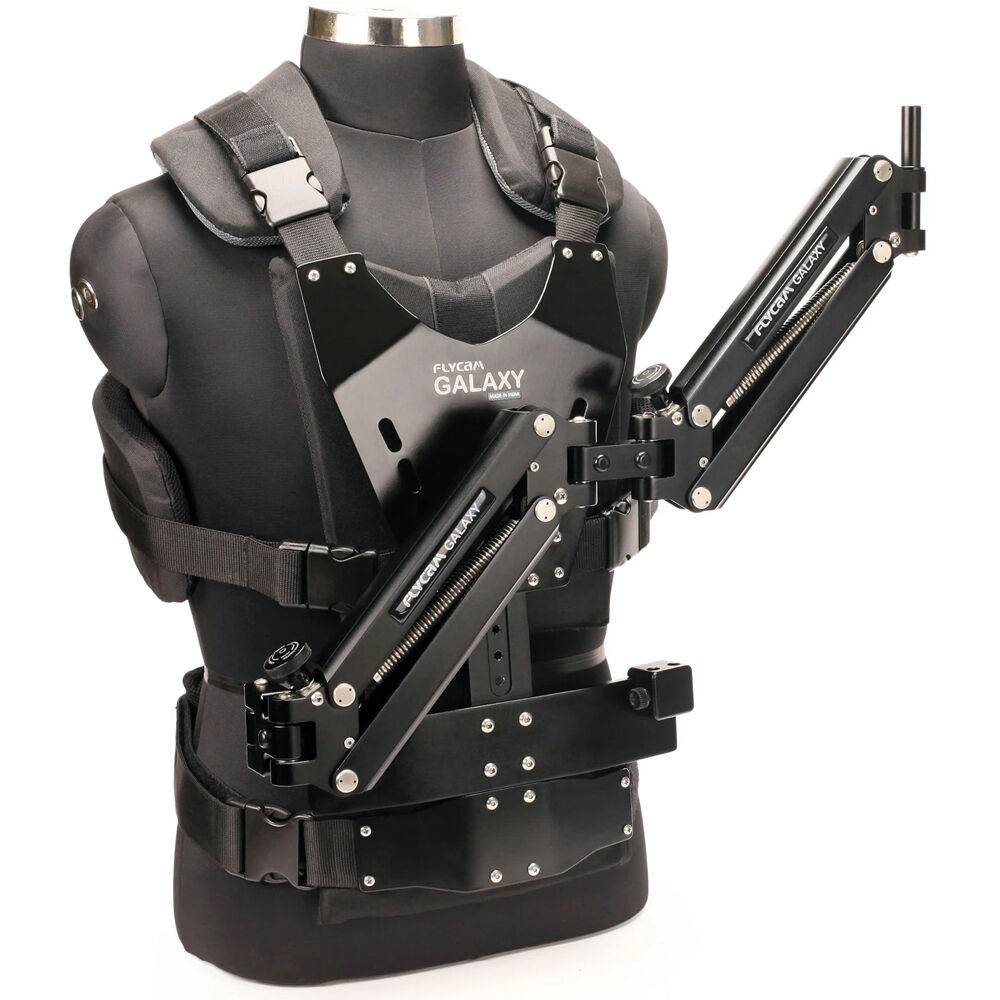

FLYCAM Galaxy Arm and Vest Stabilizer

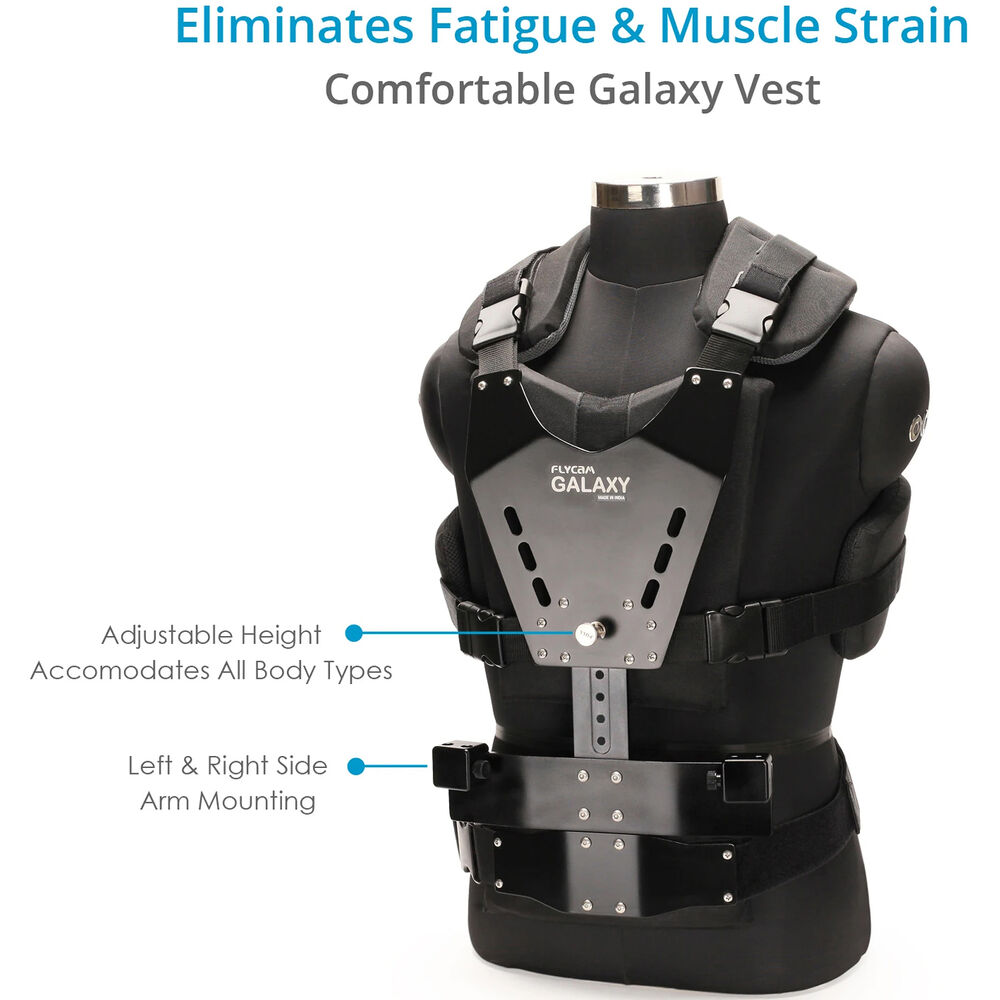

The FLYCAM Galaxy Arm and Vest Stabilizer features a lightweight, foam-padded vest offering a universal fit. The waist size is adjustable between 28 and 60", and the chest size from 38 to 52". This is done with hook-and-loop fastener straps, and the vest is secured with push-fit buckles. Height is also adjustable between the waist and shoulders at the pull of a height-adjustment pin provided on the chest plate. The vest is made of thin aluminum plates and breathable synthetic fabric. All these features ensure a relatively lightweight and comfortable fit.

The vest and arm combined support up to 22 lb and allow you to highly stabilize your shots for extended periods with nearly eliminated stress on the arms and shoulders. The Galaxy Stabilizer enables you to follow your subject in just about any scenario. You can walk, run, or climb stairs, and much more, achieving consistently smooth cinematic shots while your hips/legs/body absorb the weight of the load, leaving your hands free to focus on the camera angle.

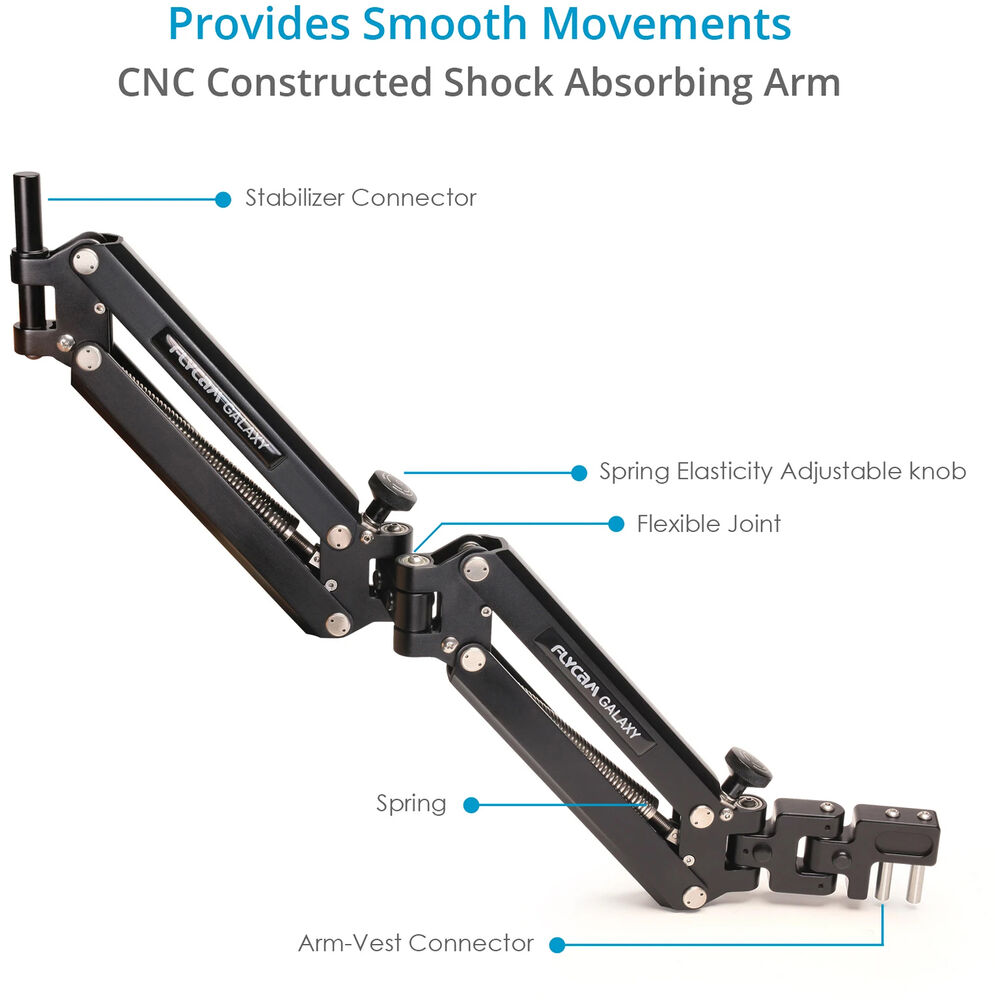

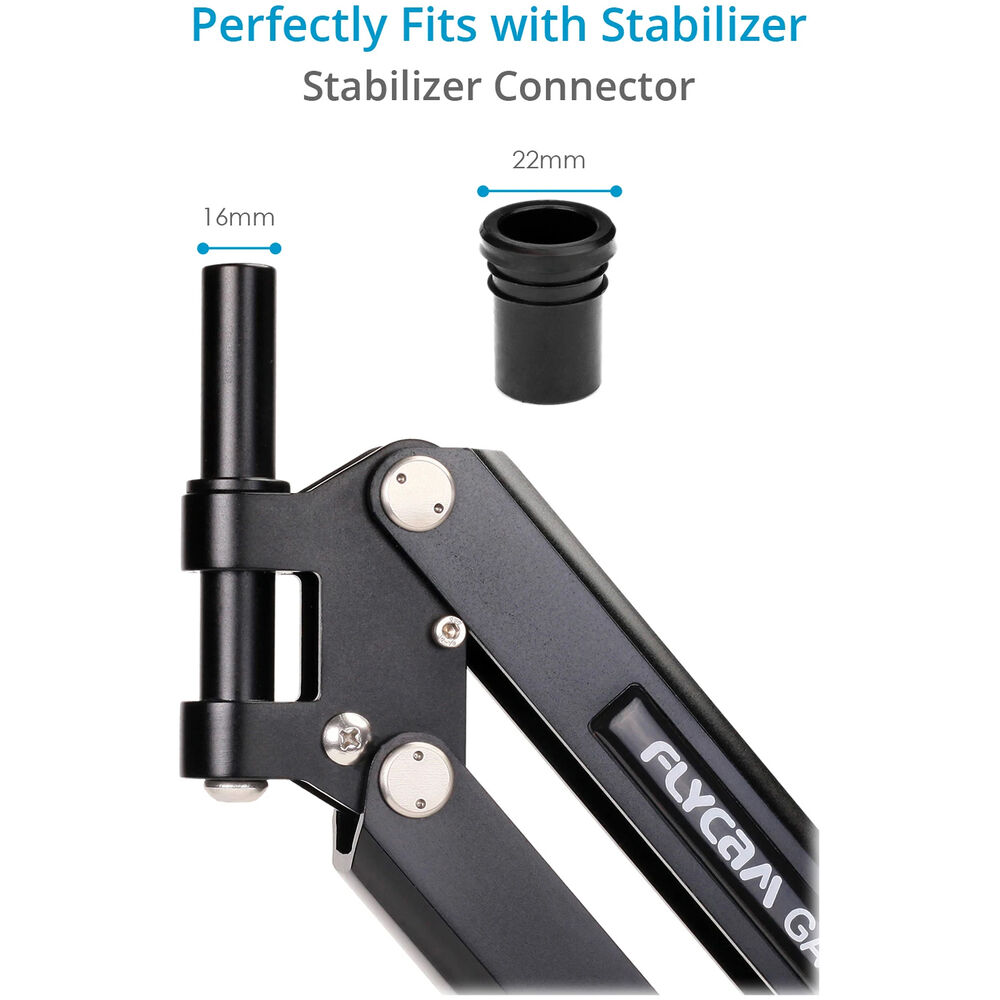

The shock-absorbing arm has multiple joints of articulation and features a dual-spring design. The joints and springs are what stabilize the load by isolating shake and vibration. Furthermore, the elasticity of the springs is adjustable via a knob for different shooting conditions. The arm securely attaches to the vest on one end and extends out a maximum length of 18". The mounting platform for your load is a 16mm diameter post that supports direct attachment of mechanical gimbals such as the FLYCAM Redking and Glidecam 4000. Additionally, 19 and 22mm bushings are included for compatibility with other gimbals and supports. However, you can also mount motorized gimbals and various other camera supports by incorporating adapters like the GyroVu Universal Stabilizer Arm Post Adapter.

Two sets of tension springs are supplied with the arm for different weight capacities, and they're color-coded on the ends to make them distinguishable from one another. The blue springs are for loads weighing 11 to 22 lb, and the red springs are for 2.2 to 11 lb loads.

Key Features

• Universal fit, foam-padded vest�lightweight with thin aluminum plates
• 22 lb weight capacity
• 18" maximum arm length
• 16mm diameter mounting post provides direct support for mechanical gimbals such as the FLYCAM Redking and Glidecam 4000
• 19 and 22mm bushings included; various optional adapters supported for attaching motorized gimbals and other camera supports

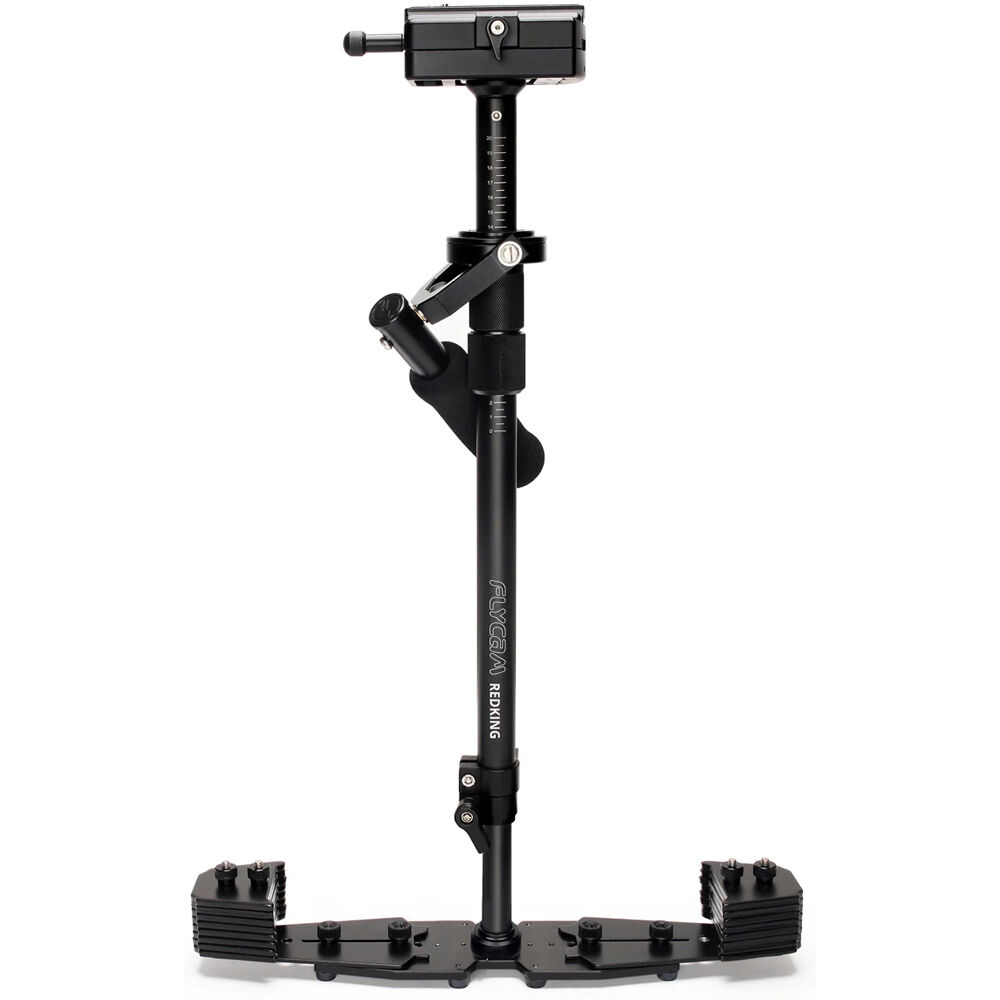

UPC: 765573863369 FLYCAM Redking Video Camera Stabilizer

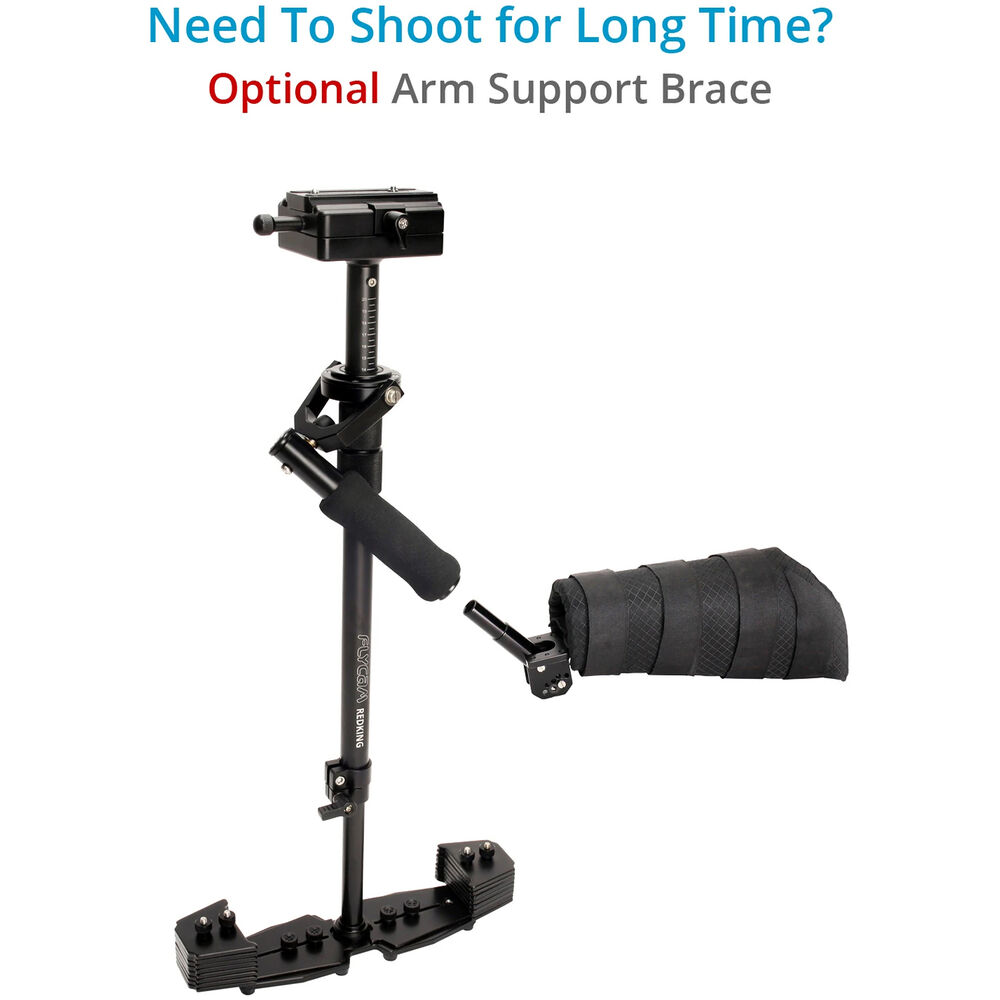

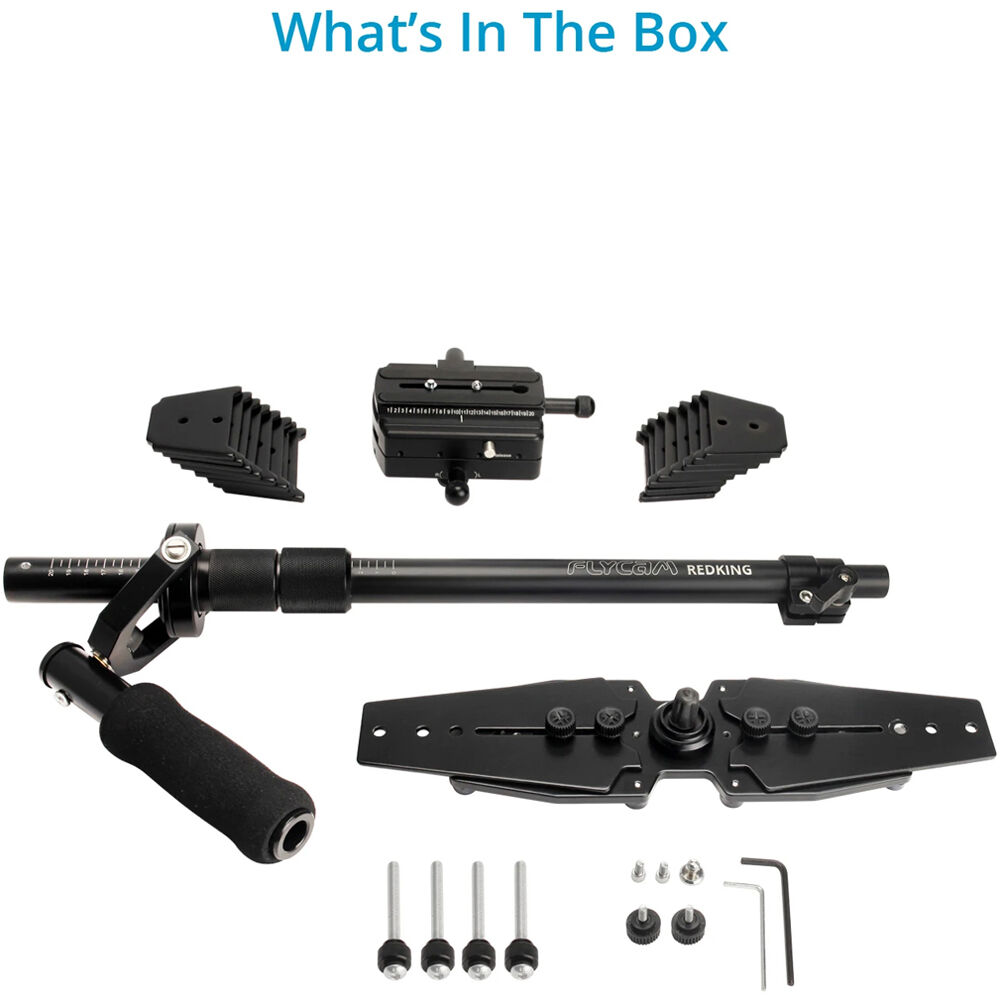

By balancing the pan, tilt, and roll axes around a central handle, the FLYCAM Redking allows you to achieve smooth-moving cinematic shots as you follow your subject. It works to stabilize and keep the camera horizontally balanced as you walk, run, climb stairs, and otherwise move about. The Redking supports up to 15 lb loads, so in most cases you can mount your camera along with a matte box, mic, or other accessories you may need for the shot.

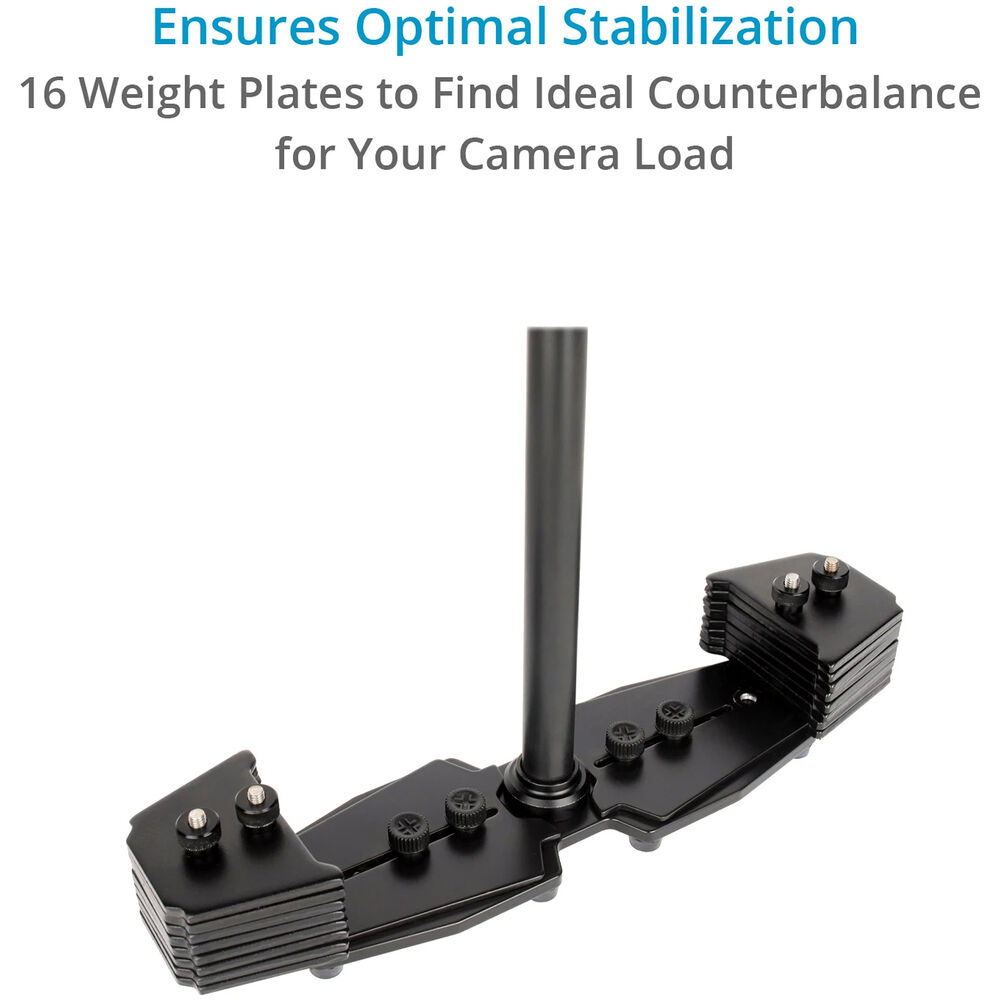

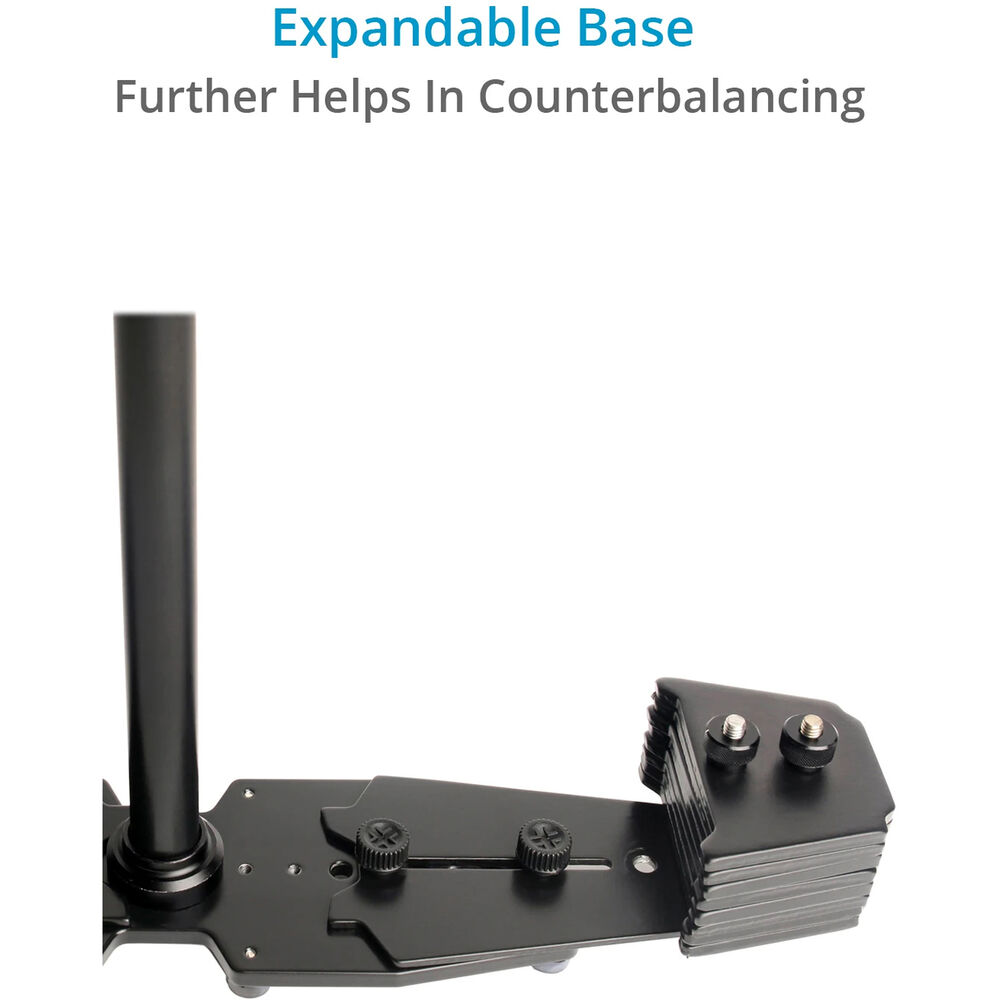

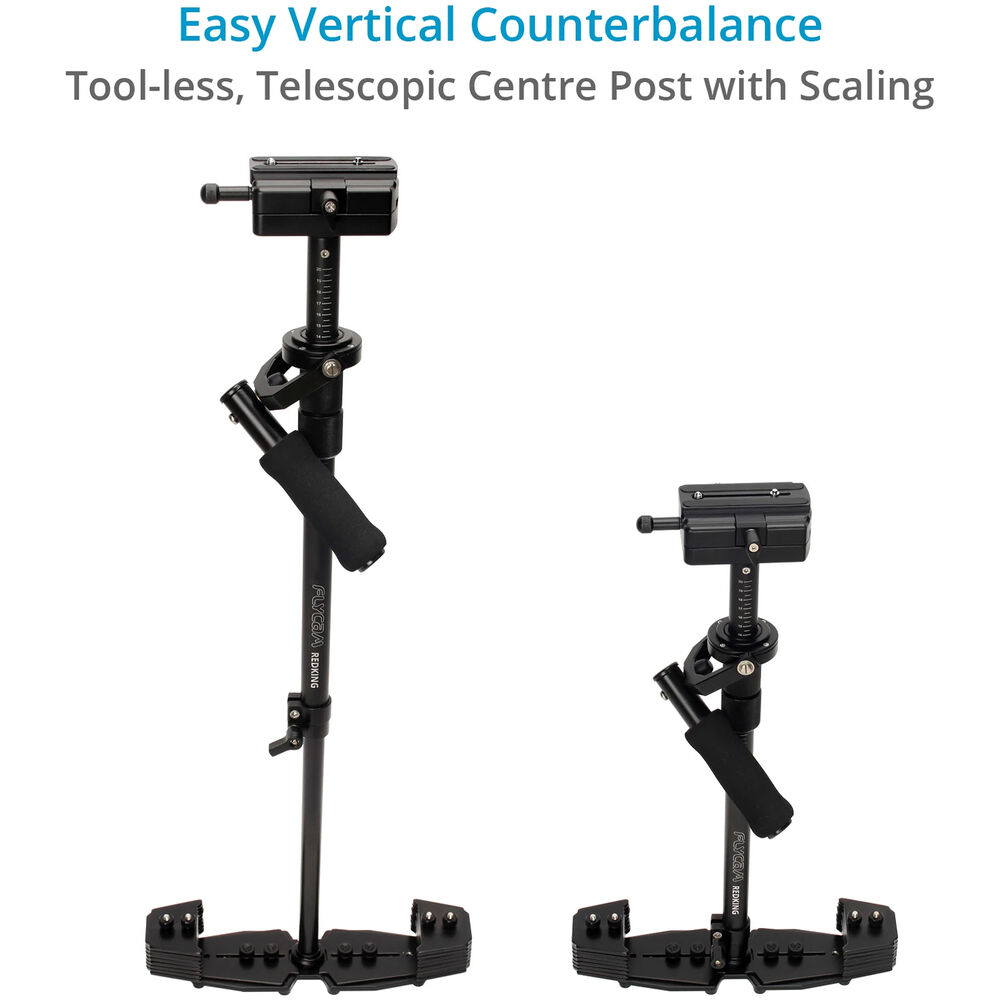

The base on the bottom features 16 thin weight plates that can be used or removed to find the ideal counterbalance for your camera load, in order to ensure optimal stabilization. The base can also be expanded in width to further help with counterbalance. And the center post is height-adjustable telescopically, from 21 to 32", for vertical counterbalance.

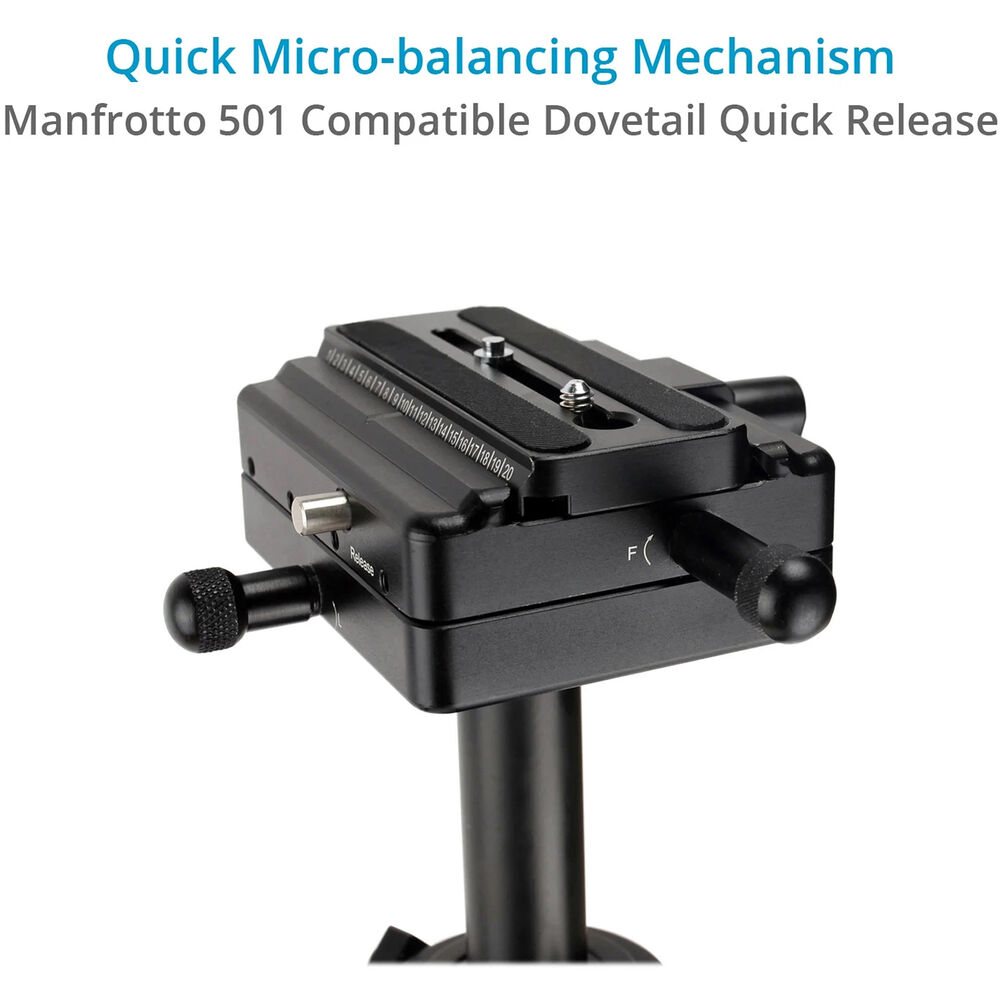

The Redking features a quick release camera mounting platform and comes with a quick release camera plate so you can attach/remove your camera efficiently. The camera plate is Manfrotto 501 compatible, so you can also efficiently move your camera between the stabilizer and most tripods or other camera supports.

Note: The foam handle design may vary according to availability. Key Features

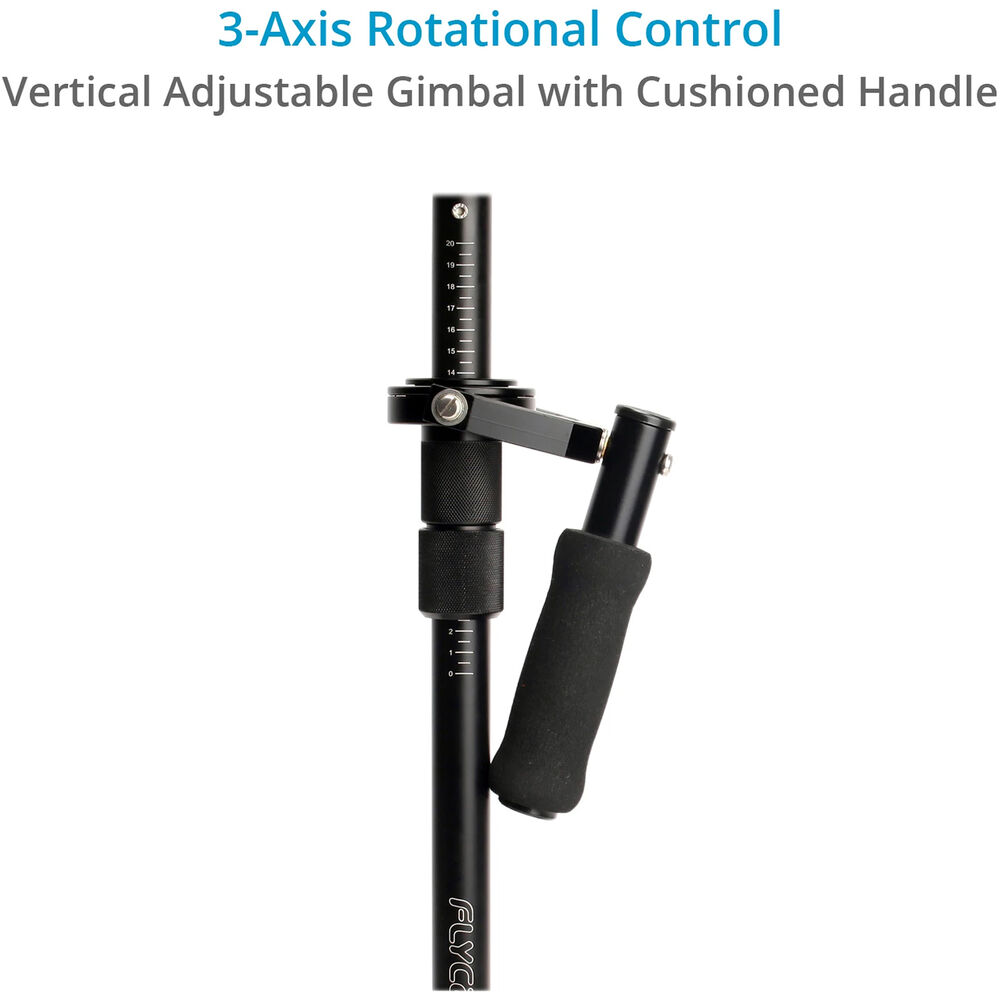

• 3-axis ball bearing rotational control, 15 lb payload
• Height-adjustable center post (21 to 32") with scale marks
• Width-adjustable base (11.5 to 15") with 16 removable counterweight plates
• Quick release camera platform
• Manfrotto 501-compatible quick release camera plate with a 1/4"-20 mounting screw
• Foam-cushioned handle

UPC: 713239961072

Weight Capacity	2.2 - 22 lb / 1 - 10 kg Blue Tension Springs: 2.2 - 11 lb / 1 - 5 kg Red Tension Springs: 11 - 22 lb / 5 - 10 kg
Vest Size	Chest: 38 - 52" / 96.5 - 132 cm Waist: 28 - 60" / 71 - 152 cm
Arm Length	18" / 46 cm (Max)
Mounting Post	16 mm Diameter (19 and 22 mm Bushings Included)
Material of Construction	Aluminum, Synthetic Fabric, Foam, Plastic
Weight	13.2 lb / 6 kg

Package Weight	17.755 lb
Box Dimensions (LxWxH)	31.9 x 14 x 8.2"

Stabilizer Type	Single-Grip Handheld
Load Capacity	1.75 to 15 lb / 0.79 to 6.8 kg
Camera Mount	1/4"-20 Male
Height	20.87 to 31.89" / 53 to 81 cm
Center Column Diameter	1" / 25.4 mm
Weight	3.75 lb / 1.7 kg
Counterweights	16 x 3.9 oz / 110 kg
Material of Construction	Aluminum
Base Platform Dimensions	11.5 to 15.0 x 4.0" / 29.2 to 38.1 x 10.2 cm

Package Weight	12 lb
Box Dimensions (LxWxH)	24.3 x 8.7 x 8"
