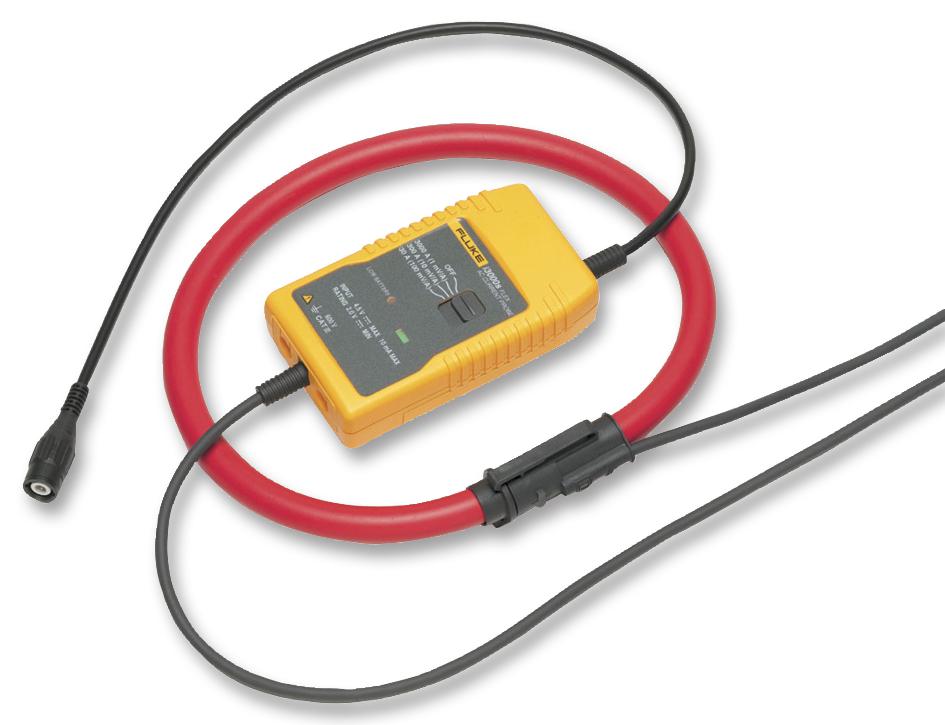

The FLUKE I3000 FLEX-24 is an AC Current Clamp utilizes the Rogowski principle. It can be used to measure currents up to 3000A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.
- Three ranges - 30A, 300A, 3kA
- 1, 10, or 100mV/A output
- 24" circumference
- CAT III 600V safety rating
- Supplied with 2x AA batteries
- Maximum conductor diameter: 178mm
Applications
Industrial, Maintenance & Repair, Test & Measurement
Footnotes In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Product details
| Meter Side Connector |
- |
| Probe Side Connector |
- |
| Current Range Max |
- |
| Current Range Min |
- |
| For Use With |
- |
| Product Range |
- |
Other details
| Brand |
FLUKE |
| Part Number |
FLUKE I3000S FLEX-24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
