Description
FLIR AX8 Overview
Comprising the essentials necessary to build out a thermal imaging setup, the AX8 Thermal Imaging Camera with Accessories set bundles the versatile thermal imaging camera with a M12 to RJ45 ethernet cable, an M12 to Pigtail cable, a PoE Injector and Cable Kit, and front and rear mounting plates.

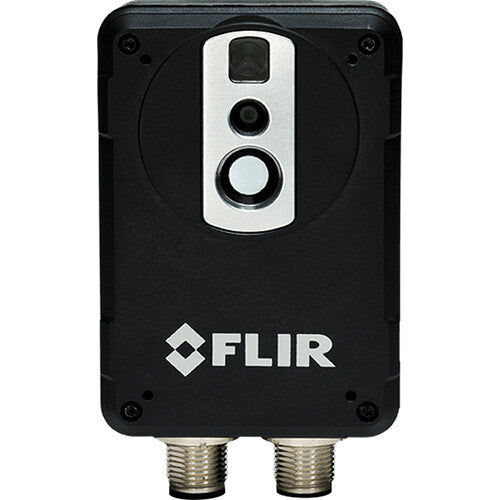

FLIR AX8 Thermal Imaging Camera
A compact and innovative solution for continuous temperature monitoring, the FLIR AX8 Thermal Imaging Camera combines thermal imaging with a digital camera in a small, IP67-rated form factor for easy installation in space-constrained areas such as electrical cabinets, manufacturing processes, data centers, energy generation areas, and transportation facilities. The camera offers analysis and alarm functionality, allowing for autonomous operation and communication through standard protocols. This smart camera can stream live video, providing real-time insights into the conditions of your equipment and installations. The camera's Multi Spectral Dynamic Imaging technology enhances thermal images with visible light edges from the digital camera, providing clearer and more detailed imagery. The thermal imaging detector offers an 80 by 60 resolution, equating to 4,800 non-contact and selectable measurement points. Essential for applications where temperature trends can indicate potential risks of failure, the AX8 also integrates easily with industrial control equipment with its compatibility with Ethernet/IP and Modbus TCP field bus protocols, allowing data to be shared and controlled over these networks.
UPC: 793950110102

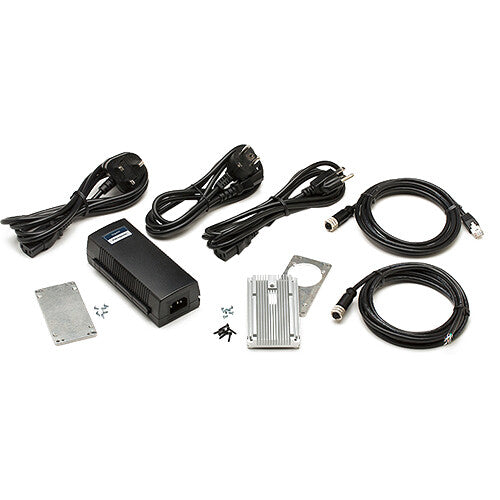

Items Included
- FLIR AX8 Thermal Imaging Camera with Accessories
- FLIR AX8 Thermal Imaging Camera
- M12 to RJ45 Ethernet Cable
- M12 to Pigtail Cable (6.6')
- PoE Injector and Cable Kit (120V)
- Front Mounting Plate
- Rear Mounting Plate
Additional Resources
No additional resources available
FLIR AX8 Specs
Power
| Power Source |
PoE, AC Input
|
| DC Input Power |
12 / 24 VDC
|
| Power Consumption |
2 W (Typical)
4.7 W (Maximum) |
Environmental
| Environmental Protection |
Advertised as Dust Resistant/Water Resistant
*Manufacturer Testing: IP67 |
| Certifications |
EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission)
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Storage Humidity |
95%
|
Physical
| Mounting |
4x Mounting Holes
|
| Color |
Black
|
| Material of Construction |
Nylon Polymer
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
3.1 x 2.1 x 1" / 79 x 54 x 25 mm (Without Connectors)
3.7 x 2.1 x 1" / 95 x 54 x 25 mm (With Connectors) |
| Weight |
4.4 oz / 125 g
|
