| ₹ 7701.31 includes GST and import duties. | |
| B2B customers can avail ₹ 1174.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

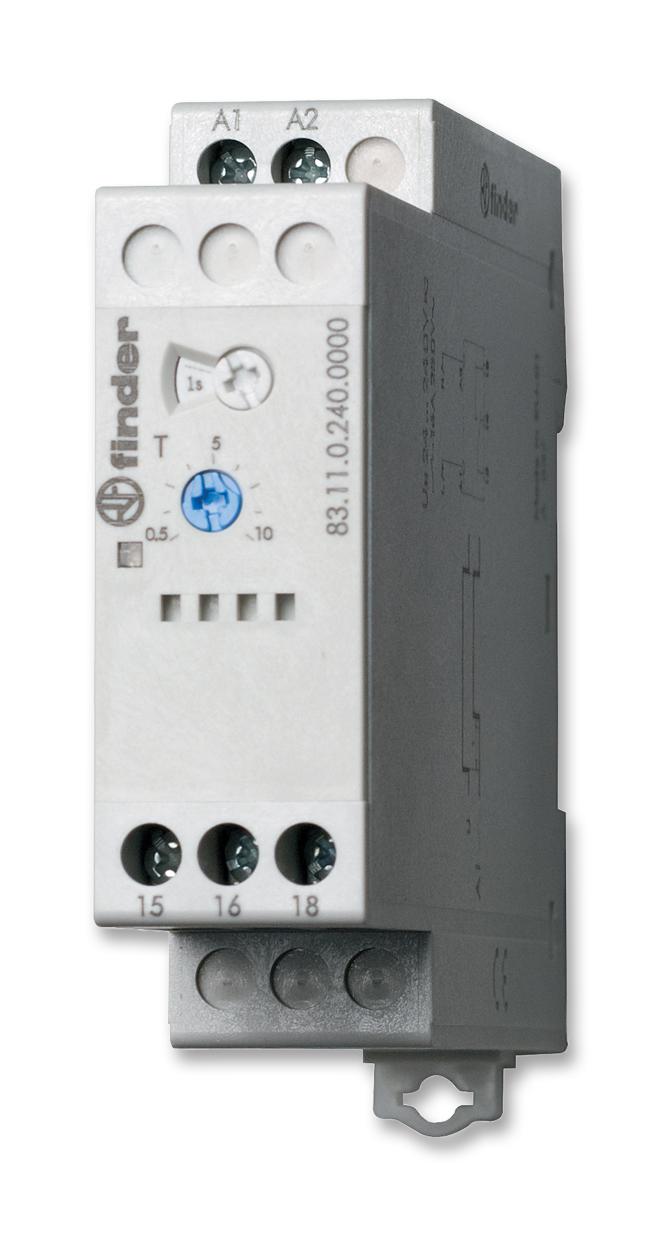

The 83.11.0.240.0000 is a 1-pole 8-timing range SPDT Timer Relay with on-delay function and AgNi contacts. The timer offers blade + cross both flat blade and cross head screw drivers can be used to adjust the range and function selectors, the timing trimmer and to disengage the rail mounting clip. It also offers screw terminals and eight time scales from 0.05s to 10 days.
- High input/output isolation
- Multi-voltage
- Mono-function
- IP20 Protection rating
- 0.5kW Single phase motor rating (230VAC)
- 300mW (5V/5mA) Minimum switching load
Automation & Process Control
Other details
| Brand | FINDER |
| Part Number | 83.11.0.240.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7547.28 |
| 3-5 | ₹ 7470.27 |
| 5-10 | ₹ 7316.24 |
| 10+ | ₹ 7162.22 |
Bulk discount will be automatically applied during checkout based on quantity.
