Description

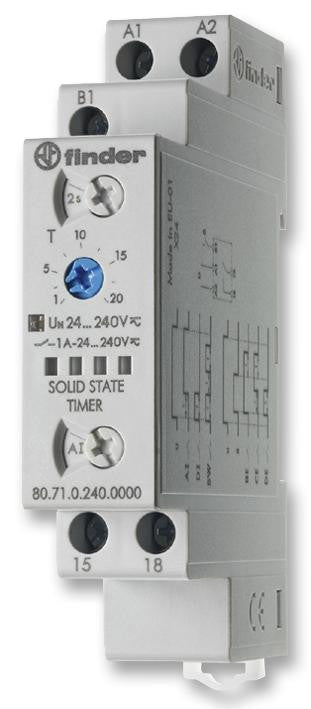

The 80.71.0.240.0000 is a 1-pole Modular Solid-state Timer with AC/DC coil, 80.71 series. 1NO (SPDT-NO) contact configuration. Multi-function and multi-voltage solid-state output timer. Six time scales from 0.1 second to 24 hours. Supports ON-delay (AI), interval (DI), symmetrical flasher (starting pulse on) (SW), OFF-delay with control signal (BE), ON and OFF-delay with control signal (CE), interval with control signal on (DE). Blade + cross both flat blade and cross head screw drivers can be used to adjust the range and function selectors, the timing trimmer and to disengage the rail mounting clip. Multi-voltage input with PWM clever technology.
- IP20 Protection rating
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Control Voltage DC Min | 12VDC |
| Control Voltage DC Max | 24VDC |
| Relay Mounting | DIN Rail |
| Control Voltage AC Min | 12VAC |
| Load Current | 1A |
| Control Voltage AC Max | 24VAC |
| Product Range | - |
| Timer Functions | Multifunction |
| Operating Voltage Min | 19VAC |
| Switching Mode | - |
| Operating Voltage Max | 265VAC |
Other details
| Brand | FINDER |
| Part Number | 80.71.0.240.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
