Description

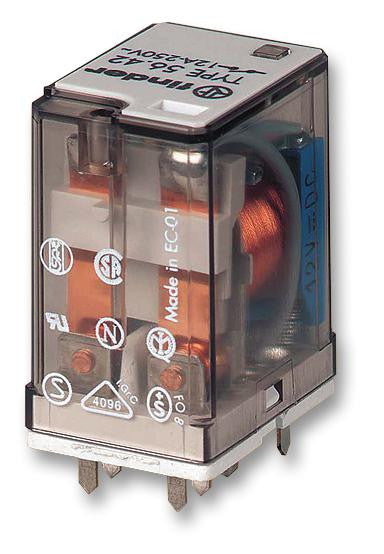

The 56.42.9.024.0000 is a PCB mount Miniature Power Relay with DC coil. This 56 series relay has 2CO (DPDT) cadmium-free AgNi contacts.
- Dust-proof RT I standard protection rating
- -40 to 70°C Operating temperature range
Applications
Industrial
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 600ohm |
| Product Range | 56 Series |
| Relay Terminals | Solder |
| Contact Current | 12A |
| Approvals & Standards | CE, CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 56.42.9.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
