Description

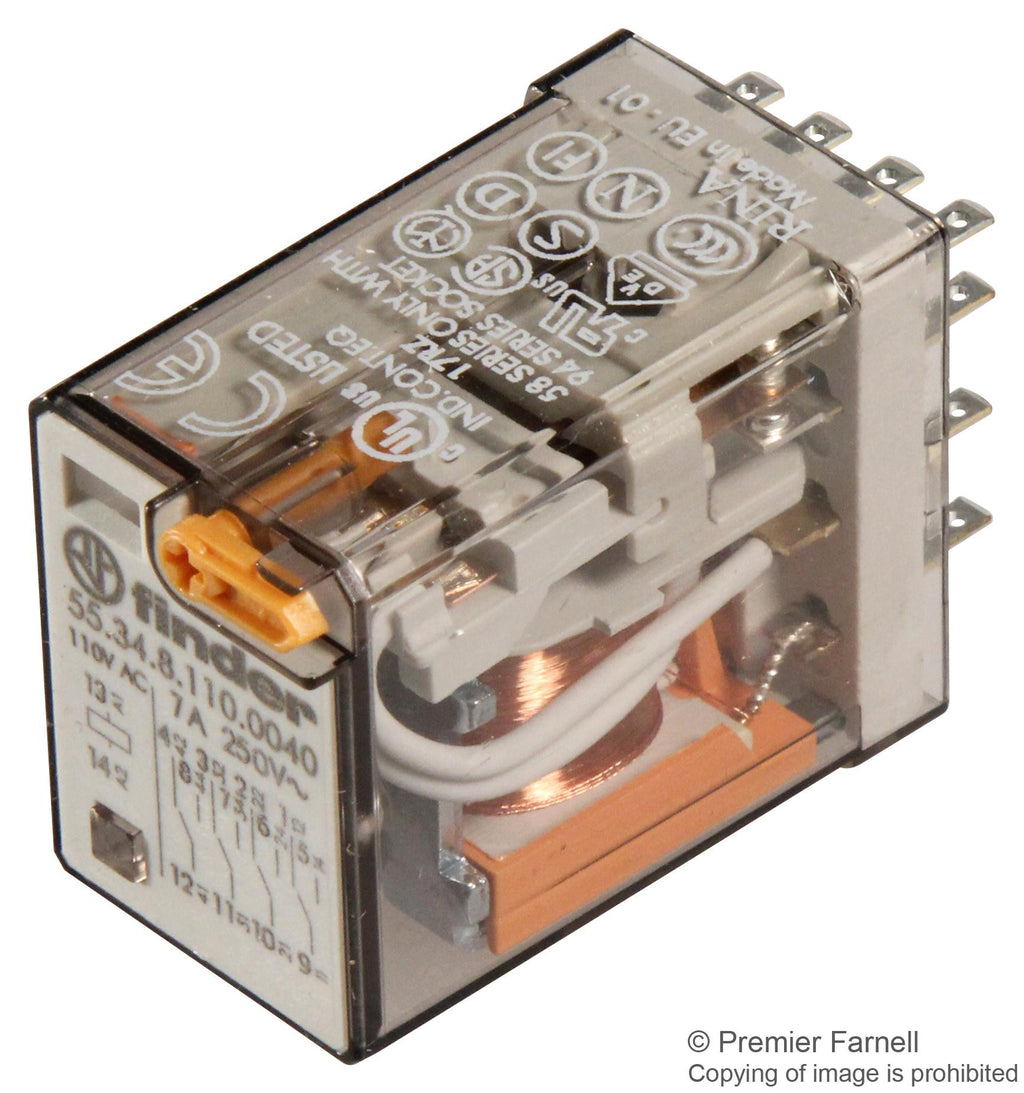

The 55.34.8.110.0040 is a 4-pole General-purpose Relay with AC coil, 55.34 series. 4CO (4PDT) contact configuration, coil EMC suppression. Timer accessories 86 series, plug-in mount. Lockable test button and mechanical indicator. AgNi, cadmium-free contact. European patent.
- 4kV (1.2/50µs) Isolation, coil contacts
- RT I Environmental protection rating
- Available in flux proof RT II standard and wash tight RT III version
- Cadmium free contacts
- DPDT, 3PDT, 4PDT contact configurations
- Switching capacity of 10A, 7A at 250VAC
- UL, CSA and VDE standards approved
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Socket |
| Coil Type | AC |
| Coil Resistance | 4kohm |
| Product Range | 55 Series |
| Relay Terminals | Quick Connect |
| Contact Current | 7A |
| Approvals & Standards | CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 110VAC |
| Contact Configuration | 4PDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 55.34.8.110.0040 |
| Quantity | Each |
| Technical Data Sheet EN |  |
