| ₹ 2700.8 includes GST and import duties. | |
| B2B customers can avail ₹ 411.87 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

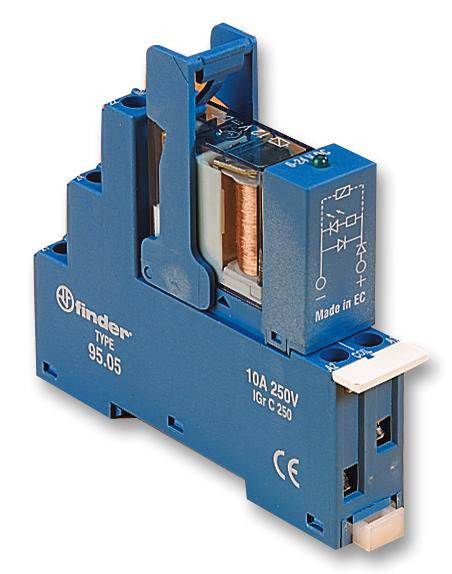

The 48.31.7.024.0050SPA is a Relay Interface Module with sensitive DC coil. This 48 series 35mm rail (EN 60715) mount relay has 1CO (SPDT) cadmium-free AgNi contact and green LED + diode (polarity +A1). Instant ejection of relay by plastic retaining clip. Supply status indication and EMC coil suppression module as standard.
- Ideal interface for PLC and electronic systems
- Identification label
- 15.8mm Wide
- Screw terminal
- -40 to 70�C Operating temperature range
- IP20 Protection rating
Applications
Industrial
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | DIN Rail |
| Coil Type | DC Sensitive |
| Coil Resistance | - |
| Product Range | 48 Series |
| Relay Terminals | Screw |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 48.31.7.024.0050SPA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2646.78 |
| 3-5 | ₹ 2619.78 |
| 5-10 | ₹ 2565.76 |
| 10+ | ₹ 2511.74 |
Bulk discount will be automatically applied during checkout based on quantity.
