Description

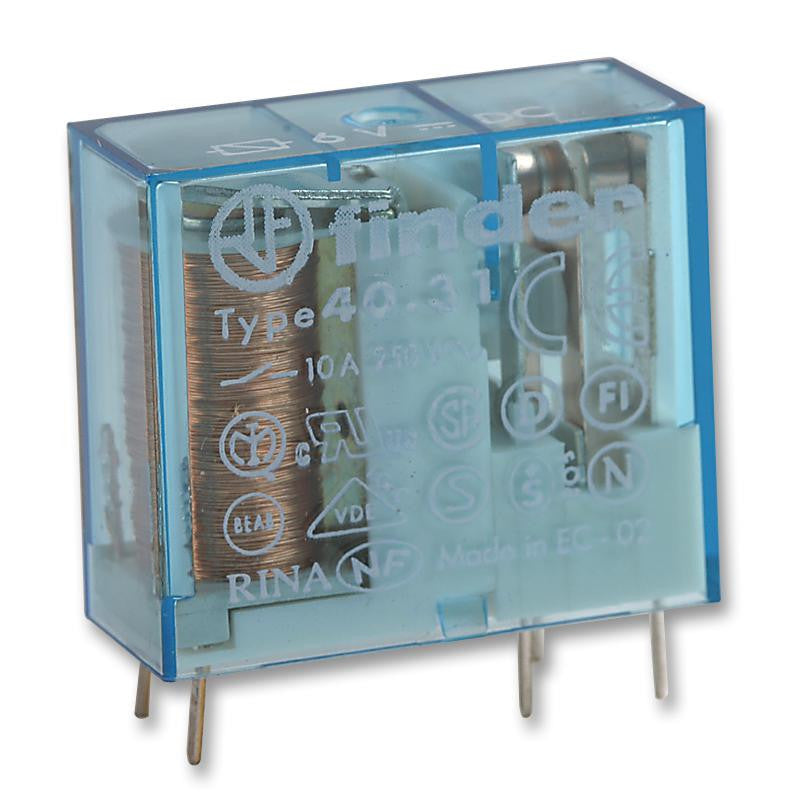

The 40.31.9.006.0000 is a 1-pole Miniature PCB/Plug-in Relay with DC coil, 40.31 series. 1CO (SPDT) contact configuration, coil EMC suppression. Timer accessories 86 series, 3.5mm pin length for PCB mount. AgNi, cadmium-free contact, 8mm creepage and clearance distances between coil and contacts. Meets EN 60335-1 glow wire requirements.
- 6kV (1.2/50�s) Isolation, coil contacts
- RT II Environmental protection rating
- SPDT, SPST-NO, DPST contact configurations
- Available in flux proof RT II standard and wash tight RT III version
- UL, CSA and VDE standards approved
- Switching capacity of 12A, 16A, 10A, 8A at 250VAC
- Cadmium free contact materials
- 35mm rail mount via screw or screwless sockets
- DC coils (standard or sensitive) & AC coils
- Bistable (single coil) versions of 40.31/51/52/61 relays are also available
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 55ohm |
| Product Range | 40 Series |
| Relay Terminals | Solder |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 6VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 40.31.9.006.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
