Description

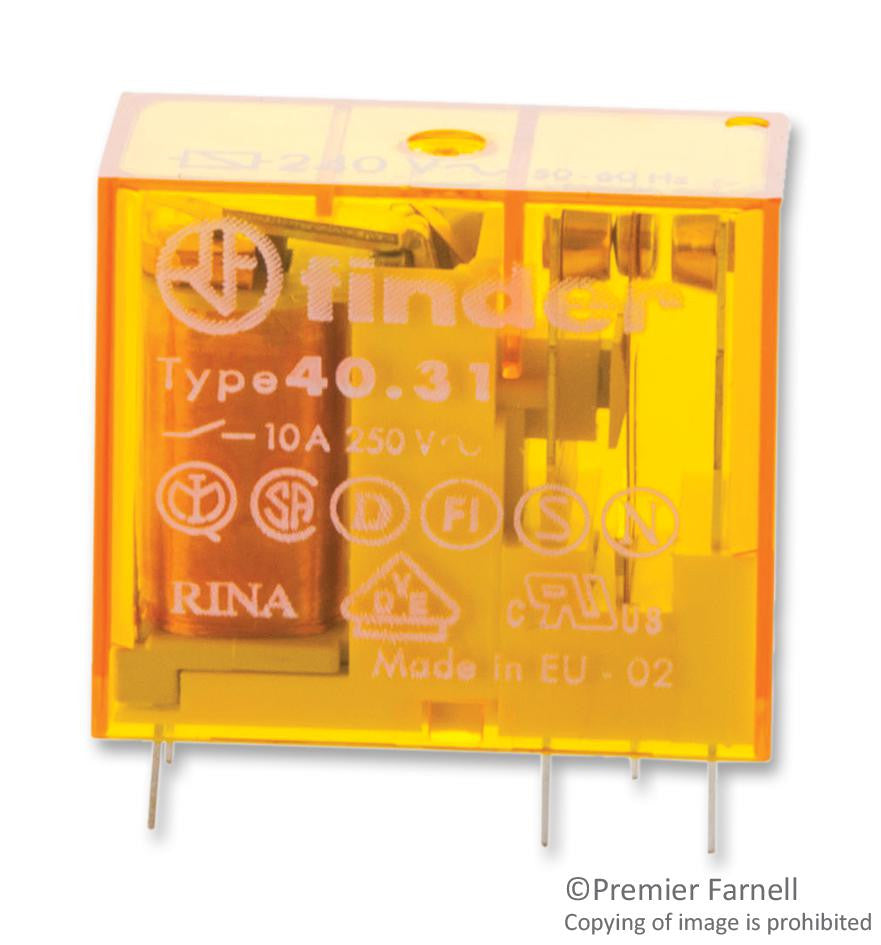

The Finder 40 series are miniature PCB or plug-in relays. These electromechanical relays offer high isolation of 6KV, 8mm creepage and clearance distances between coil and contacts.
- Single pole relays except 40.52 series available in double pole
- 3.5mm or 5mm contact pin pitch
- SPDT, SPST-NO, DPST contact configurations
- Available in flux proof RT II standard and wash tight RT III version
- UL, CSA and VDE standards approved
- Switching capacity of 12A, 16A, 10A, 8A at 250VAC
- Cadmium free contact materials
- 35mm rail mount via screw or screwless sockets
- DC coils (standard or sensitive) & AC coils
- Bistable (single coil) versions of 40.31/51/52/61 relays are also available
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | AC |
| Coil Resistance | 31.5kohm |
| Product Range | 40 Series |
| Relay Terminals | Solder |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 240VAC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 40.31.8.240.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
