| ₹ 1089.55 includes GST and import duties. | |
| B2B customers can avail ₹ 166.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

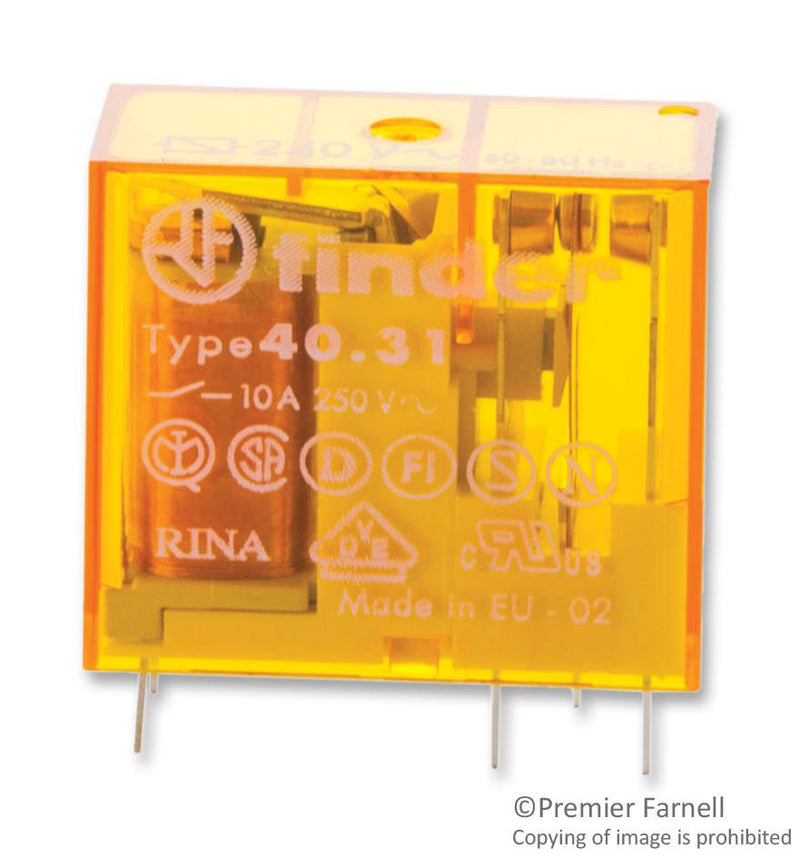

The 40.31.8.024.0000 is a 1-pole Miniature PCB/Plug-in Relay with AC coil, 40.31 series. 1CO (SPDT) contact configuration, coil EMC suppression. Timer accessories 86 series, 3.5mm pin length for PCB mount. AgNi, cadmium-free contact, 8mm creepage and clearance distances between coil and contacts. Meets EN 60335-1 glow wire requirements.
- 6kV (1.2/50µs) Isolation, coil contacts
- RT II Environmental protection rating
- SPDT, SPST-NO, DPST contact configurations
- Available in flux proof RT II standard and wash tight RT III version
- UL, CSA and VDE standards approved
- Switching capacity of 12A, 16A, 10A, 8A at 250VAC
- Cadmium free contact materials
- 35mm rail mount via screw or screwless sockets
- DC coils (standard or sensitive) & AC coils
- Bistable (single coil) versions of 40.31/51/52/61 relays are also available
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 320ohm |
| Product Range | 40 Series |
| Relay Terminals | Solder |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VAC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 40.31.8.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1067.76 |
| 3-5 | ₹ 1056.86 |
| 5-10 | ₹ 1035.07 |
| 10+ | ₹ 1013.28 |
Bulk discount will be automatically applied during checkout based on quantity.
