Description

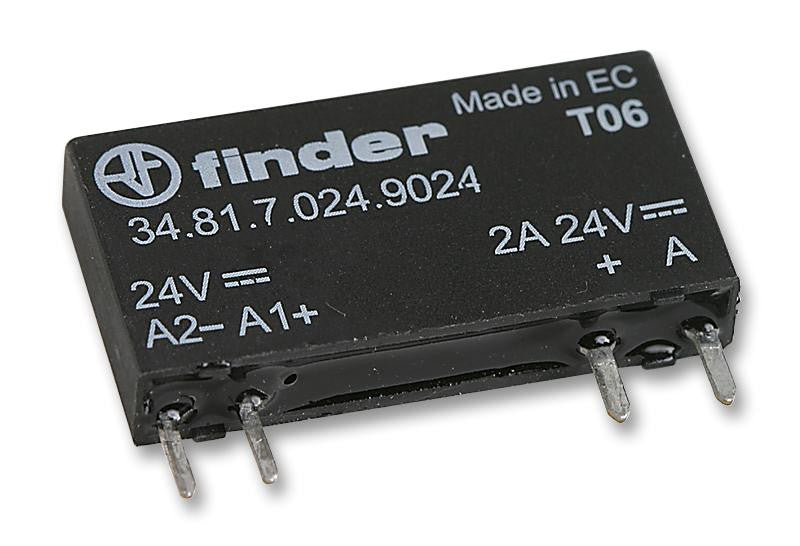

The 34.81 series from Finder are slim solid state PCB relays. These solid state relays are single pole, sensitive DC coil and high speed switching with long electrical life. 34.81 series relays are housed in ultra slim 5mm package.
- SPST-NO contact configuration
- Compliance to UL standards
- Single circuit output switching options of 2A at 24VDC, 0.1A at 48VDC, 2A at 240VAC
- 2.5KV insulation between input and output
- Selectable coil voltage of 5VDC, 12VDC, 24VDC, 60VDC
- 35mm rail mount via screw or screwless sockets
- Ambient temperature range of -20�C to 60�C
- RT III environmental protection
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
| Relay Mounting | PCB |
| Control Voltage Max | 24VDC |
| Load Current | 2A |
| Control Voltage Min | 1.5VDC |
| Product Range | 34 Series |
| Relay Terminals | Through Hole |
| Operating Voltage Min | 16VDC |
| Switching Mode | DC Switch |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 30VDC |
Other details
| Brand | FINDER |
| Part Number | 34.81.7.024.9024 |
| Quantity | Each |
| Technical Data Sheet EN |  |
