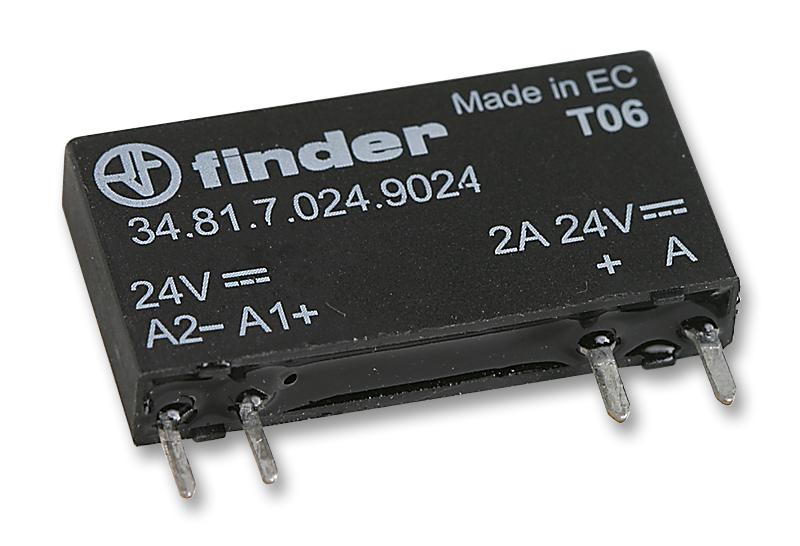

The Finder 34.81 series are slim solid state PCB relays. These solid state relays features single pole, sensitive DC coil and high speed switching with long electrical life. 34.81 series relays are housed in ultra slim 5mm package.
- SPST-NO contact configuration
- Compliance to UL standards
- Single circuit output switching options of 2A at 240VAC
- 2.5KV insulation between input and output
- PCB mount either directly or via PCB socket
- 35mm rail mount via screw or screwless sockets
- Ambient temperature range of -20°C to 60°C
- RT III environmental protection
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Configuration |
SPST-NO |
| Load Current |
2A |
| Operating Voltage Max |
17VDC |
| Relay Mounting |
PCB |
| Relay Terminals |
Screw |
| Switching Mode |
- |
| Operating Voltage Min |
8VDC |
| Control Voltage Min |
- |
| Control Voltage Max |
- |
| Product Range |
34 Series |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
FINDER |
| Part Number |
34.81.7.012.8240 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
