Description

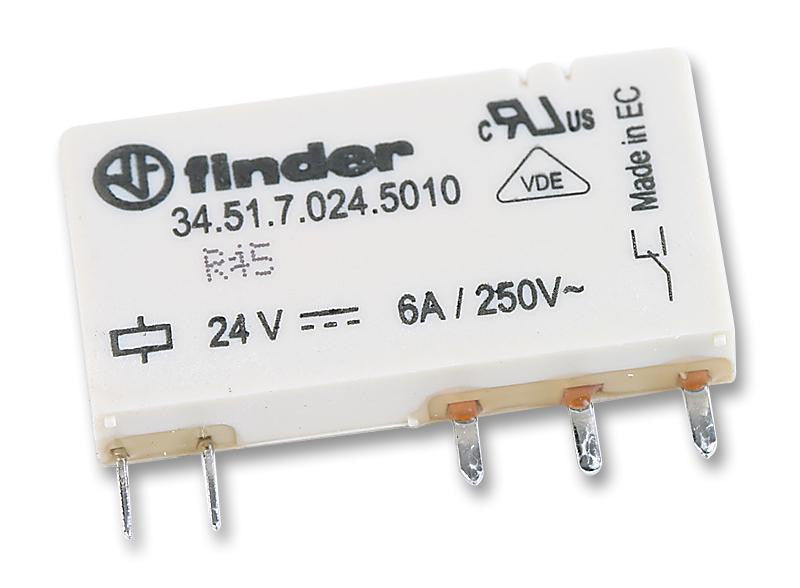

The Finder 34.51 series are ultra slim PCB relays. These electromechanical relays features single pole, sensitive DC coil in ultra slim 5mm package.
- SPDT contact configuration
- Available in flux proof and flat version
- UL, CSA and VDE standards approved
- Low coil power of 170mW
- Switching capacity of 6A at 250VAC
- Cadmium free contact materials
- 6kV (1.2/50 �s) insulation between coil and contacts
- Selectable coil voltage of 5VDC, 12VDC, 24VDC, 48VDC, 60VDC
- 8/8mm clearance distance
- 35mm rail mount via screw or screwless sockets
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 3.35kohm |
| Product Range | 34 Series |
| Relay Terminals | Solder |
| Contact Current | 6A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 34.51.7.024.0010 |
| Quantity | Each |
| Technical Data Sheet EN |  |
