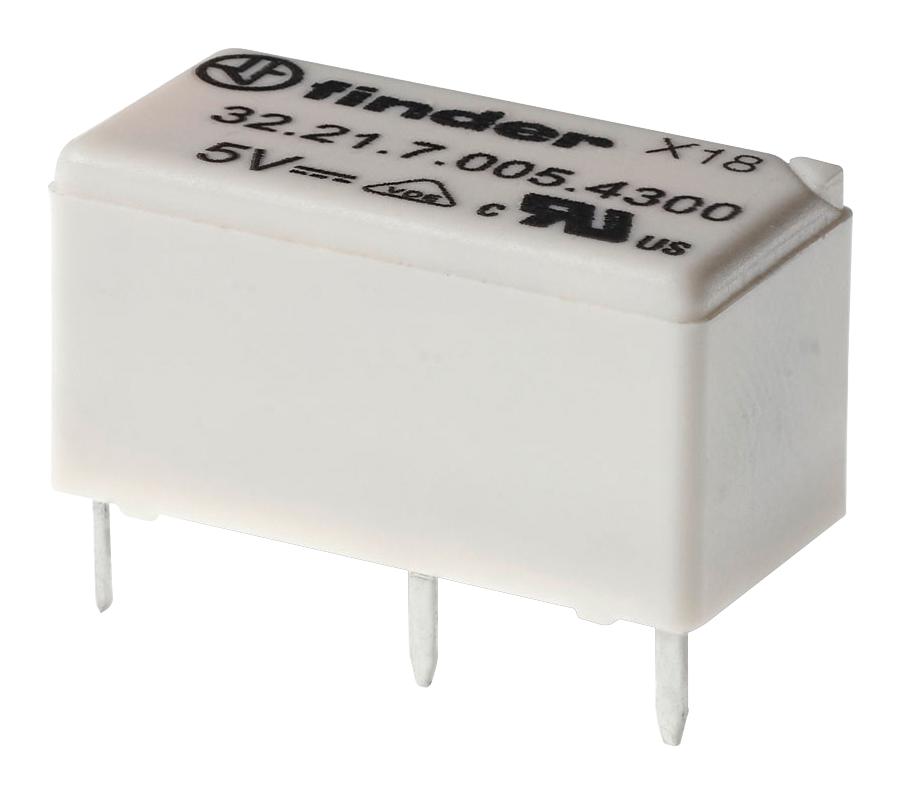

- 32 series subminiature PCB relay
- Subminiature, low profile package, sensitive DC coil - 200mW
- Cadmium free contacts
- 1 CO (SPDT), 6A, low coil power
- PCB mount type, sensitive DC, standard AgSnO2 contact material
- Wash tight (RT III) version
- 5 to 12VDC, 24 to 48VDC nominal voltage (UN)
- Ambient temperature range from -40 to +85°C
- Rated voltage/maximum switching voltage is 250/400VAC
- Rated insulation voltage is 250VAC
Product details
| Contact Configuration:
SPDT
|
| Coil Voltage:
12VDC
|
| Contact Current:
6A
|
| Product Range:
32 Series
|
| Relay Mounting:
Through Hole
|
| Coil Type:
Non Latching
|
| Contact Voltage VAC:
250V
|
| Relay Terminals:
PC Pin
|
| Contact Voltage VDC:
-
|
| Contact Material:
Silver Tin Oxide
|
| Coil Resistance:
720ohm
|
Other details
| Brand |
FINDER |
| Part Number |
32.21.7.012.4000 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
