Description

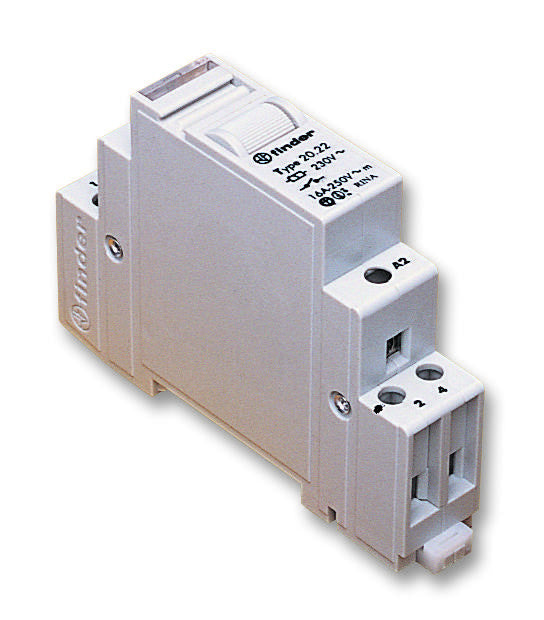

The 20.22.9.024.0000 is a 2-pole Modular Step Relay with DC coil, 20.22 series. Double phase switch 2NO (DPST-NO), test button with mechanical indicators. Possible to connect illuminated pushbuttons with the additional part 026.00. AgNi, cadmium-free contact. Module for illuminated pushbuttons. 35mm rail (EN 60715) mount.
- 4kV (1.2/50µs) Isolation, coil contacts
- 17.5mm Width
- Identification label
- IP20 Protection rating
- 17.4mm wide
- Cadmium free contact material
- DC rated power of 5W
- IP20 Protection category
- 4kV insulation between coil and contacts
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | DIN Rail, Panel |
| Coil Type | DC |
| Coil Resistance | 105ohm |
| Product Range | 20 Series |
| Relay Terminals | Screw |
| Contact Current | 16A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | DPST-NO |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 20.22.9.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
