Description

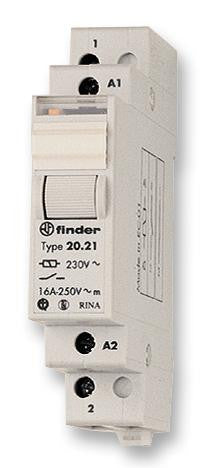

The 20.21.8.230.4000 is a 1-phase Step Relay for direct 35mm DIN rail mounting. Relay is possible to connect illuminated push buttons with the additional module. It comes in test button with mechanical indicators and identification label.
- Test Button with Mechanical Indicators
- SPST-NO Contact Configuration
- Possible to Connect Illuminated Push Buttons with the Additional Part of 026.00 Module
- 35mm DIN Rail Mounting
- Identification Label
- Cadmium-free Contact Material
Applications
Industrial
Product details
| Contact Material | Silver Tin Oxide |
| Relay Mounting | DIN Rail |
| Coil Type | - |
| Coil Resistance | 2.5kohm |
| Product Range | 20 Series |
| Relay Terminals | Screw |
| Contact Current | 16A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 230VAC |
| Contact Configuration | SPST-NO |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 20.21.8.230.4000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
