Description
FiiO Q7 Overview
- 1Description
- 2Q7: The Portable Desktop-Class Headphone Amplifier
- 3
- 4Powerful Features
- 5Desktop-Level Connectivity
- 6Desktop-Caliber Power Supply
- 7Desktop-Grade Decoding
- 8FiiO Digital Control Core
- 9LED Indicators
- 10Full-Color High-Definition Display
- 11
- 12FiiO Control App
- 13Protection
- 14

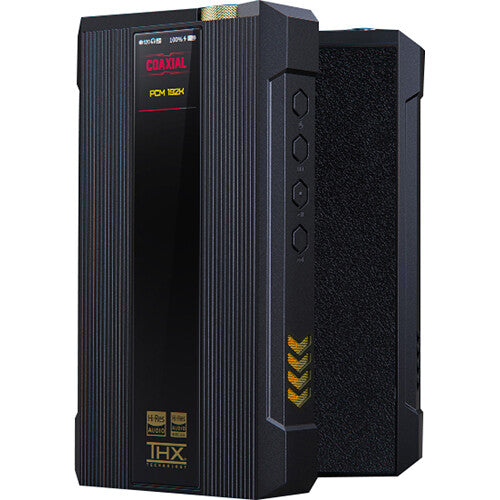

Q7: The Portable Desktop-Class Headphone Amplifier
Audiophiles and audio enthusiasts looking for a portable amplifier with the power of a desktop unit should look no further than the
FiiO Q7 Portable Desktop-Class Headphone Amplifier, a true fusion of quality desktop components packed into a portable enclosure. The Q7 redefines what a portable amp can be and sets a new benchmark not only for FiiO portable products, but for all portable products.
Powerful Features

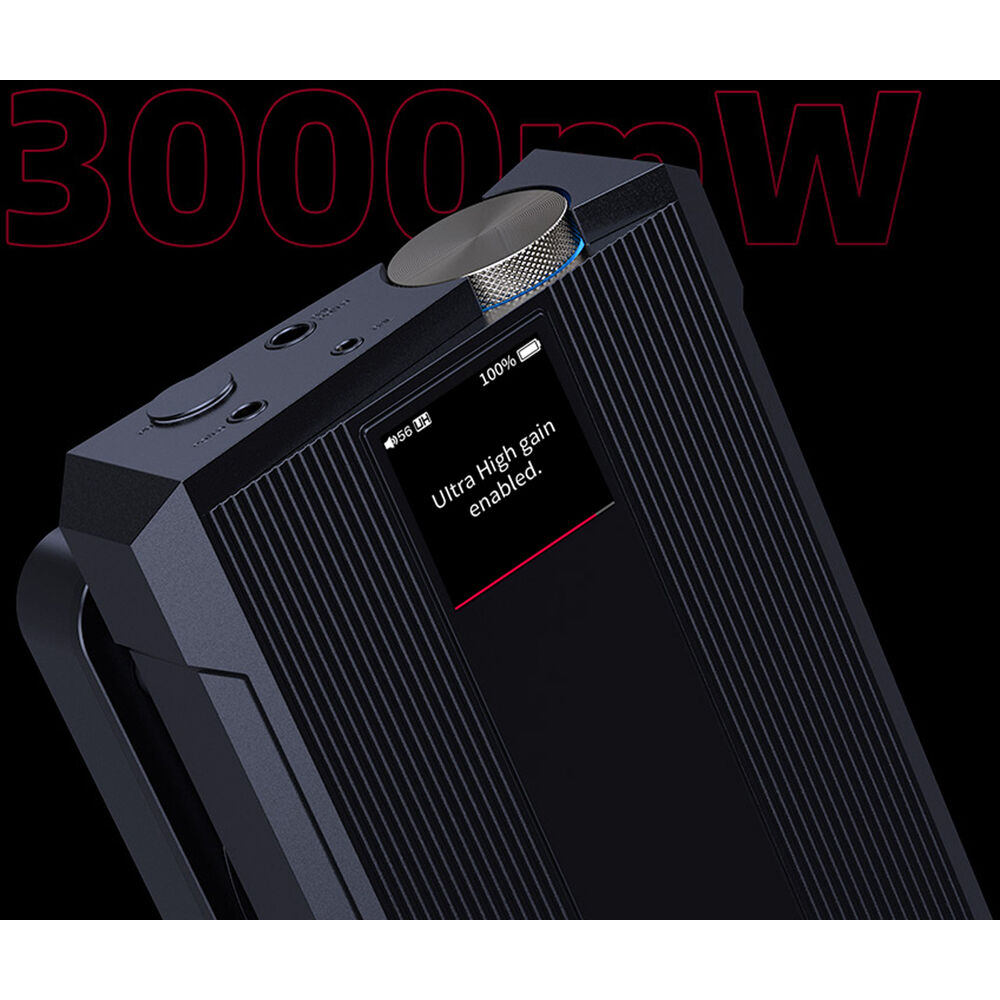

The Q7 features a switchable power system which provides 3000mW of power for its enhanced over-ear headphone mode, while the portable mode outputs 1500mW. Originally designed for desktop usage, the THX AAA 788+ amplifier features a 4-way true balanced amplifier circuit with five levels of mixed gain, which effortlessly powers all kinds of headphones for a pure listening experience. The Q7 ships with a leatherette case, cooling stand, USB power cable, power adapter, AC power cord, USB adapter, two USB-C to USB-C data cables (long/short), and a lightening cable.
Desktop-Level Connectivity

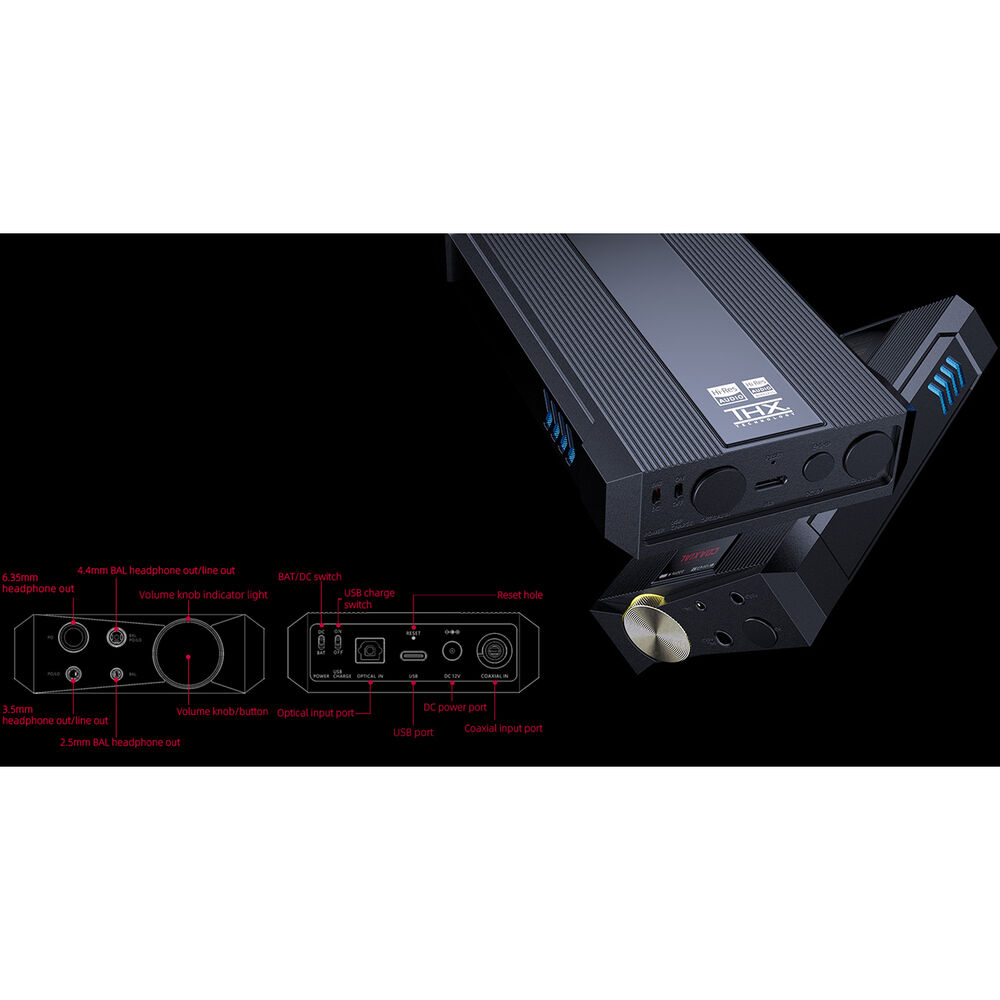

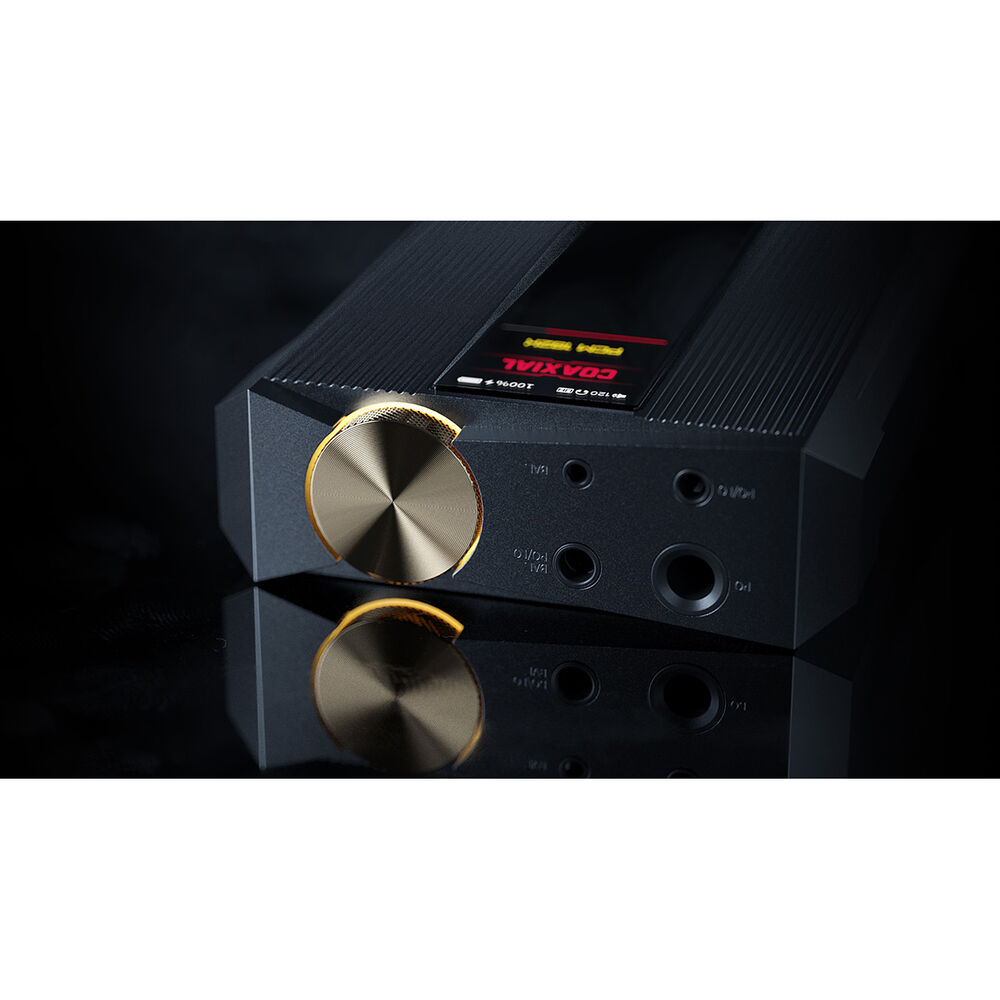

The Q7 is equipped to handle any situation with USB, optical, and coaxial inputs, and has two single-ended headphone outputs (1/4"/3.5mm) and two balanced headphone outputs (4.4/2.5mm), plus a line output too.
Desktop-Caliber Power Supply

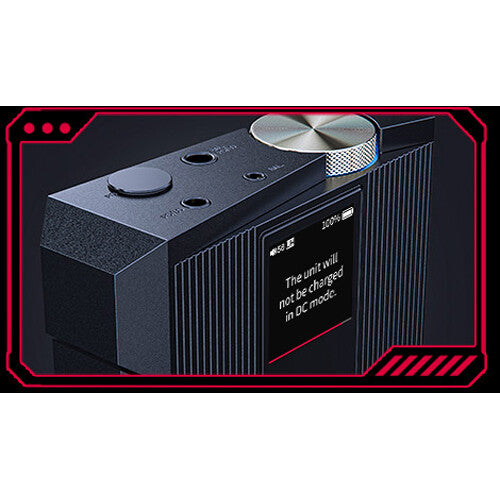

- The Q7 can be operated in either DC or battery-powered modes. Under the battery-powered mode, the 9200mAH battery is up to the task of powering the Q7 output up to 1500mW of power. Under DC-power-supply mode, the battery is bypassed to protect the battery's life, while the custom 24W low-noise power supply effortlessly drives a wide variety of headphones with aplomb.
- The five-stage audio circuit features 20 LDOs and a 470mF high-capacity, ultralow ESR supercapacitor in order to provide endless reserves of power in order to maintain stable high-quality audio at all times.
Desktop-Grade Decoding
- 16-Core XMOS XU316: Dual audio clocks, ultralow latency, 768 kHz, DSD512, and MQA full decoding
- High-end DAC ES9038PRO: Four channels connected in parallel for one differential output provides excellent resolution
- Qualcomm QCC5124: Bluetooth receiver with support for hi-res Bluetooth formats like LDAC, and APTX Adaptive, aptX LL, and aptx HD
FiiO Digital Control Core
FiiO upgraded their self-developed digital control core center, which utilizes a control chip powered by an ARM Cortex M4 processor that efficiently handles tasks such as clock management, USB decoding, and optical decoding, to optimize sound quality. To further enhance sound quality, the digital and analog sections are physically separated on different boards with shield covers to achieve an extremely pure sound, for a superb listening experience.
LED Indicators
The Q7 continues FiiO's modern design language, featuring a bold next-generation mech design complemented by tasteful color lights for a thoroughly technologically modern appearance.
- Blue: ?48 kHz, Yellow: >48 kHz, Green: DSD, Pink: MQA
Full-Color High-Definition Display
The Q7 features a 1.3" full-color display that lets you quickly know information such as audio format and sampling rates with just a simple glance. Let your eyes enjoy a delightful experience on par with that of your ears.

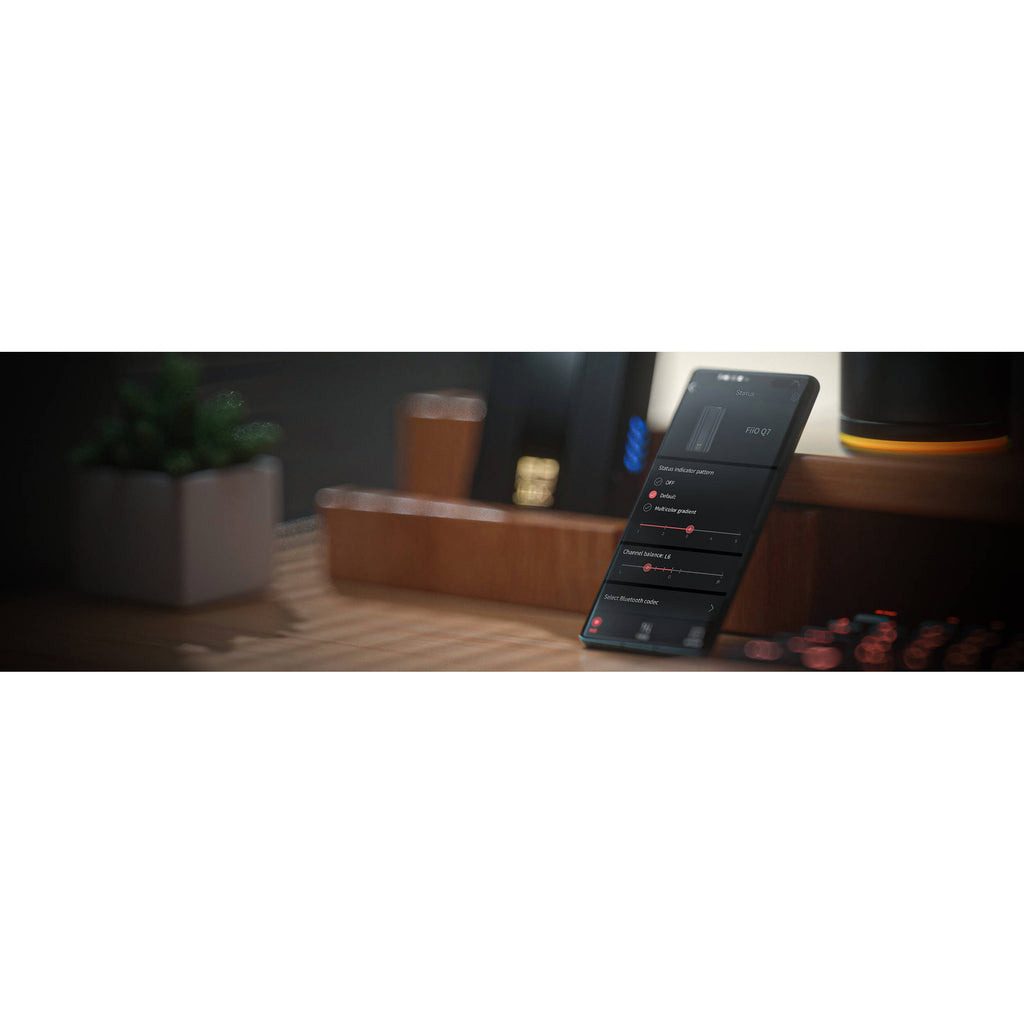

FiiO Control App
With the FiiO Control app, the adjustable settings are all at your fingertips. Change the Bluetooth format, RGB lights, sound channel balance, and more, all in one handy location.
Protection
- Overload Protection: Ensures the device has sufficient power for excellent audio quality
- Overheating Protection: Prevents heat damage to the battery and keeps you safe
- Max Volume Limit: Has the ability to protect your hearing
In the Box
- FiiO Q7 Desktop-Class Headphone Amplifier with Bluetooth
- Leatherette Case
- Cooling Fan / Stand
- USB Power Cable for Fan
- Power Adapter
- AC Power Cord
- USB Adapter
- 2 x USB-C to USB-C Data Cable (Long/Short)
- Lightning to USB-C Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Q7: The Portable Desktop-Class Headphone Amplifier
- Powerful Features
- Desktop-Level Connectivity
- Desktop-Caliber Power Supply
- Desktop-Grade Decoding
- FiiO Digital Control Core
- LED Indicators
- Full-Color High-Definition Display
- FiiO Control App
- Protection
FiiO Q7 Specs
| Form Factor | Portable |
| Number of Headphone Channels | 2-Channel |
| Recommended Headphone Impedance | 16 to 150 Ohms (Unbalanced) 16 to 300 Ohms (Balanced) |
| Headphone Output Power | 1/8" / 3.5 mm Unbalanced: 1500 mW into 16 Ohms 1/8" / 3.5 mm Unbalanced: 1100 mW into 32 Ohms 1/8" / 3.5 mm Unbalanced: 130 mW into 300 Ohms 4.4 mm Balanced: 1500 mW into 16 Ohms 4.4 mm Balanced: 3000 mW into 32 Ohms 4.4 mm Balanced: 500 mW into 300 Ohms 2.5 mm Balanced: 3000 mW into 32 Ohms 2.5 mm Balanced: 500 mW into 300 Ohms 2.5 mm Balanced: 1500 mW into 16 Ohms |
| Digital Chipset | DAC: 1 x ESS ES9038Pro USB: 1 x XMOS UX316 Bluetooth: 1 x Qualcomm QCC5124 |
| Analog Circuitry | Power Amplifier IC: 2 x THX AAA 788+ |
| EQ | None |
| Display | 1 x 1.3" Color IPS |
Connectivity
| Analog Audio I/O | 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Line/Headphone Output 1 x 1/4" TRS Unbalanced Stereo Headphone Output 1 x 4.4 mm TRRS Balanced Stereo Headphone Output 1 x 2.5 mm TRRS Balanced Stereo Headphone Output |
| Digital Audio I/O | 1 x TOSLINK Optical S/PDIF Input 1 x RCA Coaxial S/PDIF Input |
| USB | 1 x USB-C 2.0 (Digital Input, Power/Charging Input) |
| Wireless | Bluetooth 5.0 |
| Wireless Connectivity | Bluetooth (Audio Streaming, Mobile App) |
| Bluetooth | 5.0 |
| Supported Audio Codecs | AAC, aptX, aptX Adaptive, aptX HD, aptX LL, LDAC, SBC |
Performance
| Frequency Response | Headphone: 5 Hz to 80 kHz ±3 dB 20 Hz to 20 kHz ±0.1 dB 1/8" / 3.5 mm Balanced Headphone Outputs: 5 Hz to 80 kHz ±3 dB 20 Hz to 20 kHz ±0.1 dB 4.4 mm Balanced Headphone Outputs: 20 Hz to 80 kHz ±3 dB 20 Hz to 20 Hz ±0.1 dB 2.5 mm Balanced Headphone Outputs: 20 Hz to 80 Hz ±3 dB 20 Hz to 20 Hz ±0.1 dB |
| Maximum Output Level | Headphone: 17.8 V p-p Balanced Headphone: 35.5 Vrms |
| Impedance | Headphone Outputs: ? 1.2 Ohm (Unbalanced, 32-Ohm Load) Headphone Outputs: ? 2.2 Ohms (Balanced, 32-Ohm Load) |
| THD+N | 1/4" Headphone Outputs: < 0.0005% (32-Ohm Load) < 0.0003% (300-Ohm Load) 1/8" / 3.5 mm Headphone Outputs: 0.0005% (32-Ohm Load) 0.0003% (300-Ohm Load) 1/8" / 3.5 mm Line Outputs: < 0.0004% (10-Kilohm Load) 4.4 mm Line/Balanced Headphone Outputs: 0.0003% (10-Kilohm Load) |
| SNR | Headphone Outputs: ? 125 dB (A-Weighted, UH Gain) ? 122 dB (A-Weighted, SH Gain) Balanced Headphone Outputs: ? 125 dB (A-Weighted, UH Gain) ? 125 dB (A-Weighted, SH Gain) |
| Noise | Headphone Outputs: < 2.8 µV (dBA) 1/8" / 3.5 mm Line Outputs: < 3.5 µV (dBA) Balanced Headphone: < 4.5 µV (dBA) |
| Crosstalk | Headphone Outputs: ? 75 dB Balanced Headphone Outputs: ? 114 dB 1/8" / 3.5 mm Line Outputs: ? 99 dB 4.4 mm Line Outputs: ? 106 dB |
| Channel Balance | ? 0.2 dB |
Digital Audio
| Sample Rates | USB-C Input: Up to 768 kHz (DSD, PCM) |
| Bit Depths | Up to 32-Bit (PCM) |
Compatibility
| Mobile Device Compatibility | Android Smartphone iPhone |
Power
| Power Requirements | Built-In Rechargeable Battery, USB Bus Power |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 2A (USB Bus Power) |
| AC/DC Power Adapter | None |
| Internal Battery | Rechargeable Lithium-Ion Polymer (LiPo), 9200 mAh |
| Battery Charging Time | 4.5 Hours |
| Approximate Battery Life | 11 Hours |
Physical
| Dimensions | 6.2 x 3.5 x 1.1" / 158.4 x 88.5 x 28.3 mm |
| Weight | 21.9 oz / 620.0 g |
Packaging Info
| Package Weight | 4.83 lb |
| Box Dimensions (LxWxH) | 10.6 x 6.8 x 5.9" |
