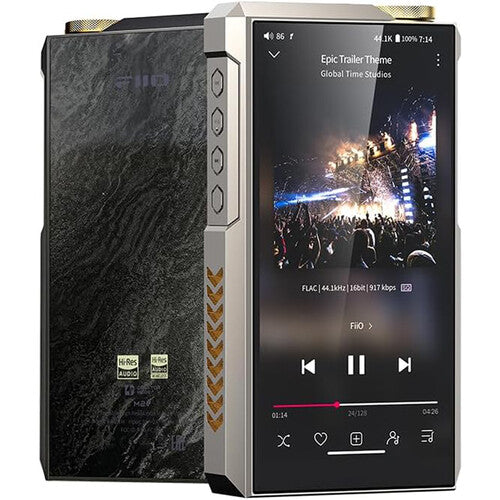

FiiO M27 Portable Hi-Res Music Player (Titanium)

Five Gain Modes

Select from four different gain levels to power IEMs and over-ear headphones. A fifth 5000mW+5000mW Ultra High Gain mode can be accesses by connecting the M27 to an optional fast-charging power adapter.

Versatile Connectivity

The M27 features the following audio, data, and power connections:

• 1 x 6.35mm headphone/line output
• 4.4mm balanced headphone/line output
• 3.5mm headphone/line output
• Optical output
• Coaxial input/output
• USB-C host port
• USB-C data/charging port
• USB-C charging/power supply port



Audiophile-Grade Components

The M27 has been meticulously engineered to ensure exceptional Hi-Res Audio and Hi-Res Audio Wireless fidelity. To start, separate power supplies for analog and digital sections are utilized to minimize the chance of audio interference and crosstalk. They feature a 50W high-capacity reserve power conversion circuit, a 65A high-current MOSFET low-loss managed power path, and large energy storage capacitors. They work to power end-to-end lossless playback using this array of premium audio components:

• 2 x NJU72315 electronic volume control chips
• 2 x TI OPA2211 op-amps optimized for musicality
• 2 x replays for lossless signal transmission
• 8 x ELNA audio capacitors
• 20 x RUBYCON film capacitors
• 50+ x low-noise, low-temperature drift film resistors

Pure Sound You Can Customize

A high-capacity FPGA + RIVER femtosecond crystal oscillators are part of FiiO's 6th-gen DAPS (Digital Audio Purification System). The ultra-high precision of your audio is joined by ultra-low jitter during its transmission. The clear sound can be further tweaked to your liking with a 31-band PEQ. If you want the M27 to do the work, select sound presets or choose the AUTO feature. Just upload or select your headphone's original data, then set your desired target curve. Additional features include built-in sound effects, such as Pop, Jazz, and FX17 Relaxed Sound. The last being specifically tuned to FiiO's optional FX17 earphones.

Keep It Cool

To keep your M27 functioning smoothly, it's equipped with a high-efficiency 3D cooling system that uses a graphite vapor chamber, graphene thermal conduction pads, copper heat sinks, and the player's seamless metal chassis to dissipate heat buildup quickly and efficiently.

Modern Function with Premium Aesthetics

Looking as good as it sounds, the M27 features cool side-integrated RGB lighting effects, a fiberglass backplate with marble magma texture, and large 0.86" knurled knob. The body's analog aesthetics are matched by crisp modern detailing and digital features. The front of the M27 sports a 5.99" 1080p touchscreen, which is protected by 5th-generation Corning Gorilla Glas. Through this, you can use Wi-Fi and Bluetooth support to stream music or play back your library through dual microSD card slots.

This model is made from a premium TC4 titanium alloy, which has four times the hardness of aluminum alloy. The luxurious look comes after 13 hours of precision CNC machining and an hour of polishing. The material also enjoys enhanced resistance to wear, corrosion, scratches, and abrasions.

Additional Details

• QCS6490 chipset based on same architecture as Snapdragon 778G
• A78 quad-core up to 2.7 GHz
• Bi-directional Bluetooth

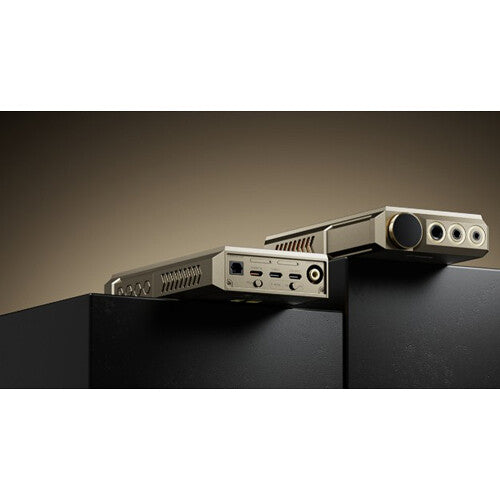

• DK1 PLUS desktop cooling stand included
• Stand features multiple ports, USB Audio support, and a built-in cooling fan
• 8GB of RAM
• 256GB of built-in storage
• Supports aptX Lossless and LDAC codecs
• Removable and swappable battery pack

Key Specs

Media Support

Audio

Connectivity

Power

General

Packaging Info
