Description
FiiO M17 Overview
- 1Description
- 2Desktop-Class Amp
- 3Desktop-Grade Gain
- 4Desktop-Level Connectivity
- 5Desktop-Quality Power Supply
- 6Desktop-Tier Heat Dissipation
- 7Physical Digital-Analog Separation
- 8Volume Adjustment
- 9Ambient Light
- 10Large Screen
- 11Additional Features

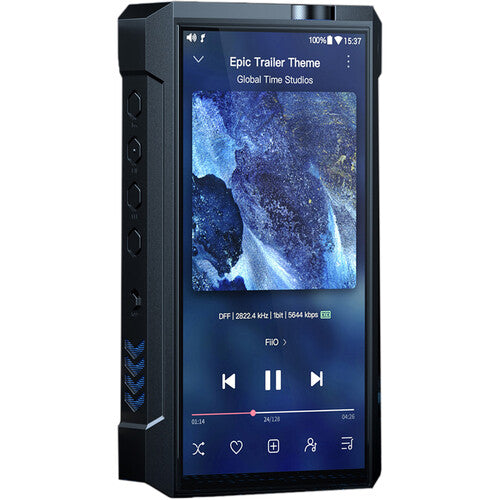

The FiiO M17 Desktop-Class Digital Audio Player has a desktop-grade DAC, amplification, power supply, and more that give it the output power and sound quality that is made to rival that of hi-end desktop systems. The left and right audio channels each contain a desktop-class, 8-channel ES9038PRO DAC. This means that each audio channel has 8 parallel outputs summed together for superior resolution and minimal distortion for purer audio reproduction.
Desktop-Class Amp
FiiO and THX jointly developed the M17's THX AAA-788+ amp. It has an output power of up to 3000mW per channel with a low output impedance, letting it easily power a wide variety of headphones.
Desktop-Grade Gain
Under battery power there are 4 gain levels: low, medium, high, and headphone mode. When under DC mode, the enhanced over-ear headphone mode gain is unlocked, with a desktop level of amplification gain. In balanced output, gain can get as high as 16 dB.
Desktop-Level Connectivity
The M17 features the following connections:
6.35mm Headphone Out
3.5mm Headphone Out/Line Out
4.4mm Balanced Headphone Out/Balanced Line Out
2.5mm Balanced Headphone Out
RCA Coaxial Port (In/Out)
USB 3.0 Type-C Port
USB 2.0 Type-C Port
6.35mm Headphone Out
3.5mm Headphone Out/Line Out
4.4mm Balanced Headphone Out/Balanced Line Out
2.5mm Balanced Headphone Out
RCA Coaxial Port (In/Out)
USB 3.0 Type-C Port
USB 2.0 Type-C Port
Desktop-Quality Power Supply
The M17 has two power supplies: a battery power supply and a power supply powered by external DC power. The battery power supply lets you use the M17 where you have no access to an outlet. Under DC power, voltage in the analog circuit is increased by 35%, up to 11.5V, compared to battery power.
Desktop-Tier Heat Dissipation
The M17 adopts "H" type heat dissipation and VC liquid cooling, an internal cooling fan, and an aluminum alloy unibody frame. Together they work to rapidly transport heat away from the M17.
Physical Digital-Analog Separation
The M17 features 17 PCBs with an immersion gold finish, with analog and digital sections physically separated by being on two different boards. This design reduces interference between the two. Seven high-conductivity copper alloy shields provide additional reduction of internal and external electromagnetic interference on analog audio signals.
Volume Adjustment
The volume can be adjustable using the analog potentiometer knob or via buttons. You can go through 120 distinct volume levels with either method.
Ambient Light
The M17 features a 7-color RGB ambient light system with extensive customization options. Colors can be set to be either fixed, to follow the audio, or follow a cycle. The brightness of the light can be set to change depending on current power, volume, or temperature. Top and side lights can be controlled separately, allowing you to dial in exactly how you want your lights to look.
Large Screen

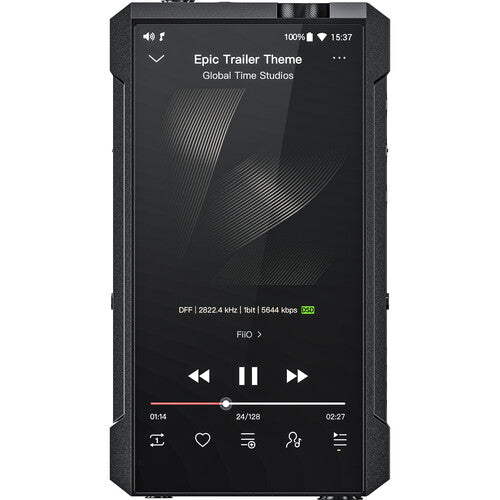

More easily enjoy visuals and browse through music with the large 5.99" 1080 x 2160 FHD+ 18:9 HD display.
Additional Features
High-end TI OPA2211 op-amp
470mF DMF supercapacitor
Ultra-low noise LT3045 LDO
NDK femtosecond crystal oscillator
Qualcomm Snapdragon 660 processor
QCC5124 Bluetooth 5.0 chip
XMOS receiver chip supporting DSD512 and 32-bit/768 kHz
Gravity sensor for automatic screen rotation
Fast USB 3.0 transfer speeds up to 100 Mb/s
Support for MQA master-level sound
Massive 9200mAh battery with up to 10.6 hours of battery life
Pre-applied PET screen protector with oleophobic layer
470mF DMF supercapacitor
Ultra-low noise LT3045 LDO
NDK femtosecond crystal oscillator
Qualcomm Snapdragon 660 processor
QCC5124 Bluetooth 5.0 chip
XMOS receiver chip supporting DSD512 and 32-bit/768 kHz
Gravity sensor for automatic screen rotation
Fast USB 3.0 transfer speeds up to 100 Mb/s
Support for MQA master-level sound
Massive 9200mAh battery with up to 10.6 hours of battery life
Pre-applied PET screen protector with oleophobic layer
In the Box
- FiiO M17 Desktop-Class Digital Audio Player
- External DC Adapter
- Cooling Stand with Fan
- Leather Case
- microSD Card Ejector Pin
- USB 3.0 Data and Power Cable
- Aluminum Dust Plug
Table of Contents
- Description
- Desktop-Class Amp
- Desktop-Grade Gain
- Desktop-Level Connectivity
- Desktop-Quality Power Supply
- Desktop-Tier Heat Dissipation
- Physical Digital-Analog Separation
- Volume Adjustment
- Ambient Light
- Large Screen
- Additional Features
FiiO M17 Specs
Audio
| DAC | 2 x ES9038PRO 32-Bit |
| Amplifier | 1 x THX AAA-788+ |
| External DAC Functionality | Yes, DSD512 up to 22.5792 MHz / 1-Bit PCM up to 768 kHz / 32-Bit |
| Audio Resolution | PCM: 384 kHz / 32-Bit DSD256: 11.2896 MHz / 1-Bit |
| Frequency Response | 5 Hz to 80 kHz -3 dB |
| Impedance | 16 to 300 Ohms (Balanced) 16 to 150 Ohms (Unbalanced) |
| Gain Settings | High1, Normal, Low |
| Volume Control | Analog (120 Steps) |
| THD + N | 0.0007% at 1 kHz |
| Audio Power Output | 1.5 W at 16 Ohms 3 W at 32 Ohms 500 mW at 300 Ohms |
| Maximum Output Voltage | 27.7 Vp-p |
| Signal to Noise Ratio | 123 dB |
| Crosstalk | 75 dB at 1 kHz |
| Balance Control | Yes |
| Custom Equalizer | Yes |
Performance
| RAM | 4 GB |
| Operating System | Android 10 |
| Internal Storage | 64 GB |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum] |
| Display | 5.99" LCD (2160 x 1080 Resolution) |
| Operation Method | Physical Buttons, Touchscreen, Volume Wheel |
Media Support
| Formats Supported | Audio: MP3, OGG, WMA, AAC, WMA, WAV, FLAC, and AIFF |
Connectivity
| Wireless | Bluetooth 5.0 |
| Bluetooth Codecs | AAC, aptX, aptX Adaptive, aptX HD, aptX LL, LDAC, SBC |
| Inputs/Outputs | 1 x 4.4 mm Balanced Headphone, Line (Output) 1 x 1/8" / 3.5 mm Headphone, Line (Output) 1 x 2.5 mm Balanced Headphone (Output) 1 x 1/4" / 6.5 mm Headphone (Output) 1 x RCA S/PDIF (Input/Output) 1 x USB-C 3.0 / 3.1/3.2 Gen 1 (Input/Output) 1 x USB-C 2.0 (Input/Output) |
| Built-In Mic | No |
Power
| Battery | 1 x Built-in Rechargeable Lithium-ion Battery 9200 mAh Providing up to 10 Hours per Charge for Audio Playback |
| Charging Time | Quick Charge: 4.5 Hours |
General
| Dimensions (W x H x D) | 3.5 x 6.2 x 1.1" / 88.5 x 156.4 x 28.0 mm |
| Weight | 21.5 oz / 610 g |
Packaging Info
| Package Weight | 5.075 lb |
| Box Dimensions (LxWxH) | 13.9 x 10.2 x 6.1" |
