Description

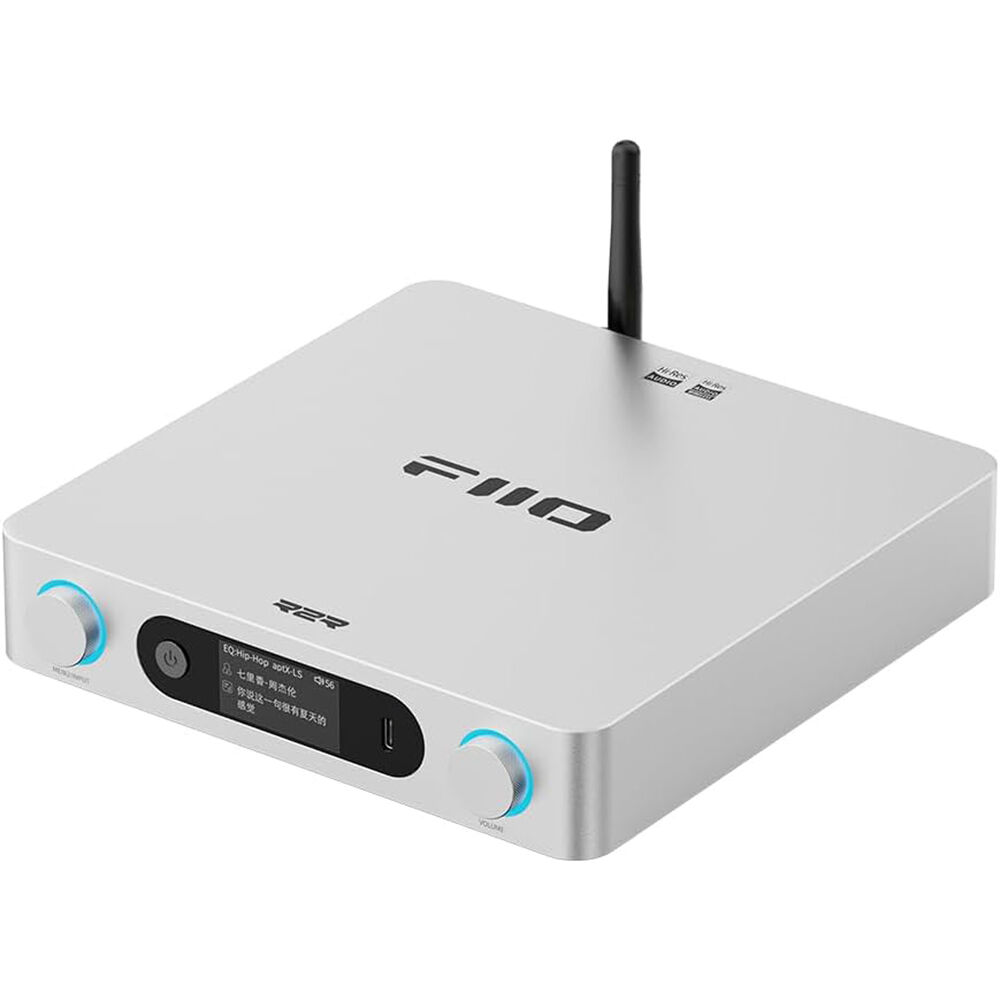

FiiO BR15 R2R Overview

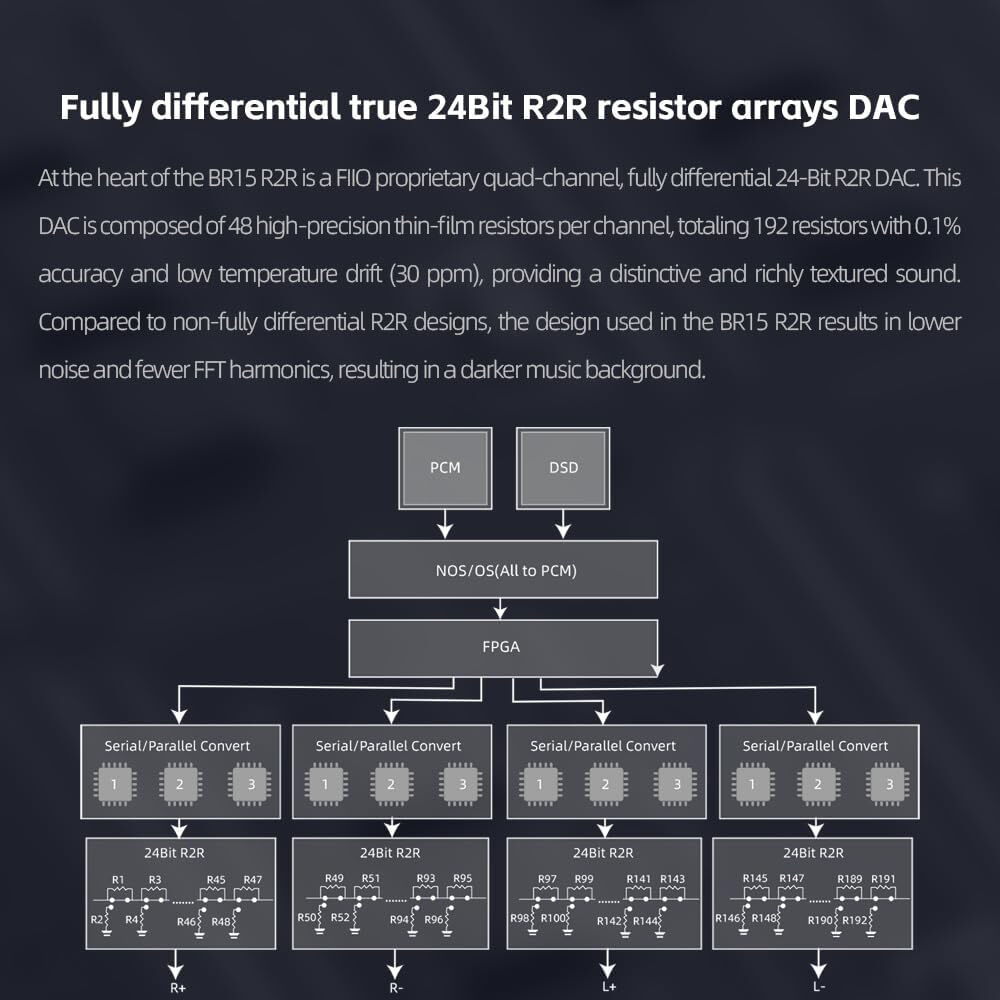

Get the most out of your audio setup with the BR15 R2R Digital-to-Analog Converter with Bluetooth Audio Receiver from FiiO, a desktop DAC with fully differential 24-bit R2R resistor arrays and CD-quality wireless Bluetooth streaming. Sporting up to 384 kHz upsampling via OS mode, you can experience a refined sound with any audio content.

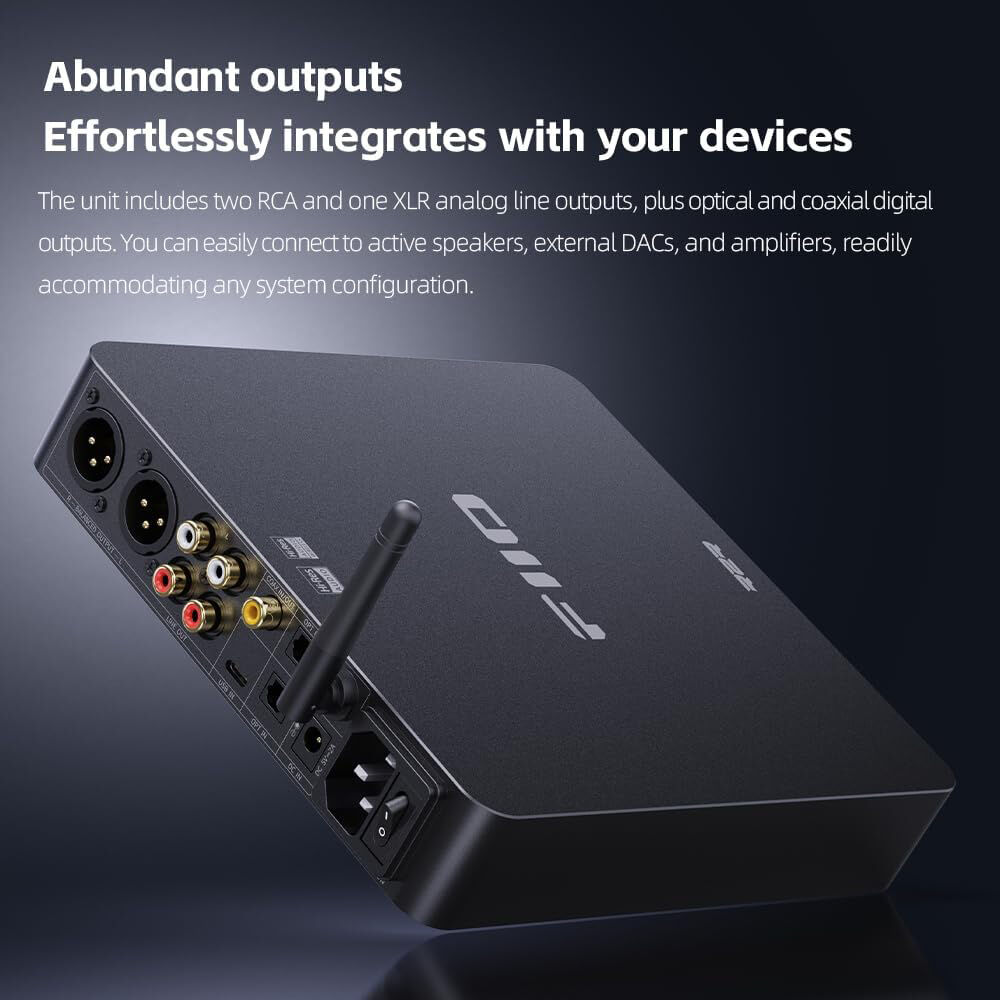

The FiiO DR15 R2R supports 24-bit / 384 kHz decoding for PCM files and up to DSD256 for compatible DSD files. The DAC features plenty of high-quality chips for maximizing sonic performance, including the proprietary true 24-bit R2R chip, a XMOS XU316 USB controller, and a Qualcomm QCC5181 Bluetooth chip. The unit sports a crystal-clear high-contrast LCD display for easy operation, and RGB logo lighting for a stylish look. Connections include optical TOSLINK in and outs, coaxial RCA digital input/output, two balanced XL outputs, two pairs of RCA line outputs, and a front and rear USB-C connection for maximum digital audio quality.
- FiiO BR15 R2R High-Resolution Bluetooth Audio Receiver and DAC (Silver)
- Infrared Remote Control
- AC Power Chord
- Quick Start Guide
- Red and White Dual RCA Cable
- Limited 1-Year Manufacturer Warranty (Maintenance)
- Limited 1-Month Manufacturer Warranty (Replacement)
No additional resources available
FiiO BR15 R2R Specs
| Form Factor |
Desktop
|
| Converter Type |
D/A Converter
|
| Number of Channels |
2
|
| Maximum Sampling Rate |
384 kHz / 32-Bit
|
| Number of Microphone Inputs |
No Mic Inputs
|
| Analog Audio I/O |
2x XLR 3-Pin Line Output
2x Stereo RCA Line Output |
| Digital Audio I/O |
TOSLINK Optical S/PDIF Input
TOSLINK Optical S/PDIF Output RCA Coaxial S/PDIF In or Out |
| Form Factor |
Desktop
|
| Converter Type |
D/A Converter
|
| Number of Channels |
2
|
| Conversion Formats |
S/PDIF (Coaxial), TOSLINK
|
| Display |
1x 1.47" LCD (Backlit)
|
| Maximum Sampling Rate |
384 kHz / 32-Bit
|
| Number of Microphone Inputs |
No Mic Inputs
|
| Analog Audio I/O |
2x XLR 3-Pin Balanced Line Output
2x Stereo RCA Unbalanced Line Output |
| Phantom Power |
No
|
| Digital Audio I/O |
1x TOSLINK Optical S/PDIF Input
1x TOSLINK Optical S/PDIF Output 1x RCA Coaxial S/PDIF In or Out |
| Host Connection / USB |
2x USB-C
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
Bluetooth 6.0
*Built-In |
| Frequency Response |
20 Hz to 65 kHz
|
| Maximum Output Level |
4.4 Vrms (XLR)
2.2 Vrms (RCA) |
| Dynamic Range |
? 112 dB (XLR)
? 110 dB (RCA) |
| SNR |
XLR Line:
? 119 dB (A-Weighted) RCA Line: ? 116 dB (A-Weighted) |
| THD+N |
XLR Line Outputs:
0.015% (At 1 kHz / 0 dB @ 10 K Ohms) XLR Line Outputs: 0.017% (At 1 kHz / 0 dB @ 10 K Ohms) |
| Crosstalk |
XLR Line Outputs:
? 112 dB RCA Line Outputs: ? 110 dB |
| Noise Floor |
XLR: < 5.1 uV (A-Weighted)
RCA: < 3.3 uV (A-Weighted) |
| Sample Rates |
Up to 384 kHz
|
| Sample Rate Conversion |
On Digital I/O
|
| Bit Depths |
Up to 32-Bit
|
| Digital Audio Decoding |
PCM, DSD
|
| OS Compatibility |
No
|
| Power Requirements |
AC Input, DC Input
|
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz |
| DC Input Power |
5 VDC at 2A
|
| Dimensions |
8.3 x 7.4 x 1.7" / 210 x 188 x 42 mm (with Feet)
|
| Weight |
1.7 lb / 760.0 g
|
| Package Weight |
2.78 lb
|
| Box Dimensions (LxWxH) |
12.2 x 9.6 x 2.6"
|
