Description

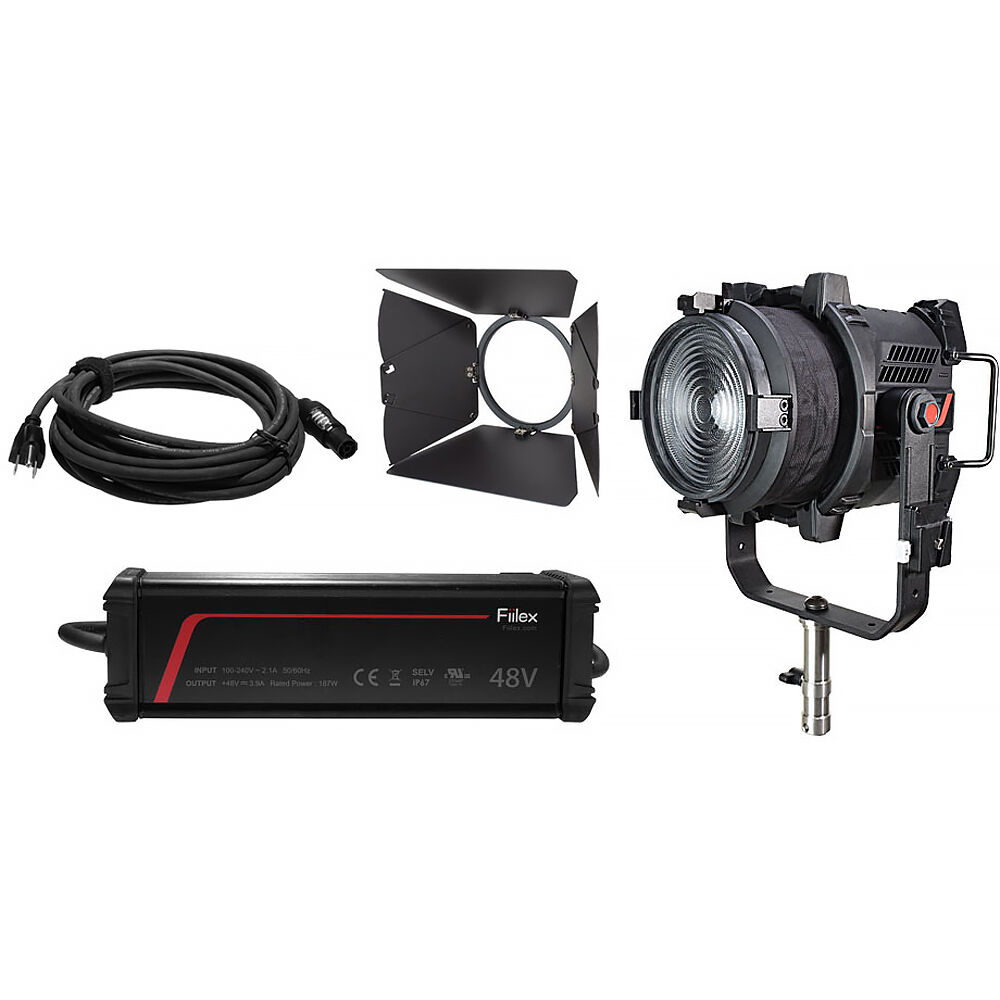

Fiilex Q5 Color Overview
From Manufacturer
Q5 Color Features Overview
Fiilex Q5 Color LED Fresnel Demonstration
Additional Resources
No additional resources available
Fiilex Q5 Color Specs
Key Specs
| Item Type |
1x LED Fresnel
|
| Included Storage Case |
No
|
| Photometrics |
12? at 3200K: 3150 fc / 33,911 Lux
55? at 3200K: 384 fc / 4143 Lux 12? at 5600K: 3296 fc / 35,482 Lux 55? at 5600K: 402 fc / 4334 Lux |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 90 |
| Dimming |
Built-In Dimmer / DMX / RDM (Continuous)
? 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Battery (Not Included) |
| Battery Plate Type |
1x V-Mount (Built-In)
|
| Battery |
1x D-Tap Rechargeable, 26 VDC, 270 Wh (Not Included)
? Up to 90-Minute Runtime at 100% Brightness |
| Input Power |
24 to 48 VDC
|
| Power Consumption |
175 W
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
Light Fixture
| Item Type |
1x LED Fresnel
|
| Included Storage Case |
No
|
| Photometrics |
12? at 3200K:
3150 fc / 33,911 Lux at 3.3' / 1 m 359 fc / 3870 Lux at 9.8' / 3 m 127 fc / 1376 Lux at 16.4' / 5 m 55? at 3200K: 384 fc / 4143 Lux at 3.3' / 1 m 44 fc / 481 Lux at 9.8' / 3 m 17 fc / 186 Lux at 16.4' / 5 m 12? at 5600K: 3296 fc / 35,482 Lux at 3.3' / 1 m 376 fc / 4049 Lux at 9.8' / 3 m 133 fc / 1440 Lux at 16.4' / 5 m 55? at 5600K: 402 fc / 4334 Lux at 3.3' / 1 m 46 fc / 503 Lux at 9.8' / 3 m 18 fc / 195 Lux at 16.4' / 5 m |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 90 |
| Dimming |
Built-In Dimmer / DMX / RDM (Continuous)
? 0 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
12 to 55? with Included Lens
80? Unmodified |
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Lens
| Lens Type |
Fresnel
|
| Lens Diameter |
5" / 12.7 cm
|
Power & I/O
| Power Source |
AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Battery (Not Included) |
| Inputs/Outputs |
1x XLR 3-Pin Battery/Power Input (24 to 48 VDC)
1x XLR 5-Pin Male DMX Input 1x XLR 5-Pin Female DMX Output 1x USB-A Power Output (5 VDC at 1 A) 1x USB-C Remote/Firmware Input |
| Battery Plate Type |
1x V-Mount (Built-In)
|
| Battery |
1x D-Tap Rechargeable, 26 VDC, 270 Wh (Not Included)
? Up to 90-Minute Runtime at 100% Brightness |
| Input Power |
24 to 48 VDC
|
| Power Pass-Thru |
No
|
| Power Consumption |
175 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
General
| Display |
OLED
|
| Environmental Resistance |
Water-Resistant (IPX5)
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Certifications |
CE, FCC, RoHS, UKCA, WEEE, cETLus
|
| Dimensions |
15.7 x 11.1 x 7.8" / 39.9 x 28.2 x 19.8 cm
|
| Weight |
7.3 lb / 3.3 kg
|
