Description

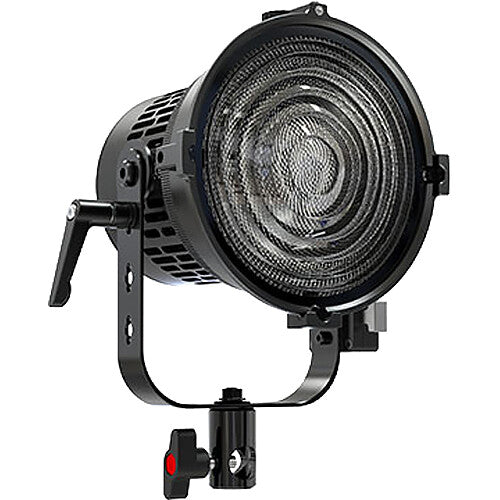

Fiilex Q3 Color Overview
By Photo's
Dany Serota
Offering an adjustable spot/flood range, an IPX5-rated design, and advanced control methods, the Q3 Color-LR Cinematic RGB LED Fresnel Light from Fiilex is the smallest fixture in the brand's Q series. Even though it is compact, the Q3 is designed as a 90W cinema-grade LED Fresnel for harsh and dynamic environments. This sturdily-constructed fixture measures only 9 x 6.8 x 5.7" and has a 5" Fresnel lens with a beam angle that's adjustable from a tight 15° spot to a 45° flood. The Fresnel is removable to give you 55° coverage. Thanks to the brand's DiCon Dense Matrix LED technology, the Q3 delivers color fidelity and optical versatility superior to previous generations of LED Fresnels. Flicker-free smooth dimming is present from 0-100%, and it has hue control of plus/minus green and magenta for quick color correction on location.
Multiple Color Modes
The Q3 has both CCT and RGBW modes. The CCT mode offers an expansive color temperature of 2000 to 10,000K with an impressive CRI/TLCI rating of 95 and 90. The HSI mode allows you to adjust the hue, saturation, and intensity, giving you access to literally millions of custom colors, while there are also gel presets and more. Additional 8- and 16-bit color modes include CCTRGBW, CCTHSI, CIExy, and ICTHS.
Advanced Control Methods
All of the fixture's adjustments can be made locally on the unit or remotely via wired DMX using the included XLR-5 adapter. Wireless control is available via integrated LumenRadio CRMX.
Power Options
The Q3 is capable of handling either AC or DC operation and comes with a power supply unit.
Other Benefits
- Outputs up to 33,248 lux at 3.3' (15°, 5600K)

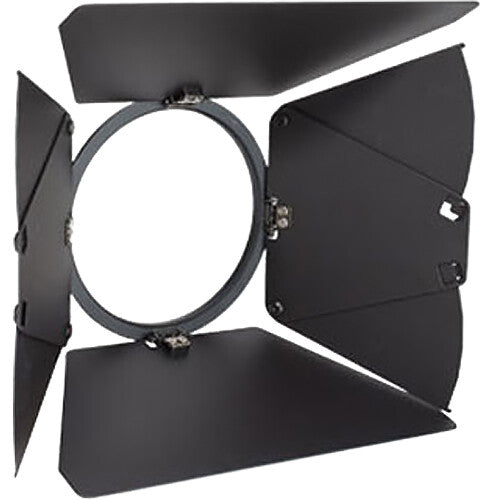

- Included 8-leaf barndoors cut clean with no color splitting
- Smooth, sharp/linear, and gamma dimming curves
- Controllable fan modes
- 307 BTUs/hour
- IPX5 water-resistant housing
- Mount type: 5/8" receiver
- Includes detachable yoke
- Lightweight at just 4.5 lb with its yoke and barndoors
UPC: 785939325317
Items Included
- Fiilex Q3 Color-LR Cinematic RGB LED Fresnel Light
- Light Head
- Yoke

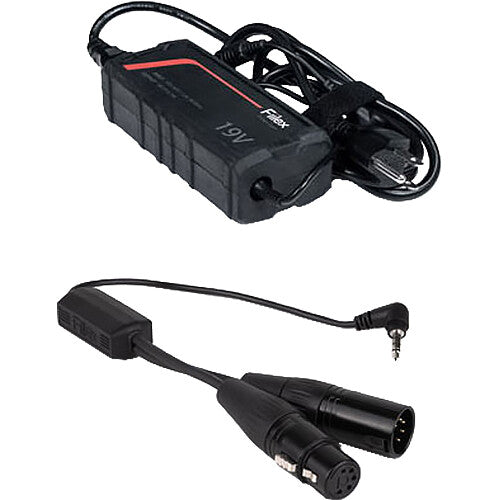

- DMX Adapter TRRS to XLR 5-Pin
- Barndoors
- Power Supply Unit
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Fiilex Q3 Color Specs
Key Specs
| Item Type |
1x LED Fresnel
|
| Included Light Modifier |
1x Barndoors
|
| Included Storage Case |
No
|
| Photometrics |
15° at 3200K:
3027 fc / 32,589 Lux at 3.3' / 1 m* 336 fc / 3621 Lux at 9.8' / 3 m 45° at 3200K: 589 fc / 6345 Lux at 3.3' / 1 m* 65 fc / 705 Lux at 9.8' / 3 m 15° at 5600K: 3088 fc / 33,248 Lux at 3.3' / 1 m* 350 fc / 3770 Lux at 9.8' / 3 m 45° at 5600K: 617 fc / 6651 Lux at 3.3' / 1 m* 68 fc / 739 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 90 |
| Dimming |
Built-In Dimmer / DMX (Continuous)
� 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Wireless CRMX
|
| Power Source |
AC to DC Adapter (Included)
Battery (Not Included) |
| Battery |
1x D-Tap Rechargeable, 14 to 30 VDC (Not Included)
|
| Input Power |
14 to 30 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
90 W (Maximum)
|
| Fixture Mounting |
1x 5/8" Receiver (Via Yoke Mount)
|
Light Fixture
| Item Type |
1x LED Fresnel
|
| Included Light Modifier |
1x Barndoors
|
| Included Storage Case |
No
|
| Photometrics |
15° at 3200K:
3027 fc / 32,589 Lux at 3.3' / 1 m* 336 fc / 3621 Lux at 9.8' / 3 m 45° at 3200K: 589 fc / 6345 Lux at 3.3' / 1 m* 65 fc / 705 Lux at 9.8' / 3 m 15° at 5600K: 3088 fc / 33,248 Lux at 3.3' / 1 m* 350 fc / 3770 Lux at 9.8' / 3 m 45° at 5600K: 617 fc / 6651 Lux at 3.3' / 1 m* 68 fc / 739 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2000 to 10,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 90 |
| Dimming |
Built-In Dimmer / DMX (Continuous)
� 0 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
15 to 45° with Included Lens
55° Unmodified |
| Built-In Flash |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Lens
| Lens Type |
Fresnel
|
| Lens Diameter |
5" / 127 mm
|
Connectivity
| Wireless Remote Control Type |
Wireless CRMX
|
| Mobile App Compatible |
No
|
| Wireless Channels |
No
|
| Wireless Groups |
No
|
Power & I/O
| Power Source |
AC to DC Adapter (Included)
Battery (Not Included) |
| Inputs/Outputs |
1x Barrel / Coax (2.5 x 5.5 mm) Battery/Power Input
1x 1/8" / 3.5 mm DMX Input *Adapter Required (Included) |
| Battery |
1x D-Tap Rechargeable, 14 to 30 VDC (Not Included)
|
| Input Power |
14 to 30 VDC
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
1x USA Type-A/B Plug to Barrel / Coax (2.5 x 5.5 mm) AC to DC Adapter
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
90 W (Maximum)
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 5/8" Receiver (Via Yoke Mount)
|
General
| Display |
Yes
|
| Environmental Resistance |
Water-Resistant (IPX5)
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
9 x 6.8 x 5.7" / 22.9 x 17.3 x 14.5 cm
|
| Weight |
4.5 lb / 2 kg (Fixture with Barndoors/Yoke)
|
Packaging Info
| Package Weight |
6.775 lb
|
| Box Dimensions (LxWxH) |
14.5 x 12.8 x 7.7"
|
