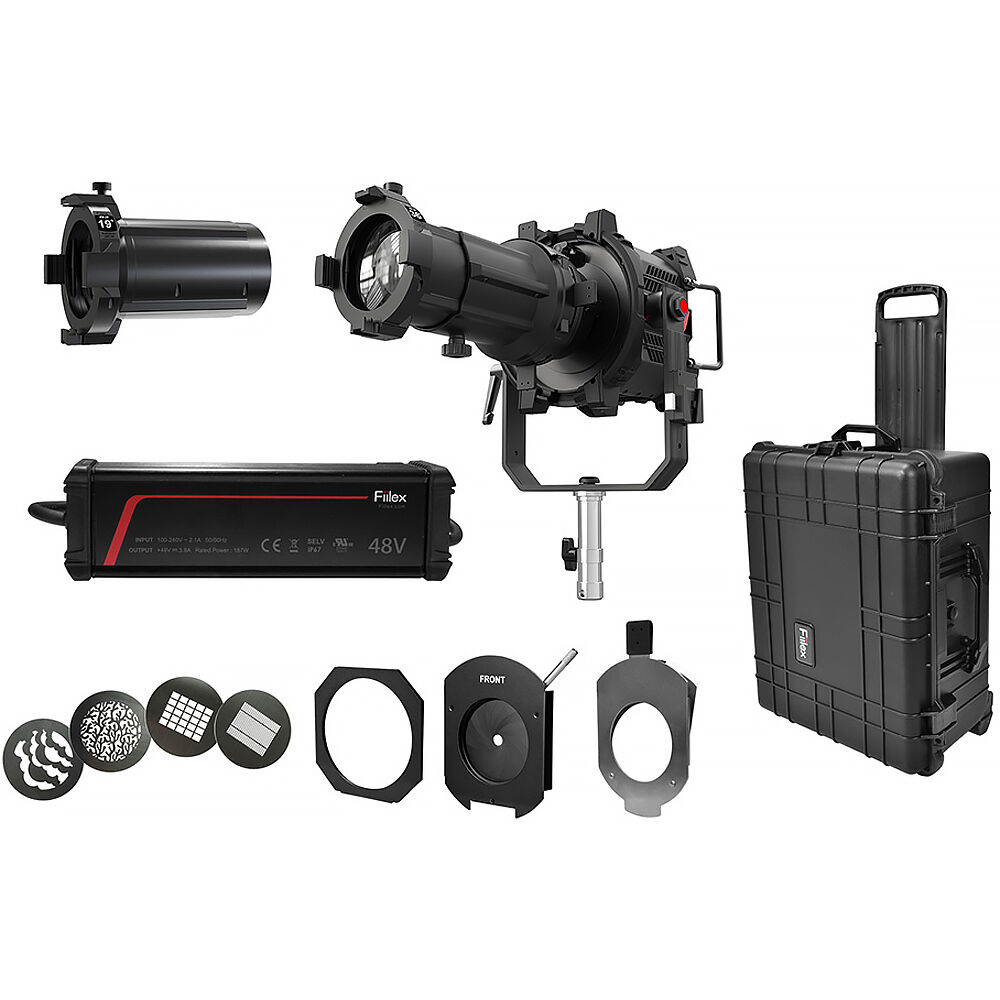

Fiilex G6 Color Cinematic LED Ellipsoidal Light H1 Kit

G6 Color Cinematic LED Ellipsoidal Light

The G6 Color is a cinema-grade, 175W full-color ellipsoidal light with razor-sharp cuts and a unique 360° rotating barrel. The beam produced from either of the included 19 and 36° lens tubes is uniform and bright without any color fringing. At the core of the G6 is the latest generation of the patented Dense Matrix LED technology that adheres to the highest standards of 0 to 100% flicker-free dimming and color calibration. The G6 Color gives you full control and can be rigged and hidden anywhere on production sets. It features a high-CRI white light output from 2000 to 10,000K and 8 and 16-bit color modes (CCTRGBW, CCTHSI, CIExy, etc.).

19 & 36° Leko Lens Tubes

The G-series lens tubes are lightweight and use precise, optimized glass optics for sharp cuts without color fringing. High-quality glass optics provide accurate, distortion-free light shaping for professional use. The sturdy and rugged design ensures reliability for both studio and location shoots.

Leko Gobo Holder

This durable and versatile accessory can hold a wide range of gobos. It fits easily into the gobo slot of the light fixture and secures your gobo in place, allowing you to create captivating visual effects. With its lightweight and easy-to-use design, the Leko Gobo Holder ensures accurate positioning and focus of the gobo pattern.

Set of Four Leko Gobos

This set of four Leko gobos is ideal for creating captivating visual effects on stage or in a studio. Each stainless steel gobo boasts a unique design, allowing it to be easily inserted into the lighting fixture to project stunning visuals onto walls, floors, and other surfaces, adding creative flair and flexibility to your lighting scheme.

Leko Gel Holder

This metal frame secures your color media to the ellipsoidal attachment, offering precise color control and creative lighting effects. It's lightweight, durable, and an ideal film, photography, and live production tool.

Leko Iris

Control and shape your light beam with precision using the Leko Iris. Made of high-quality metal, this essential accessory fits into your fixture, allowing you to easily control the shape and intensity of your light beam.

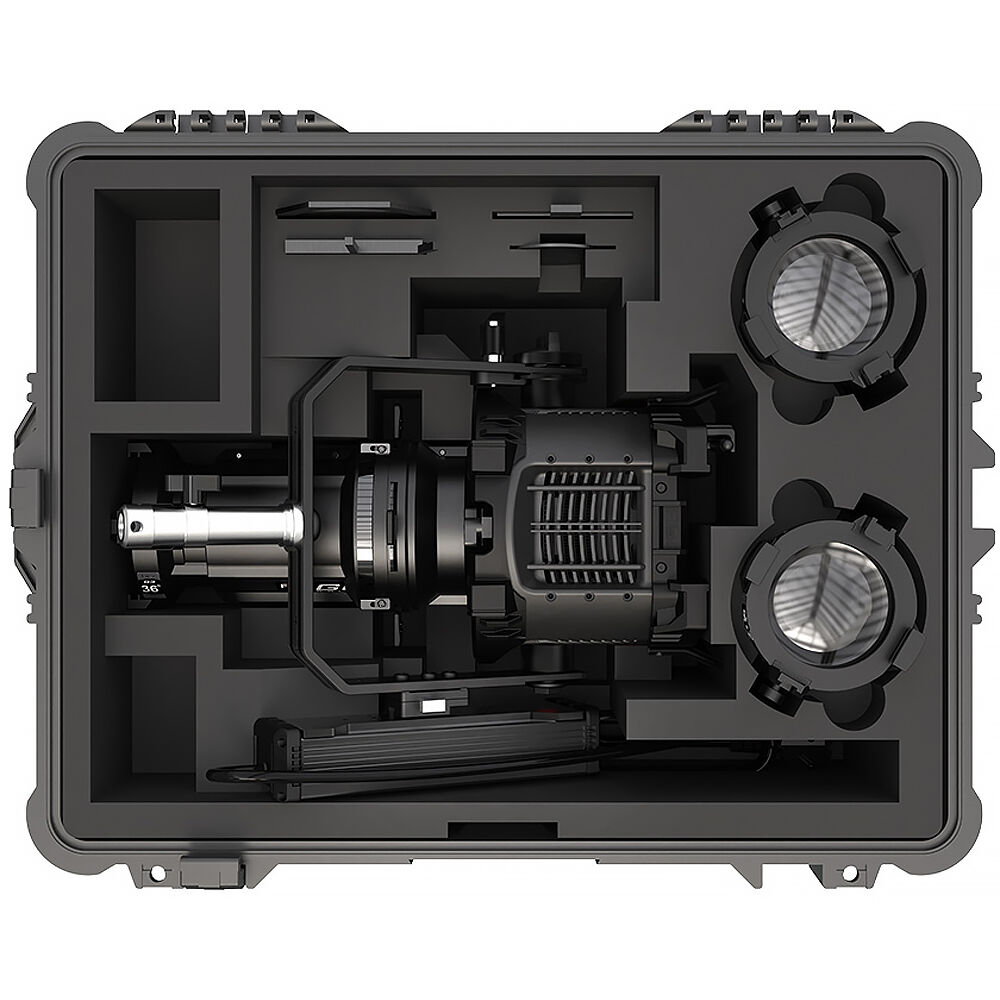

Durable Rolling Case

Equipped with a custom, laser-cut foam interior, this durable rolling hard case allows you to easily transport and store your entire G6 color kit in one place.

At a Glance

• IP-X5 rating denoting water/rain resistance
• Easy PSU/battery mounting on the yoke
• Integrated wireless DMX
• Wireless control via integrated LumenRadio
• Hard-line DMX via XLR-5 adapter
• Smooth and sharp dimming modes
• DMX-controllable fan modes (Full, Auto, Silent, Off)
• Compact and easy to hide on set

Fiilex G6 Color Specs

Fixture Type	Ellipsoidal
Light Source	1x Color LED
Colors	Blue, Green, Red
Beam Angle	19° (with Included Lens)
Control Protocols	DMX512, CRMX
AC Input Power	100 to 240 VAC, 50/60 Hz
Power / Current Consumption	175 W
Mounting	Yoke-1-1/8" Stud, Yoke-5/8" Receiver

Fixture Type	Ellipsoidal
Light Source	1x Color LED
Colors	Blue, Green, Red
Photometrics	36° at 3600K: 419 fc / 4511 Lux at 6.6' / 2 m 167 fc / 1803 Lux at 9.8' / 3 m 29 fc / 316 Lux at 23' / 7 m 36° at 5600K: 132 fc / 1428 Lux at 6.6' / 2 m 53 fc / 581 Lux at 9.8' / 3 m 1 fc / 11 Lux at 23' / 7 m 19° at 3200K: 1148 fc / 12,366 Lux at 6.6' / 2 m 449 fc / 4837 Lux at 9.8' / 3 m 76 fc / 819 Lux at 23' / 7 m 19° at 5600K: 1176 fc / 12,668 Lux at 6.6' / 2 m 463 fc / 4986 Lux at 9.8' / 3 m 77 fc / 836 Lux at 23' / 7 m
Color Temperature	2000 to 10,000K
Beam Angle	19° (with Included Lens)
Field Angle	36° (with Included Lens)
Iris	Yes
Focus	Manual
Zoom Adjustment	No
Dimming	0 to 100%

Operating Modes	DMX
Gobos	1x Removable Gobo
Gobo Size	Outer Diameter: 2.6" / 66 mm Max Image Size: 1.9" / 48 mm Max Thickness: 0.04" / 1 mm
Color Accuracy Index	CRI: 95 TLCI: 90

Control Protocols	DMX512, CRMX
Remote Control	No
Mobile App Compatible	No

Inputs/Outputs	1 x XLR 5-Pin DMX Input
Wireless	Wireless DMX

AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power Connector	No
DC Input Power	24 to 48 VDC
Fuse	No
Power / Current Consumption	175 W
Power Linking	No

Environmental Resistance	Water-Resistant (IPX5)
Operating Conditions	32 to 104°F / 0 to 40°C
Mounting	Yoke-1-1/8" Stud, Yoke-5/8" Receiver
Included Accessories	1x Gel Frame 2x Lens 1x Case (Light/s) 1x Power Supply
Duty Cycle	No
Exterior Color	Black
Cooling	Fan
Dimensions	16.4 x 15.7 x 11.1" / 41.7 x 39.9 x 28.2 cm
Weight	11 lb / 5 kg
