| ₹ 3784780.0 includes GST and import duties. | |
| B2B customers can avail ₹ 577178.95 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
FieldCast CO145 Overview

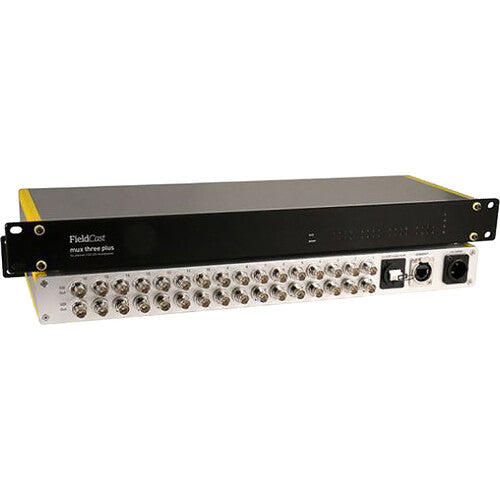

The Mux Three 12G Plus & Demux Three 12G Plus from FieldCast allow you to transport 12 channels of 12G-SDI video over fiber optic channels and run full-duplex 1Gb Ethernet over a second channel. The Mux Three Plus and Demux Three Plus feature full support for all SD, HD, and UHD standards, as well as single-mode and multimode fiber modes.
You can also use this pair of units in live event environments and run video plus Ethernet using just one duplex fiber optic cable as the connection between the two units. All 12G video signals preserve full data integrity. Each unit features a 1 RU rackmount design, an integrated LED power indicator, and a 110-240 VAC input with a powerCON connector.
Items Included
- FieldCast Mux Three 12G Plus & Demux Three 12G Plus
- Mux Three
- Demux Three
- 2 x 110-240 VAC Power Cord with powerCON Connector
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
FieldCast CO145 Specs
| Inputs |
12x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI)
|
| Outputs |
3x LC (Fiber)
|
| Inputs |
3x LC (Fiber)
|
| Outputs |
12x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI)
|
| Video Standard Compliance |
SMPTE ST-2081/ST-2082
|
| Transmitter Power I/O |
1x Proprietary Input
|
| Receiver Power I/O |
1x Proprietary Input
|
| Rack Form Factor |
1 U
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3709084.4 |
| 3-5 | ₹ 3671236.6 |
| 5-10 | ₹ 3595541.0 |
| 10+ | ₹ 3519845.4 |
Bulk discount will be automatically applied during checkout based on quantity.
