Description
FieldCast CO130 Overview

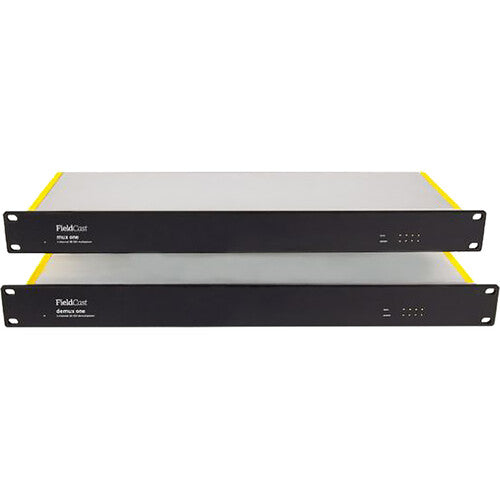

The Mux One 3G & Demux One 3G from FieldCast transports four channels of 3G_SDI video over one fiber optic channel and runs full duplex 1Gb Ethernet over a second channel. The multiplex units support up to 1080p60 video. You can also use this pair of units in live event environments and run video plus Ethernet using just one duplex fiber optic cable as a connection between the two units. All 3G video signals preserve full data integrity. Each unit features a 1 RU rackmount design, LED indicators for power and connectivity, and a 110-240 VAC input with a powerCON connector.
UPC: 850007628581
Items Included
- FieldCast Mux One 3G & Demux One 3G
- Mux One
- Demux One
- Ethernet Cable
- 2 x 110-240 VAC Power Cord with powerCON Connector
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
FieldCast CO130 Specs
Transmitter Interfaces
| Inputs |
4x BNC (3G-SDI)
|
| Outputs |
1x LC (Fiber)
|
Receiver Interfaces
| Inputs |
1x LC (Fiber)
|
| Outputs |
4x BNC (3G-SDI)
|
Standards
| Video Standard Compliance |
SMPTE 259M-C/292M/344M/424M
|
Transmission
| Video Format |
SDI :
1920 x 1080p: 60 fps |
Power
| Transmitter Power I/O |
1x Proprietary Input
|
| Receiver Power I/O |
1x Proprietary Input
|
General
| Rack Form Factor |
1 U
|
| Transmitter Dimensions |
19 x 6.1 x 1.7" / 482 x 155 x 43 mm
|
| Receiver Dimensions |
19 x 3.1 x 1.7" / 483 x 80 x 43 mm
|
| Transmitter Weight |
3.3 lb / 1500 g
|
| Receiver Weight |
52.9 oz / 1500 g
|
