Product Overview

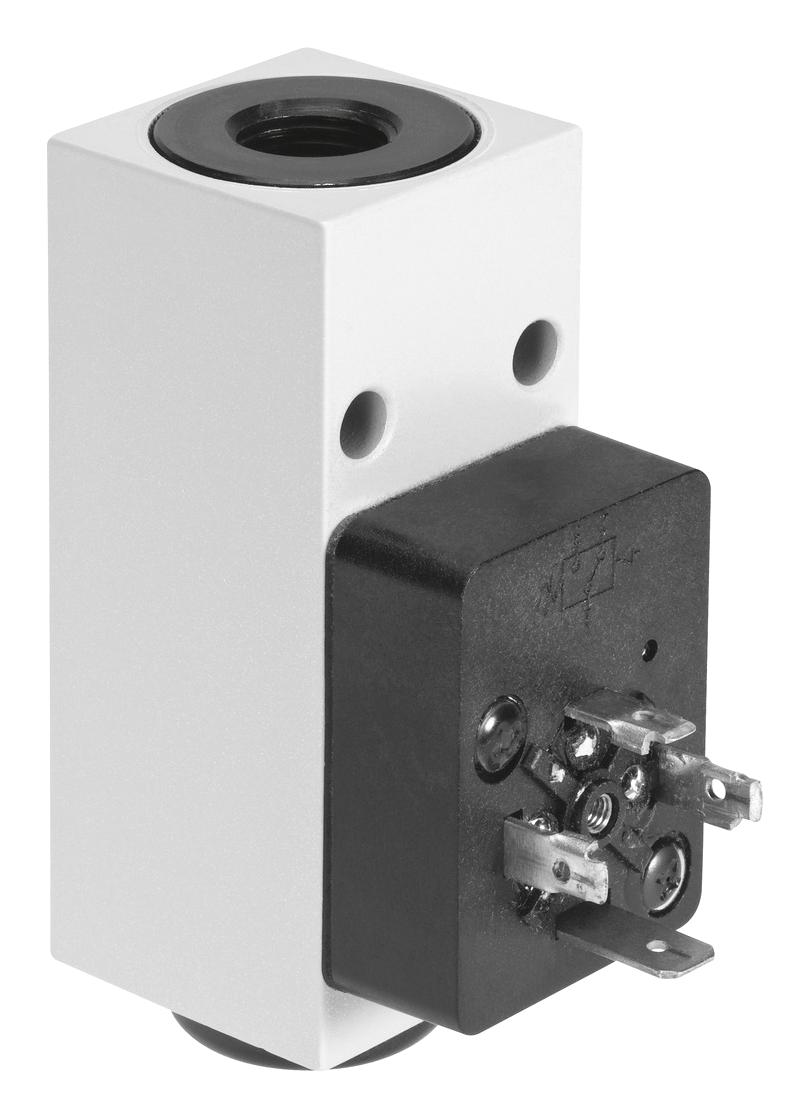

- PEV pressure switch
- CCC approval and relative pressure measured variable
- Pneumatic/electric pressure transducer measurement method
- Compressed air to ISO 8573-1:2010 operating medium
- Changeover switch switching element function
- G1/4 pneumatic connection
- IP65 degree of protection
- Optional mounting position
- With through-hole type of mounting
Product details
Technical Specifications
Operating Pressure Max
12bar
Sensor Mounting
Through Hole
Electrical Connection
DIN Connector
Operating Temperature Min
-20°C
Pressure Fitting Style
G1/4
Operating Pressure Min
1bar
Contact Configuration
1CO
Switching Voltage Max
250VAC
Transducer Connection / Termination
DIN Connector
Operating Temperature Max
80°C
SVHC
No SVHC (25-Jun-2020)
Other details
| Brand |
FESTO |
| Part Number |
PEV-1/4-B-OD |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
