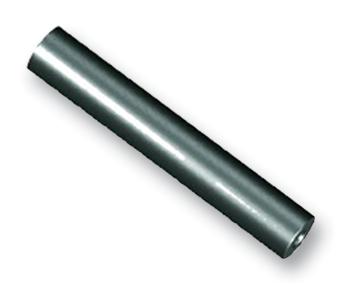

The ROD10/200-3B1 is an EMI Suppression Rod made of 3B1core material. Generally, ferrite rod is used as the core of solenoidal chokes. Such a choke can carry a high DC current without being saturated because of the open magnetic circuit. In most cases, the frequency range will not be limited by the material, but by the coil capacitance. Curvature and mechanical tolerances of the standard range fulfil the requirements of DIN41291 or its equivalent IEC 60233-1966.
- For solenoidal coils
- Open circuit, no self shielding
- Not easily saturated by load currents
Applications
Industrial, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Outer Diameter |
10mm |
| Product Length |
200mm |
| Inner Diameter |
- |
| Frequency Min |
- |
| Frequency Max |
- |
| Impedance |
- |
| Product Range |
- |
Other details
| Brand |
FERROXCUBE |
| Part Number |
ROD10/200-3B1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
