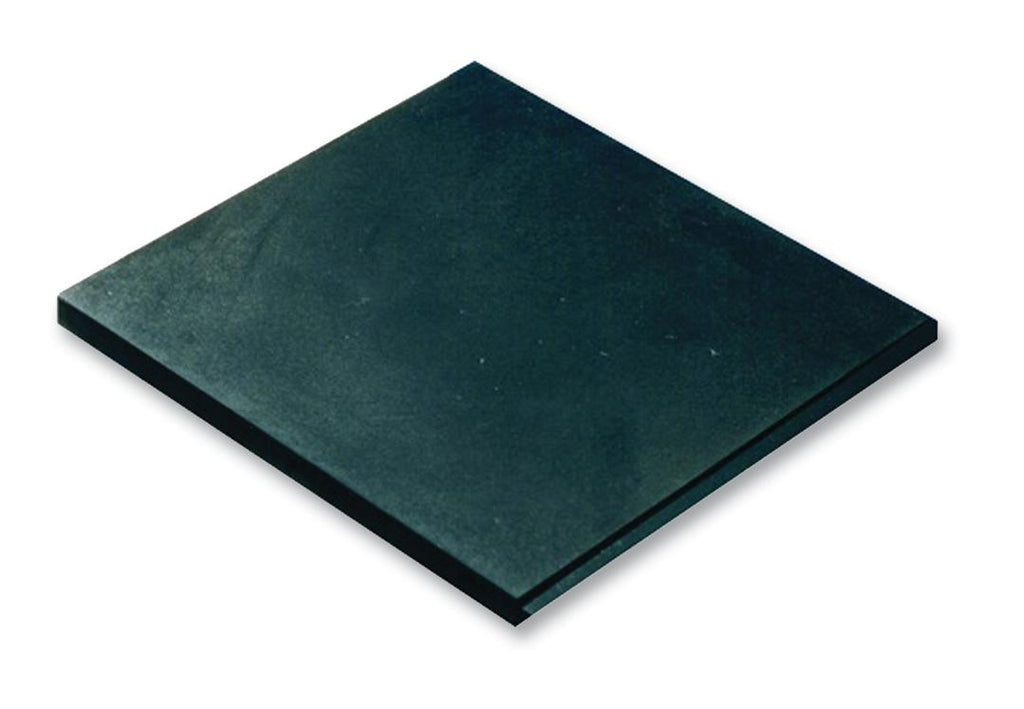

Ferroxcube PLT43/28/4.1-3C95 PLT43/28/4.1-3C95 Transformer Cores E PLT43 3C95 50.4 mm 229 mm²

The PLT43/28/4.1-3C95 is a Transformer Core made with the material grade of 3C95. Planar magnetics offer an attractive alternative to conventional core shapes when a low profile of magnetic devices is required. Basically this is a construction method of inductive components whose windings are fabricated using printed circuit tracks or copper stampings separated by insulating sheets or constructed from multilayer circuit boards. These windings are placed in low profile ferrite EE or E-PLT combinations. Planar device can be constructed as standalone components or integrated into a multilayer mother board with slots for the ferrite E-core. The planar E-core is made from press tooling. This gives the advantage of radiused corners and edges. It also means that clamp recesses can be incorporated.

• Low profile construction
• Low leakage inductance
• Excellent repeatability of parasitic properties
• Ease of construction and assembly
• Greater reliability
• Excellent thermal characteristics, easy to heat-sink
• 0.226Σl/A(mmâ�»Â¹) Core factor

Applications

Industrial, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	FERROXCUBE
Part Number	PLT43/28/4.1-3C95
Quantity	Each
Technical Data Sheet EN
