Description

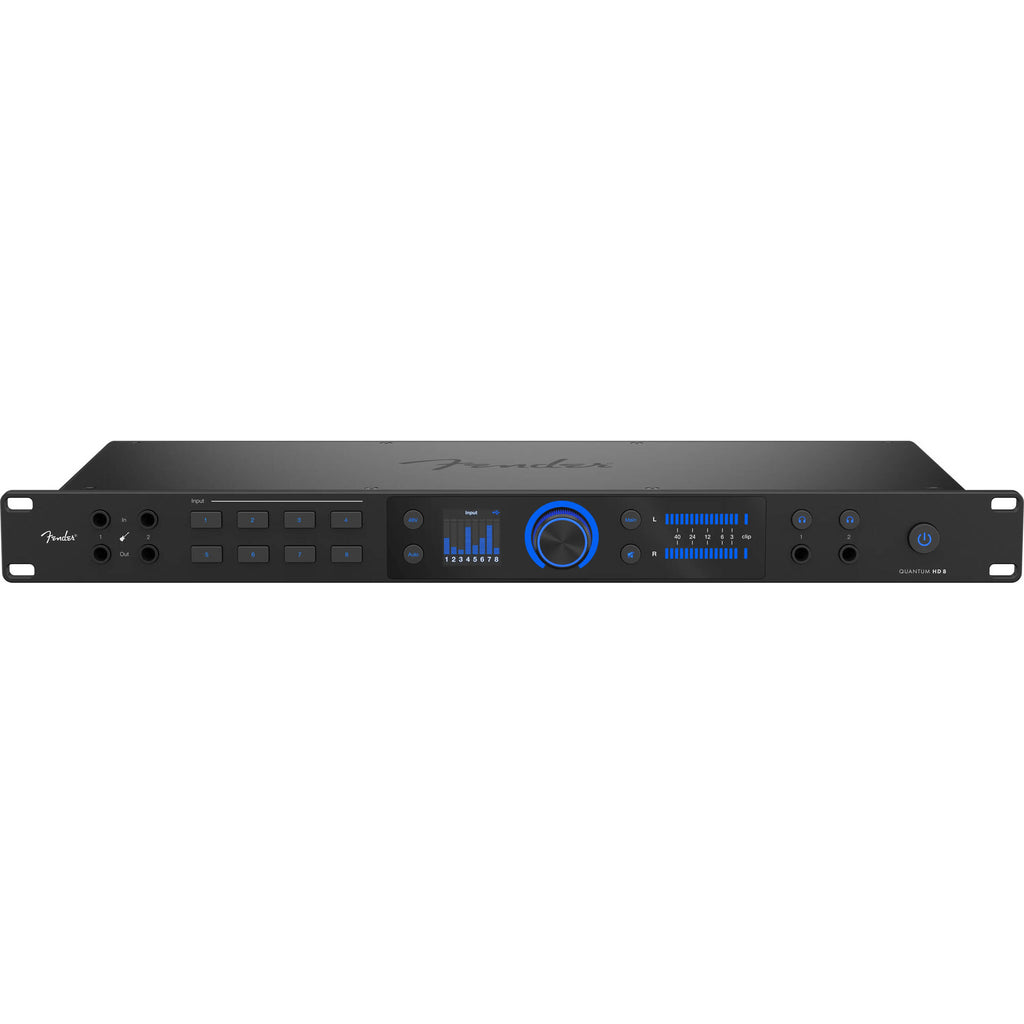

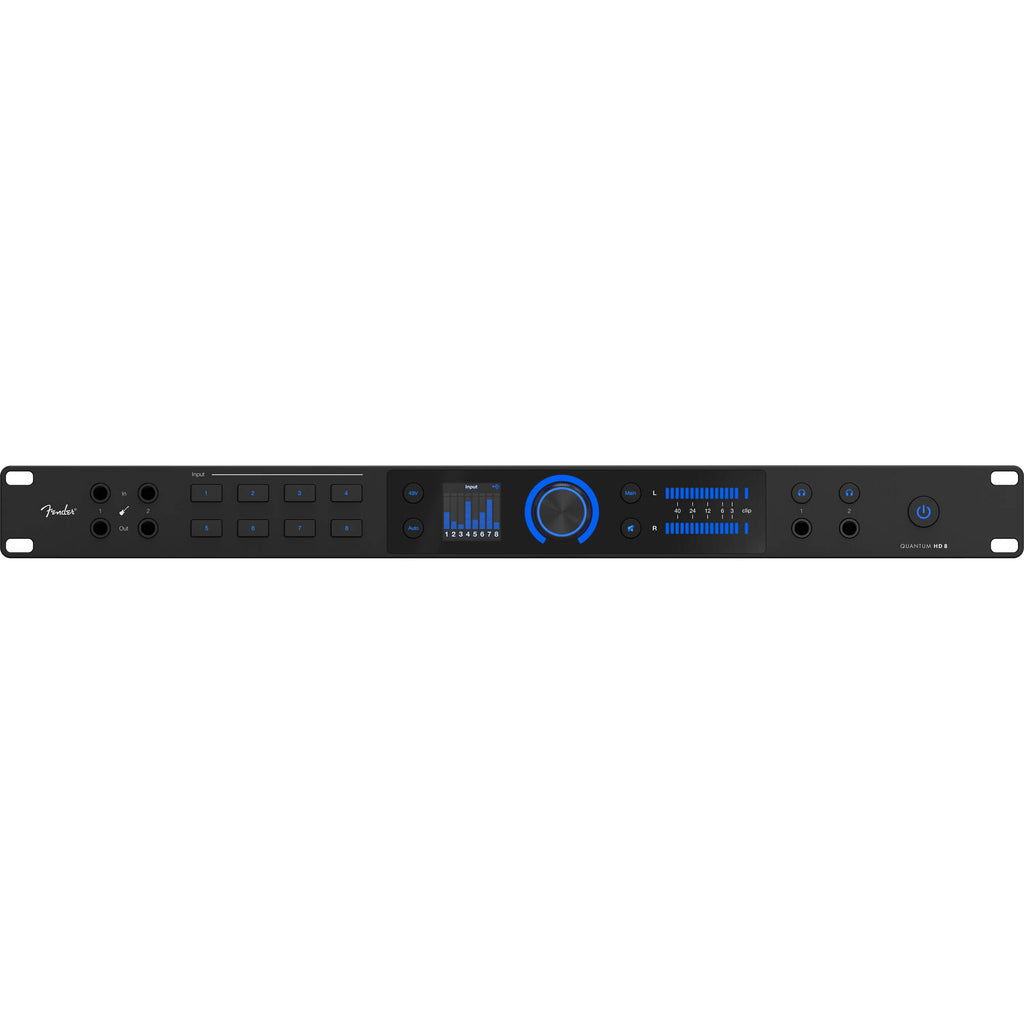

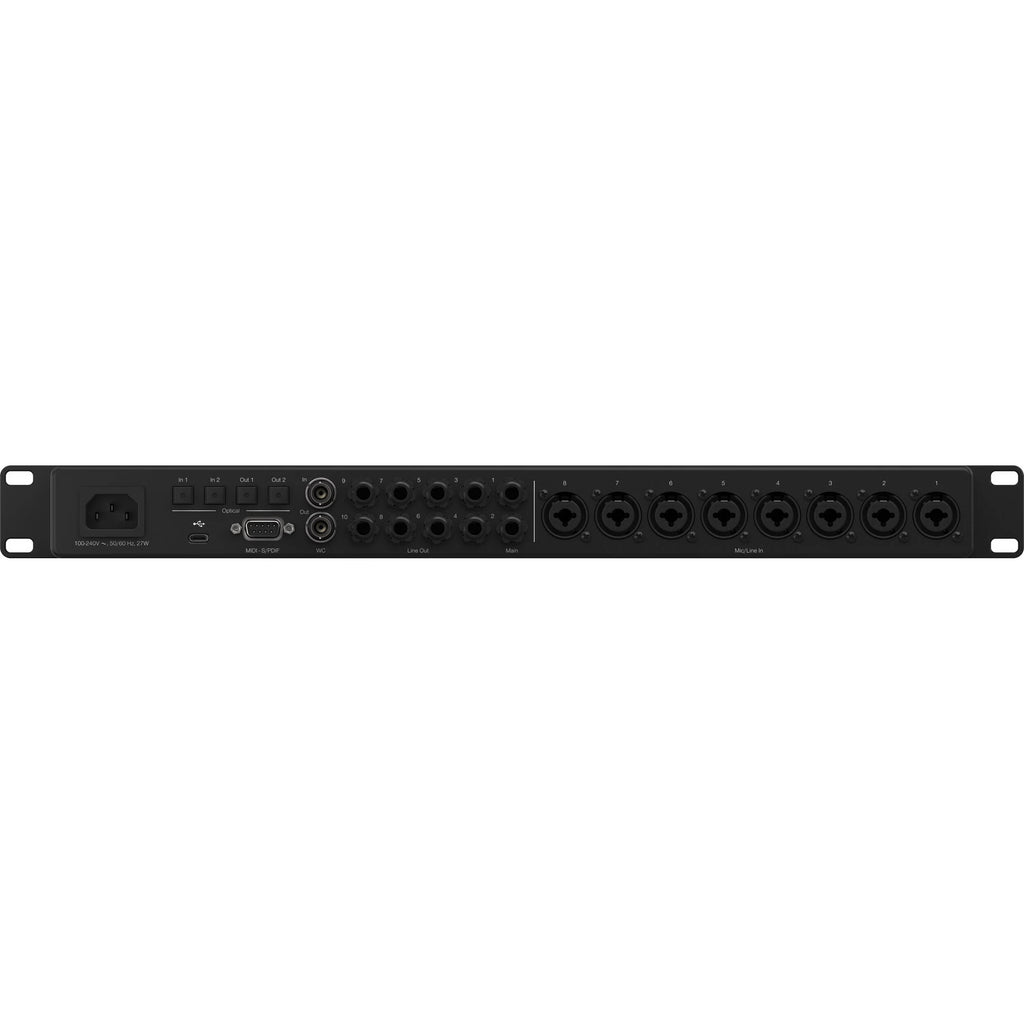

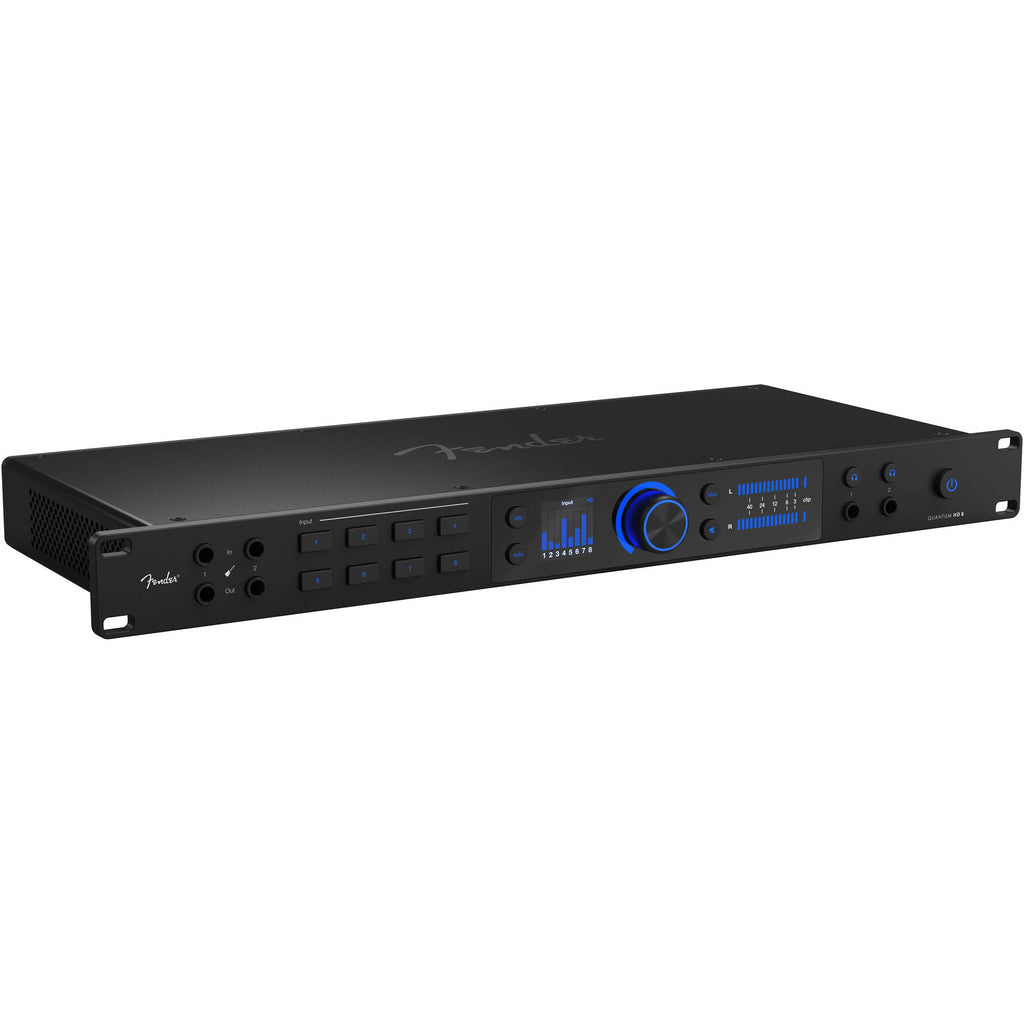

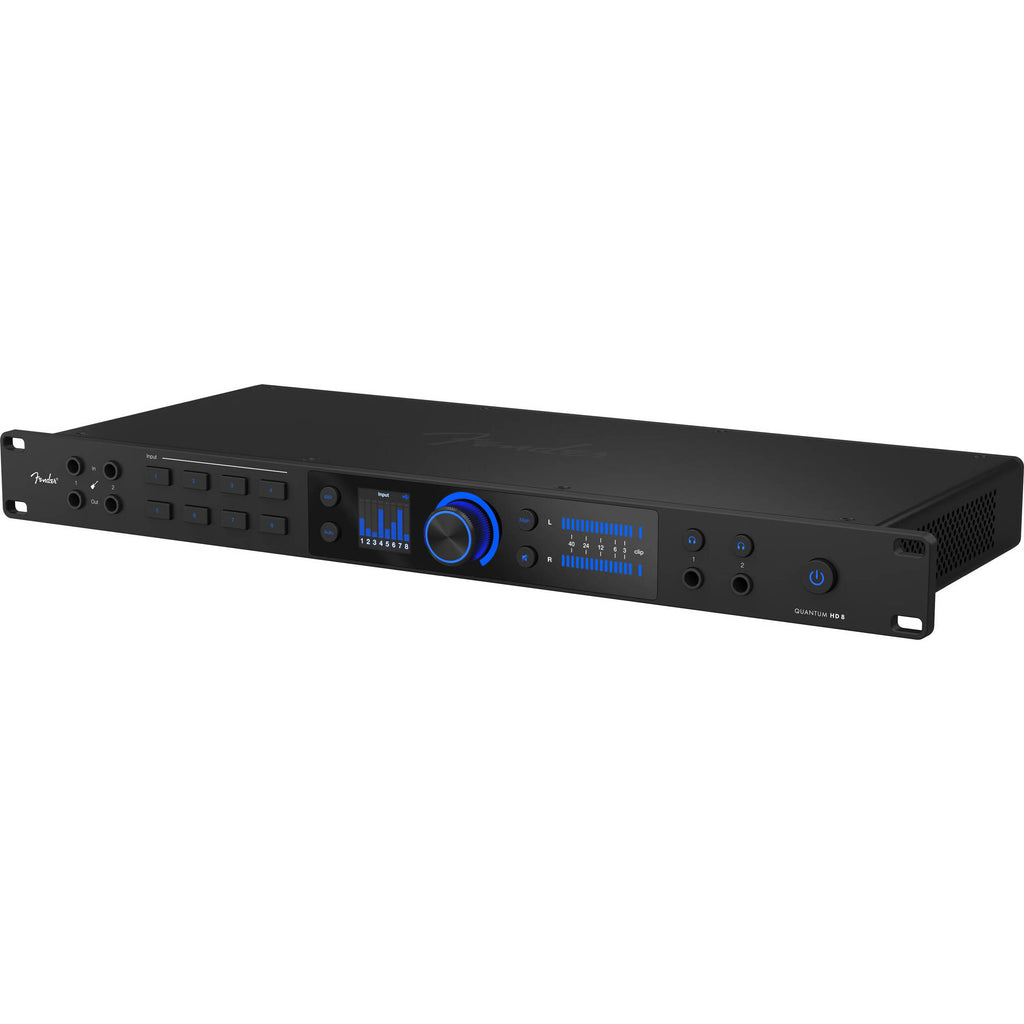

Fender Quantum HD 8 Overview
Ideal for studio recording and large projects, the Fender Quantum HD 8 is a 26x30 USB-C audio interface sporting features like Auto Gain and 32-bit / 192 kHz conversion for effortlessly pristine audio and an efficient workflow. With Fender-designed instrument inputs and 16-channel ADAT, this interface can grow with your needs.
The eight MAX-HD mic preamps provide highly transparent gain up to 75 dB and can support miking full ensembles or drum kits. Connectivity can be greatly expanded with 16-channel ADAT and 2-channel S/PDIF I/O. Furthermore, a standalone ADAT Preamp mode can be engaged to use the interface purely as an ADAT preamp. Reamp outputs can be used for experimenting with guitar amps and pedals via prerecorded takes. The DSP monitor mixer and loopback functions are ideal for podcasting and streaming. With either Fender Studio Pro or the Universal Control app, you can precisely control virtually every function on the interface remotely. This interface includes a perpetual license for Fender Studio Pro.
- Eight next-generation MAX-HD mic preamps with +75 dB of gain, ultralow-latency drivers, and high-performance 32-bit / 192 kHz converters
- Front-facing Fender instrument inputs deliver clean, dynamic recordings for guitars and basses
- Auto Gain simplifies setup, while re-amp outputs allow experimentation with amps and pedals
- The DSP monitor mixer and loopback make streaming, podcasting, and monitor mix creation effortless
- Eight XLR-1/4" combo mic/line input jacks
- Two Fender-designed Hi-Z instrument inputs and two outputs for capturing passive instruments and reamping
- Two front-panel headphone outputs
- 10 1/4" TRS balanced line outputs (two main, eight auxilliary)
- Two optical TOSLINK inputs and two outputs for 16 channels of ADAT
- DB-9 port for MIDI and S/PDIF connectivity
- BNC wordclock input and output
- Fender Quantum HD 8 26x30 USB-C Audio Interface
- Limited 2-Year Manufacturer Warranty
No additional resources available
Fender Quantum HD 8 Specs
| Channels of I/O |
26 Inputs / 30 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
8
|
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Mic/Line Input
2x 1/4" TS Hi-Z Input 6x 1/4" TRS Line Output 2x 1/4" TS Hi-Z/Re-Amp Output 2x 1/4" TRS Headphone Output 2x 1/4" TRS Main Output |
| Digital Audio I/O |
TOSLINK Optical ADAT Input
TOSLINK Optical ADAT Output |
| Host Connection |
USB-C
|
| Power Requirements |
DC Input
|
| Display |
No
|
| Channels of I/O |
26 Inputs / 30 Outputs
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
8
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
Knob
|
| Pad |
No
|
| Gain/Trim Range |
75 dB
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Hi-Z Input 6x 1/4" TRS Balanced Line Output 2x 1/4" TS Hi-Z/Re-Amp Output 2x 1/4" TRS Headphone Output 2x 1/4" TRS Balanced Main Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output |
| Host Connection / USB |
USB-C
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x DB-9 S/PDIF Input or Output
1x BNC Word Clock Input 1x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
32-Bit
|
| Sync Sources |
No
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
Windows / macOS
|
| Required Hardware |
USB Cable
|
| Power Requirements |
DC Input
|
| Dimensions |
19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
|
| Weight |
6.3 lb / 2.9 kg
|
| Package Weight |
12.3 lb
|
| Box Dimensions (LxWxH) |
23.8 x 11.9 x 6.8"
|
