Description
FeelWorld W1000S Overview

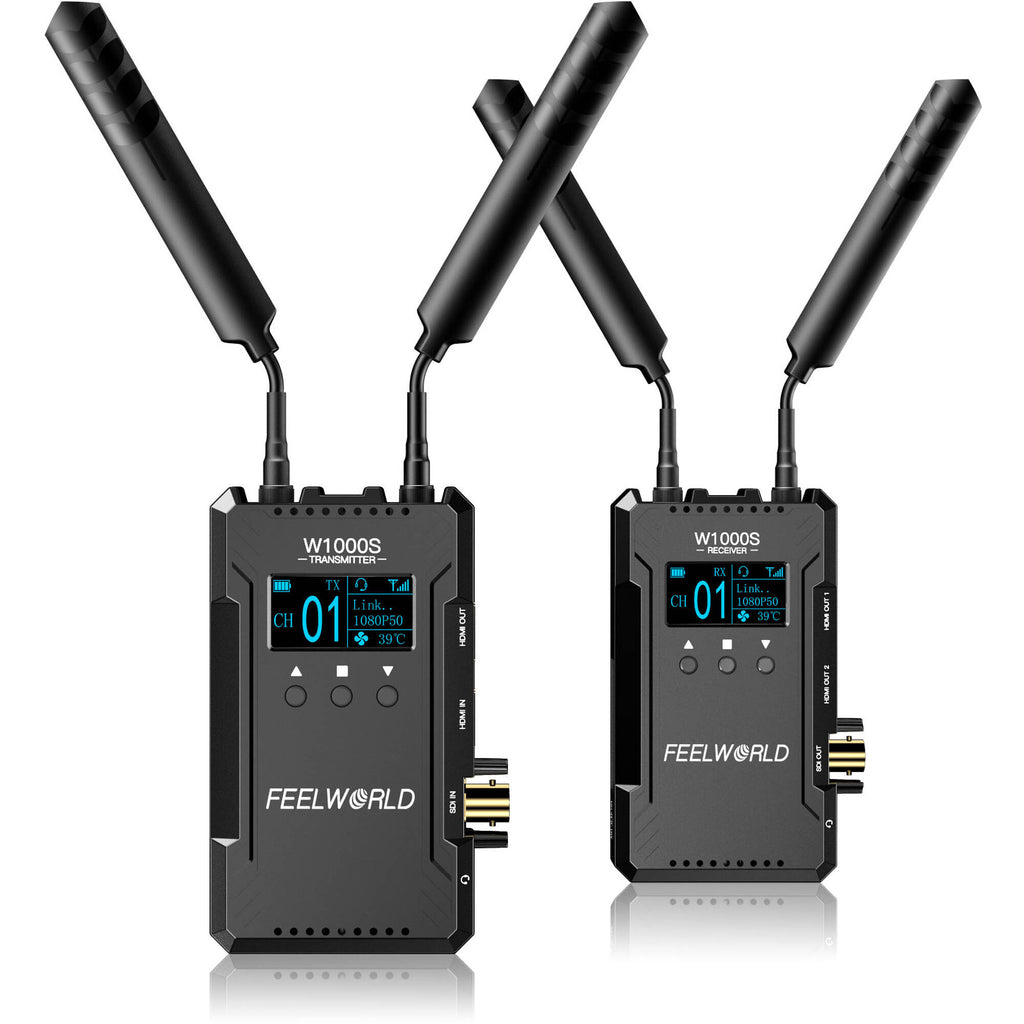

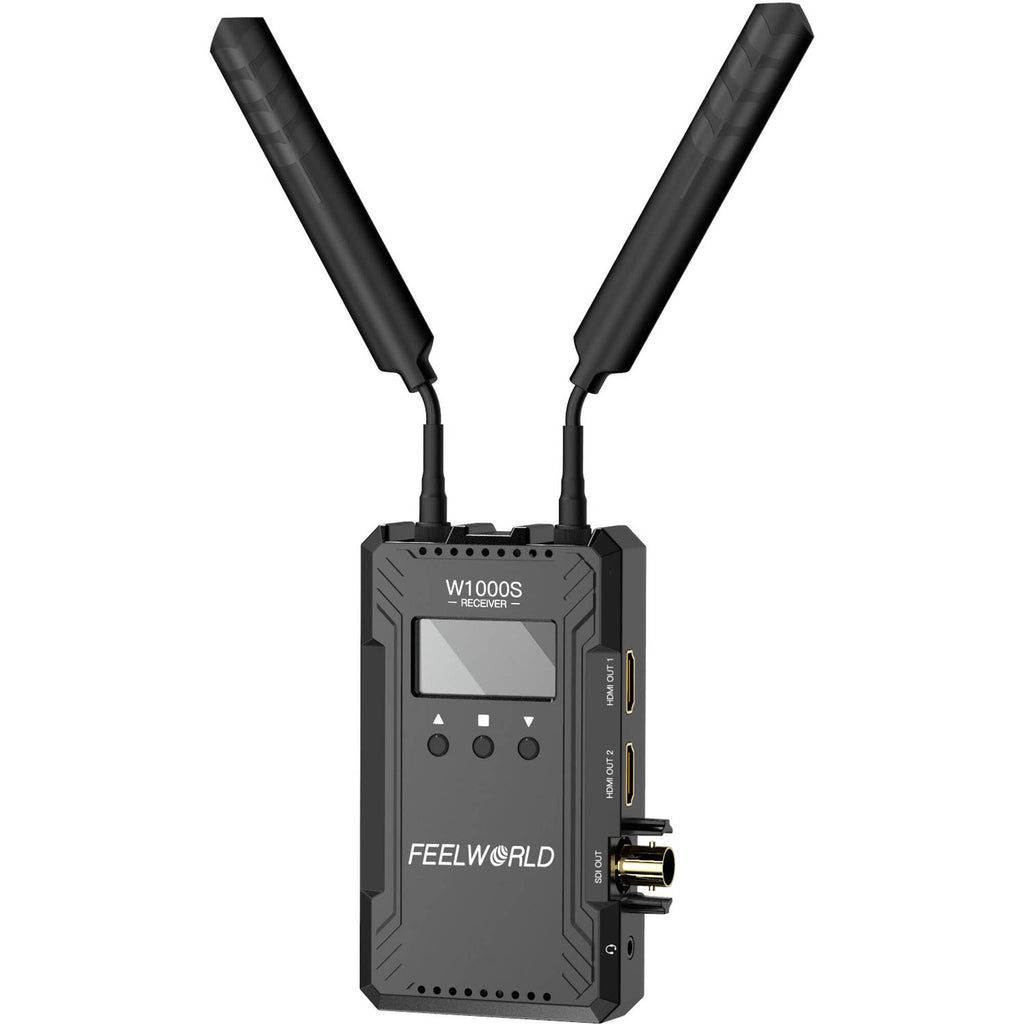

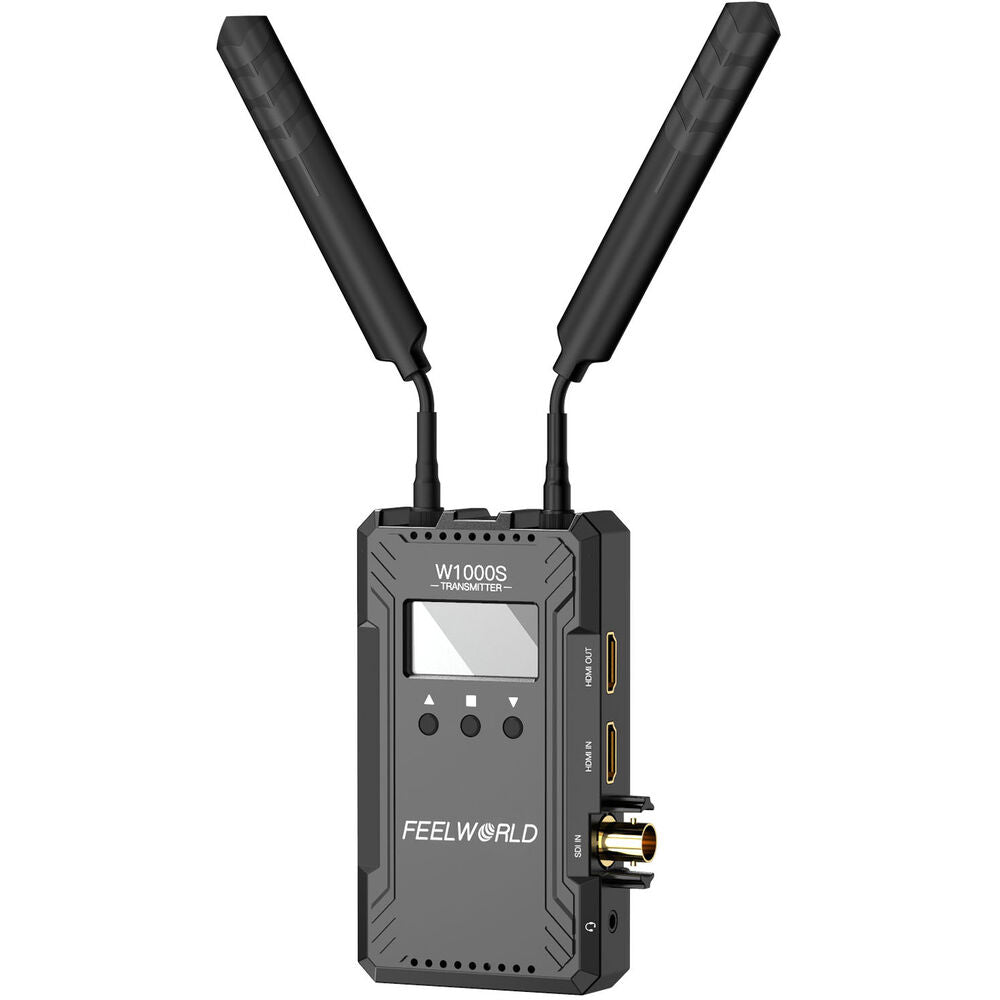

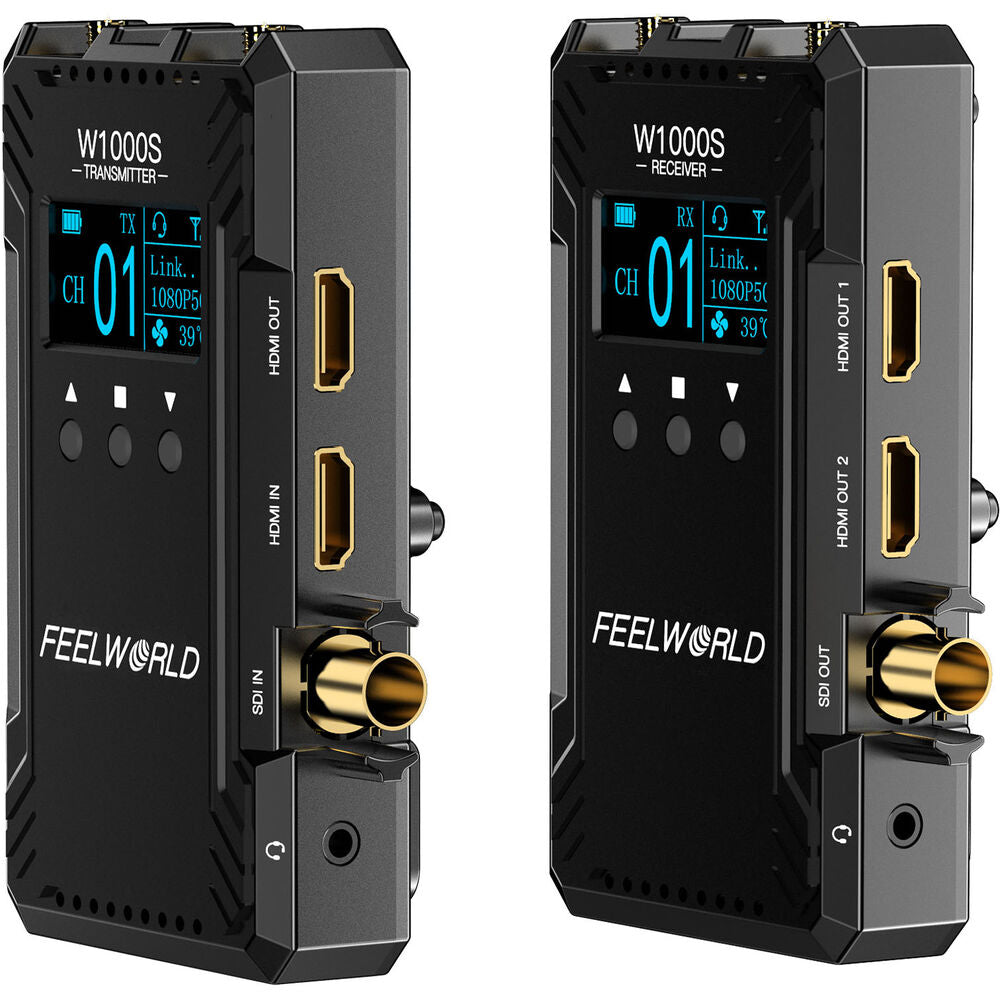

The FeelWorld W1000S transmitter/receiver set is a real-time wireless video transmission system with an integrated intercom feature that allows communication between users on set. The system supports up to 1080p60 SDI/HDMI transmission up to 1000' with a low latency of 0.08 seconds. The transmitter has a 3G-SDI input and HDMI input and output. The receiver offers a 3G-SDI output and dual HDMI outputs.
Up to four receivers can be linked to the transmitter for simultaneous transmission. Also, the transmitter can be adjusted to function as a receiver. The OLED screen on both the transmitter and receiver displays link status, signal strength, video format, battery level, temperature, fan status, and the status of the intercom mode. The W1000S system also supports remote monitoring from a companion iOS/Android app. Four smartphones or tablets can be linked up to the transmitter via the free-download LAIZESKE app, and this in addition to any receivers you may have linked. The app offers professional monitoring features such as monochrome, false color, and center mark.

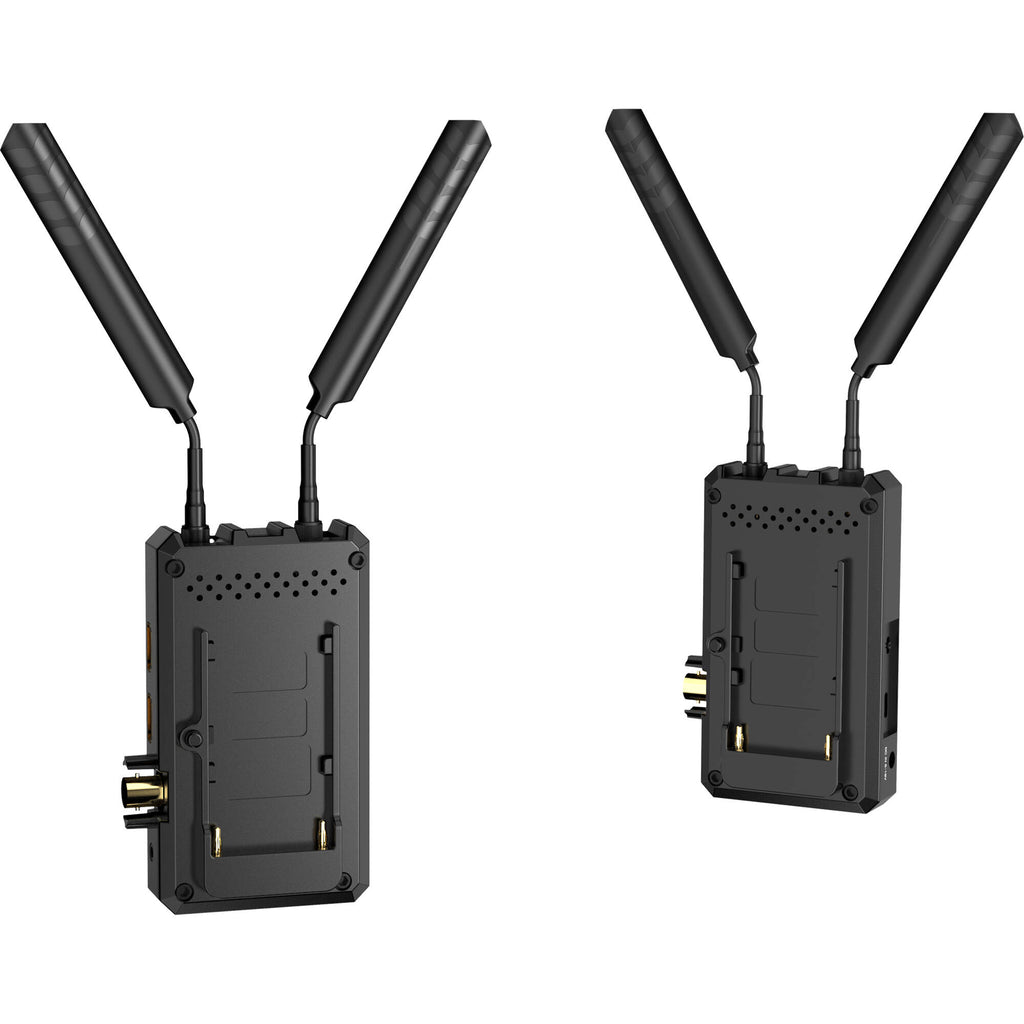

There are 13 frequency channels. The system can automatically scan the current environment to find available channels and avoid the channels with interference. A built-in fan on the units ensures proper cooling during operation. The transmitter and receiver have an L-series battery plate and a USB Type-C charging port, and also offer a 6-16 VDC barrel port for power. Both units provide a 1/4"-20 mounting thread on the bottom.
In the Box
- FeelWorld W1000S 1000' SDI + Dual HDMI Wireless Video Transmission System
- Transmitter
- Receiver
- 5 x Antenna
- USB Type-C to USB Type-A Cable
- Cold Shoe Adapter
- Limited 1-Year Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
FeelWorld W1000S Specs
| Antenna Ports | Transmitter: 2 x RP-SMA Male Receiver: 2 x RP-SMA Male |
| Video | Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x HDMI Type A Input Transmitter: 1 x HDMI Type A Output Receiver: 1 x BNC (3G-SDI) Output Receiver: 2 x HDMI Type A Output |
| Audio | Transmitter/Receiver: 1 x 1/8" / 3.5 mm Headphone Output |
| Power | Transmitter/Receiver: 1 x Barrel Input |
| Other I/O | Transmitter/Receiver: 1 x USB Type-C |
| Wireless Range | 1000' / 304.8 m |
| # of Channels | 13 |
| Channel Bandwidth | 20 MHz |
| Frequency Range | 5.1 to 5.9 GHz |
| Latency | 0.08 sec |
| RF Power | 17 dBm |
| Wi-Fi | None |
| Video Format | HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 60 480p: 60 |
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | No |
| DC Input Power | 6 to 16 VDC |
| Power Consumption | Transmitter: 7.5 W Receiver: 6.5 W |
| Mounting | 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Package Weight | 1.525 lb |
| Box Dimensions (LxWxH) | 10.5 x 6.9 x 2.1" |
FeelWorld W1000S Reviews
Latency not as advertised.
I have the system hooked up to BMPCC 6k and a Feelworld 7 monitor. In two days of use, I found the delay seemingly over the advertised .08s. Finally when home from my shoot I tested it and got between .3 or .4 seconds of delay. Which is of course 3 to 4x longer than stated .08, even when set in latency priority mode. I'm still waiting to hear from someone is tech service from Feelworld to see if I am missing something, but I'm not hopeful. I will be returning if I don't hear from them soon on how to make it the advertised latency as it is too long delay to remotely operate the camera.
Dead on arrival...so far
Couldn't find any reviews anywhere on this product, no youtube videos...nothing, but on paper it's feature set, checks a lot of boxes for me...I was super excited about this so I decided to take a chance seeing that people really seemed to like FeelWorld's other products...unfortunately I couldn't power it on to try anything out...no power from a wall plug (via USB-C), or power bank (via USB-C)...Working on a return or exchange with today. 3/16/22 Will update my review once I receive a working pair.
