Description
FeelWorld T7S Pro Overview

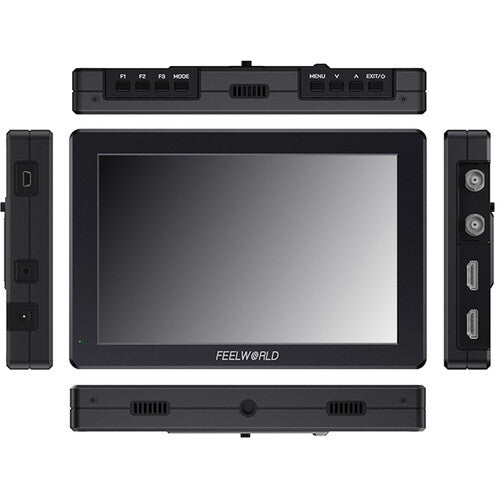

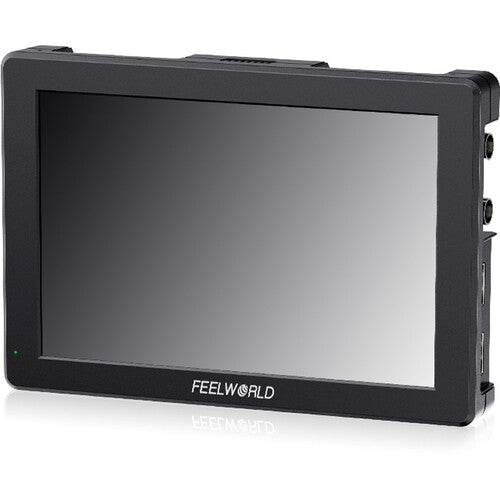

Monitor your 4K video signals with clarity in the field with the T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs from FeelWorld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features HDMI input and output that supports up to UHD/DCI 4K60 and 3G-SDI input and output up to 1080p60.
The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and high 2000 cd/m? brightness for a crisp viewing experience, even in sunlight. You can apply internal 3D LUTs or import up to 32 custom 3D LUTs. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered via a separately available power adapter or the rear L-series battery mount.
Quick Features
- 1920 x 1200 IPS LCD

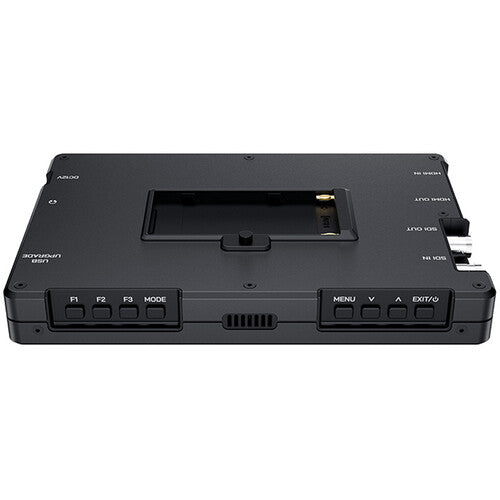

- Intuitive button operation, easy to use
- 2000 cd/m? ultrabrightness, daylight viewable
- Rugged and durable aluminum housing
- Up to UHD/DCI 4K60 HDMI input and output
- Up to 3G-SDI 1080p60 input and output
- Load custom 3D-LUTs; preview film looks
- HDR monitoring support

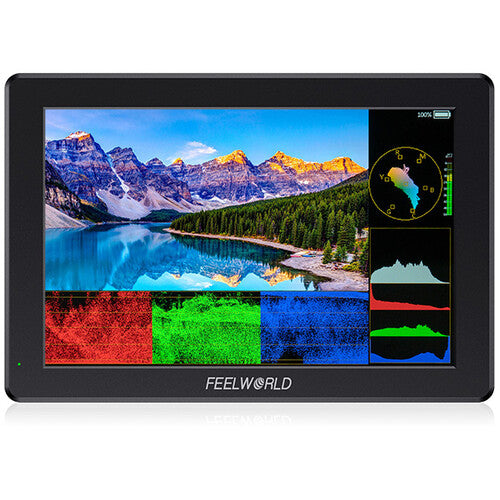

- Waveform, vectorscope, histogram, and audio meter can move horizontally and vertically onscreen
- Four-group user switching, quickly access the set menu
- 3.5mm headphone output for real-time monitoring
Items Included
- FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
- Mini-USB Cable
- HDMI Cable
- Sun Hood
- Shoe Adapter Mount
- L-Series Battery Plate
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
No additional resources available
FeelWorld T7S Pro Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
No
|
| HDR Support |
Yes
|

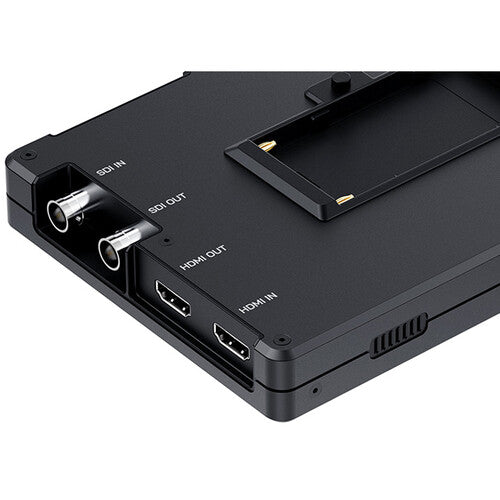

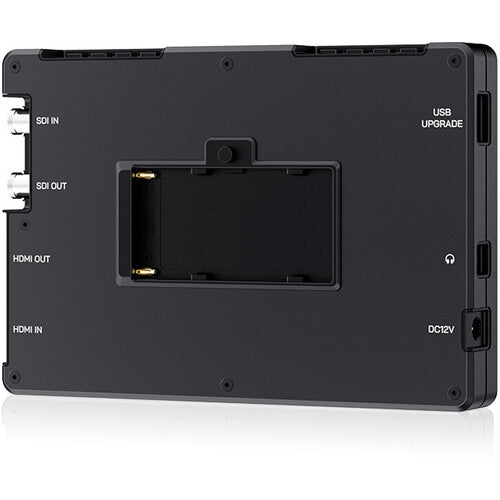

| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
18 W (Maximum)
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160? (80/80)
Vertical: 160? (80/80) |
| Touchscreen |
No
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| HDR Support |
Yes
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Histogram, Image Flip, Image Freeze, Marker Color, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Mono
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x Mini-USB (Firmware/LUT Upload) Input
|
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
Power
| Input Power |
7 to 24 VDC
|
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
18 W (Maximum)
|
Mounting
| Tripod/Accessory Mounting |
Bottom
1x Anti-Twist 1/4"-20 Female |
General
| Environmental Resistance |
No
|
| Operating Conditions |
-4 to 122?F / -20 to 50?C
|
| Storage Conditions |
-22 to 149?F / -30 to 65?C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.2 x 4.8 x 0.9" / 182.8 x 122.8 x 24 mm
|
| Weight |
13.1 oz / 370.00 g
|
Packaging Info
| Package Weight |
2 lb
|
| Box Dimensions (LxWxH) |
8.8 x 6.1 x 3.2"
|
