Description
- 1024 x 768 LCD Display
- SDI and HDMI Digital I/O
- Component and Composite Analog I/O
- 350 cd/m² Brightness
- 600:1 Contrast Ratio
- Focus Peaking
- 1:1 Pixel Mapping
- Picture-in-Picture
- V-Mount Battery Plate
- Includes Tally Kit

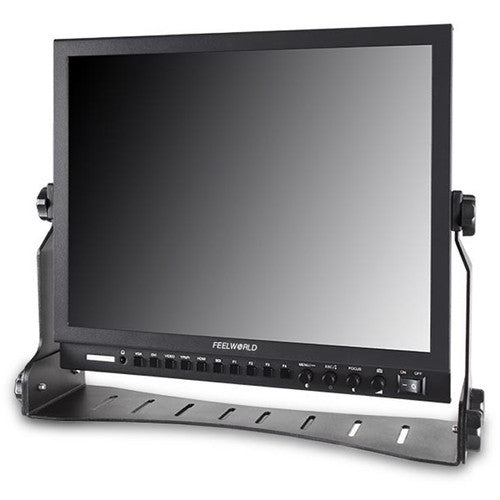

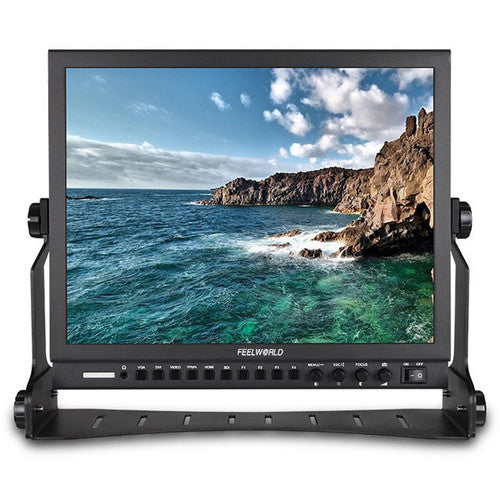

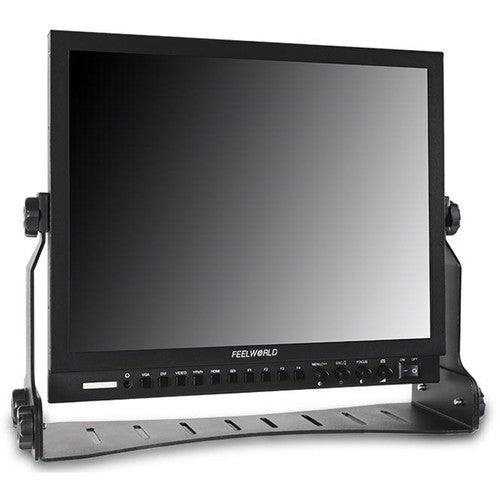

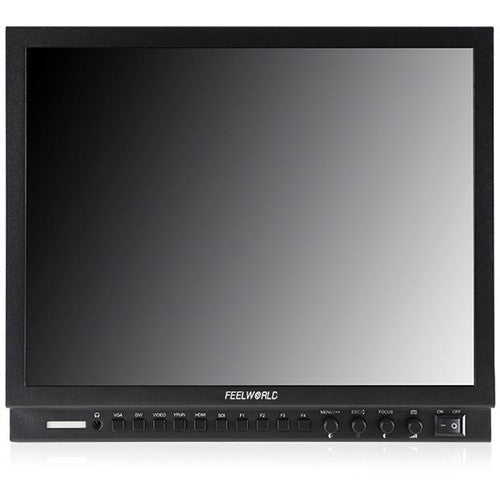

Monitor SDI, HDMI, or analog signals on the P150-3HSD 15" Broadcast LCD Monitor from FeelWorld . The 1024 x 768 LED-backlit LCD panel can display SD and HD content for framing and analysis. The built-in monitoring tools include focus peaking, 1:1-pixel mapping, frame markers, and customizable picture-in-picture.

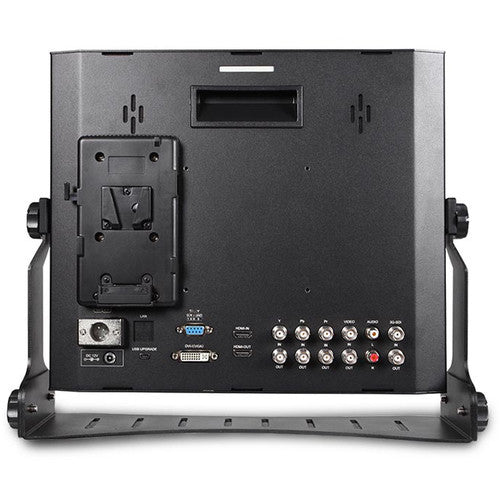

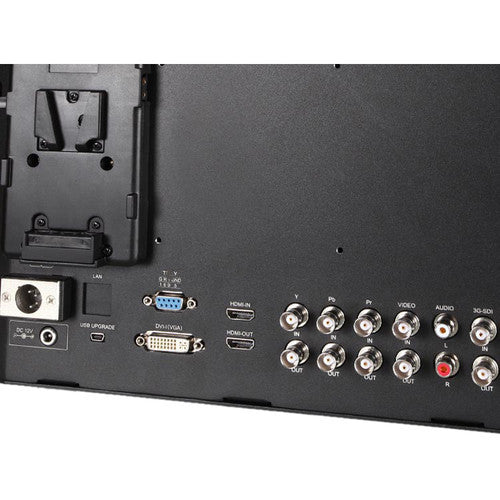

Rear inputs include SDI and HDMI for digital sources, as well as component and composite video for legacy analog sources. Audio embedded in the digital signal, or input via the RCA jacks, can be monitored using the built-in speaker or the 3.5mm headphone jack on the front panel.
To power the monitor, use the included power supply or the included V-Mount battery plate for separately available professional broadcast batteries. Use the tally input to interface with broadcast switchers. When the tally is activated, the front-panel tally light will illuminate.
- Peaking Focus Assist
- Add colored highlights to high-contrast edges in the image to easily determine correct focus.
- DSLR Scaling
- Some DSLR cameras crop their output while recording. This mode compensates for that crop for easier full-screen monitoring.
- Pixel-to-Pixel Mapping
- Turn the input scaling off to see the individual pixels on the screen. This can be useful for critical image analysis and achieving critical focus.
- Picture-in-Picture
- Display two signals simultaneously. Images can be overlaid or split on the screen. Location of the PiP window can be changed.
- Check Field
- Useful for adjusting hue and saturation. Each color channel�red, blue, or green�can be displayed separately. Monochrome is also available for setting contrast and exposure.
- Image Flip
- Horizontal and vertical image flip selections ensure that your image is correctly oriented while the camera is mounted upside-down, or when certain lens adapters are used.
Quick Features
- Center, title-safe, and aspect ratio markers
- Image freeze
- 16:9 and 4:3 aspect ratio select
- H/V delay
- Tally indicator
FeelWorld P150-3HSD specs
Display | |
---|---|
Resolution | 1024 x 768 |
Aspect Ratio | 4:3 |
Brightness | 350 cd/m² |
Contrast Ratio | 600:1 |
Viewing Angle | 160°/145° (H/V) |
Backlight | LED |
Connectors | |
---|---|
Input | 1 x BNC, 3G/HD/SD-SDI 1 x HDMI Type A 1 x 3BNC, component video 1 x BNC, composite video 1 x RCA, stereo analog audio |
Output | 1 x BNC, 3G/HD/SD-SDI 1 x 3BNC, component video 1 x BNC, composite video |
Supported Formats | |
---|---|
SDI | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL |
HDMI | 1080p 24/25/30/50/60 1080i 50/60 720p 50/60 576p 480p NTSC PAL |
General | |
---|---|
Audio | 1 x Speaker output 1 x 3.5 mm headphone output |
Input Voltage | 6-14 VDC |
Power Consumption | Maximum: 10 W |
Environmental | Operating Temperature: 14 to 131°F / -10 to 55°C Storage Temperature: -4 to 149°F / -20 to 65°C |
Dimensions | 14 x 13.8 x 1.4" / 35.5 x 30 x 3.5 cm |
Weight | 7.9 lb / 3.6 kg |
Packaging Info | |
---|---|
Package Weight | 8.85 lb |
Box Dimensions (LxWxH) | 16.9 x 16.2 x 5.6" |
- HDMI to Mini HDMI Cable
- V-Mount Battery Plate
- Power Supply
- Tally Kit
- Limited 1-Year Warranty
