Description
- 13.3" 1920x1080 IPS LCD
- Supports SD and HD Formats
- SDI, HDMI, DVI, YPbPr, Composite Inputs
- 170� / 170� Viewing Angle
- Safe Area Markers & Focus Aid Function
- R/G/B-Only and Monochrome
- Pixel-to-Pixel Mapping
- Image Flip
- 12V Battery or 4-Pin XLR Power
- Includes U-Bracket

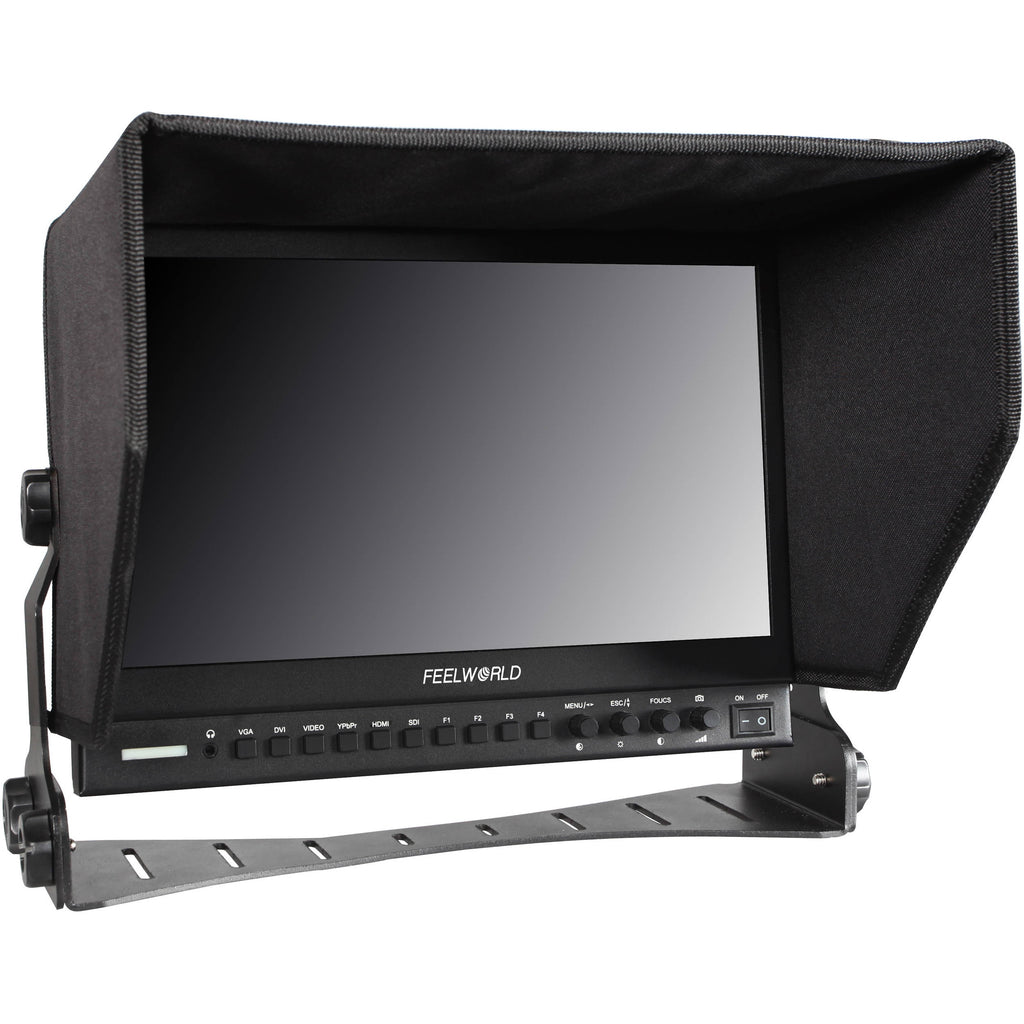

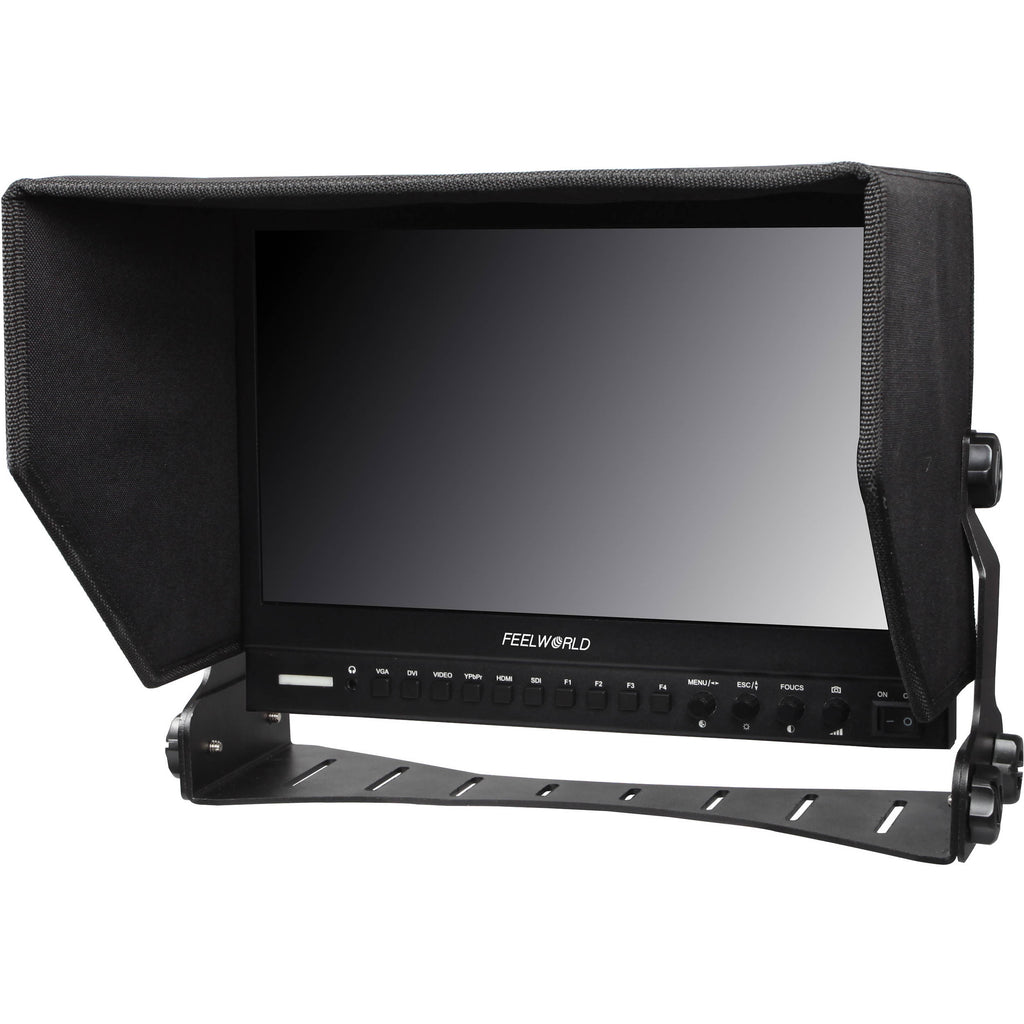

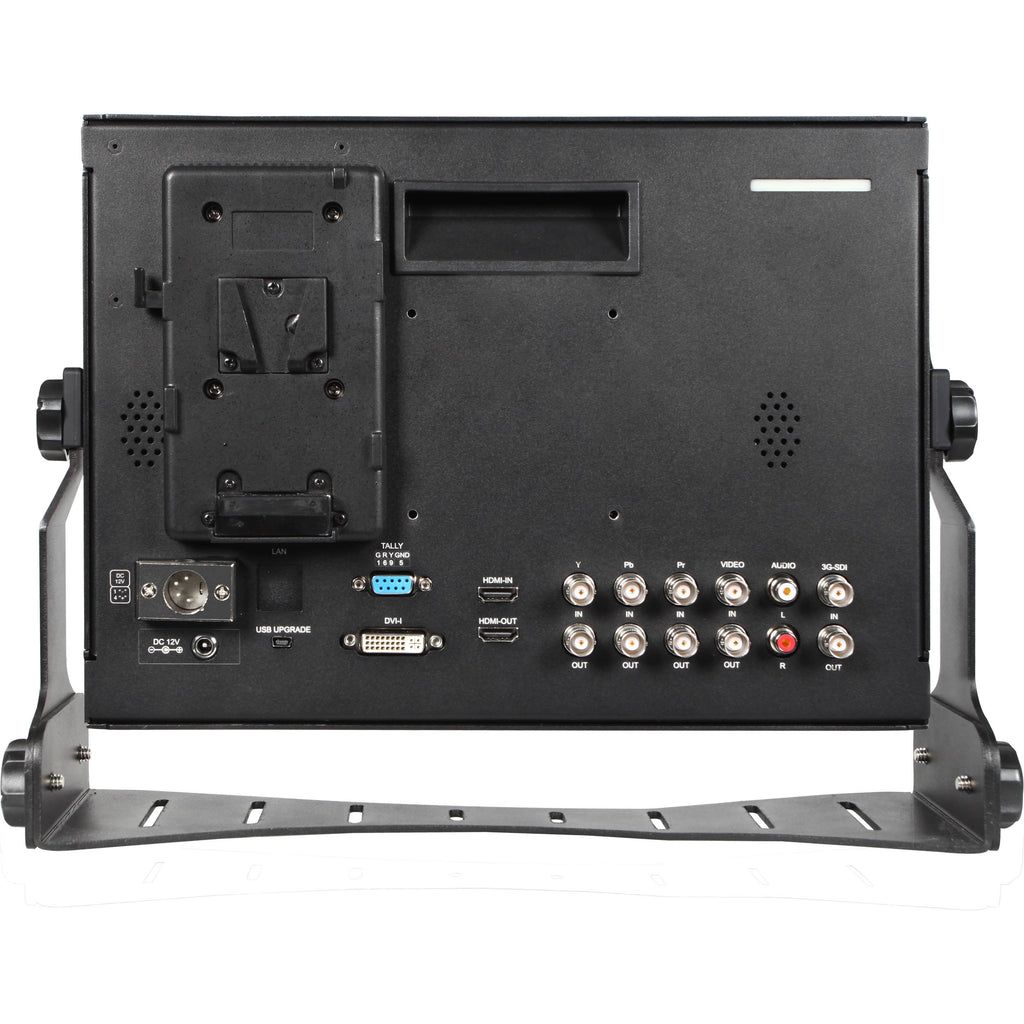

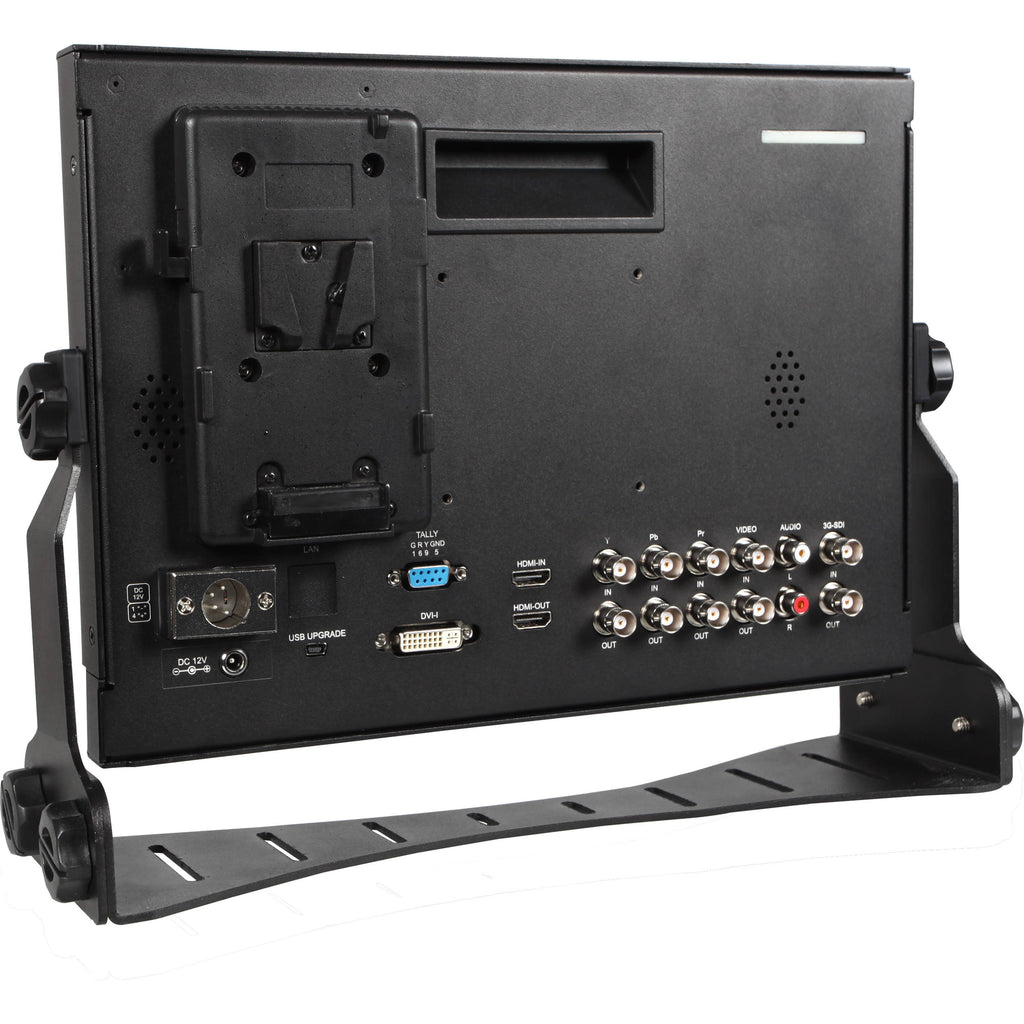

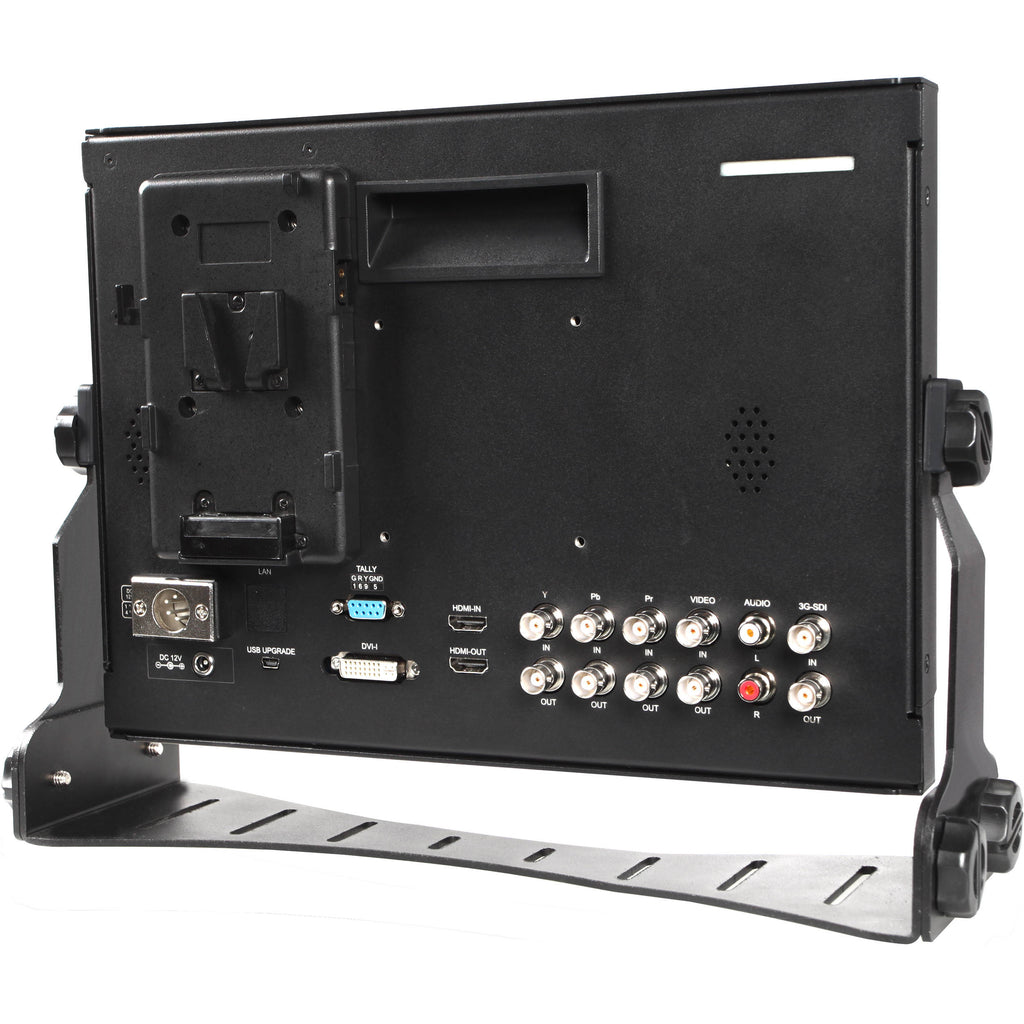

Featuring a full-HD IPS LCD panel, the FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.
- Monitoring Tools
-
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
- Power Supply
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- Sunshade
- U-Bracket
- Limited 1-Year Warranty
Screen Size | 13.3" / 33.8 cm |
Color Depth | 8-bit (16.7 million colors) |
Resolution | 1920 x 1080 pixels |
Pixel Pitch | 0.1533 x 0.1533 mm |
Aspect Ratio | 16:9 |
Brightness | 400 cd/m� |
Contrast Ratio | 1000:1 |
Backlight | LED |
Viewing Angle (H x V) | 170� / 170� |
Input | 1 x BNC, 3G-SDI 1 x HDMI 1 x BNC, YPbPr 1 x DVI-I 1 x BNC, Composite 1 x RCA, stereo audio |
Output | 1 x BNC, 3G-SDI 1 x HDMI 1 x BNC, YPbPr 1 x BNC, Composite |
Audio Out | Stereo headphone Internal speaker (stereo) |
SDI Format Support | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL |
HDMI Format Support | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 576p 480p NTSC PAL |
Input Voltage | 9 to 24 VDC |
Power Consumption | ?12 W |
VESA Configuration | 75 mm |
Operating Temperature | 14 to 122�F / -10 to 50�C |
Storage Temperature | -4 to 140�F / -20 to 60�C |
Dimensions | 12.4 x 9.1 x 1" / 315.5 x 231 x 26.4 mm without bracket |
Weight | 3.61 lb / 1.64 kg With bracket: 4.32 lb / 1.96 kg |
Packaging Info | |
---|---|
Package Weight | 6.75 lb |
Box Dimensions (LxWxH) | 14.9 x 13.9 x 4.8" |
