Description
FeelWorld NDI20X Overview
- 1Description
- 21080p60 Video
- 3Simultaneous Streaming
- 4Wide FOV
- 5Smooth Pan & Tilt
- 6PoE Support
- 7Noise Reduction
- 8Presets
By Photo's
Mary Latvis

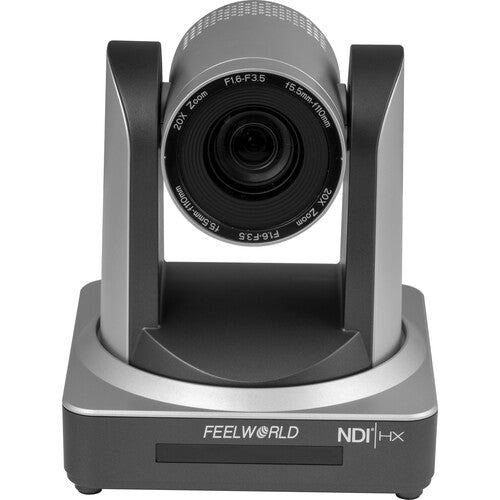

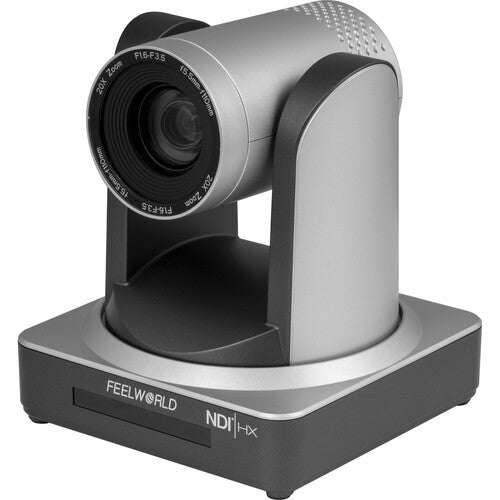

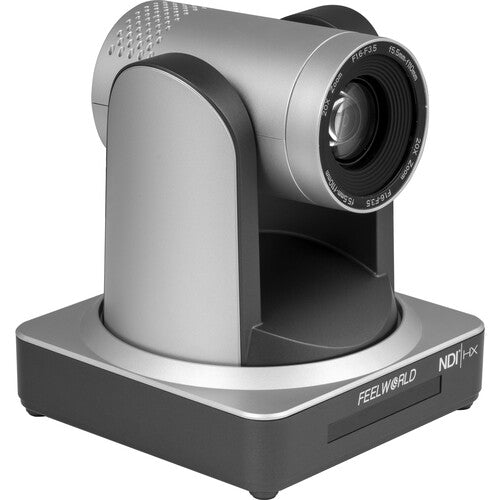

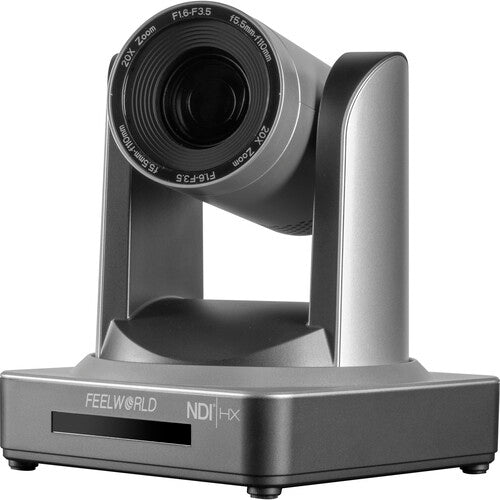

Simultaneously stream your content to several platforms using the NDI20X NDI PoE PTZ Camera with 20x Zoom from FeelWorld. Ideal for video conferencing, live events, and houses of worship, this camera features a 1/2.9" CMOS sensor, both HDMI and 3G-SDI outputs, and audio input. NDI|HX streaming protocols and PoE (Power-over-Ethernet) are supported over a single cable, saving both cost and time.
The camera uses H.264 and H.265 compression formats and offers low-light correction and autofocus functions. You can save 10 presets using the included remote control or up to 255 presets via the WEBSERVER software.
1080p60 Video
PTZ camera with up to 1080p60 output and 20x optical zoom
Simultaneous Streaming
Simultaneous NDI/IP, 3G-SDI, and HDMI video streaming via LAN
Wide FOV
Wide 3.3 to 54.7° field of view
Smooth Pan & Tilt
- Accurate, smooth, and silent pan and tilt moves
- ±170° panning, -30/+90° tilting
PoE Support
Supports PoE (Power-over-Ethernet)
Noise Reduction
- Advanced 2D/3D noise reduction
- High signal-to-noise ratio
Presets
- Up to 255 position presets using WEBSERVER software
- Up to 10 presets using the remote control
In the Box
- FeelWorld NDI20X NDI PoE PTZ Camera with 20x Optical Zoom
- Power Adapter
- IR Remote
- RS-232 Cable
- RS-485 Terminal Block
Table of Contents
- Description
- 1080p60 Video
- Simultaneous Streaming
- Wide FOV
- Smooth Pan & Tilt
- PoE Support
- Noise Reduction
- Presets
FeelWorld NDI20X Specs
Imaging
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K Presets: Auto, Manual, One Push |
Lens
| Focal Length | 5.5 to 110mm |
| Optical Zoom Ratio | 20x |
| Field of View | 3.3 to 54.7° |
| Maximum Aperture | f/1.6 to 3.5 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, NDI|HX, ONVIF, RTMP, RTSP 1920 x 1080 1280 x 720 |
Control
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |
Interface

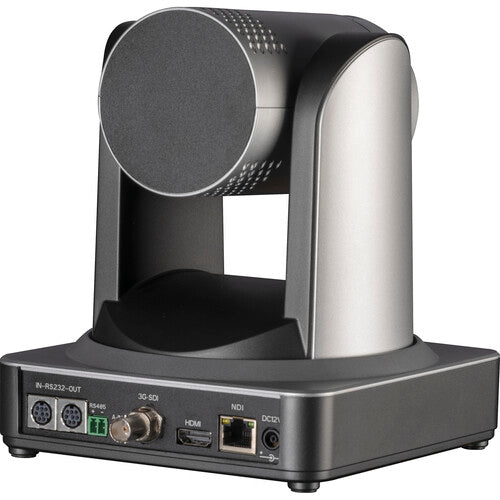

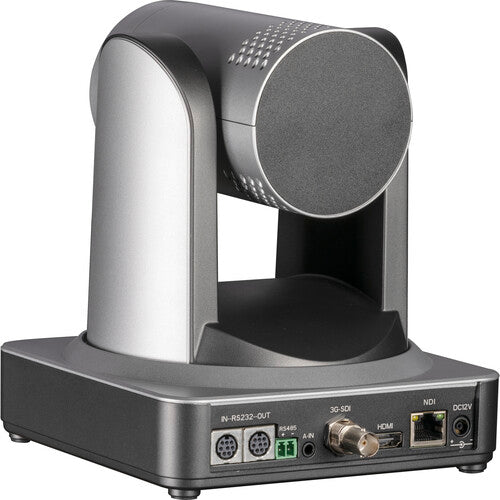

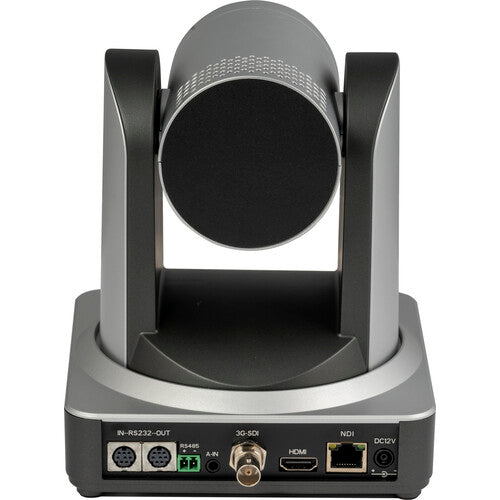

| Video I/O | 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block (RS-485) Input 1 x Mini-DIN 8-Pin (RS-232) |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC up to 1 A) Input |
| Power Consumption | Power Supply: 110 to 220 VAC at 2 A (12 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| Dimensions (W x H x D) | 5.9 x 6.6 x 5.9" / 15 x 16.75 x 15 cm |
| Weight | 3.1 lb / 1.4 kg |
Packaging Info
| Package Weight | 5.075 lb |
| Box Dimensions (LxWxH) | 11.2 x 10.1 x 9.1" |
