Description
FeelWorld LUT7 Overview

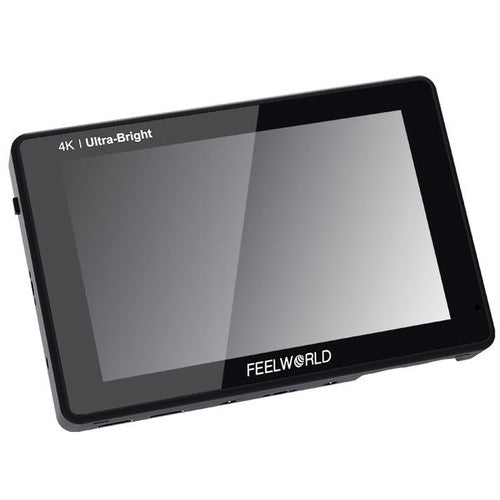

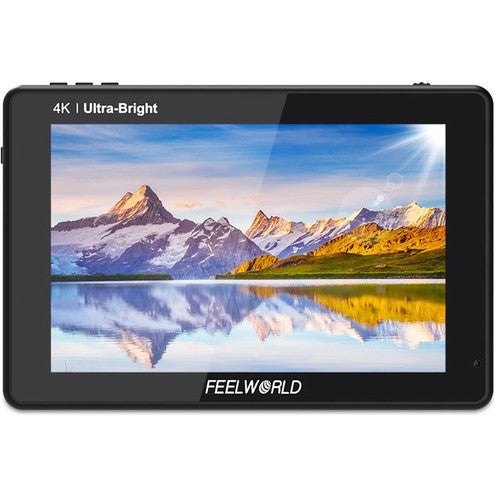

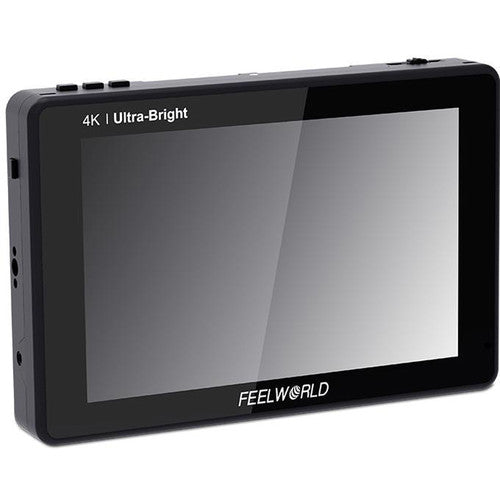

Featuring a 323 PPI (pixels-per-inch) IPS LCD panel, the LUT7S 7" 4K HDMI and SDI Monitor from Feelworld displays SD, HD, UHD, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 1 lb.

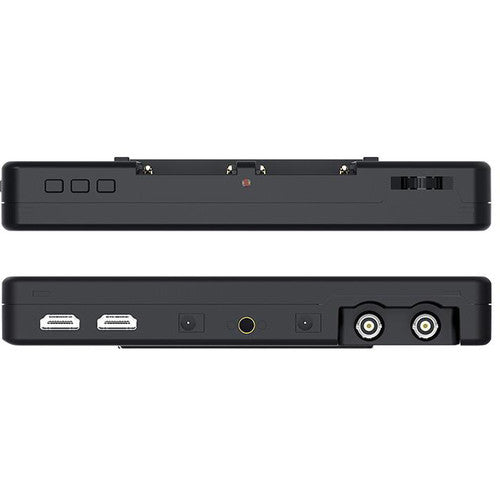

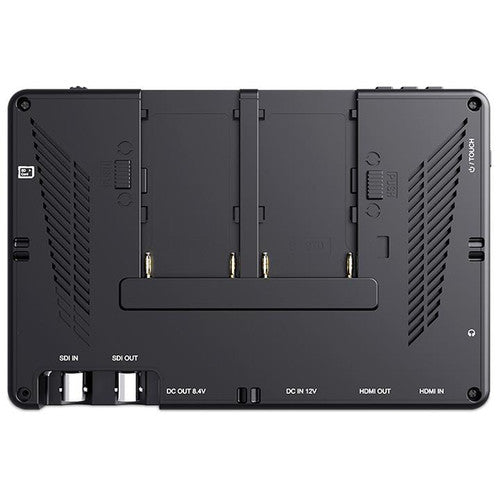

On the side of the monitor you'll find HDMI and SDI input and output connectors, and on the other side there is a 3.5mm headphone output, a 12 VDC 2.1mm barrel power input (with optional power adapter), and an 8.4 VDC 2.1mm barrel power output to power an optional accessory or your camera using a separately available cable or dummy battery. Along the bottom edge is the 1/4"-20 mounting thread, and the control buttons reside along the top edge of the monitor. The back of the monitor features a dual L-series/NP-F battery plate to provide ample power.
The LUT7S supports custom 3D LUTs to accurately view the camera color on screen, and it supports professional Rec.709 color calibration technology. A variety of image evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.
Key Features
- High-resolution 1920 x 1200
- High-contrast of 1200:1
- Ultrabright 2200 cd/m²
- 160° wide-view-angle IPS Panel
- Histogram
- Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
- False color
- Zebra exposure
- Nine-grid
- Embedded audio
- Scan mode (underscan, overscan)
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2x, 2x mag)
- Pixel-to-pixel
- Center marker
- Safe area (80, 85, 90, 93, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
In the Box
- FeelWorld LUT7S 7" 3D LUT 4K HDMI and SDI Monitor
- Micro-HDMI to HDMI Cable
- Tilt Arm Mount
- Limited 1-Year Warranty
Not in the Box
- Essential Batteries & Chargers (Not Included)
FeelWorld LUT7 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 2200 cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | Anamorphic De-Squeeze, Check Field, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform |
| Video | 1 x HDMI Type A (HDMI 1.4) Input 1 x HDMI Type A (HDMI 1.4) Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x 2.1 mm Barrel (12 VDC) Input 1 x 2.1 mm Barrel (8.4 VDC) Output |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 25 480p: 29.97 576i: 50 480i: 59.94 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 576i: 50 480i: 59.94 |
| DC Input Power | 7 to 24 VDC at 2 A |
| Battery Type | 2 x L-Series (Interchangeable Mount) |
| Power Consumption | 20 W |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Dimensions | 7.5 x 5 x 1.1" / 190 x 126 x 27 mm |
| Weight | 16.23 oz / 460 g, Including Battery Plate |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 2.105 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.4 x 3.2" |
