Description
FeelWorld LUT7 PRO Overview
- 1Description
- 2Key Features
- 3Accessory Mounting and Power
- 4Battery
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12

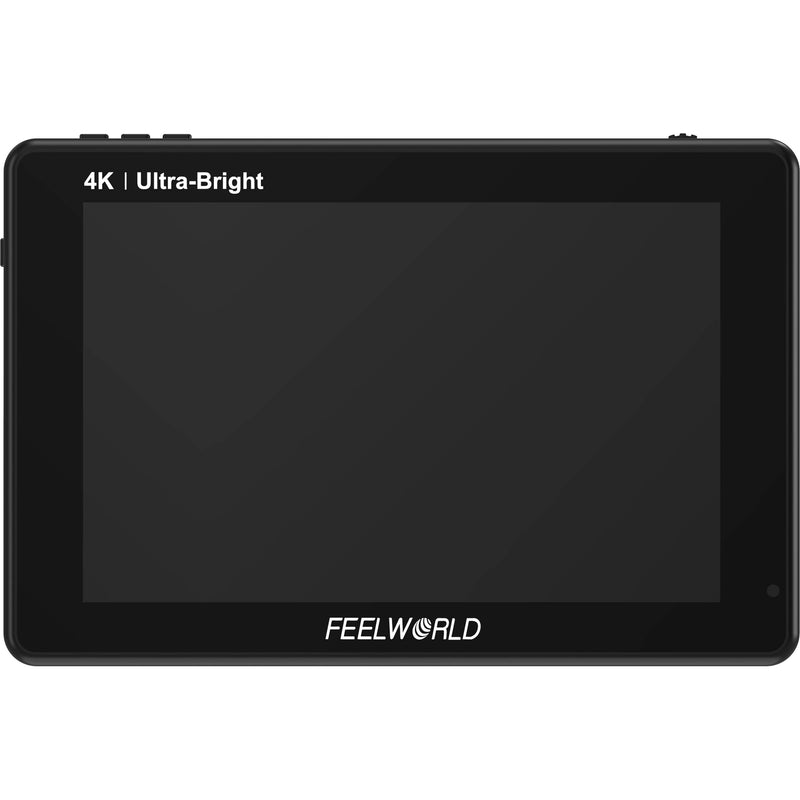

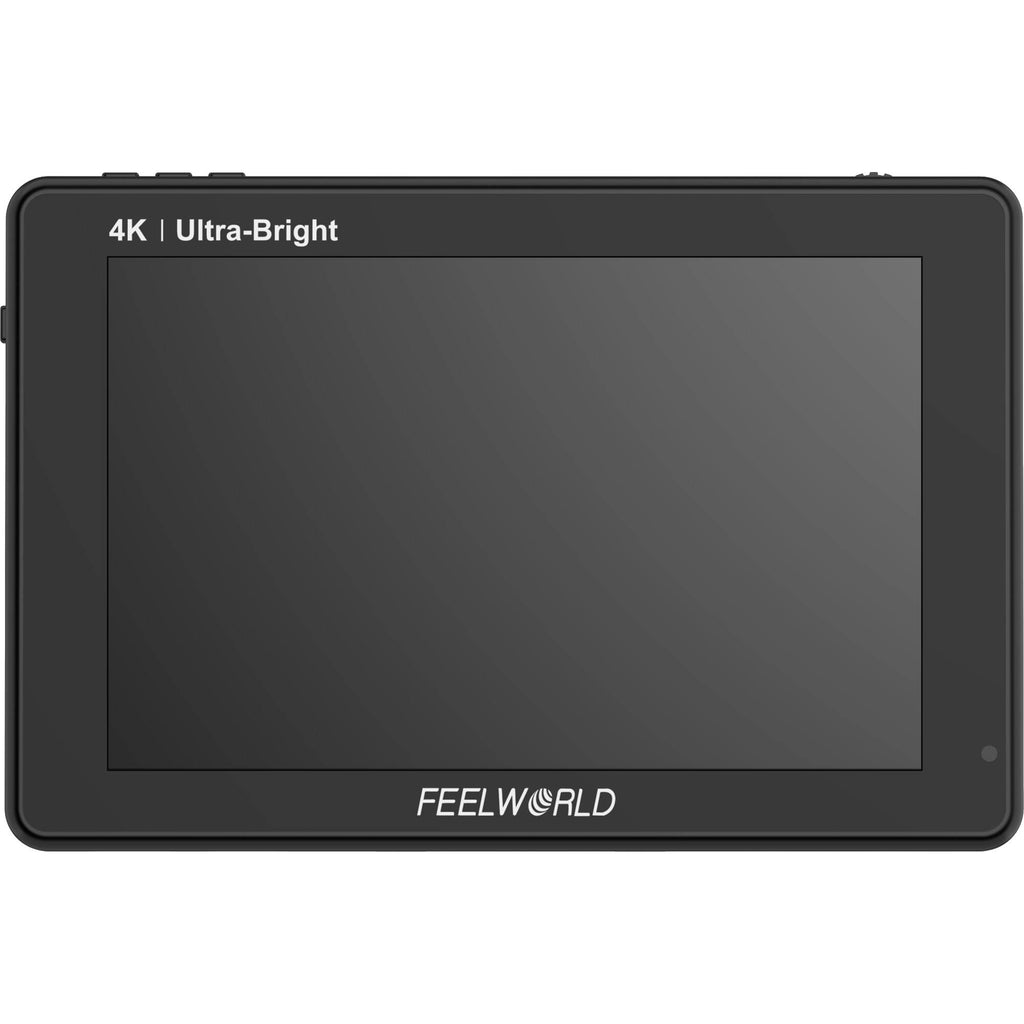

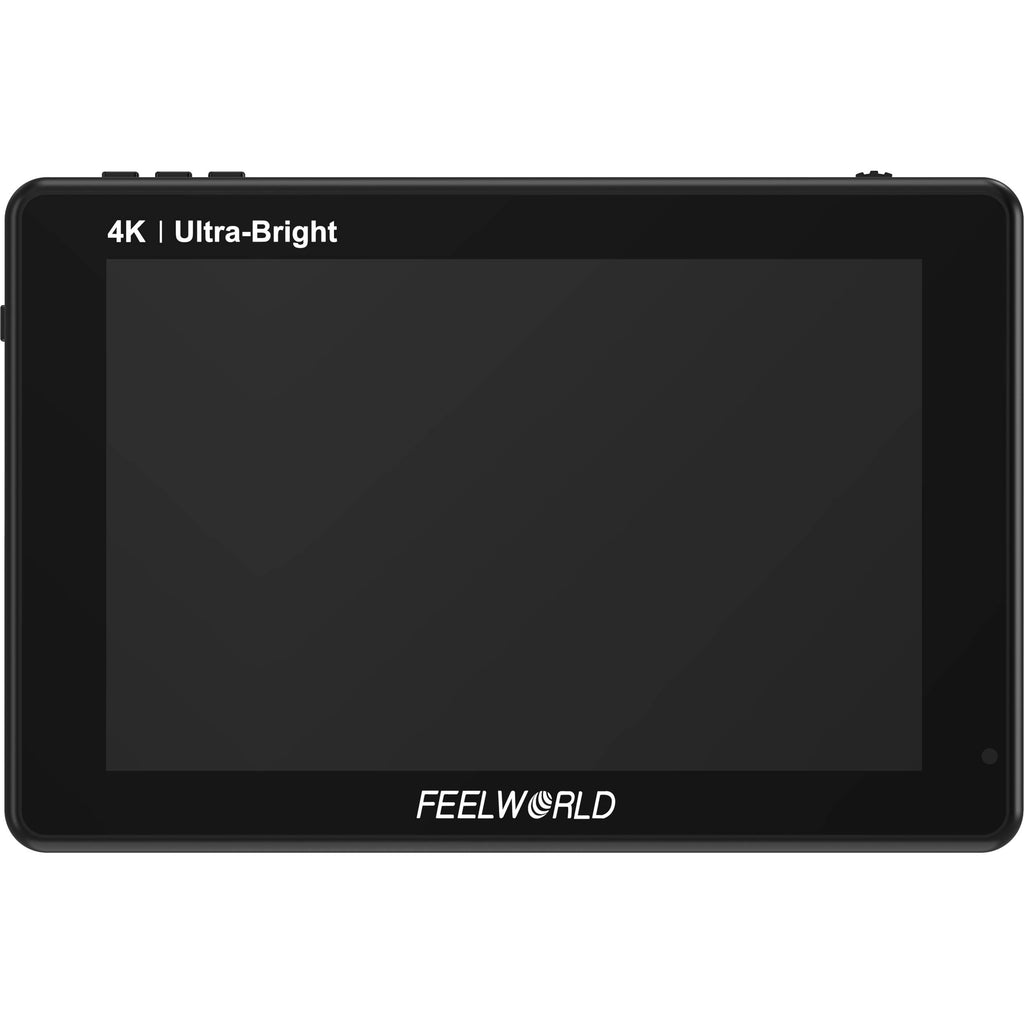

The LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mounting Plate from FEELWORLD features a sharp 323 ppi display and supports SD, HD, UHD, and DCI 4K video. This HDMI monitor has an integrated L-series battery slot, as well as a dummy battery plate that allows you to mount and power optional accessories, such as wireless transmitters or receivers with an L-series battery slot. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast.

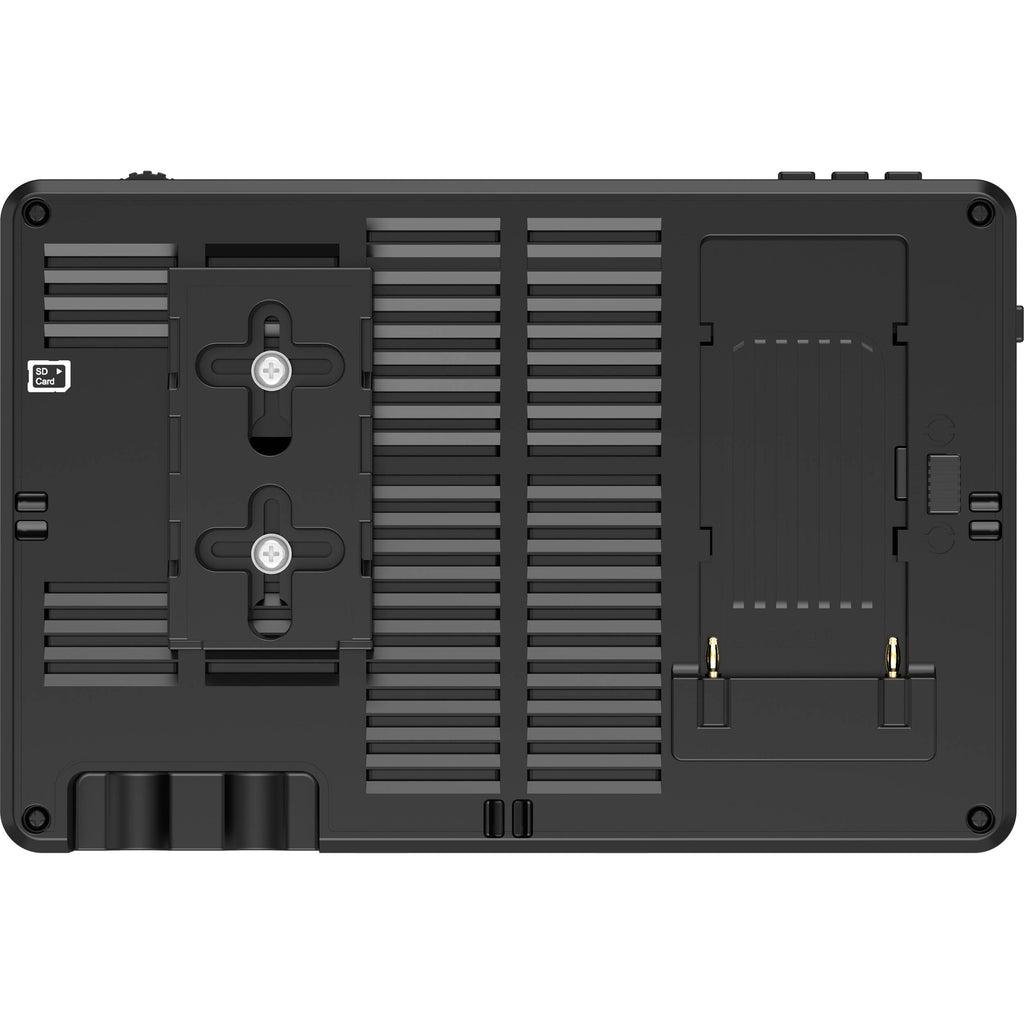

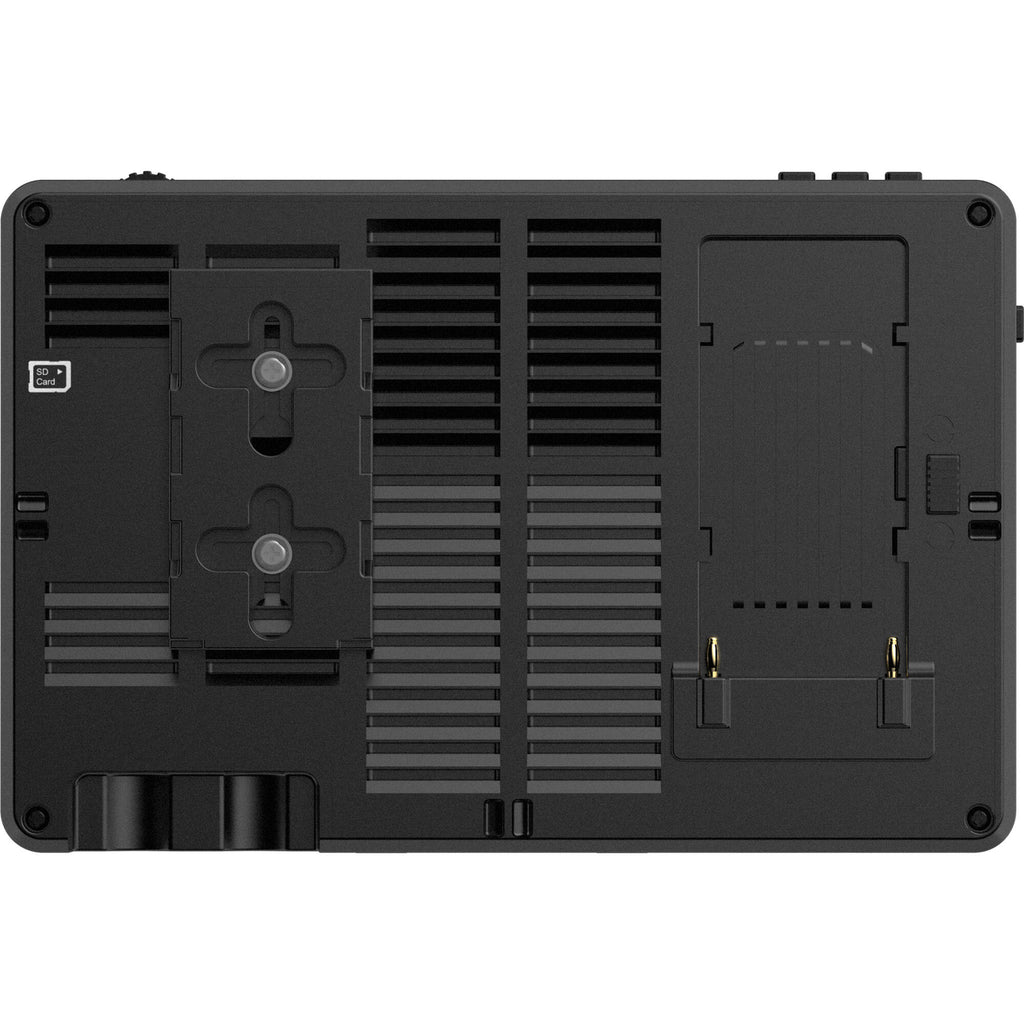

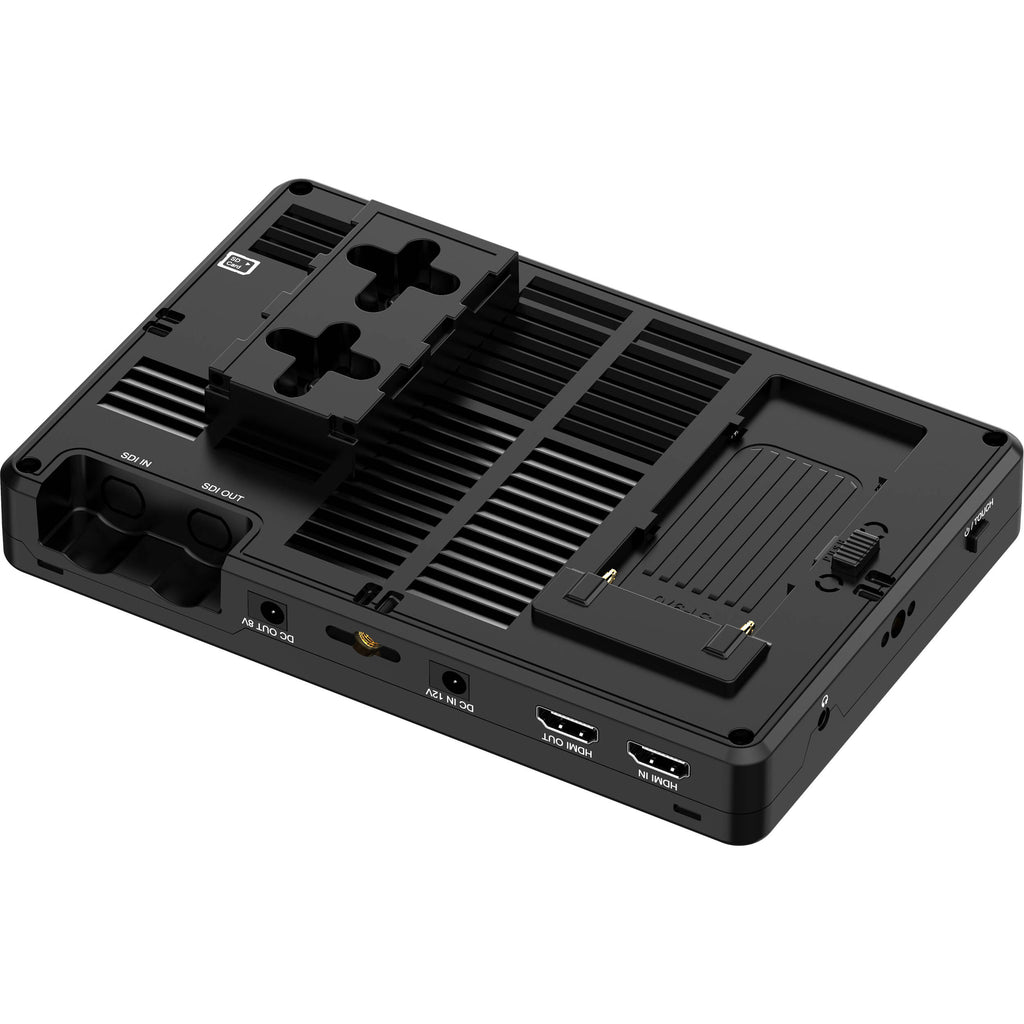

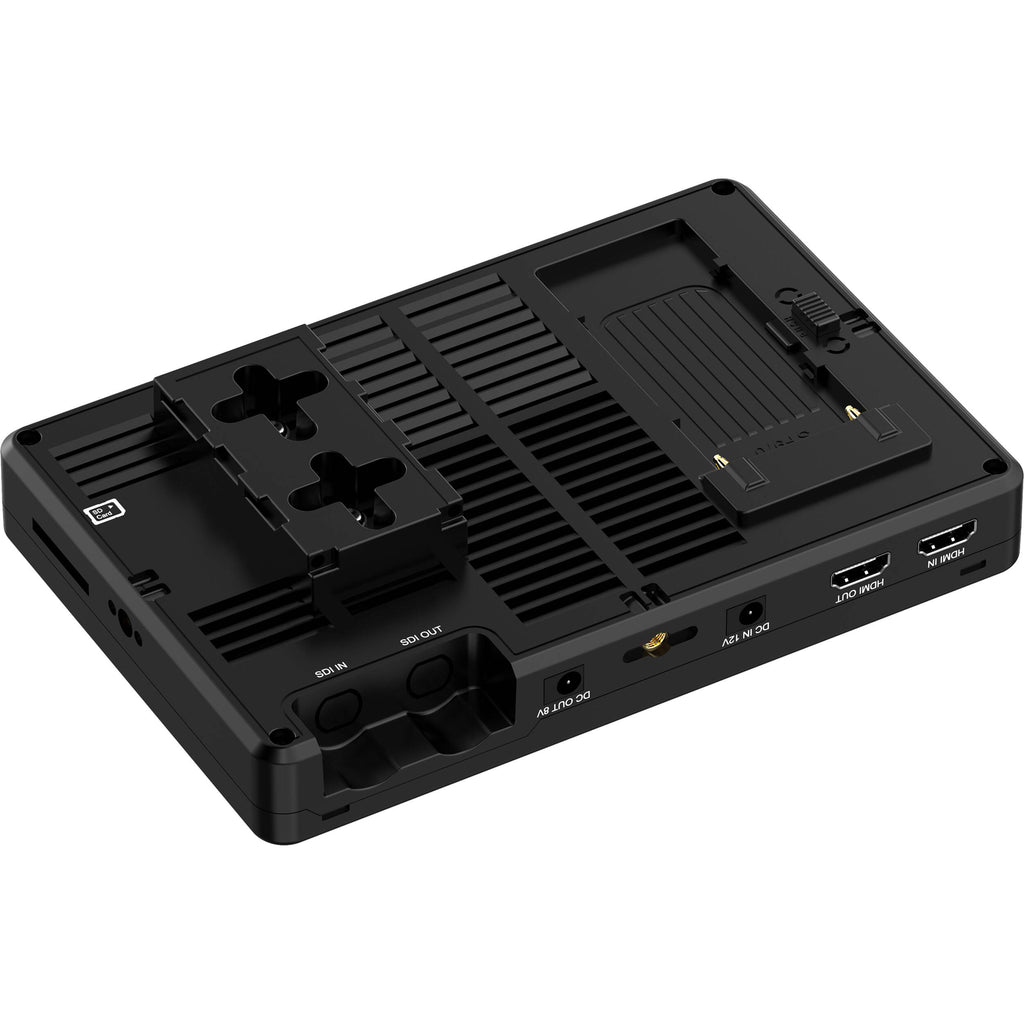

On the bottom edge of the monitor, you'll find HDMI input and output connections as well as a 1/4"-20 threaded mounting hole and power output port. On one side is a 3.5mm headphones port, while the control buttons reside along the top edge of the monitor.
The LUT7 PRO supports custom 3D LUTs to accurately view the camera color on the screen, uploaded via an integrated SD card slot on the side, and it supports professional Rec. 709 color calibration technology. A variety of image evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.
Key Features
- High-resolution 1920 x 1200
- High contrast of 1200:1
- Ultrabright 2200 cd/m²
- 160° wide-view-angle IPS panel
- Histogram
- Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
- False color
- Zebra exposure
- Nine-grid
- Embedded audio
- Scan mode (underscan, overscan)
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2x, 2x mag)
- Pixel-to-pixel
- Center marker
- Safe area (80, 85, 90, 93, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
Accessory Mounting and Power
Battery
In the Box
- FeelWorld LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mounting Plate
- Micro-HDMI to HDMI Cable
- Tilt Arm Mount
- Allen Wrench
- Limited 1-Year Warranty
- Description
- Key Features
- Accessory Mounting and Power
- Battery
FeelWorld LUT7 PRO Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 2200 cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Red Only, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
| Embedded Audio | HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x 3.5 mm Barrel (8 VDC) Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 25 480p: 29.97 576i: 50 480i: 59.94 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 576i: 50 480i: 59.94 |
| DC Input Power | 7 to 24 VDC at 2 A |
| Battery Type | 1 x L-Series |
| Power Consumption | 20 W |
| Mounting | 3 x 1/4"-20 Female |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Dimensions | 7.5 x 5 x 1.1" / 190 x 126 x 27 mm |
| Weight | 15.9 oz / 450 g, Including |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 2.16 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.2 x 3.2" |
