Description
FeelWorld LUT5 Overview
- 1Description
- 2Main Features
- 3Battery Compatibility
- 43D LUTs
- 5Video Assist Functions

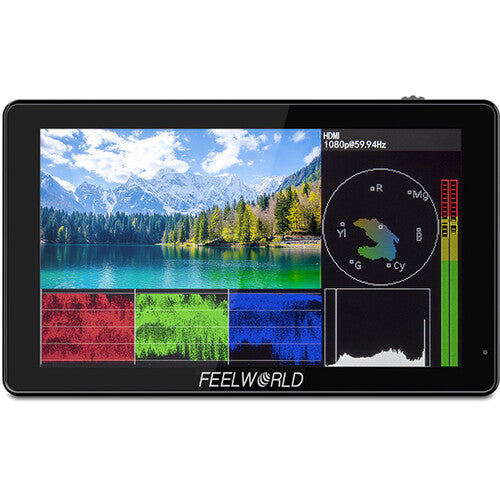

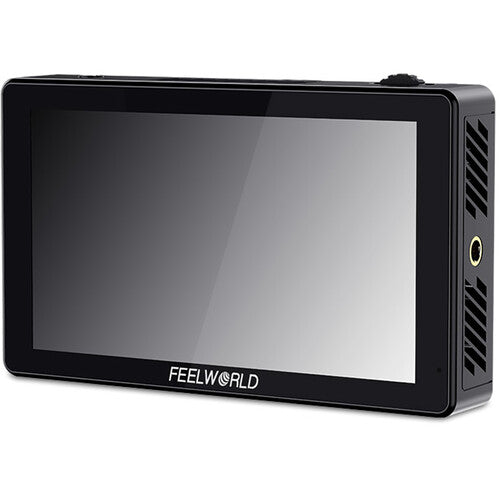

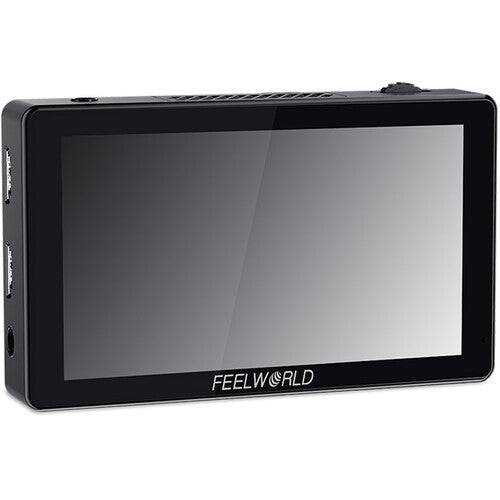

Upgrade your on-camera viewing experience while shooting in the field to a Full HD touchscreen monitor with the FeelWorld LUT5, a compact 5.5" IPS monitor outfitted with 3000 cd/m² auto-dimming brightness and a multitude of video assist functions. The LUT5 supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. A single 1/4"-20 thread on the bottom of the monitor allows it to be attached to the included hot shoe mount and integrated into your run-and-gun setup.

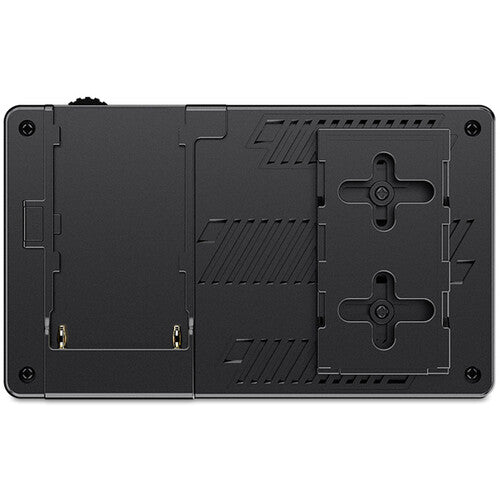

The monitor boasts 1000:1 contrast and a built-in cooling system, as well as an F970 battery plate on the back panel. The operating system of the LUT5 includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 50 custom 3D LUTs can be loaded into the interface using the SD card slot for intuitive color calibration. An 8 VDC output can distribute additional power to your DSLR or mirrorless camera to extend its runtime in the field.
Main Features
- Full HD 1920 x 1080 resolution
- 368 ppi pixel density prevents the eye from defining individual pixels
- 160° viewing angle ensures clear image as operator shifts position
- Easy touchscreen operation with shortcut keys
- Mini hot shoe mount included for easy installation
- Ambient light sensor for auto-dimming
- Built-in cooling system with multidimensional holes and low-power-consumption fan

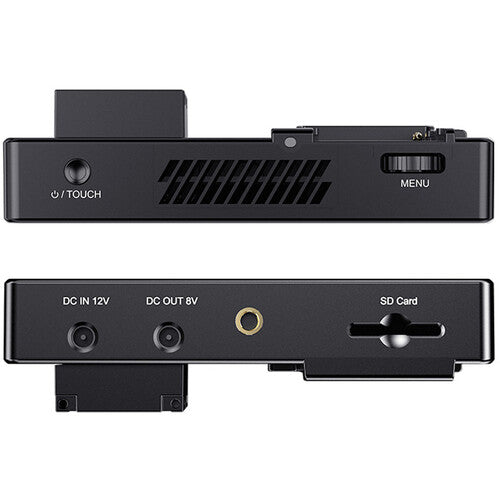

- 8 VDC power out to your DSLR or mirrorless camera
- 3.5mm headphone output jack
Battery Compatibility
- Compatible with the following Sony NP-F batteries: F970, F960, F950, F930, F770, F750, F730, F570, F550, F530
- Working time with battery up to 2.5 hours
3D LUTs
Video Assist Functions
- Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
- Audio meter monitoring
- Center marker
- Check field (red, green, blue, mono)
- False color
- Histogram (brightness, RGB)
- Image flip
- Nine-grid
- Peaking focus assist (color switch capabilities)
- Pixel-to-pixel
- Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- Safety mode (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1)
- Waveform (RGB, YUV, Y)
- Zebra
- Zoom (100-300%)
In the Box
- FeelWorld LUT5 5.5" IPS 3000 cd/m² On-Camera Monitor
- Micro-HDMI Cable
- Mini Hot Shoe Mount
- Allen Wrench
- Limited 1-Year Warranty
Not in the Box
- Essential Batteries & Chargers (Not Included)
- Description
- Main Features
- Battery Compatibility
- 3D LUTs
- Video Assist Functions
FeelWorld LUT5 Specs
| Panel Type | OLED |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 3000 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.069 x 0.069 mm |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 368 ppi |
| Real-Time LUT Monitoring | HDR |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |

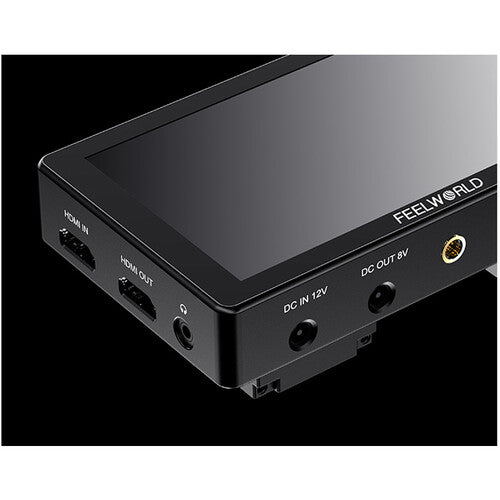

| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
| HDCP Support | No |
| Embedded Audio | HDMI |
| Audio | 1 x 1/8" / 3.5 mm Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (24 VDC) Output |
| Other I/O | None |
| Media/Memory Card Slot | Single Slot: SD/SDHC |
| Wi-Fi | None |
| Video Format | HDMI UHD 4K: 30/29.97/25/24/23.98 DCI 4K: 24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 20 W |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | -22 to 176°F / -30 to 80°C |
| Dimensions | 5.6 x 3.4 x 1.1" / 142 x 86 x 28 mm |
| Weight | 9.5 oz / 270 g |
| Package Weight | 1.46 lb |
| Box Dimensions (LxWxH) | 7.4 x 5.4 x 3.4" |
