Description

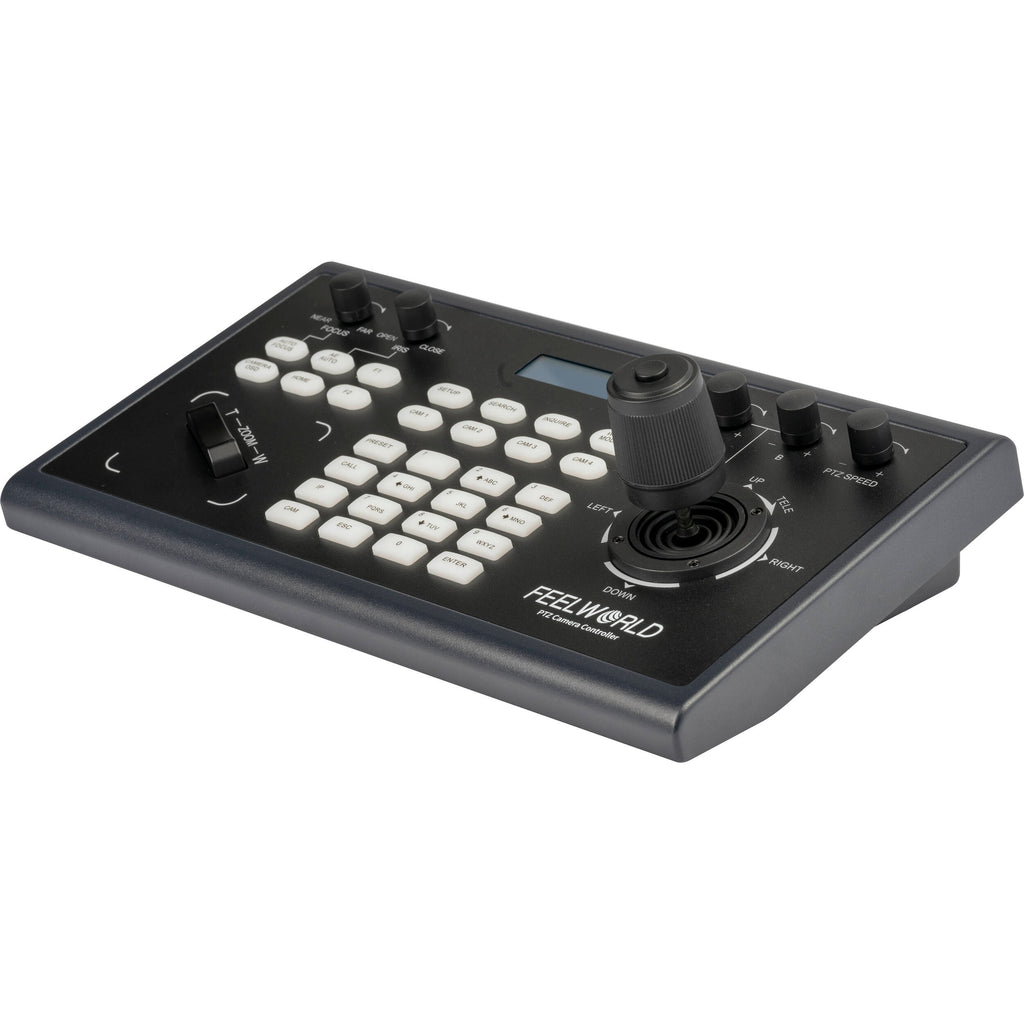

FeelWorld KBC10 Overview
The KBC10 PTZ Camera Controller with Joystick from FeelWorld is compatible with any PTZ camera that uses the ONVIF, IP VISCA, VISCA, and Pelco-D/P serial protocols. It can be set up over Ethernet, RS-232 DB-9, and RS-422 5-pin terminal ports to control up to 255 cameras. It can control cameras over twisted-pair cable from up to 3900' away.

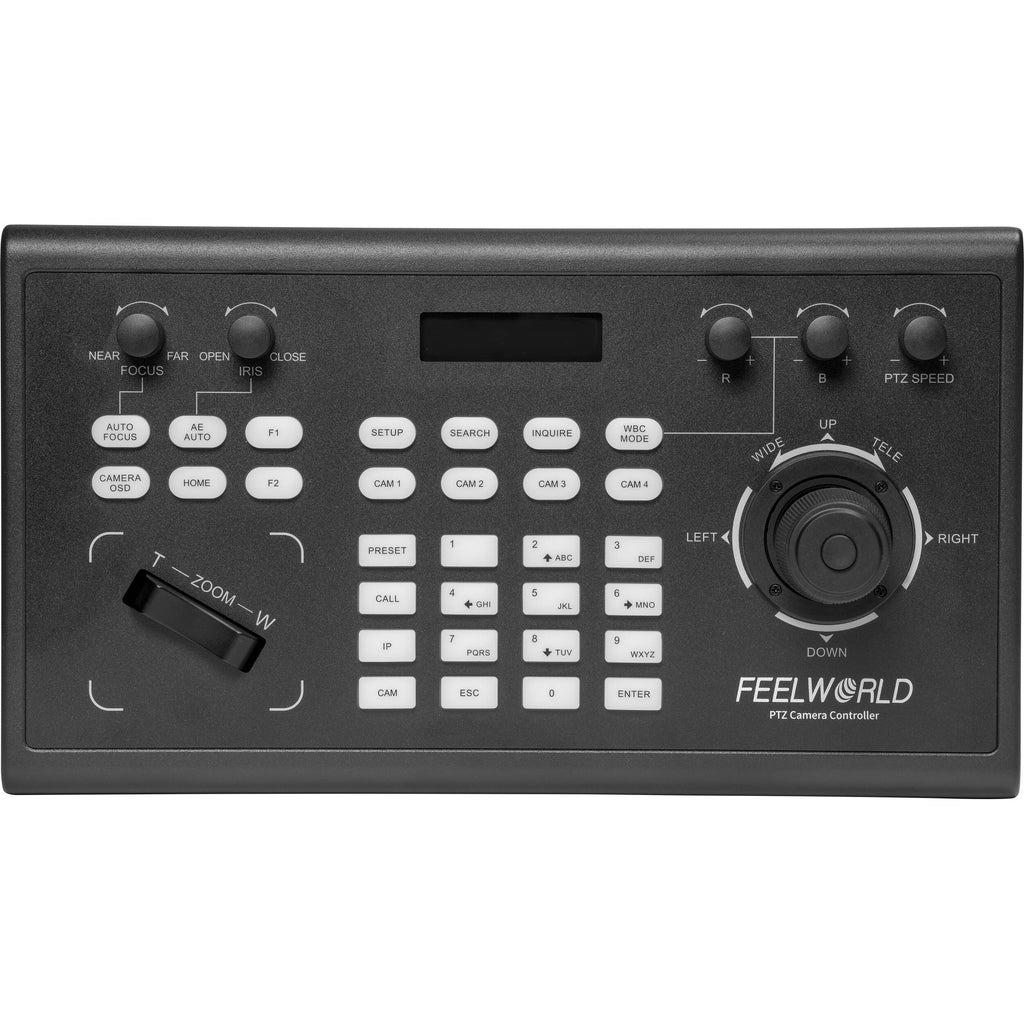

The control panel features a 4D joystick, camera selection buttons, a zoom rocker, focus, iris, and speed knobs, and an LCD status display. There are even programmable buttons to assign user shortcuts. The controller can be powered via the included power adapter or over PoE on a supported network.
Key Features
Supports multiple control and network protocols, compatible with any PTZ camera
Multiple control connectors; connect up to 255 cameras and 255 presets
LCD screen real-time display working status; improve efficiency
Ergonomic, convenient button layout; easily handle any live video production

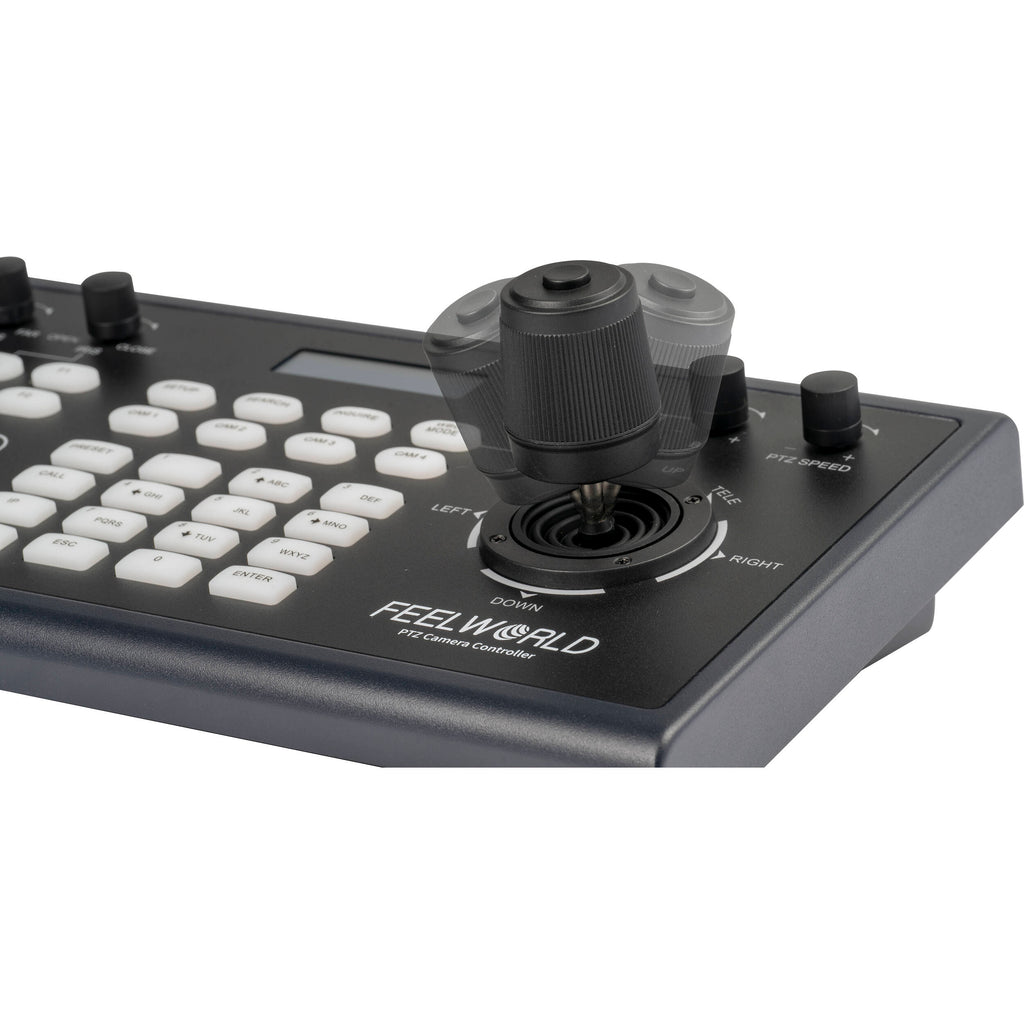

4D joystick with precise speed control
Custom button settings for flexible control
Supports PoE (Power over Ethernet) or included 12 VDC power supply
In the Box
- FeelWorld KBC10 PTZ Camera Controller with Joystick
- Power Adapter
- Limited 1-Year Manufacturer Warranty
FeelWorld KBC10 Specs
General
| Number of Supported Cameras |
255 Channels
|
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-422 VISCA |

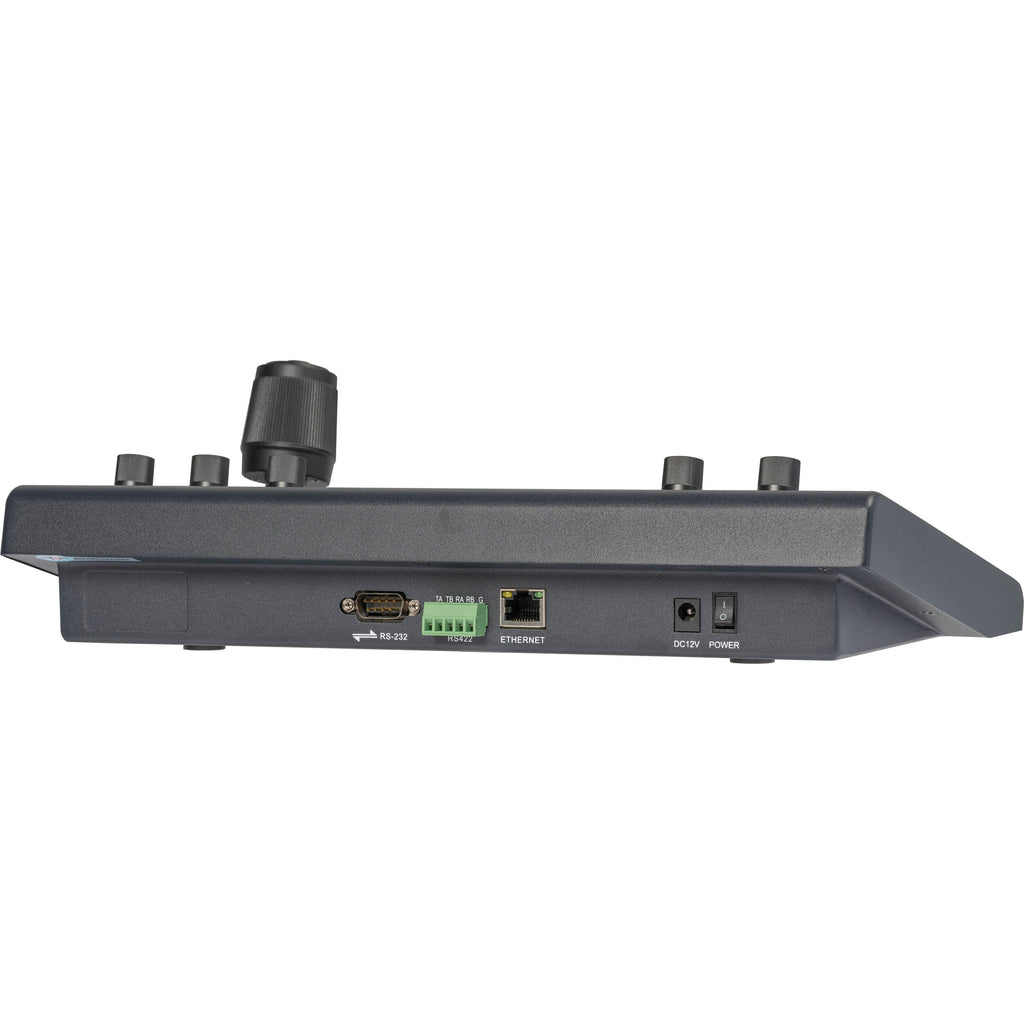

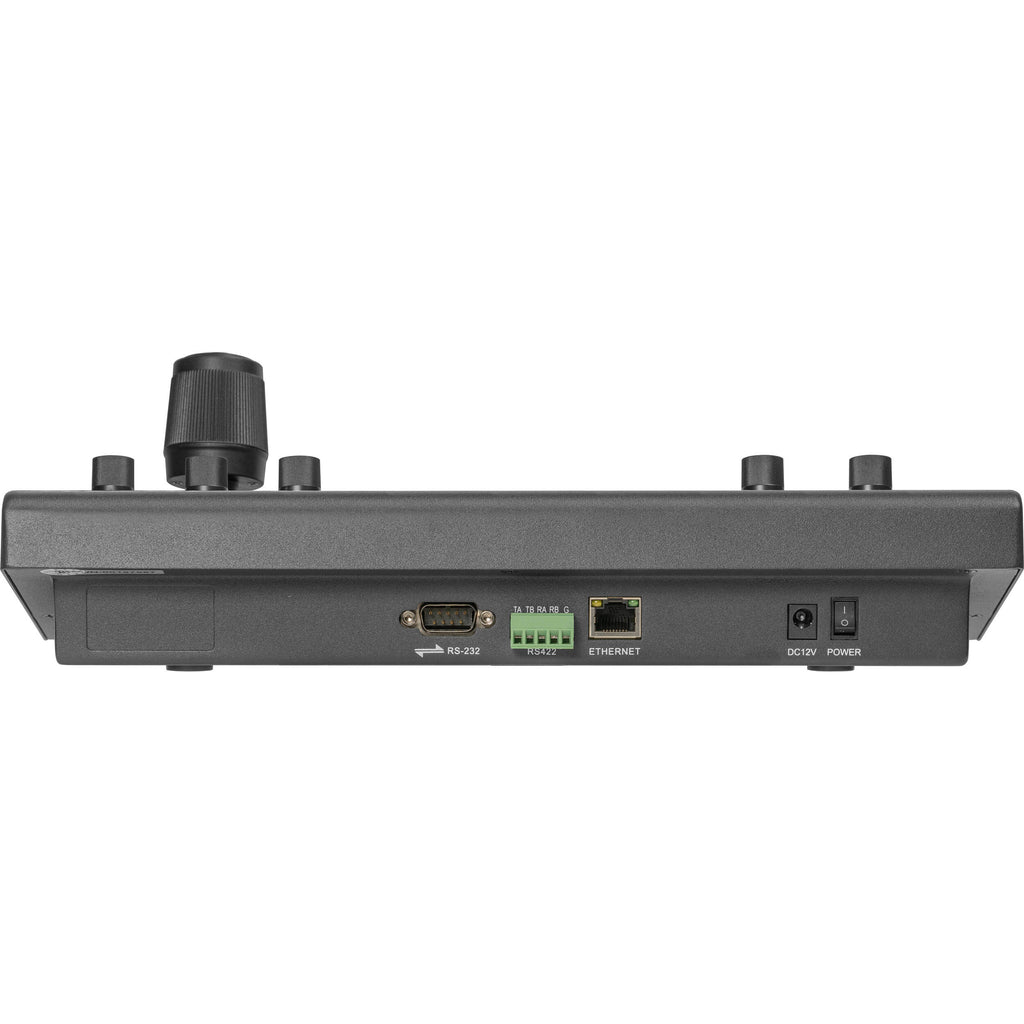

| Control I/O |
1 x RJ45 Output
1 x D-Sub 9-Pin (RS-232) Output 1 x Phoenix (RS-422) Output |
| Controls |
1 x Joystick
1 x Rocker 5 x Knobs 18 x Multifunction Buttons 12 x Multifunction, Camera Selection Buttons |
| Presets |
255
|
Power
| PoE Support |
Yes
|
| Power Connectors |
1 x Barrel / Coaxial
|
| Power Consumption |
0.6 W
|
| DC Input Power |
12 VDC
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
0 to 90%
|
Physical
| Security Lock Support |
No
|
| Dimensions |
12.6 x 7.1 x 3.9" / 32 x 18 x 10 cm
|
| Weight |
3.73 lb / 1.69 kg
|
Packaging Info
| Package Weight |
5.015 lb
|
| Box Dimensions (LxWxH) |
14.6 x 8.9 x 5.7"
|
