Description
- 1920 x 1080 Native Resolution
- HDMI 4K Input
- 1400:1 Contrast, 460 cd/m² Brightness
- Calibrated for Rec. 709 HD Color
- 170° Wide Viewing Angle
- Focus Peaking Indicators
- 3.5mm Stereo Headphone Jack
- Powered via 12 VDC Input or Battery
- 180° Tilt Arm with Cold Shoe
- Sunshade Included

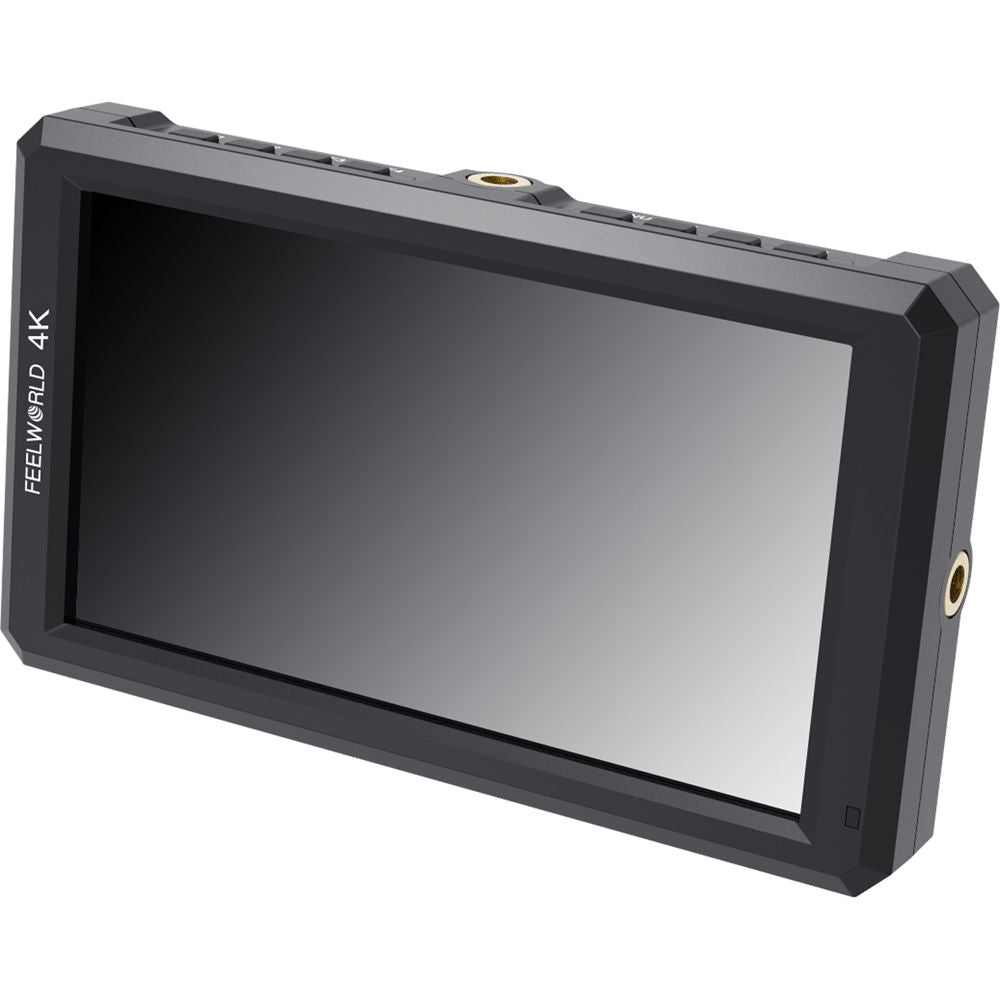

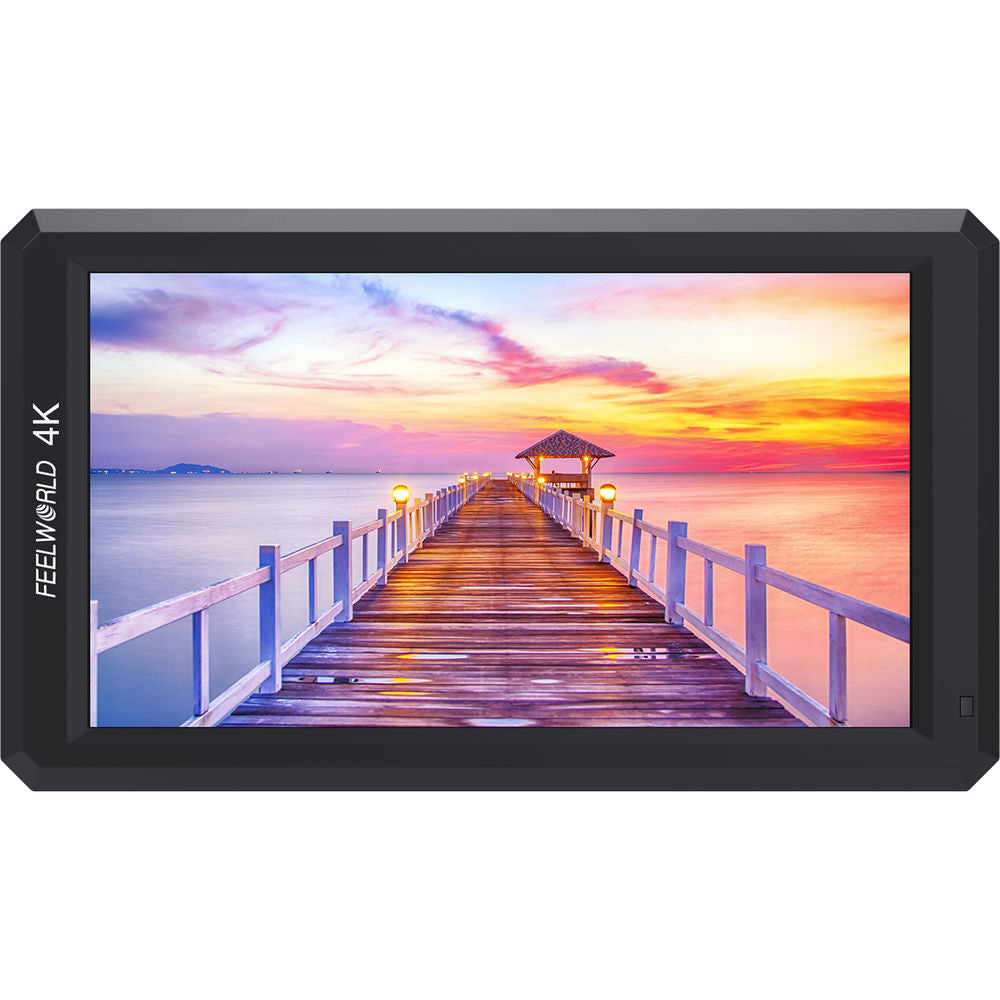

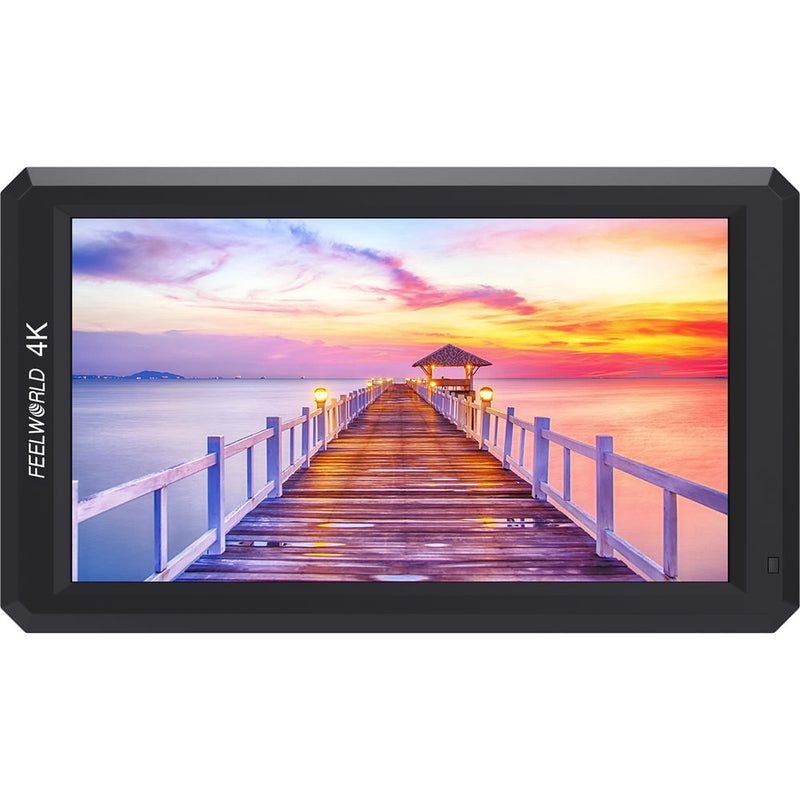

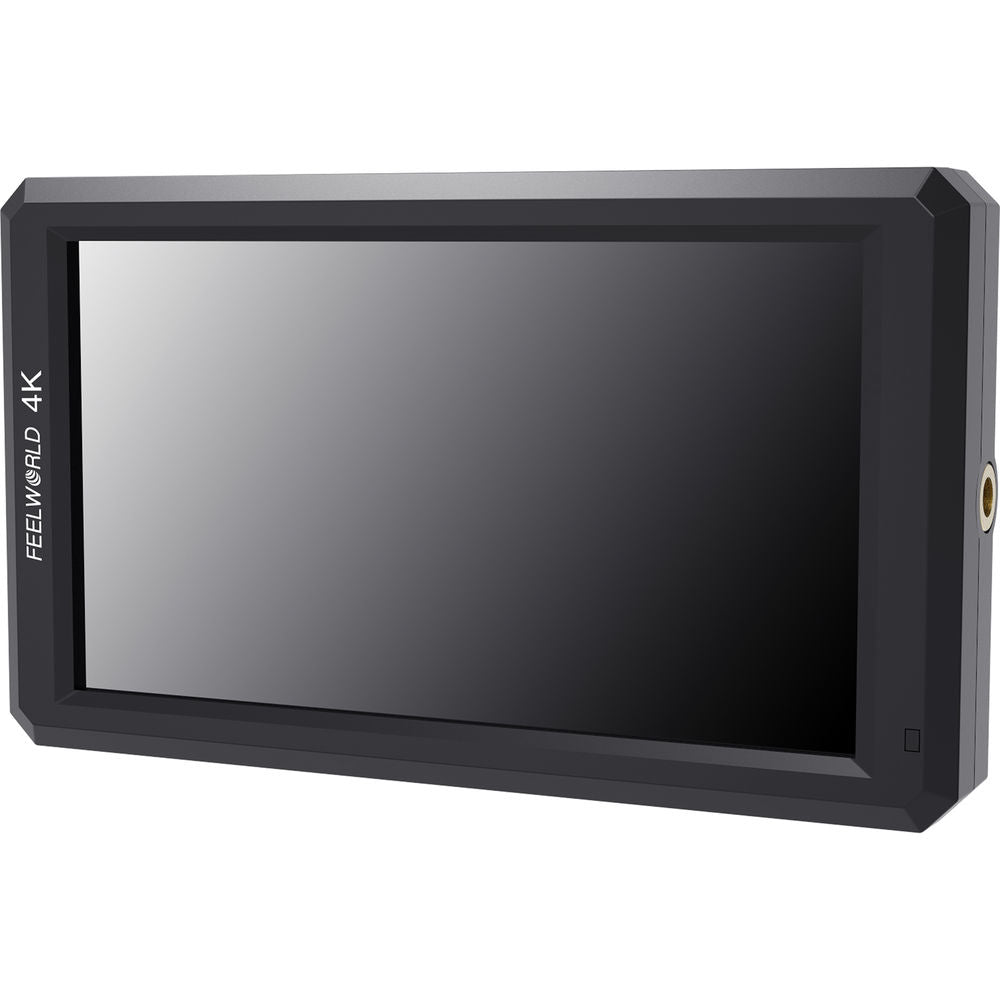

Whether you're shooting a wedding, an indie film, or a television commercial, make sure your images are perfectly sharp by using the ultra-thin F6 5.7" Full HD HDMI On-Camera Monitor from FeelWorld . Featuring a native resolution of 1920 x 1080 and a high contrast ratio of 1400:1, this IPS monitor enables you to accurately view the footage being captured. The monitor is calibrated for the Rec. 709 HD color standard to ensure accurate color reproduction. With a 170°-wide viewing angle and tiltable mounting arm, the F6 makes it easy for multiple members of the crew to watch the footage at the same time.
- Focus and Exposure Tools
- The F6's focus and exposure tools include focus peaking indicators (red, green, and blue) that highlight parts of the image that are in sharp focus. In addition, false color tools make it easy to properly set exposure. The false color tools work by highlighting specific color ranges of luminance with a solid color overlay.

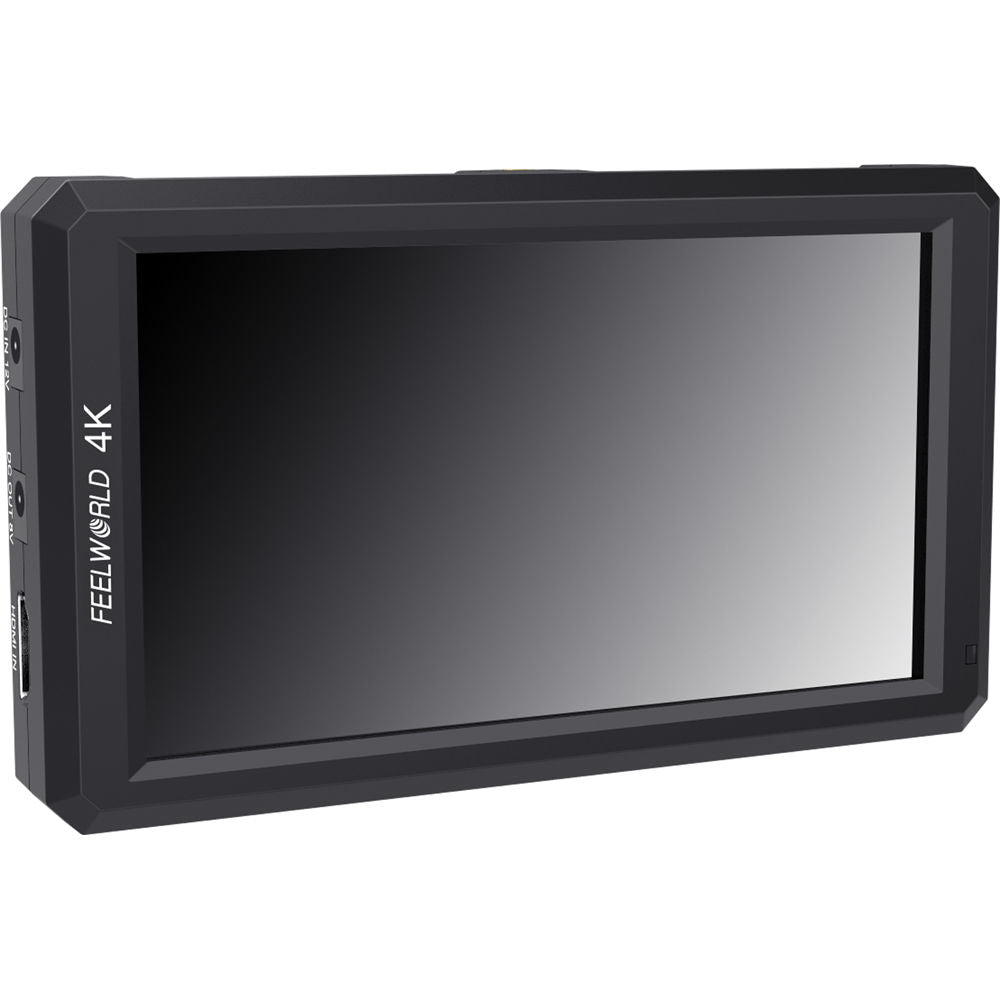

- Connections

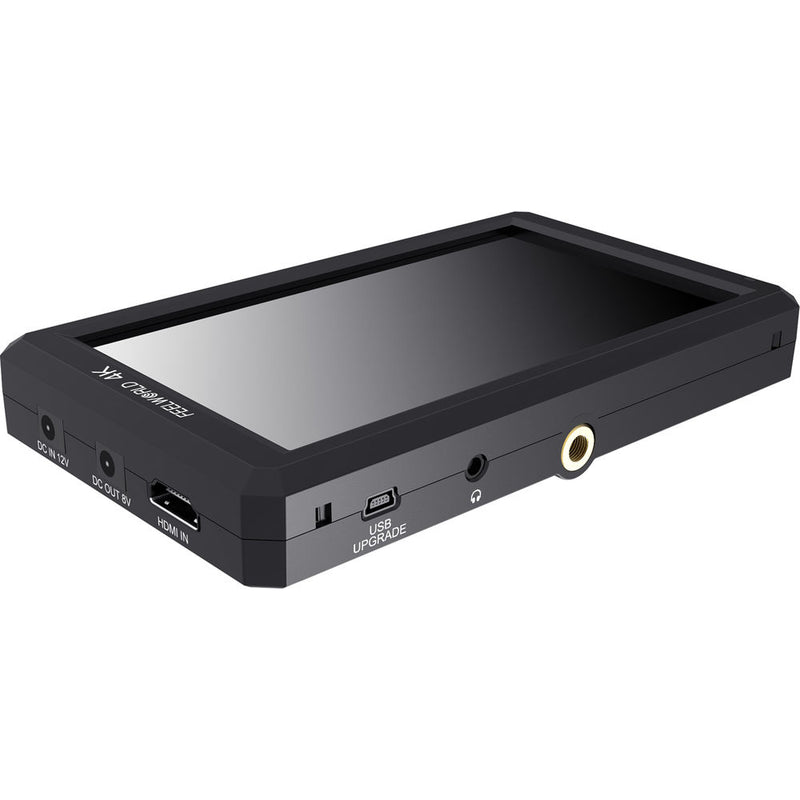

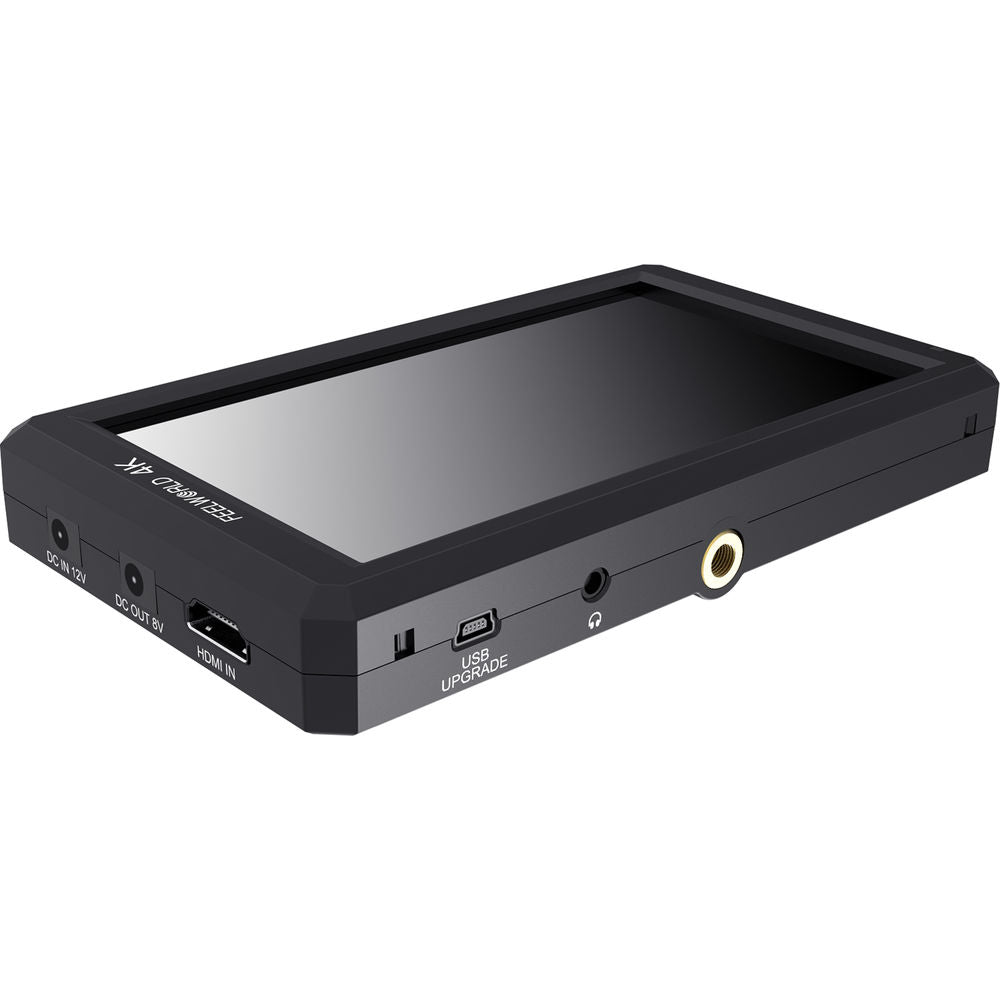

- The F6 is equipped with a 4K HDMI input, allowing for connection to 4K cameras. The monitor's 3.5mm stereo jack enables you to plug in headphones to monitor audio. DC input and output ports are also provided, and a dummy battery adapter cable (available separately) can be used to extend runtime.
- Flexible Installation

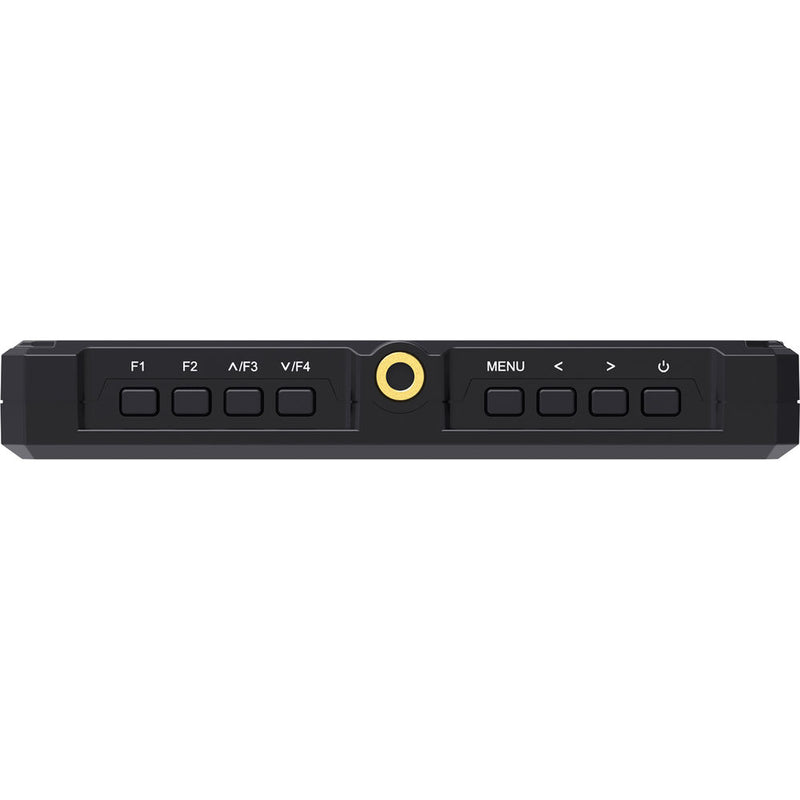

- The F6 features three standard 1/4"-20 mounting points (top, bottom, and right side) for easy attachment to cameras and rigs. Sit it on a table using the built-in kick stand, or mount it on top of your camera for use as an HD viewfinder.

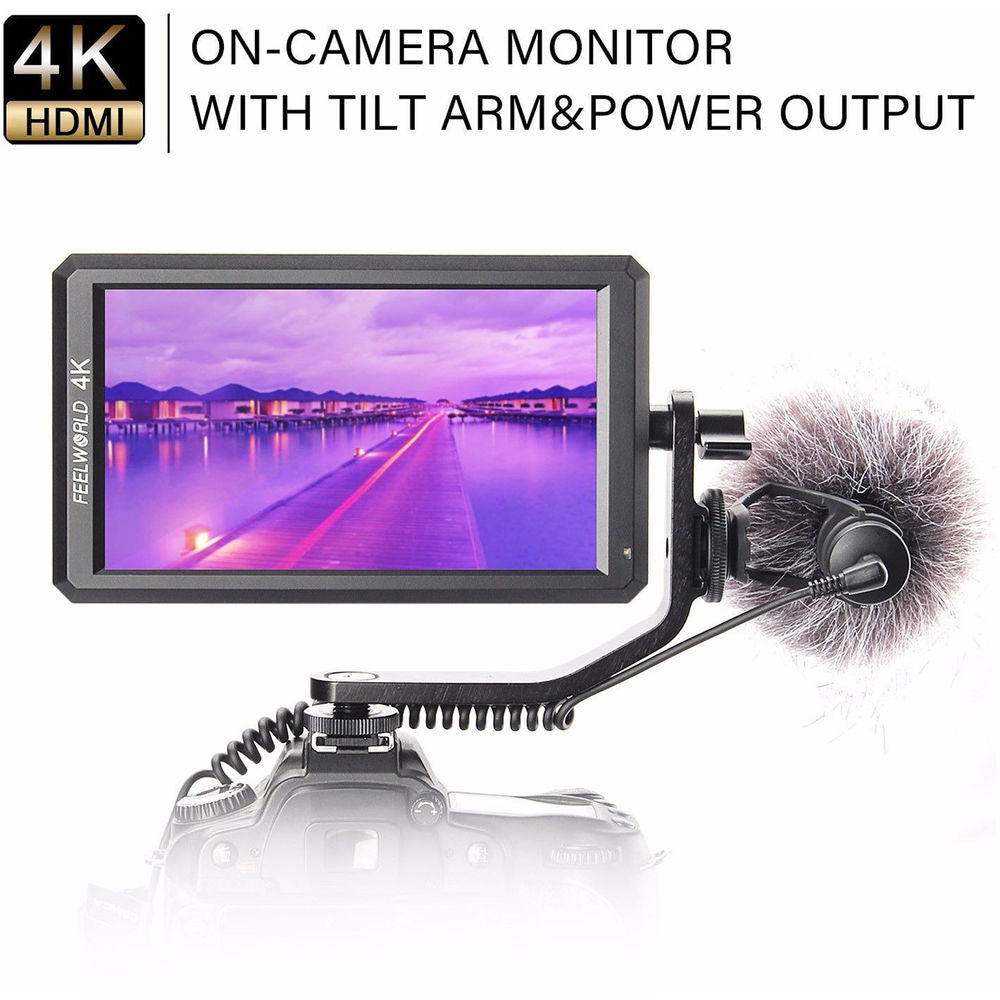

- Tilt Arm Mounting

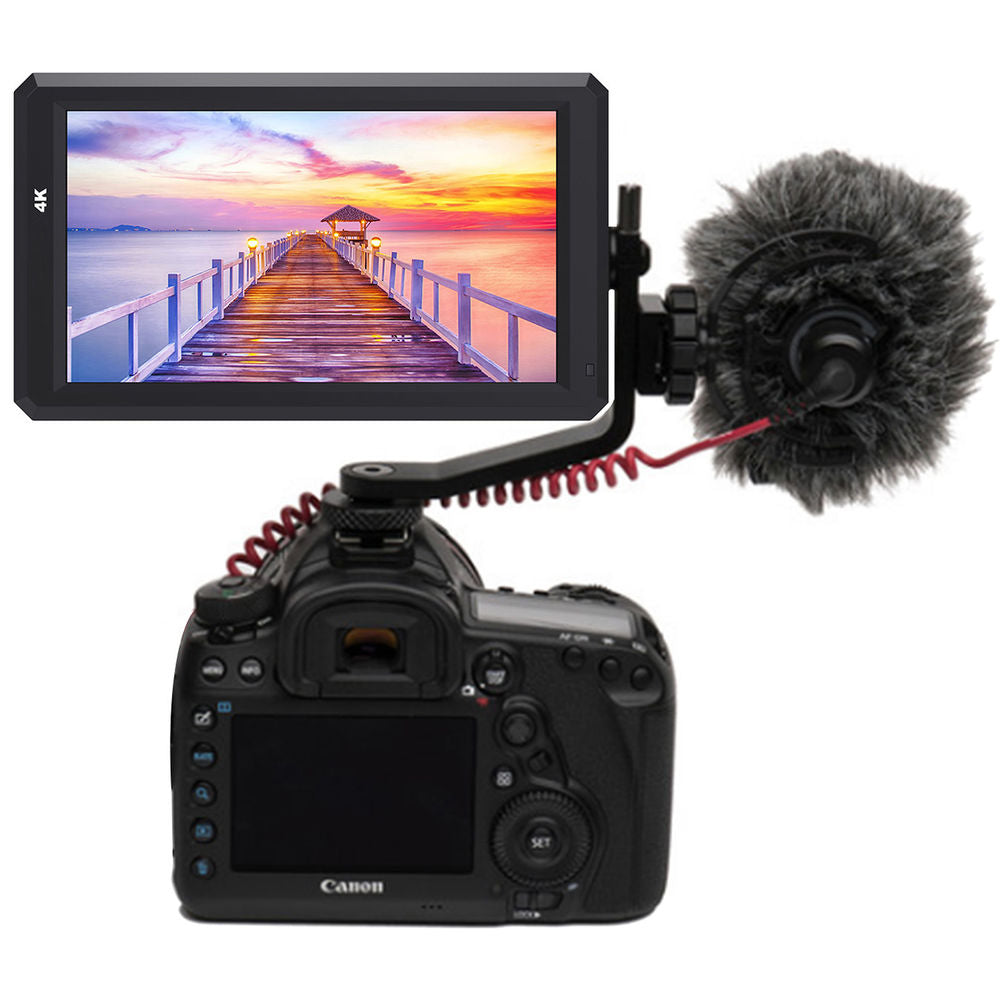

- The monitor mounts to your camera using the included tilt arm via your camera's shoe mount or 1/4"-20 thread. The tilt arm enables 180° of tilt for flexible positioning. A cold shoe on the tilt arm lets you secure equipment (such as a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
- Power

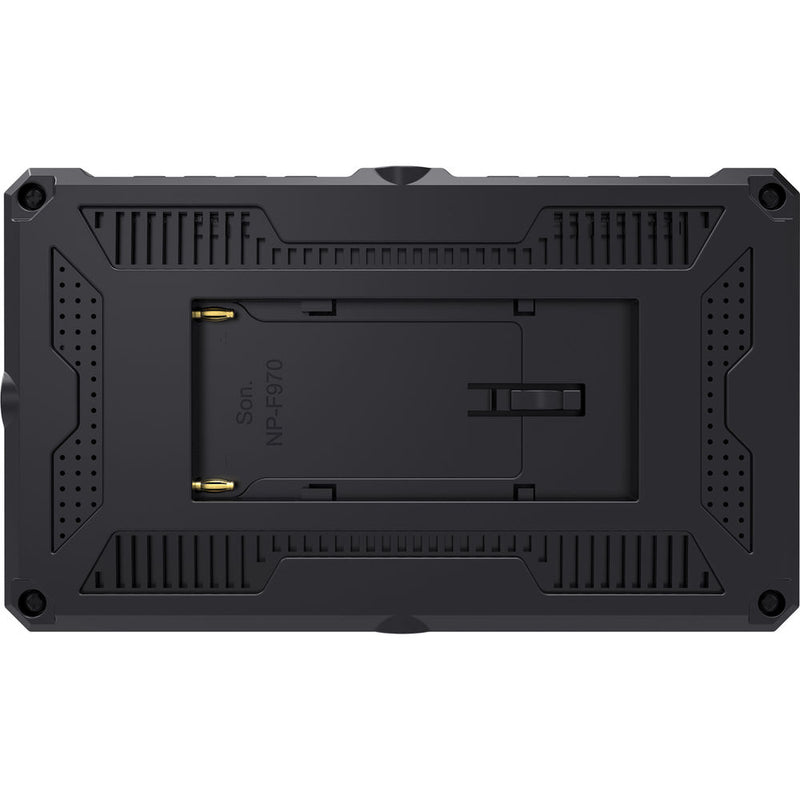

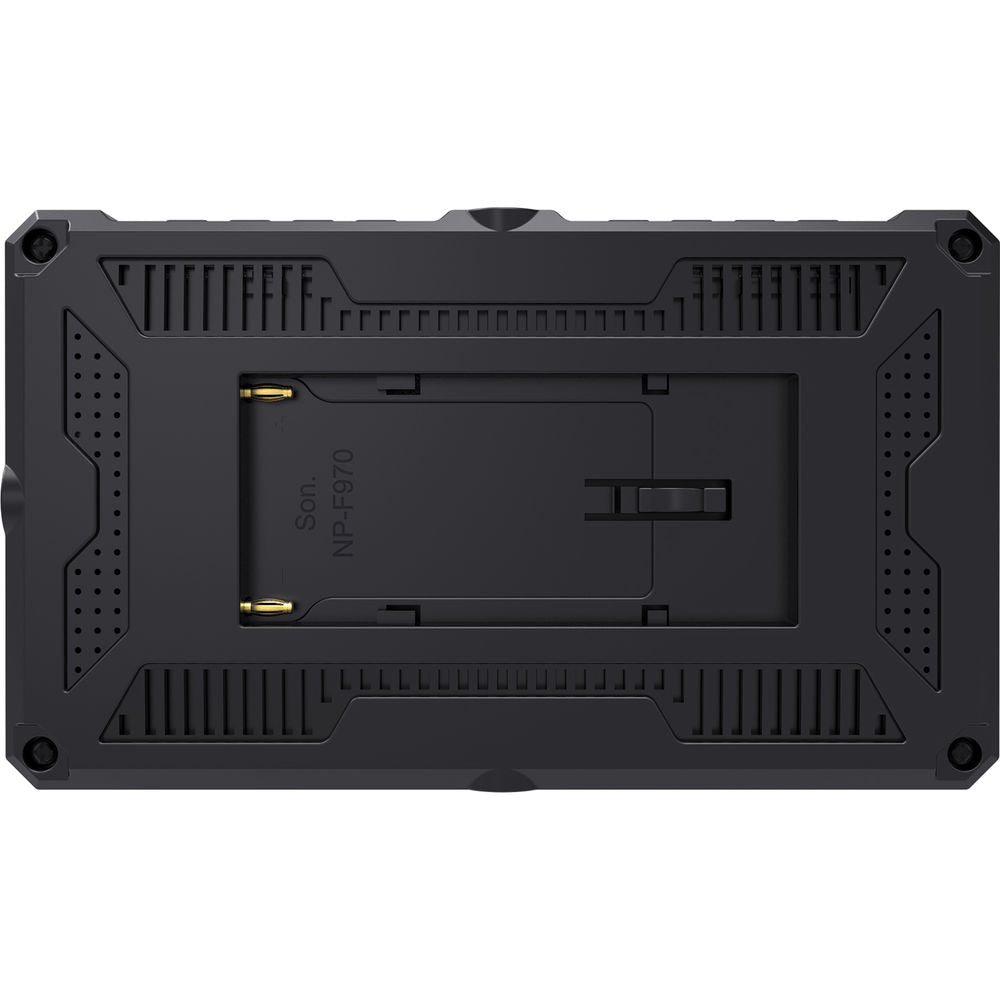

- For power, there's a 12 VDC input on the side and space for a battery plate on the back (rechargeable batteries available separately). There's also an 8 VDC output which can be used for powering your DSLR or mirrorless camera.

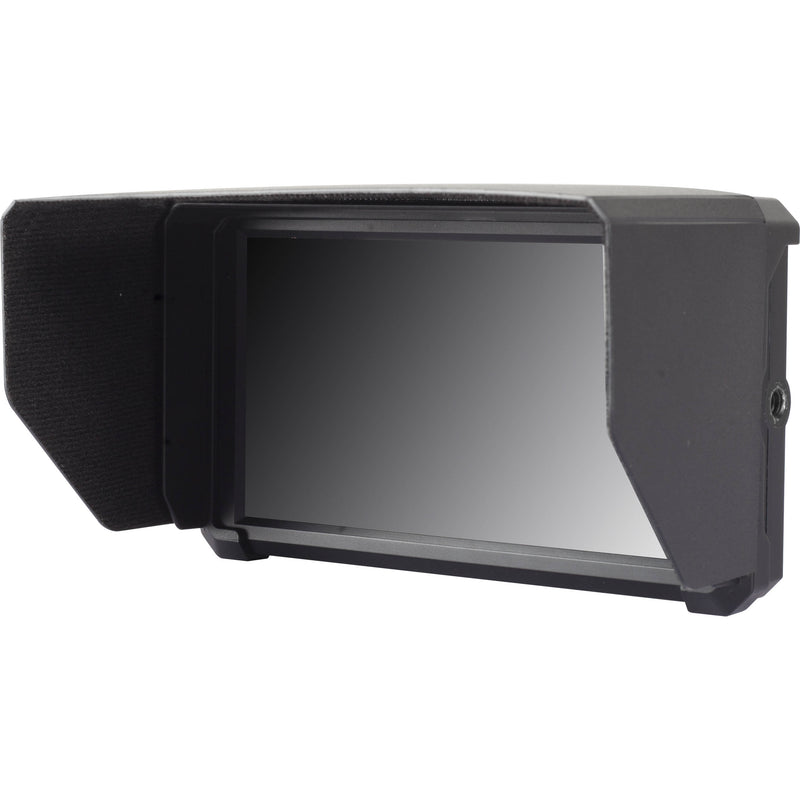

- Sunshade
- When shooting in bright sunlight, the included sunshade provides shade to ensure an effective monitoring environment.
- Advanced Features
-
- Brightness histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid
- Camera mode
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2.0x, 2.0x magnification)
- Pixel-to-pixel
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red/green/blue/mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all
- U/D and L/R zoom
- Color temperature adjustment
UPC: 815206024350
In the Box
FeelWorld F6 5.7" Full HD HDMI On-Camera Monitor with 4K Support and Tilt Arm
| Screen Size | 5.7" / 14.5 cm |
| Display Type | IPS |
| Native Resolution | 1920 x 1080 |
| Pixel Pitch | 0.0657 x 0.0219 mm |
| Aspect Ratio | 16:9 |
| Brightness | 460 cd/m² |
| Contrast Ratio | 1400:1 |
| Backlight | LED |
| Viewing Angle | 85°/85° (L/R) 85°/85° (U/D) |
| Connectors | 1 x HDMI, video input 1 x 12 VDC, power input 1 x 8 VDC, power output 1 x 3.5 mm, stereo headphone output 1 x USB, upgrade port |
| HDMI Format Support | 4096 x 2160p: 24 3840 x 2160p: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29/25/24/23.98 576p/576i 480p/480i |
| Mounting Interface | 3 x 1/4"-20 threaded holes (top, bottom, and right side) |
| Input Voltage | 7-24 VDC |
| Power Consumption | 8 W max. |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Dimensions | 6.1 x 3.5 x 0.9" / 15.4 x 9.0 x 2.3 cm |
| Weight | 0.4 lb / 200 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.9 x 4.1" |
