FeelWorld 21.5" 4K HDMI/SDI Broadcast Studio Monitor with 3D LUT Support

21.5" Display with up to DCI 4K60 Input

178/178° Viewing Angle

HDMI, 3G-SDI, and Analog Inputs/Outputs

RCA Audio Input, Headphone Out, Speakers

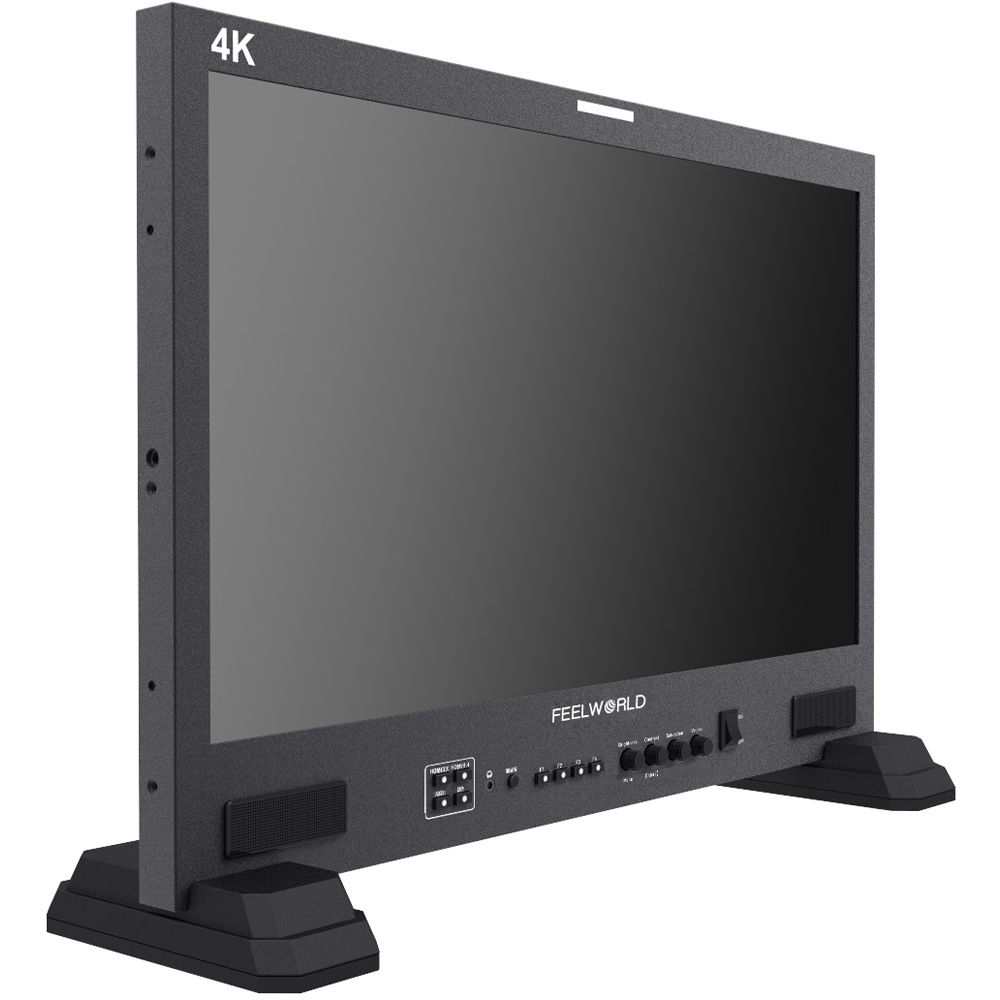

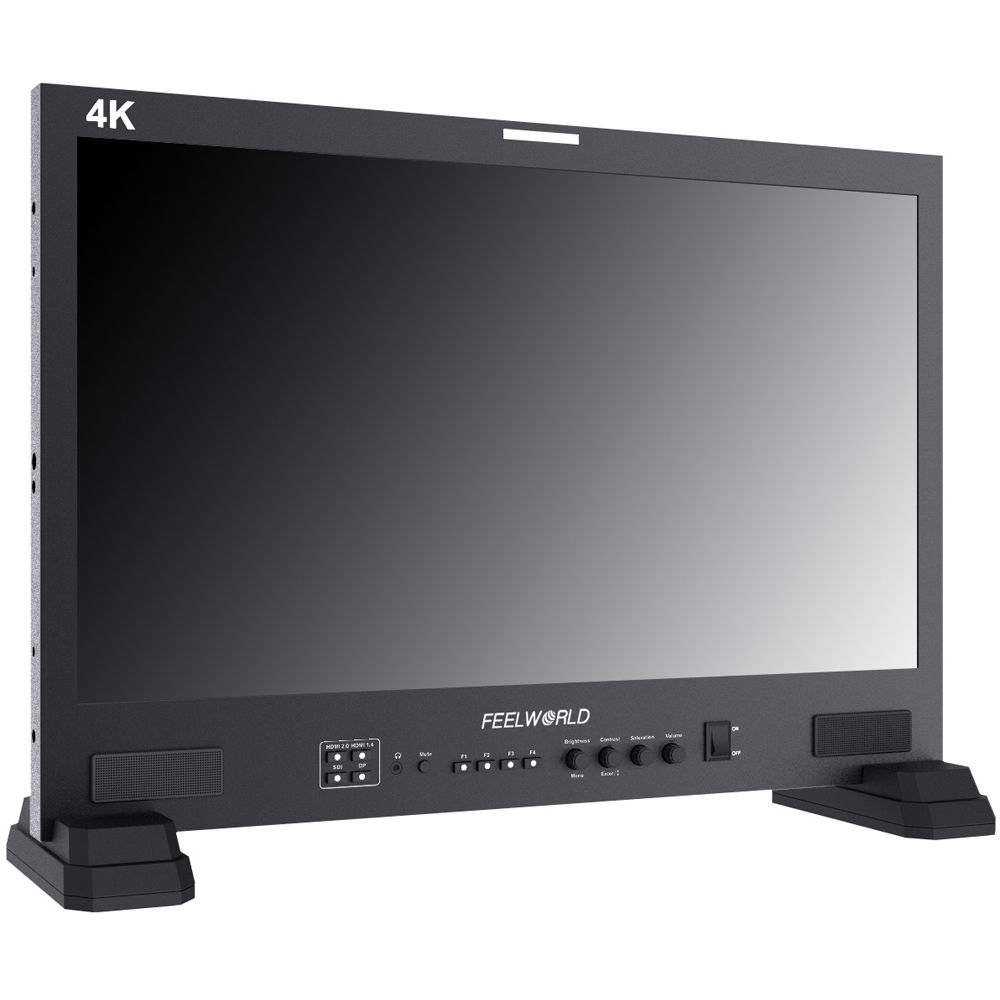

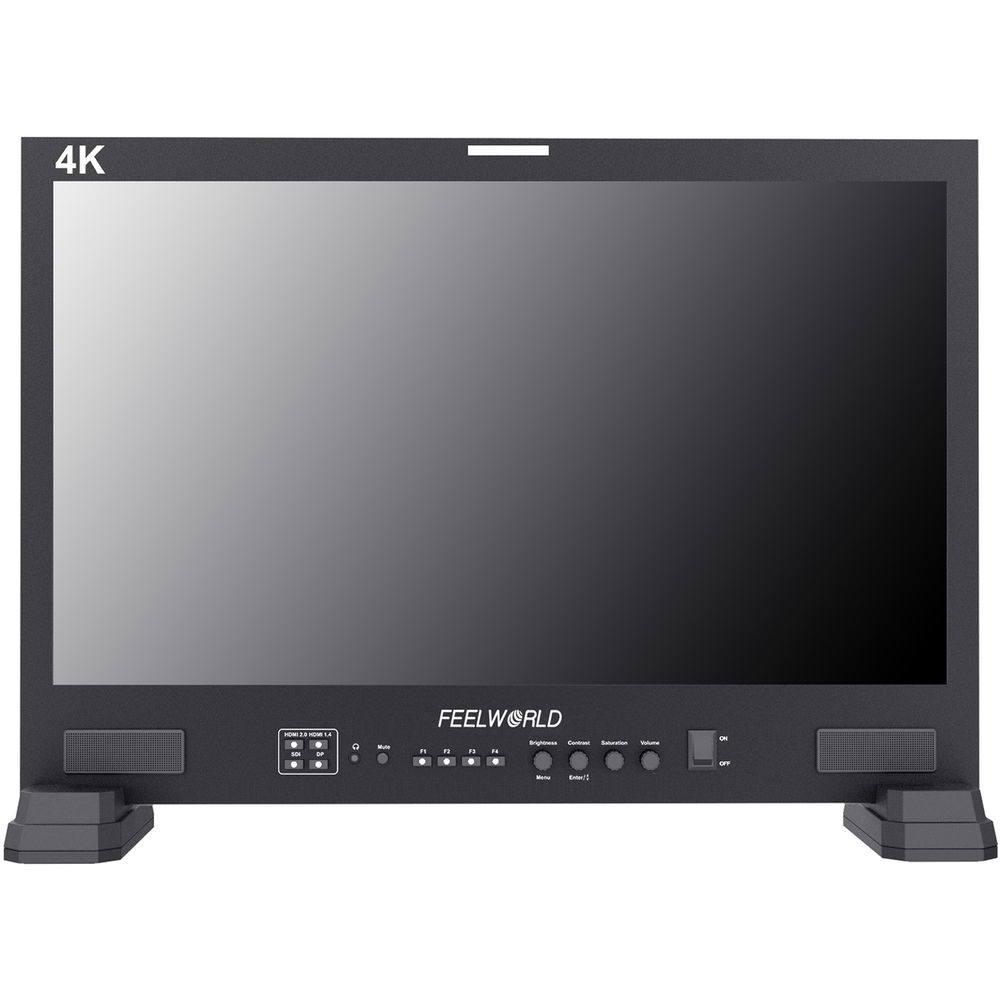

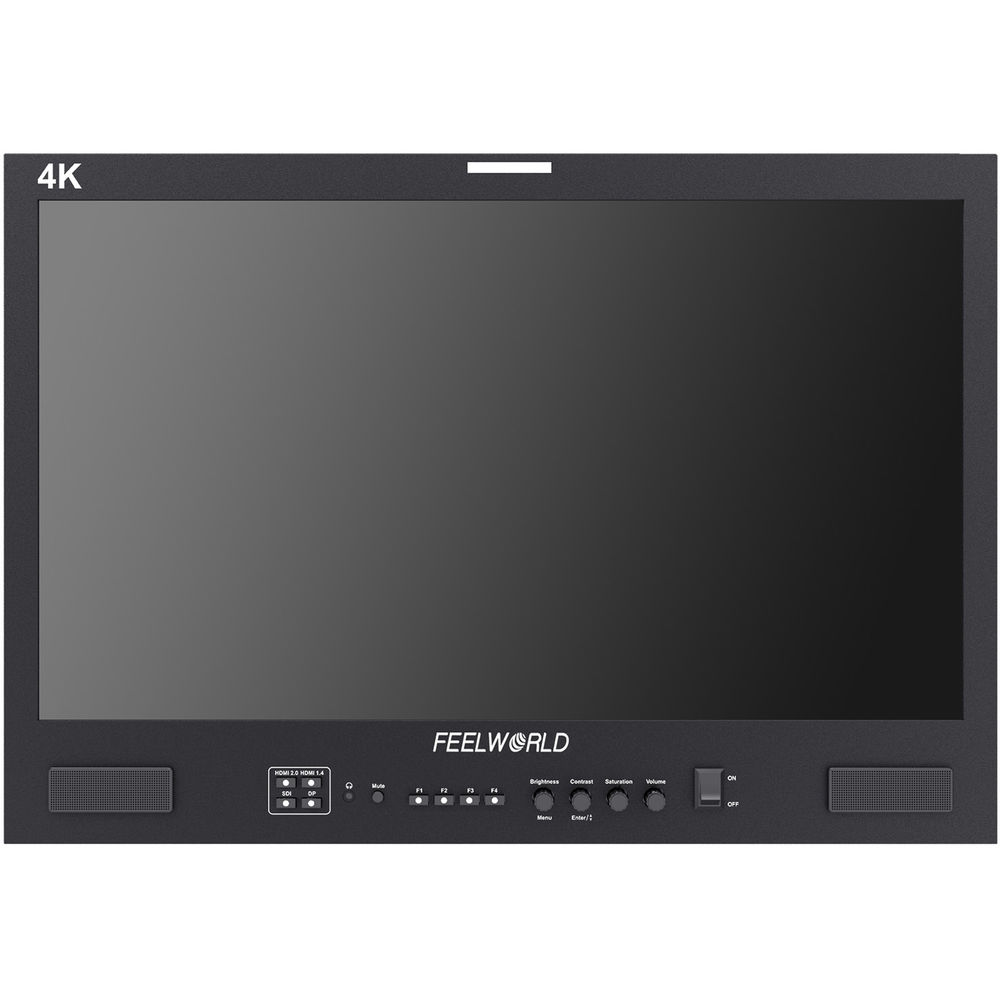

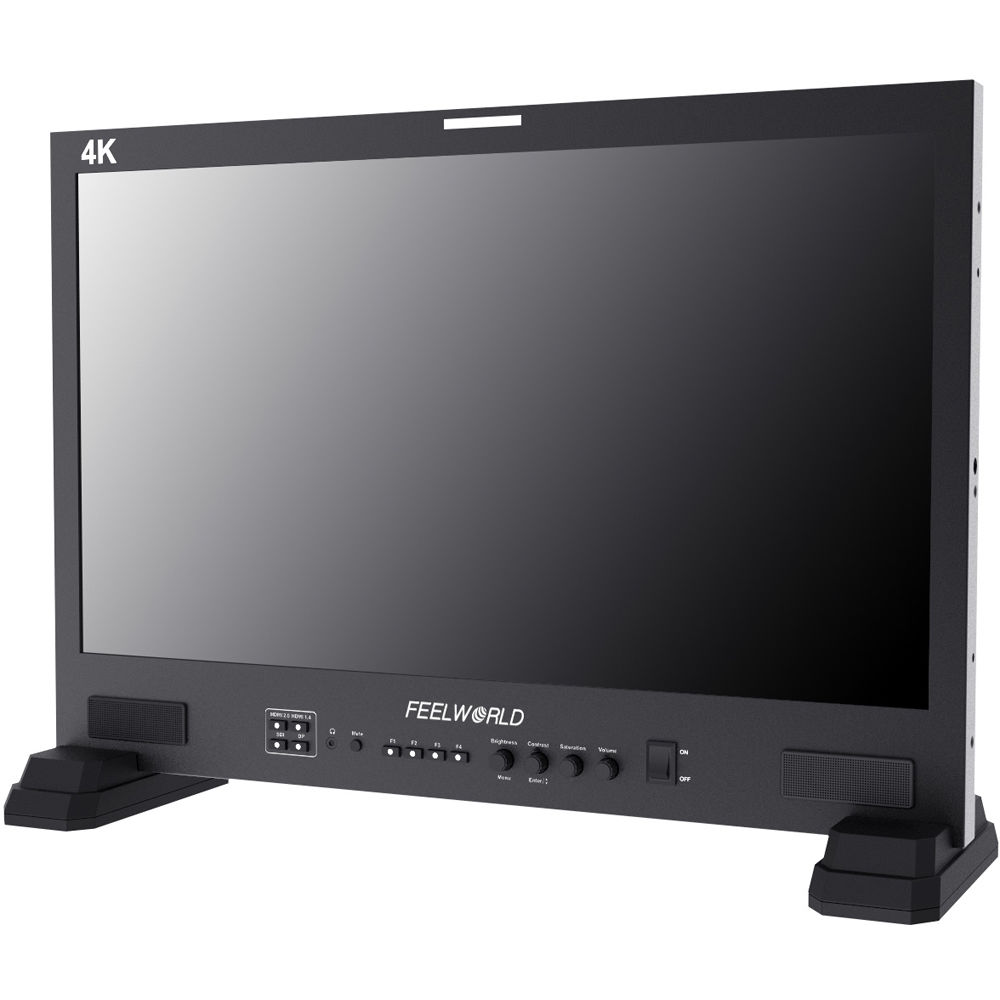

The 21.5" 4K HDMI/SDI Broadcast Studio Monitor with 3D LUT Support from FeelWorld features a 1920 x 1080 display and supports up to DCI 4K60 video input. It offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. The display supports tally, timecode display, and 3D LUTs which can be loaded using the USB port.

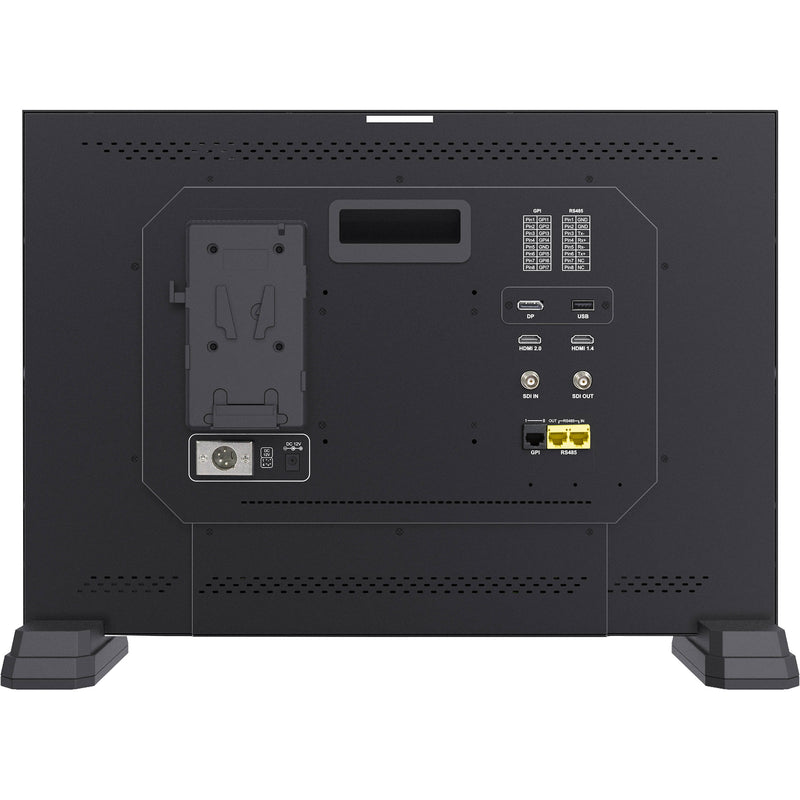

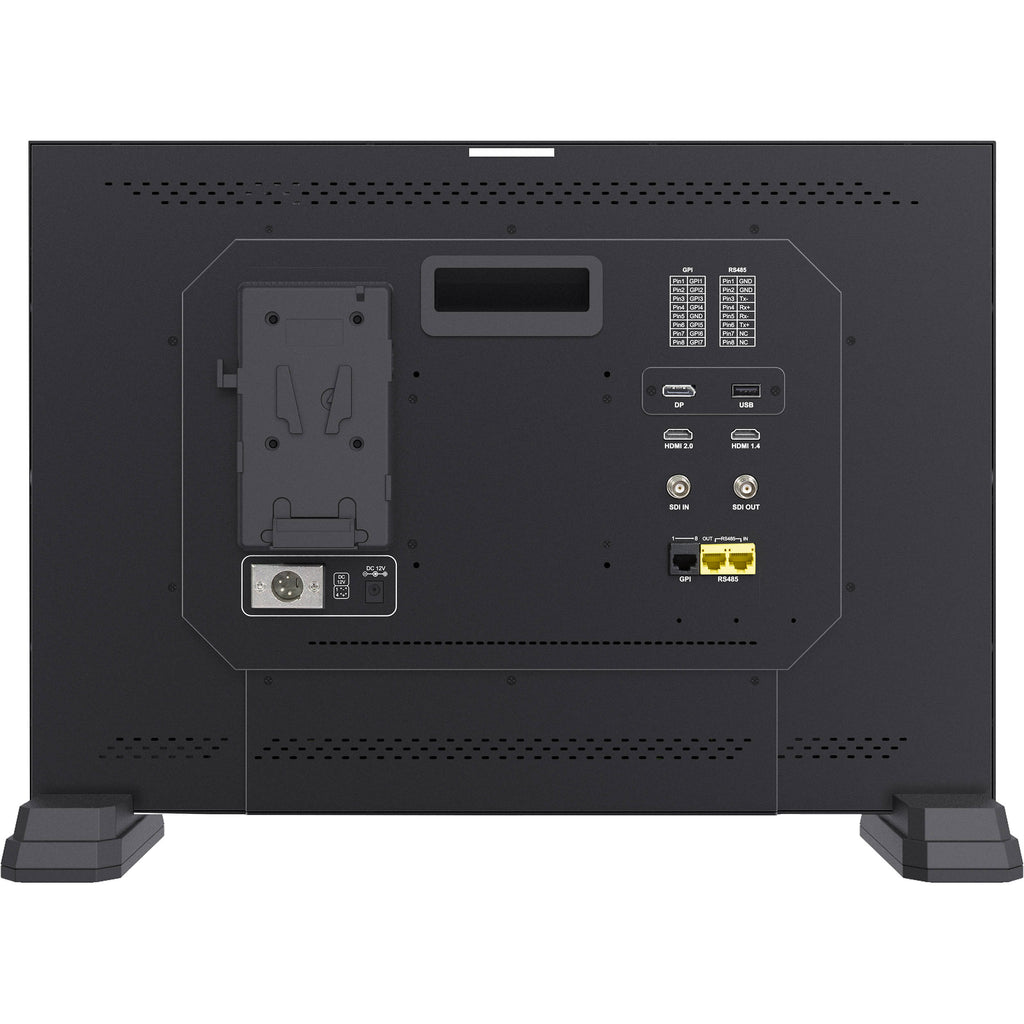

The monitor features a 3000:1 contrast ratio, 250 cd/m ² brightness, and a 178° viewing angle. It is powered by either the integrated V-mount battery plate, the 4-pin XLR input, or the barrel power input. It also features GPI and RS-485 control ports, a headphone jack, built-in speakers, three-color LED tally light, and control and function buttons are provided on the front. The monitor's image analysis functions include focus assist, zoom, histogram, and pixel-to-pixel, as well as audio meters and picture-in-picture mode. The functions are assignable across the four front-panel function buttons.

Key Features

• 1920 x 1080 resolution display
• Supports up to UHD 4K60 signals
• HDMI, 3G-SDI, DVI video inputs, 3G-SDI loop output
• Store up to 16 3D LUTs using the USB input
• RCA audio inputs
• 178/178° viewing angle
• Color depth: 16.7 million colors
• GPI and RS-485 control ports
• Built-in red/green/yellow LED tally indicators
• 3.5mm stereo headphone jack
• Built-in speakers
• Integrated V-mount plate
• 250 cd/m² brightness
• 4-pin XLR and DC barrel power ports

Image Analysis Functions

• Focus assist
• Check field
• False colors
• Overexposure
• Timecode display
• 16-channel audio meter display
• Picture-in-picture
• Overscan
• Anamorphic mode
• Pixel-to-pixel
• Center, ratio, and safety markers
• Aspect ratio
• Histogram
• Safe marker (80, 85, 90, 93, 96, 2.35:1)
• Image freeze
• Zoom
• Rotation
• Gamma selection

Number of Displays	1
Panel Type	IPS-Type LCD
Display Size	21.5" / 54.6 cm
Screen Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	250 cd/m 2
Contrast Ratio	3000:1
Dot Pitch	248.25 x 248.25 &microm
Pixels Per Inch (ppi)	102 ppi
Image Controls	Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Marker Color, Picture-in-Picture, Pixel-to-Pixel Zoom, Screen Markers

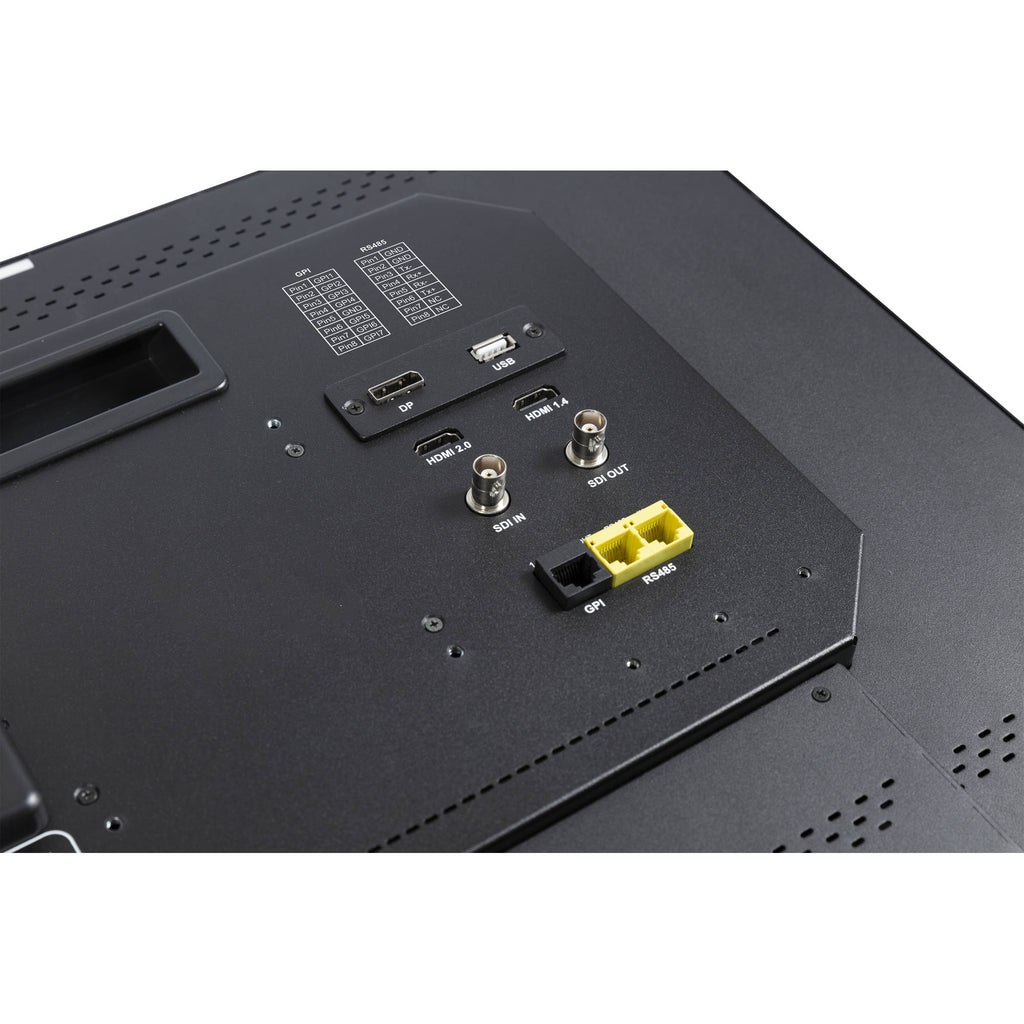

Video	1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 1.4) Input 1 x BNC (3G-SDI) Input 1 x DisplayPort Input 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI SDI
Audio	1 x 2RCA Input 1 x 3.5 mm Headphone Output
Built-In Speaker	2
Power	1 x 4-Pin XLR Input 1 x Barrel Input
Other I/O	1 x RS-485 (RJ45) Input 1 x RS-485 (RJ45) Output 1 x GPI (RJ45) Input 1 x USB 2.0 (USB Type-A) Input
Card Slot	None
Wi-Fi	None

Video Format

HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p 576i 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i

DC Input Power	9 to 24 VDC
Battery Type	1 x V-Mount
Power Consumption	27 W (Maximum)

Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Material of Construction	Aluminum
Dimensions (W x H x D)	20.14 x 14 x 1.42" / 511.6 x 355.6 x 36 mm
Weight	9.70 lb / 4.4 kg
Warranty Length	Limited 1-Year Warranty

Package Weight	13.1 lb
Box Dimensions (LxWxH)	24 x 19.5 x 5"
