Description
FeelWorld ATEM156 Overview

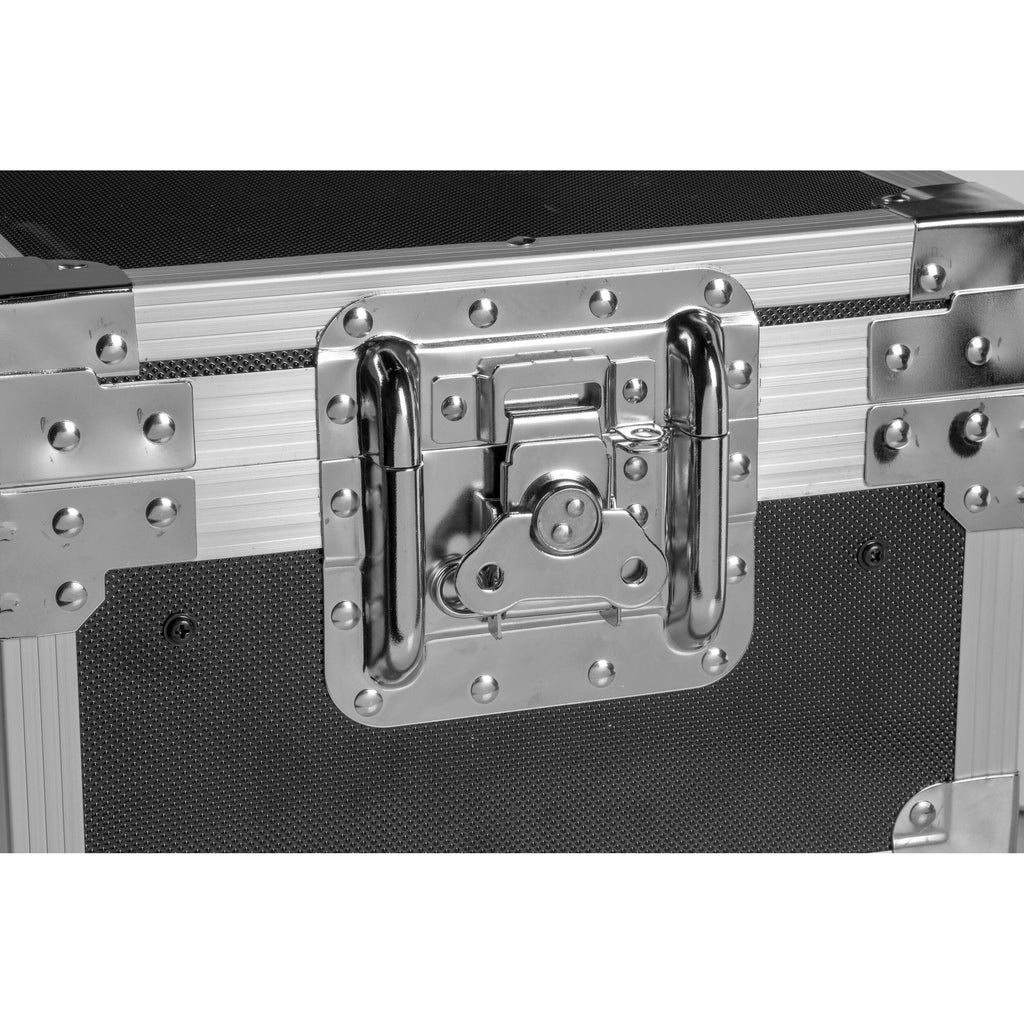

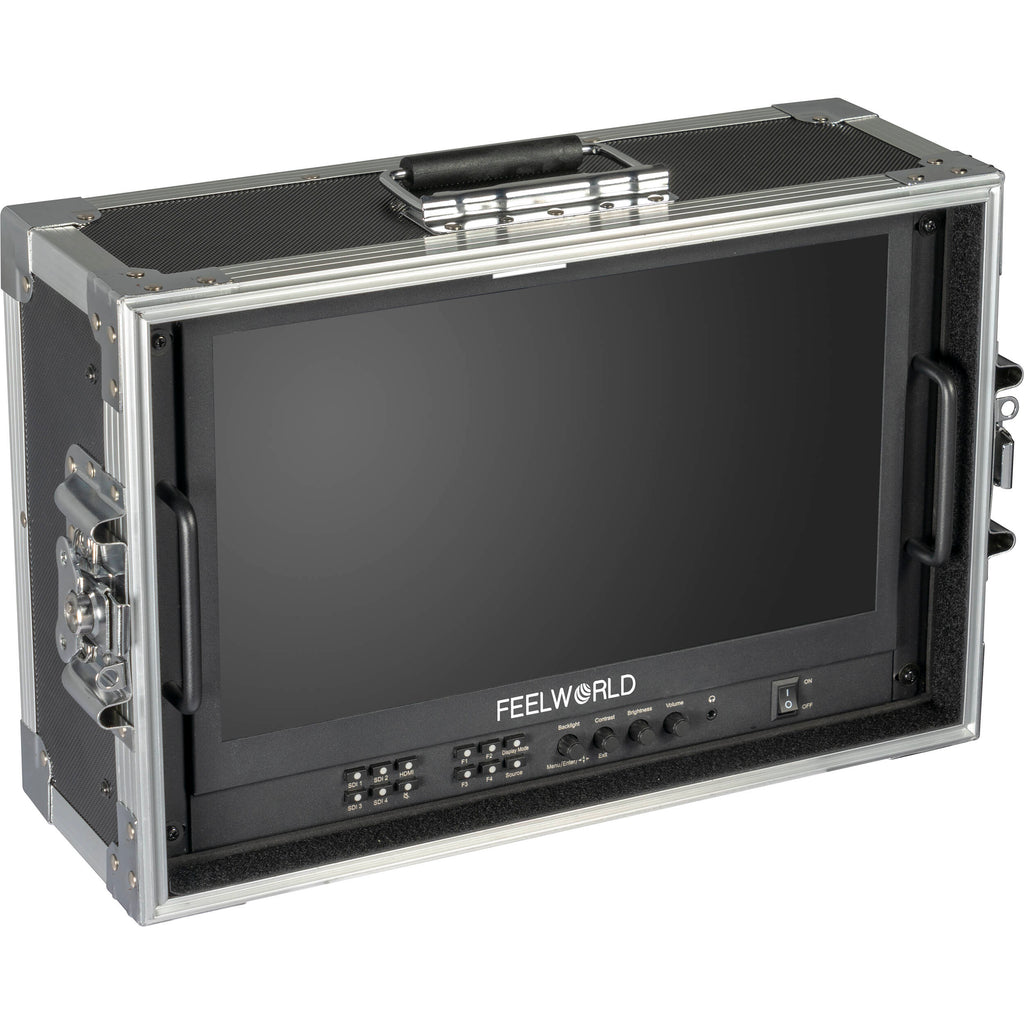

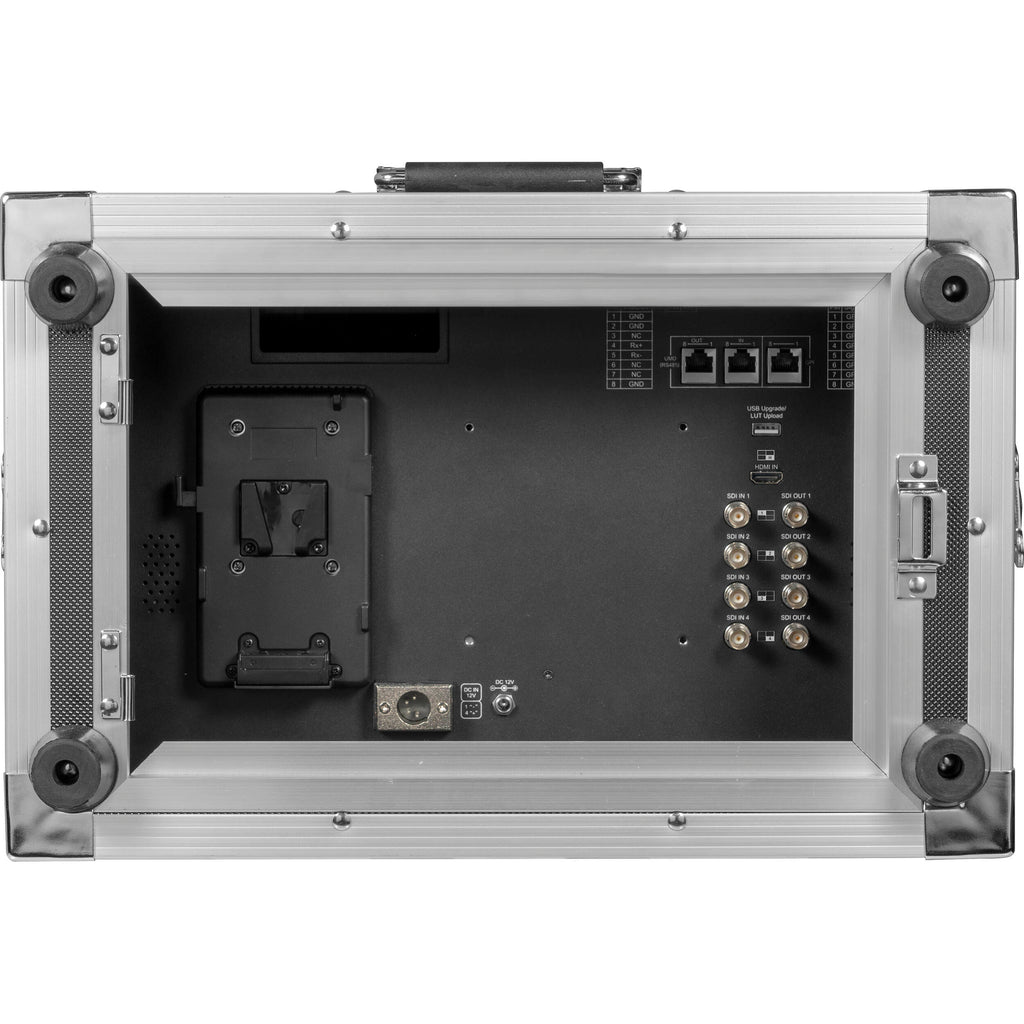

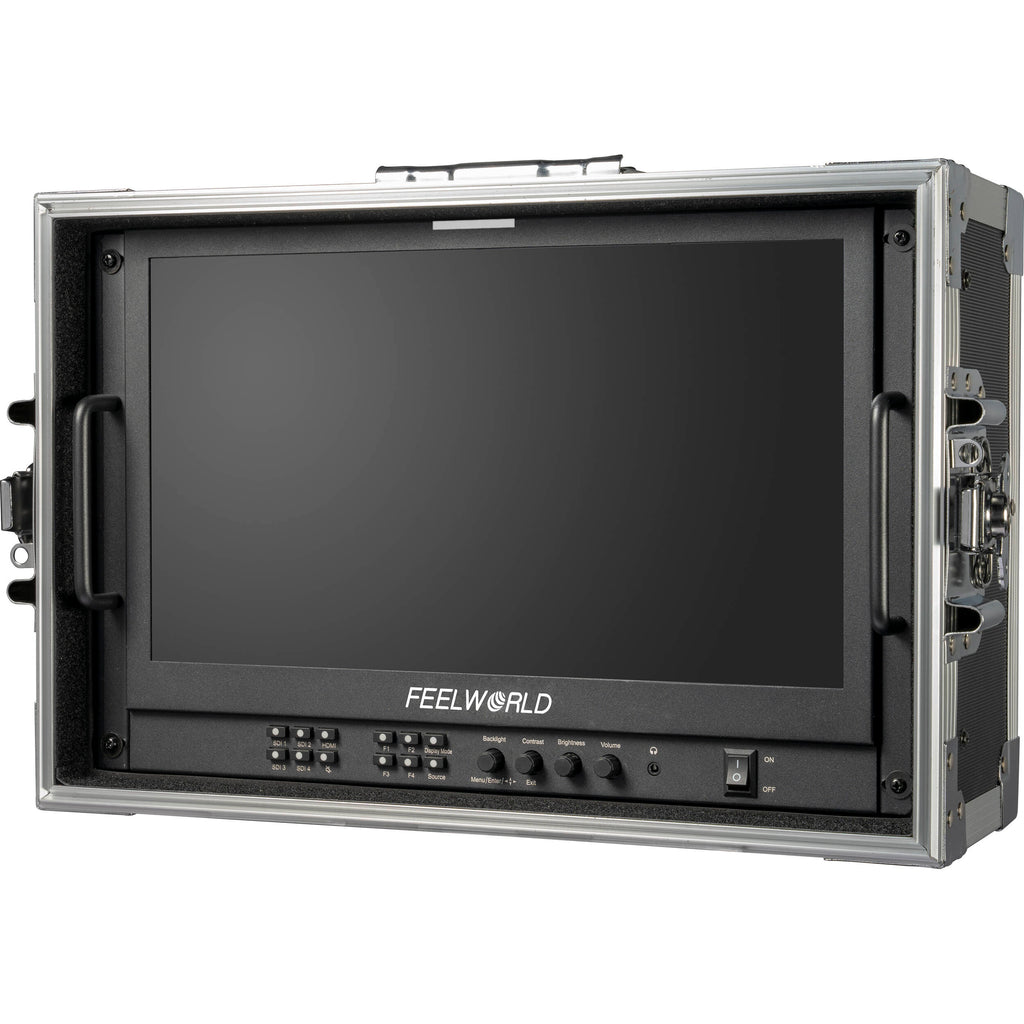

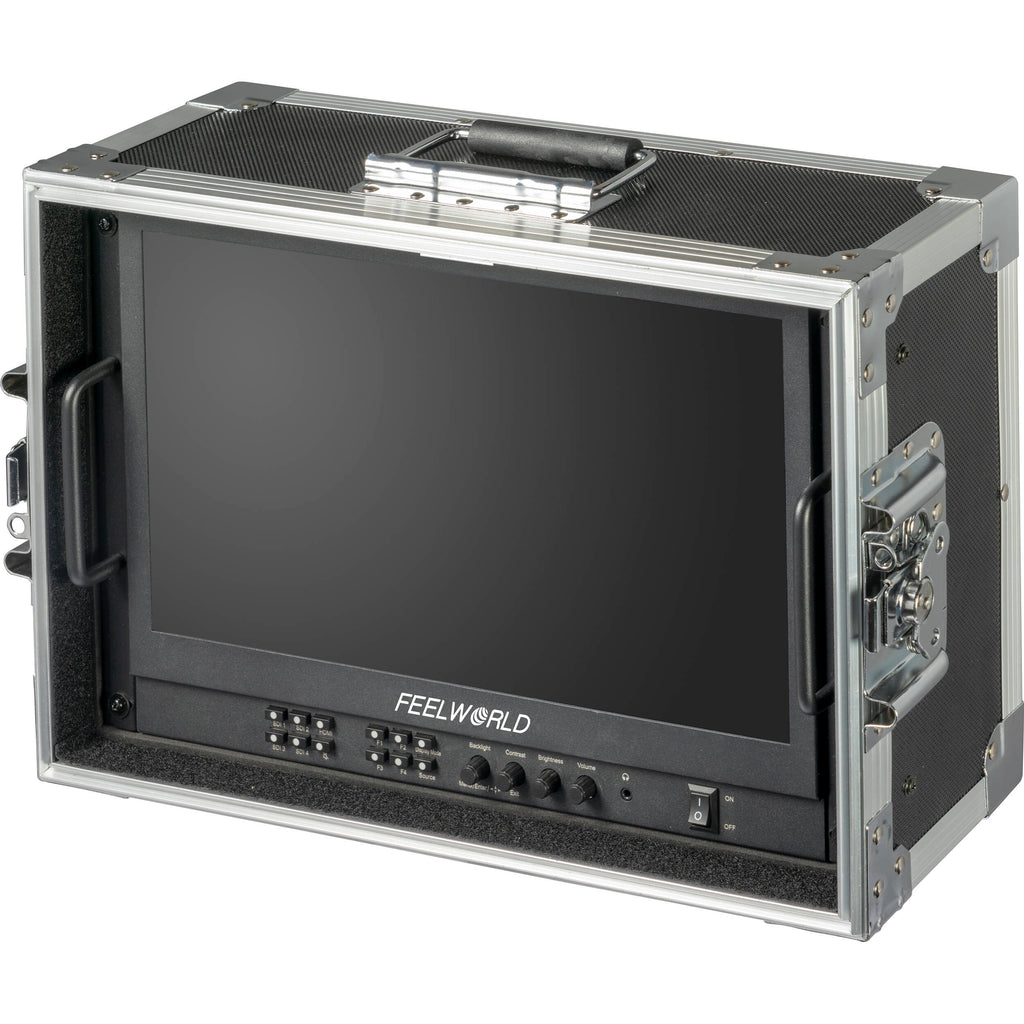

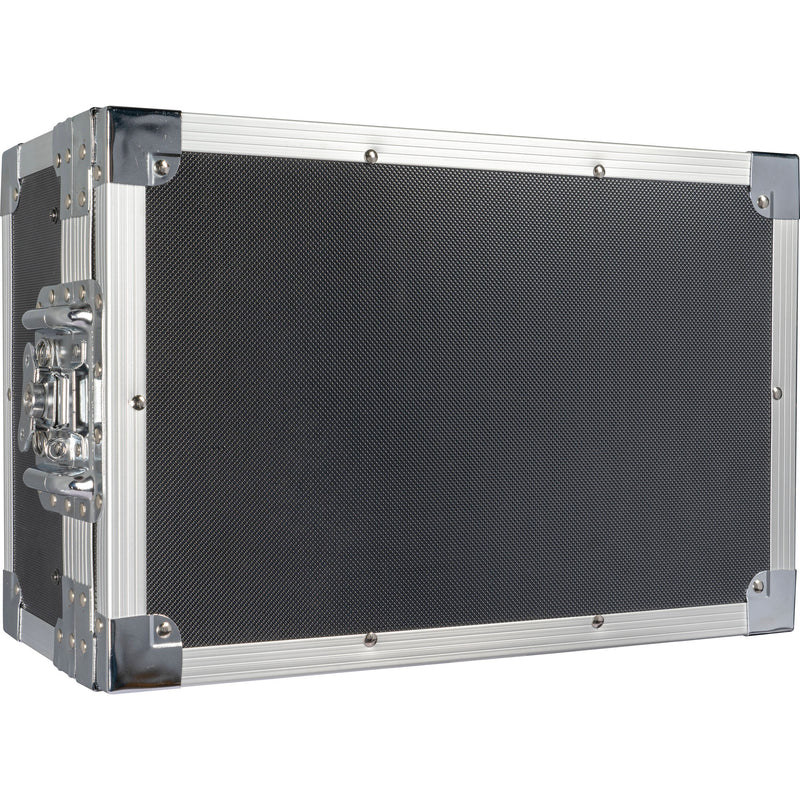

The 15.6" Multicamera Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 200 cd/m2 brightness. The rear panel contains one HDMI input, four 3G-SDI inputs, and four 3G-SDI outputs, and it supports quad-view and PiP display layouts so you can view inputs simultaneously. The monitor is installed in a carry-on aluminum case that features a rear cover to access the ports and battery, and the front cover installs to protect the monitor for transport. It can be carried using a handle on top.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A USB input allows you to add custom 3D LUTs and supports GPI and RS-485 control. A V-mount plate is built into the back for powering in the field, away from a mains source, and a VESA mounting pattern is on the back for alternate mounting options.
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
- Display rotate (0, 90, 180, 270°, H/V mirror)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
- Line color (red, green, blue, white)
In the Box
- FeelWorld 15.6" Multicamera Broadcast Director Monitor (Carry-On)
- Power Adapter
- V-Mount Battery Plate
- Mini-HDMI Cable
- SDI Cable
- Sun Hood
- Suitcase Enclosure
FeelWorld ATEM156 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 15.6" / 39.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 85° Vertical: 85° |
| Touchscreen | No |
| Maximum Brightness | 200 cd/m2 |
| Contrast Ratio | 800:1 |
| Dot Pitch | 0.17925 x 0.17925 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 141 ppi |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
| Video I/O | 4 x BNC (3G-SDI) Input 1 x HDMI Input 4 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input 1 x RJ45 (GPI) Input 1 x RJ45 (RS-485) Input 1 x RJ45 (RS-485) Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p HDMI 1080p: 60/59.94/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| DC Input Power | 12 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 21 W |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 14.6 x 10.3 x 1.1" / 372 x 262 x 28.4 mm, Excluding Case, Stand |
| Weight | 3.46 lb / 1.57 kg, Excluding Case |
| Package Weight | 19.06 lb |
| Box Dimensions (LxWxH) | 21 x 13.7 x 11.7" |
FeelWorld ATEM156 Reviews
Great Monitor for Price
This monitor works as advertised... but the ability to monitor multiple sources can't be underestimated and this simple but effective device delivers. It made a live stream event much easier. When using it in combination with the Black Magic ATEM switcher, it gave us some additional flexibility with inputs and outputs that we wouldn't have had otherwise.
Very good.
Works as it should. Wish it had multi SDI inputs
Great monitor for the money!
I would say it is even better than I expected.
Great portable monitor!
I was hesitant at first, but this monitor is a great little on set monitor. Good picture quality, and easy to use menu. Also, it is very light making it a great option for quick interview shoots or live streams.
Good product
Good product. had product in stock and got it to me fast.
Control of BMPCC 4K cameras not possible
Control of BMPCC 4K cameras not possible. I bought the monitor to connect my BMCC4k and control them with the ATEM mini pro software but as soon as I pass the video signal through the monitor I lose the possibility of controlling the cameras via the ATEM software. Too bad. Otherwise the quality and functions of the monitor are excellent.
This is what I meant. Very good streaming monitor.
This is what I meant. Very good streaming monitor.
Una excelente opcin
Una excelente opcin El monitor es la mejor combinacin para ATEM mini, fcil de operar y muy ligero de peso, lo que hacen que pueda transportarse sin problemas.
