| ₹ 91670.0 includes GST and import duties. | |
| B2B customers can avail ₹ 13979.68 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

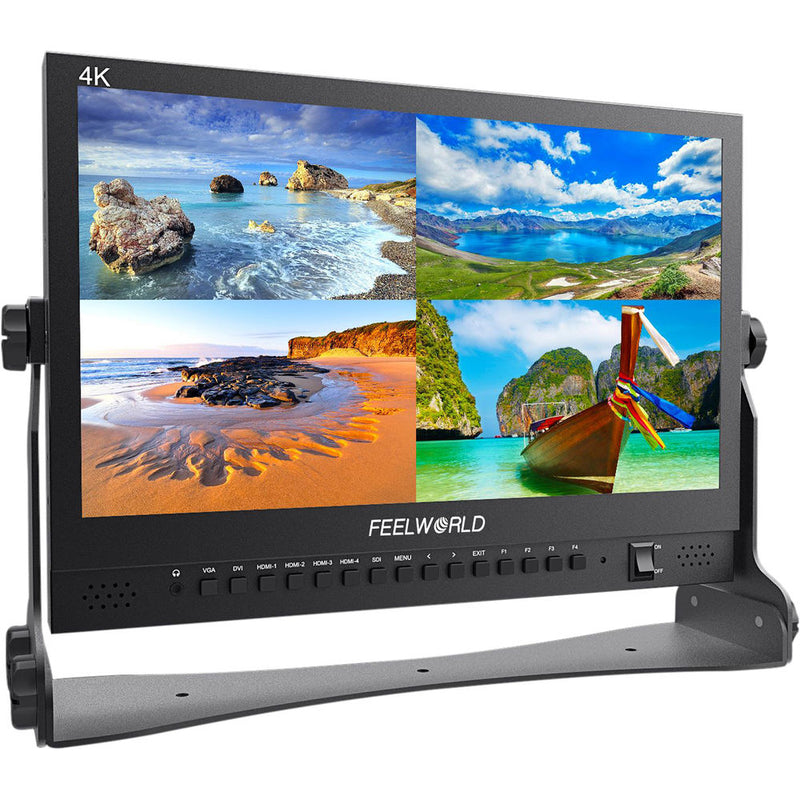

The 15.6" 4K IPS Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 3840 x 2160 and 300 cd/m 2 brightness. The rear panel contains SDI, HDMI, DVI, component, and composite inputs; outputs are available for SDI, HDMI, component, and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. A U-bracket is also included for convenient tabletop mounting.
- Key Features
-
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- Overscan
- Display rotate (0, 90, 180, 270°)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%)
- Line color (red, green, blue, white)
- Color temperature adjustment
- Built-in LED tally indicators (red, green, yellow)
| Screen Size | 15.6" (39.6 cm) IPS |
| Resolution | 3840 x 2160p |
| Display Colors | 16.7 million colors (8-bit) |
| Dot Pitch | 0.0897 x 0.0897 mm |
| Aspect Ratio | 16:9 |
| Brightness | 300 cd/m 2 |
| Contrast | 800:1 |
| Backlight | LED |
| Response Time | 25 ms |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| Inputs | 1 x HDMI 2.0 3 x HDMI 1.4 1 x HD-SDI 1 x DVI 1 x VGA 2 x RCA (L/R), audio 1 x Tally 1 x USB, for upgrade |
| Outputs | 1 x SDI 1 x 3.5 mm stereo headphone jack |
| Supported Video Formats | SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29/30/50/59.94/60 576i 480i HDMI HDMI 2.0: UHD 4K 23.98/24/25/29.97/30/50/59.94/60 HDMI 1.4: UHD 4K 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29/30/50/59.94/60 576p/i 480p/i |
| Audio | Headphone jack Speaker |
| Power Consumption | ?18 W |
| Input Voltage | 12 to 24 VDC |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 14.6 x 10.3 x 1.1" (37.2 x 26.2 x 2.8 cm) without U-bracket |
| Weight | 4.4 lb (2.03 kg) without U-bracket |
| Packaging Info | |
|---|---|
| Package Weight | 7.35 lb |
| Box Dimensions (LxWxH) | 16.8 x 16.3 x 5.4" |
- 1.5A DC Power Adapter
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- U-Bracket
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 89836.6 |
| 3-5 | ₹ 88919.9 |
| 5-10 | ₹ 87086.5 |
| 10+ | ₹ 85253.1 |
Bulk discount will be automatically applied during checkout based on quantity.
