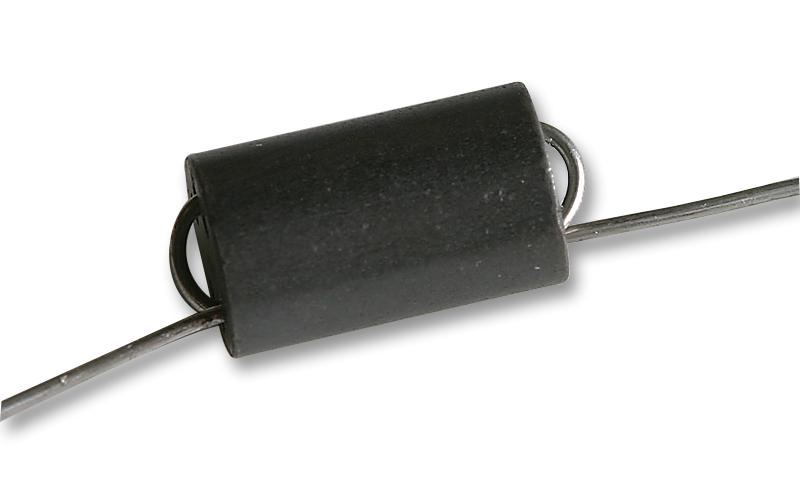

The 2944666661 is a Wound Bead with 44-grade material. A NiZn ferrite developed to combine a high suppression performance, from 30 to 500MHz, with a very high DC resistivity. Wire used for winding is oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. Bead is controlled for impedance limits only. Minimum impedance values are specified for the + marked frequencies. The 44 material wound bead is tested on the 4193A vector impedance meter.
- Minimum impedance is typically the listed impedance less 20%
- 0.25cal/g/°C Specific heat
- 3.5 to 4.5mW/cm-°C Thermal conductivity
- -55 to 125°C Operating temperature range
Applications
Industrial
Product details
| Outer Diameter |
6mm |
| Length |
10mm |
| Inner Diameter |
0.75mm |
| Frequency Min |
1MHz |
| Frequency Max |
200MHz |
| Impedance @ 100MHz |
470ohm |
| Product Range |
- |
Other details
| Brand |
FAIR-RITE |
| Part Number |
2944666661 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
